概要
高位合成言語アセンブラを作る。
論理式から、真理値表を作る。
投入する論理式。
( ( ( a & b ) | ( a & c ) ) | ( b & c ) )
( ( ( ( a & b ) & c ) | ( ( a & ( ~b ) ) & ( ~c ) ) ) | ( ( ( ( ~a ) & b ) & ( ~c ) ) | ( ( ( ~a ) & ( ~b ) ) & c ) ) )

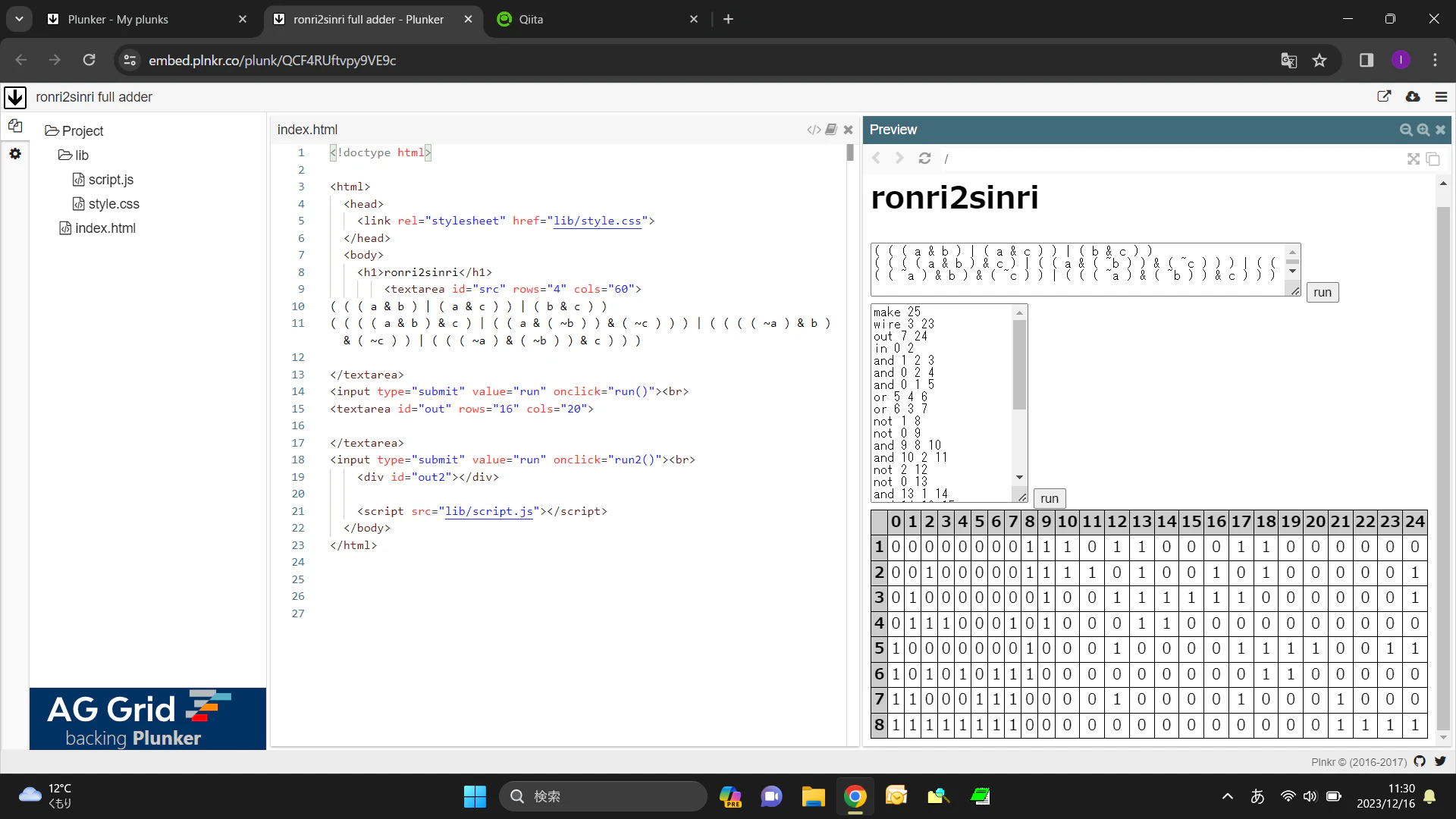

写真
生成した論理アセンブラ
make 25
wire 3 23
out 7 24
in 0 2
and 1 2 3
and 0 2 4
and 0 1 5
or 5 4 6
or 6 3 7
not 1 8
not 0 9
and 9 8 10
and 10 2 11
not 2 12
not 0 13
and 13 1 14
and 14 12 15
or 15 11 16
not 2 17
not 1 18
and 0 18 19
and 19 17 20
and 0 1 21
and 21 2 22
or 22 20 23
or 23 16 24
サンプルコード
var src = document.getElementById("src");
var out = document.getElementById("out");
var c0;
class C {
constructor(n) {
this.h = "";
this.n = n;
this.s = [];
var t = new Array(n);
for (var i = 0; i < n; i++)
{
t[i] = 0;
}
this.s.push(t);
return this;
}
init(a, b) {
b = b + 1;
for (var i = a; i < b; i++)
{
var t = [];
for (var j = 0; j < this.s.length; j++)
{
var u = this.s[j];
u[i] = 0;
t.push(u.slice());
u[i] = 1;
t.push(u);
}
this.s = t;
}
return this;
}
xor(a, b, c) {
for (var j = 0; j < this.s.length; j++)
{
this.s[j][c] = this.s[j][a] ^ this.s[j][b];
}
return this;
}
nand(a, b, c) {
for (var j = 0; j < this.s.length; j++)
{
var s = this.s[j][a] & this.s[j][b];
if (s == 0)
{
this.s[j][c] = 1;
}
else
{
this.s[j][c] = 0;
}
}
return this;
}
nor(a, b, c) {
for (var j = 0; j < this.s.length; j++)
{
var s = this.s[j][a] | this.s[j][b];
if (s == 0)
{
this.s[j][c] = 1;
}
else
{
this.s[j][c] = 0;
}
}
return this;
}
not(a, b) {
for (var j = 0; j < this.s.length; j++)
{
var s = !this.s[j][a];
if (s == true)
{
this.s[j][b] = 1;
}
else
{
this.s[j][b] = 0;
}
}
return this;
}
and(a, b, c) {
for (var j = 0; j < this.s.length; j++)
{
this.s[j][c] = this.s[j][a] & this.s[j][b];
}
return this;
}
or(a, b, c) {
for (var j = 0; j < this.s.length; j++)
{
this.s[j][c] = this.s[j][a] | this.s[j][b];
}
return this;
}
get() {
return this.s;
}
table() {
this.h += '<table>';
for (var row = 0; row < this.s.length + 1; row++)
{
this.h +='<tr>';
for (var col = 0; col < this.n + 1; col++)
{
if (col === 0 && row === 0)
{
this.h += '<th> <\/th>';
}
else if (col === 0 && row !== 0)
{
this.h += '<th>' + row + '<\/th>';
}
else if (row === 0)
{
this.h += '<th>' + (col - 1) + '<\/th>';
}
else
{
var v = this.s[row - 1][col- 1];
this.h += '<td>' + v + '<\/td>';
}
}
this.h += '<\/tr>';
}
this.h += '<\/table>';
document.getElementById('out2').innerHTML = this.h;
}
}
function run2() {
var str = out.value;
var codes = str.split("\n");
var len = codes.length;
var i;
for (i = 0; i < len; i++)
{
var code = codes[i].split(" ");
switch (code[0])
{
case "":
break;
case "out":
break;
case "wire":
break;
case "make":
var a = parseInt(code[1]);
c0 = new C(a);
break;
case "in":
var a = parseInt(code[1]);
var b = parseInt(code[2]);
c0.init(a, b);
break;
case "nand":
var a = parseInt(code[1]);
var b = parseInt(code[2]);
var c = parseInt(code[3]);
c0.nand(a, b, c);
break;
case "xor":
var a = parseInt(code[1]);
var b = parseInt(code[2]);
var c = parseInt(code[3]);
c0.xor(a, b, c);
break;
case "and":
var a = parseInt(code[1]);
var b = parseInt(code[2]);
var c = parseInt(code[3]);
c0.and(a, b, c);
break;
case "or":
var a = parseInt(code[1]);
var b = parseInt(code[2]);
var c = parseInt(code[3]);
c0.or(a, b, c);
break;
case "nor":
var a = parseInt(code[1]);
var b = parseInt(code[2]);
var c = parseInt(code[3]);
c0.nor(a, b, c);
break;
case "not":
var a = parseInt(code[1]);
var b = parseInt(code[2]);
c0.not(a, b);
break;
default:
alert(code[0]);
break;
}
}
c0.table();
}
function run() {
var w = "";
var in0 = 0;
var in1 = 2;
var ou0 = 0;
var ou1 = 0;
var z = 3;
var v = ["a", "b", "c", "d", "e", "f", "g", "h", "i", "j", "k", "l", "m", "n", "o", "p", "q", "r", "s", "t", "u", "v", "w", "x", "y", "z"];
var str = src.value;
var codes = str.split("\n");
var len = codes.length;
var i;
w += "in " + in0 + " " + in1 + "\n";
for (i = 0; i < len; i++)
{
while (codes[i].length > 1)
{
var o = codes[i].lastIndexOf("(");
var p = codes[i].indexOf(")", o);
var x = 0;
var y = "";
code = codes[i].substring(o + 2, p - 1);
//alert(code);
var co = code.split(" ");
if (co.length == 1)
{
switch (co[0])
{
case "":
break;
case "~a":
w += "not 0 " + z + "\n";
z++;
break;
case "~b":
w += "not 1 " + z + "\n";
z++;
break;
case "~c":
w += "not 2 " + z + "\n";
z++;
break;
default:
alert(co[0]);
break;
}
}
if (co.length == 3)
{
switch (co[0])
{
case "":
break;
case "a":
x = 0;
break;
case "b":
x = 1;
break;
case "c":
x = 2;
break;
case "d":
x = 3;
break;
case "e":
x = 4;
break;
case "f":
x = 5;
break;
case "g":
x = 6;
break;
case "h":
x = 7;
break;
case "i":
x = 8;
break;
case "j":
x = 9;
break;
case "k":
x = 10;
break;
case "l":
x = 11;
break;
case "m":
x = 12;
break;
case "n":
x = 13;
break;
case "o":
x = 14;
break;
case "p":
x = 15;
break;
case "q":
x = 16;
break;
case "r":
x = 17;
break;
case "s":
x = 18;
break;
case "t":
x = 19;
break;
case "u":
x = 20;
break;
case "v":
x = 21;
break;
case "w":
x = 22;
break;
case "x":
x = 23;
break;
case "y":
x = 24;
break;
case "z":
x = 25;
break;
default:
alert(co[0]);
break;
}
switch (co[1])
{
case "":
break;
case "&":
y = "and ";
break;
case "|":
y = "or ";
break;
default:
alert(co[1]);
break;
}
switch (co[2])
{
case "":
break;
case "a":
w += y + x + " 0 " + z + "\n";
z++;
break;
case "b":
w += y + x + " 1 " + z + "\n";
z++;
break;
case "c":
w += y + x + " 2 " + z + "\n";
z++;
break;
case "d":
w += y + x + " 3 " + z + "\n";
z++;
break;
case "e":
w += y + x + " 4 " + z + "\n";
z++;
break;
case "f":
w += y + x + " 5 " + z + "\n";
z++;
break;
case "g":
w += y + x + " 6 " + z + "\n";
z++;
break;
case "h":
w += y + x + " 7 " + z + "\n";
z++;
break;
case "i":
w += y + x + " 8 " + z + "\n";
z++;
break;
case "j":
w += y + x + " 9 " + z + "\n";
z++;
break;
case "k":
w += y + x + " 10 " + z + "\n";
z++;
break;
case "l":
w += y + x + " 11 " + z + "\n";
z++;
break;
case "m":
w += y + x + " 12 " + z + "\n";
z++;
break;
case "n":
w += y + x + " 13 " + z + "\n";
z++;
break;
case "o":
w += y + x + " 14 " + z + "\n";
z++;
break;
case "p":
w += y + x + " 15 " + z + "\n";
z++;
break;
case "q":
w += y + x + " 16 " + z + "\n";
z++;
break;
case "r":
w += y + x + " 17 " + z + "\n";
z++;
break;
case "s":
w += y + x + " 18 " + z + "\n";
z++;
break;
case "t":
w += y + x + " 19 " + z + "\n";
z++;
break;
case "u":
w += y + x + " 20 " + z + "\n";
z++;
break;
case "v":
w += y + x + " 21 " + z + "\n";
z++;
break;
case "w":
w += y + x + " 22 " + z + "\n";
z++;
break;
case "x":
w += y + x + " 23 " + z + "\n";
z++;
break;
case "y":
w += y + x + " 24 " + z + "\n";
z++;
break;
case "z":
w += y + x + " 25 " + z + "\n";
z++;
break;
default:
alert(co[2]);
break;
}
}
codes[i] = codes[i].substring(0, o) + v[z - 1] + codes[i].substring(p + 1);
}
if (i == 0) ou0 = z - 1;
if (i == 1) ou1 = z - 1;
}
out.value = "make " + z + "\n";
out.value += "wire 3 " + (z - 2) + "\n";
out.value += "out " + ou0 + " " + ou1 + "\n";
out.value += w;
}
成果物
以上。
