wslでelixir その98

概要

wsl(wsl2じゃない)で、elixirやってみた。
練習問題、やってみた。

練習問題

Livebookでtensorflow.jsでsinを学習せよ。

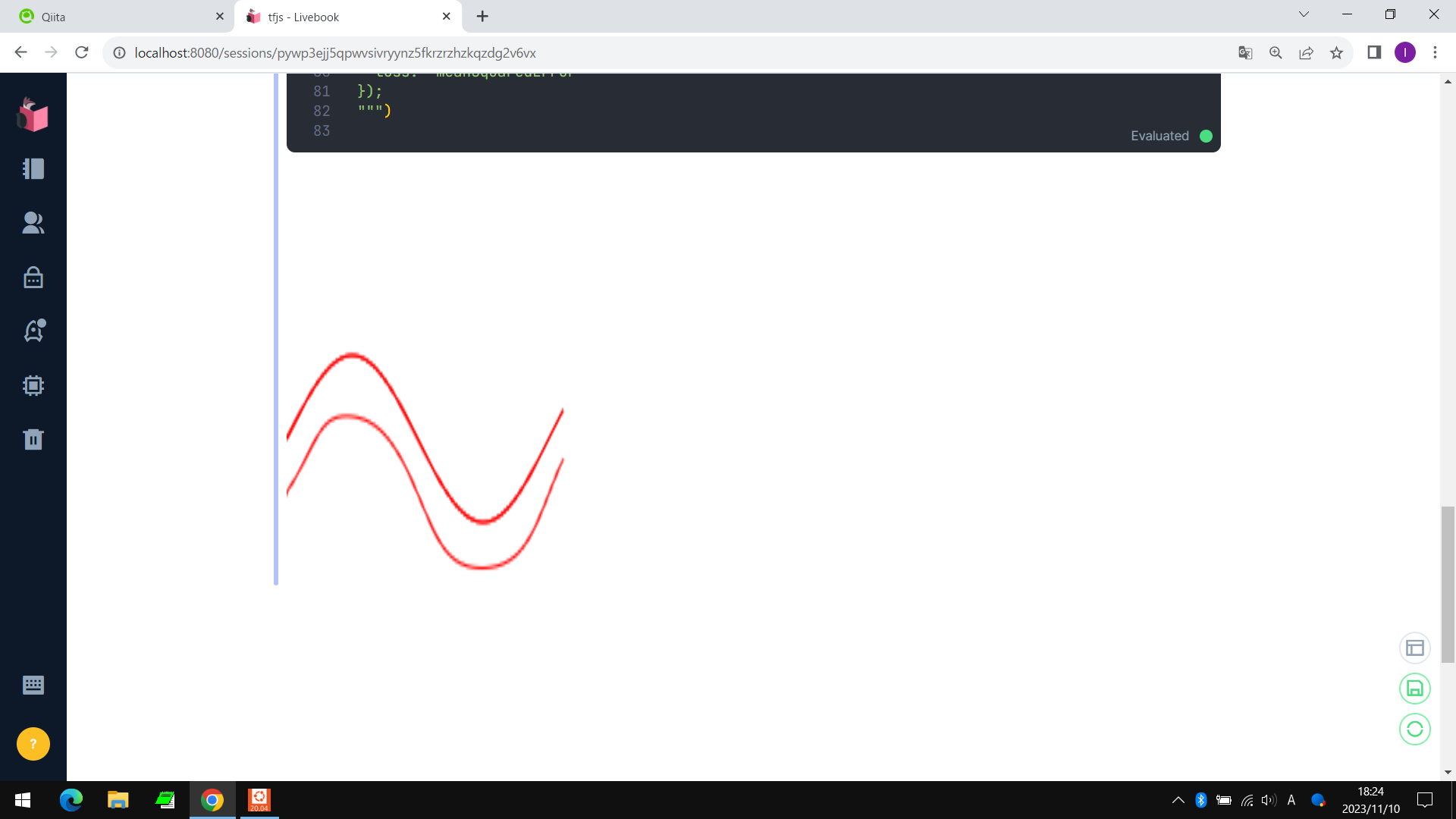

写真

サンプルコード

defmodule KinoTF.Sin do
	use Kino.JS
	def new(html) do
	Kino.JS.new(__MODULE__, html)
	end
	asset "main.js" do
	"""
	import "https://cdn.jsdelivr.net/npm/@tensorflow/tfjs/dist/tf.min.js";
	function draw(ctx, data, n) {
		var hc = n * 20 + 100;
		ctx.strokeStyle = "#f00";
		ctx.lineWidth = 1;
		ctx.moveTo(0, hc);
		for (var i = 1; i < 200; i++)
		{
			ctx.lineTo(i, hc - data[i] * 30);
		}
		ctx.stroke();
	}
	export function init(ctx, html) {
		const canvas = document.createElement("canvas");
		canvas.style.width = "400px";
		canvas.style.height = "400px";
		ctx.root.appendChild(canvas);
		const ctx2 = canvas.getContext('2d');
		ctx2.clearRect(0, 0, canvas.width, canvas.height);
		ctx2.beginPath();
		tf.setBackend('cpu');
		const buffer = tf.buffer([200, 1]);
		const buffer2 = tf.buffer([200, 1]);
		var b = [];
		for (var i = 0; i < 200; i++)
		{
			var x = i / 30.0;
			var y = Math.sin(x);
			b.push(y);
			buffer.set(x, i, 0);
			buffer2.set(y, i, 0);
		}

		const model = tf.sequential();
		eval(html);
		const xs = buffer.toTensor();
		const ys = buffer2.toTensor();
		model.fit(xs, ys, {
			batchSize: 200,
			epochs: 6000
		}).then((d) => {
			var str = "loss = ";
			str += d.history.loss[0];
			alert(str);
			var p = [];
			for (i = 0; i < 200; i++)
			{
				var x = i / 30.0;
				var pre = model.predict(tf.tensor2d([[x]], [1, 1]));
				var f = pre.dataSync();
				p.push(f);
			}
			draw(ctx2, p, 1);
		});
    draw(ctx2, b, 0);
	}
	"""
	end
end

KinoTF.Sin.new("""
model.add(tf.layers.dense({
	units: 40,
	activation: 'tanh',
	inputShape: [1]
}));
model.add(tf.layers.dense({
	units: 1,
	activation: 'tanh'
}));
model.compile({
	optimizer: 'adam',
	loss: 'meanSquaredError'
});
""")

以上。
