three.jsでanimation system その7

概要

three.jsでanimation systemを、理解したかった。
練習問題、やってみた。

練習問題

vrmのAnimationClipを自作せよ。

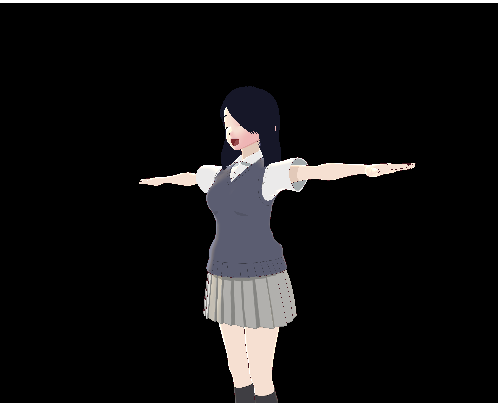

写真

サンプルコード

let lastTime;
let mixer;
let currentVrm = null;
const scene = new THREE.Scene()
const camera = new THREE.PerspectiveCamera(45, 500 / 400, 0.1, 1000)
camera.position.set(0, 1.2, -1.9)
camera.rotation.set(0, Math.PI, 0)
const renderer = new THREE.WebGLRenderer()
renderer.setSize(500, 400)
document.body.appendChild(renderer.domElement)
const directionalLight = new THREE.DirectionalLight('#ffffff', 1)
directionalLight.position.set(1, 1, 1)
scene.add(directionalLight)
const loader = new THREE.GLTFLoader();
loader.load('https://drumath2237.github.io/three-vrm-test/models/undefined-chan-toon.vrm',
	(gltf) => {
		THREE.VRM.from(gltf).then((vrm) => {
			currentVrm = vrm;
			scene.add(vrm.scene);
			vrm.blendShapeProxy.setValue(THREE.VRMSchema.BlendShapePresetName.Joy, 1.0);
			vrm.blendShapeProxy.update();
			var clip = make();
			console.log(clip);
    	mixer = new THREE.AnimationMixer(vrm.scene);
	   	mixer.clipAction(clip).setEffectiveWeight(1.0).play();
		});
	},
	(progress) => console.log('Loading model...', 100.0 * (progress.loaded / progress.total), '%'),
	(error) => console.error(error)
)
function tick() {
	requestAnimationFrame(tick)
	let time = new Date().getTime();
	if (mixer)
		mixer.update(time - lastTime);
	lastTime = time;
	renderer.render(scene, camera)
}
function make() {
	const bones = [THREE.VRMSchema.HumanoidBoneName.Hips].map((boneName) => {
		return currentVrm.humanoid.getBoneNode(boneName)
	})
	//alert(bones);
	const clip = THREE.AnimationClip.parseAnimation({
		hierarchy: [{
			keys: [{
				rot: new THREE.Quaternion().setFromEuler(new THREE.Euler(0, 0, 0)).toArray(),
				time: 0.0,
			}, {
				rot: new THREE.Quaternion().setFromEuler(new THREE.Euler(0, 1.2, 0)).toArray(),
				time: 100.0,
			}, {
				rot: new THREE.Quaternion().setFromEuler(new THREE.Euler(0, 0, 0)).toArray(),
				time: 200.0,
			}, {
				rot: new THREE.Quaternion().setFromEuler(new THREE.Euler(0, -1.2, 0)).toArray(),
				time: 300.0,
			}, {
				rot: new THREE.Quaternion().setFromEuler(new THREE.Euler(0, 0, 0)).toArray(),
				time: 400.0,
			}, {
				rot: new THREE.Quaternion().setFromEuler(new THREE.Euler(0, 0, 0)).toArray(),
				time: 500.0,
			}]
		}]
	}, bones)
	clip.tracks.some((track) => {
		track.name = track.name.replace(/^\.bones\[([^\]]+)\].(position|quaternion|scale)$/, '$1.$2')
	})
	return clip;
}

tick()

成果物

以上。
