windows11で、sketchup6 その99

Posted at

概要

windows11に、sketchup6を入れてみた。
rubyで、3Dを書く。
練習問題やってみた。

練習問題

bvhファイルをパースして、モーションをアニメーションせよ。

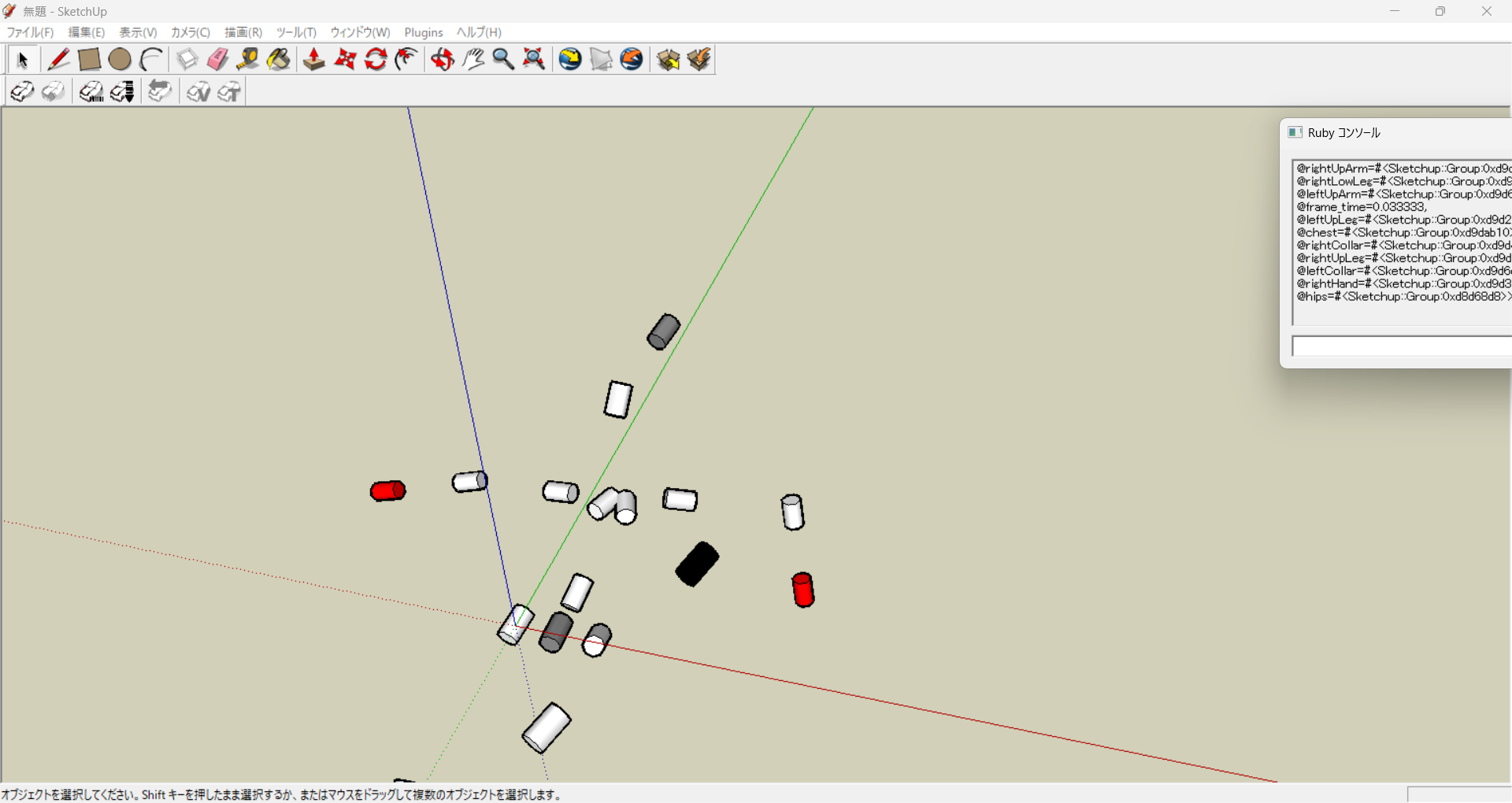

写真


サンプルコード

上手く動いていない。どこか、間違えている。

require 'sketchup.rb'


class BVH2
	class Joint
		def initialize(name = nil, offset = [0.0, 0.0, 0.0], channel = [], children = [])
			@name = name
			@offset = offset
			@channel = channel
			@children = children
		end
		attr_accessor :name, :offset, :channel, :children
	end

	attr_reader :joint, :frame, :frame_time

	def root
		@joint - (@joint.collect {|j| j.children }.flatten.uniq)
	end

	def load(src)
		renum = /[-+]?(?:[0-9]+(?:\.[0-9]*)?|(?:\.[0-9]+))(?:[eE][-+]?[0-9]+)?/
		mode = nil
		hierarchy = []
		src.split(/\n/).each do |line|
			case mode
			when :hierarchy
				case line.chomp.strip
				when /^#/ #ignore
				when /^MOTION/
					mode = :motion
				when /^ROOT\s+(\S+)/
					joint = Joint.new($1)
					@joint.push(joint)
					hierarchy.push(joint)
				when /^JOINT\s+(\S+)/
					joint = Joint.new($1)
					@joint.push(joint)
					hierarchy.push(joint)
				when /^End Site/
					joint = Joint.new(nil)
					hierarchy.push(joint)
				when /^CHANNELS\s+(\d+)\s+(.+)/
					hierarchy.last.channel = $2.split(/\s/)
				when /^OFFSET\s+(#{renum})\s+(#{renum})\s+(#{renum})/
					hierarchy.last.offset = [$1.to_f, $2.to_f, $3.to_f]
				when /^\{/
				when /^\}/
					joint = hierarchy.pop
					if hierarchy.last then
						hierarchy.last.children ||= []
						hierarchy.last.children.push(joint)
					end
				end
			when :motion
				case line.chomp.strip
				when /^#/ #ignore
				when /^HIERARCHY/
					mode = :hierarchy
				when /^Frames:\s*(\d+)/
				when /^Frame Time:\s*(#{renum})/
					@frame_time = $1.to_f
				when /^(#{renum}\s*)+/
					data = $&.split(/\s+/).collect {|s| s.to_f}
					frame = {}
					@joint.each do |joint|
						joint_data = {}
						joint.channel.each do |channel|
							joint_data[channel] = data.shift
						end
						frame[joint.name] = joint_data
					end
					@frame.push(frame)
				end
			else
				case line.chomp.strip
				when /^HIERARCHY/
					mode = :hierarchy
				when /^MOTION/
					mode = :motion
				else
					#ignore
				end
			end
		end
		self
	end

	def initialize
		@joint = []
		@frame = []
		@frame_time = 1.0 / 30.0
		model = Sketchup.active_model
		entities = model.active_entities
		@view = model.active_view
		fso = UI.openpanel "Select .bvh file", "", "*.bvh"
		return unless fso
		$bvh = self.load(File.read(fso))

		@hips = entities.add_group
		circle = @hips.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @hips.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@hips.transform! trans
		@hips.material = "Gray"

		@chest = entities.add_group
		circle = @chest.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @chest.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@chest.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[1].offset
		@chest.transform! trans

		@neck = entities.add_group
		circle = @neck.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @neck.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@neck.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[1].offset
		@neck.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[2].offset
		@neck.transform! trans

		@head = entities.add_group
		circle = @head.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @head.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@head.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[1].offset
		@head.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[2].offset
		@head.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[3].offset
		@head.transform! trans
		@head.material = "Gray"

		@leftCollar = entities.add_group
		circle = @leftCollar.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @leftCollar.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@leftCollar.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[4].offset
		@leftCollar.transform! trans

		@leftUpArm = entities.add_group
		circle = @leftUpArm.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @leftUpArm.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@leftUpArm.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[4].offset
		@leftUpArm.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[5].offset
		@leftUpArm.transform! trans

		@leftLowArm = entities.add_group
		circle = @leftLowArm.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @leftLowArm.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@leftLowArm.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[4].offset
		@leftLowArm.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[5].offset
		@leftLowArm.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[6].offset
		@leftLowArm.transform! trans

		@leftHand = entities.add_group
		circle = @leftHand.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @leftHand.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@leftHand.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[4].offset
		@leftHand.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[5].offset
		@leftHand.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[6].offset
		@leftHand.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[7].offset
		@leftHand.transform! trans
		@leftHand.material = "Red"

		@rightCollar = entities.add_group
		circle = @rightCollar.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @rightCollar.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@rightCollar.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[8].offset
		@rightCollar.transform! trans

		@rightUpArm = entities.add_group
		circle = @rightUpArm.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @rightUpArm.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@rightUpArm.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[8].offset
		@rightUpArm.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[9].offset
		@rightUpArm.transform! trans

		@rightLowArm = entities.add_group
		circle = @rightLowArm.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @rightLowArm.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@rightLowArm.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[8].offset
		@rightLowArm.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[9].offset
		@rightLowArm.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[10].offset
		@rightLowArm.transform! trans

		@rightHand = entities.add_group
		circle = @rightHand.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @rightHand.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@rightHand.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[8].offset
		@rightHand.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[9].offset
		@rightHand.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[10].offset
		@rightHand.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[11].offset
		@rightHand.transform! trans
		@rightHand.material = "Red"

		@leftUpLeg = entities.add_group
		circle = @leftUpLeg.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @leftUpLeg.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@leftUpLeg.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[12].offset
		@leftUpLeg.transform! trans

		@leftLowLeg = entities.add_group
		circle = @leftLowLeg.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @leftLowLeg.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@leftLowLeg.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[12].offset
		@leftLowLeg.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[13].offset
		@leftLowLeg.transform! trans

		@leftFoot = entities.add_group
		circle = @leftFoot.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @leftFoot.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@leftFoot.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[12].offset
		@leftFoot.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[13].offset
		@leftFoot.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[14].offset
		@leftFoot.transform! trans
		@leftFoot.material = "Black"

		@rightUpLeg = entities.add_group
		circle = @rightUpLeg.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @rightUpLeg.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@rightUpLeg.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[15].offset
		@rightUpLeg.transform! trans

		@rightLowLeg = entities.add_group
		circle = @rightLowLeg.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @rightLowLeg.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@rightLowLeg.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[15].offset
		@rightLowLeg.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[16].offset
		@rightLowLeg.transform! trans

		@rightFoot = entities.add_group
		circle = @rightFoot.entities.add_circle [0, 0, 0], [0, 1, 0], 1, 8
		circle_face = @rightFoot.entities.add_face circle
		circle_face.pushpull -3.0
		trans = Geom::Transformation.translation $bvh.joint[0].offset
		@rightFoot.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[15].offset
		@rightFoot.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[16].offset
		@rightFoot.transform! trans
		trans = Geom::Transformation.translation $bvh.joint[17].offset
		@rightFoot.transform! trans
		@rightFoot.material = "Black"

		@n = 0
		@id = UI.start_timer(3.0, true) {
			tick
		}
	end

	def tick
		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@hips.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@hips.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		@hips.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@hips.transform! trans


		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@chest.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@chest.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@chest.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@chest.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Chest"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Chest"]["Xrotation"] - $bvh.frame[@n - 1]["Chest"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @chest.bounds.center, X_AXIS, (sa).degrees
		@chest.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Chest"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Chest"]["Yrotation"] - $bvh.frame[@n - 1]["Chest"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @chest.bounds.center, Y_AXIS, (sa).degrees
		@chest.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Chest"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Chest"]["Zrotation"] - $bvh.frame[@n - 1]["Chest"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @chest.bounds.center, Z_AXIS, (sa).degrees
		@chest.transform! trans

		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@neck.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@neck.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@neck.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@neck.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Chest"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Chest"]["Xrotation"] - $bvh.frame[@n - 1]["Chest"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @chest.bounds.center, X_AXIS, (sa).degrees
		@neck.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Chest"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Chest"]["Yrotation"] - $bvh.frame[@n - 1]["Chest"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @chest.bounds.center, Y_AXIS, (sa).degrees
		@neck.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Chest"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Chest"]["Zrotation"] - $bvh.frame[@n - 1]["Chest"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @chest.bounds.center, Z_AXIS, (sa).degrees
		@neck.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Neck"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Neck"]["Xrotation"] - $bvh.frame[@n - 1]["Neck"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @chest.bounds.center, X_AXIS, (sa).degrees
		@neck.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Neck"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Neck"]["Yrotation"] - $bvh.frame[@n - 1]["Neck"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @chest.bounds.center, Y_AXIS, (sa).degrees
		@neck.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Neck"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Neck"]["Zrotation"] - $bvh.frame[@n - 1]["Neck"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @chest.bounds.center, Z_AXIS, (sa).degrees
		@neck.transform! trans

		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@head.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@head.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@head.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@head.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Chest"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Chest"]["Xrotation"] - $bvh.frame[@n - 1]["Chest"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @chest.bounds.center, X_AXIS, (sa).degrees
		@head.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Chest"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Chest"]["Yrotation"] - $bvh.frame[@n - 1]["Chest"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @chest.bounds.center, Y_AXIS, (sa).degrees
		@head.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Chest"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Chest"]["Zrotation"] - $bvh.frame[@n - 1]["Chest"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @chest.bounds.center, Z_AXIS, (sa).degrees
		@head.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Neck"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Neck"]["Xrotation"] - $bvh.frame[@n - 1]["Neck"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @neck.bounds.center, X_AXIS, (sa).degrees
		@head.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Neck"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Neck"]["Yrotation"] - $bvh.frame[@n - 1]["Neck"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @neck.bounds.center, Y_AXIS, (sa).degrees
		@head.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Neck"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Neck"]["Zrotation"] - $bvh.frame[@n - 1]["Neck"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @neck.bounds.center, Z_AXIS, (sa).degrees
		@head.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Head"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Head"]["Xrotation"] - $bvh.frame[@n - 1]["Head"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @head.bounds.center, X_AXIS, (sa).degrees
		@head.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Head"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Head"]["Yrotation"] - $bvh.frame[@n - 1]["Head"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @head.bounds.center, Y_AXIS, (sa).degrees
		@head.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Head"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Head"]["Zrotation"] - $bvh.frame[@n - 1]["Head"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @head.bounds.center, Z_AXIS, (sa).degrees
		@head.transform! trans



		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@leftCollar.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@leftCollar.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@leftCollar.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@leftCollar.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftCollar"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftCollar"]["Xrotation"] - $bvh.frame[@n - 1]["LeftCollar"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftCollar.bounds.center, X_AXIS, (sa).degrees
		@leftCollar.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftCollar"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftCollar"]["Yrotation"] - $bvh.frame[@n - 1]["LeftCollar"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftCollar.bounds.center, Y_AXIS, (sa).degrees
		@leftCollar.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftCollar"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftCollar"]["Zrotation"] - $bvh.frame[@n - 1]["LeftCollar"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftCollar.bounds.center, Z_AXIS, (sa).degrees
		@leftCollar.transform! trans

		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@leftUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@leftUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@leftUpArm.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@leftUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftCollar"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftCollar"]["Xrotation"] - $bvh.frame[@n - 1]["LeftCollar"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftCollar.bounds.center, X_AXIS, (sa).degrees
		@leftUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftCollar"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftCollar"]["Yrotation"] - $bvh.frame[@n - 1]["LeftCollar"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftCollar.bounds.center, Y_AXIS, (sa).degrees
		@leftUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftCollar"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftCollar"]["Zrotation"] - $bvh.frame[@n - 1]["LeftCollar"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftCollar.bounds.center, Z_AXIS, (sa).degrees
		@leftUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpArm"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpArm"]["Xrotation"] - $bvh.frame[@n - 1]["LeftUpArm"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpArm.bounds.center, X_AXIS, (sa).degrees
		@leftUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpArm"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpArm"]["Yrotation"] - $bvh.frame[@n - 1]["LeftUpArm"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpArm.bounds.center, Y_AXIS, (sa).degrees
		@leftUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpArm"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpArm"]["Zrotation"] - $bvh.frame[@n - 1]["LeftUpArm"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpArm.bounds.center, Z_AXIS, (sa).degrees
		@leftUpArm.transform! trans

		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@leftLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@leftLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@leftLowArm.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@leftLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftCollar"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftCollar"]["Xrotation"] - $bvh.frame[@n - 1]["LeftCollar"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftCollar.bounds.center, X_AXIS, (sa).degrees
		@leftLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftCollar"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftCollar"]["Yrotation"] - $bvh.frame[@n - 1]["LeftCollar"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftCollar.bounds.center, Y_AXIS, (sa).degrees
		@leftLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftCollar"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftCollar"]["Zrotation"] - $bvh.frame[@n - 1]["LeftCollar"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftCollar.bounds.center, Z_AXIS, (sa).degrees
		@leftLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpArm"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpArm"]["Xrotation"] - $bvh.frame[@n - 1]["LeftUpArm"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpArm.bounds.center, X_AXIS, (sa).degrees
		@leftLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpArm"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpArm"]["Yrotation"] - $bvh.frame[@n - 1]["LeftUpArm"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpArm.bounds.center, Y_AXIS, (sa).degrees
		@leftLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpArm"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpArm"]["Zrotation"] - $bvh.frame[@n - 1]["LeftUpArm"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpArm.bounds.center, Z_AXIS, (sa).degrees
		@leftLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftLowArm"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftLowArm"]["Xrotation"] - $bvh.frame[@n - 1]["LeftLowArm"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftLowArm.bounds.center, X_AXIS, (sa).degrees
		@leftLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftLowArm"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftLowArm"]["Yrotation"] - $bvh.frame[@n - 1]["LeftLowArm"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftLowArm.bounds.center, Y_AXIS, (sa).degrees
		@leftLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftLowArm"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftLowArm"]["Zrotation"] - $bvh.frame[@n - 1]["LeftLowArm"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftLowArm.bounds.center, Z_AXIS, (sa).degrees
		@leftLowArm.transform! trans

		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@leftHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@leftHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@leftHand.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@leftHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftCollar"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftCollar"]["Xrotation"] - $bvh.frame[@n - 1]["LeftCollar"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftCollar.bounds.center, X_AXIS, (sa).degrees
		@leftHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftCollar"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftCollar"]["Yrotation"] - $bvh.frame[@n - 1]["LeftCollar"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftCollar.bounds.center, Y_AXIS, (sa).degrees
		@leftHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftCollar"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftCollar"]["Zrotation"] - $bvh.frame[@n - 1]["LeftCollar"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftCollar.bounds.center, Z_AXIS, (sa).degrees
		@leftHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpArm"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpArm"]["Xrotation"] - $bvh.frame[@n - 1]["LeftUpArm"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpArm.bounds.center, X_AXIS, (sa).degrees
		@leftHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpArm"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpArm"]["Yrotation"] - $bvh.frame[@n - 1]["LeftUpArm"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpArm.bounds.center, Y_AXIS, (sa).degrees
		@leftHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpArm"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpArm"]["Zrotation"] - $bvh.frame[@n - 1]["LeftUpArm"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpArm.bounds.center, Z_AXIS, (sa).degrees
		@leftHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftLowArm"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftLowArm"]["Xrotation"] - $bvh.frame[@n - 1]["LeftLowArm"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftLowArm.bounds.center, X_AXIS, (sa).degrees
		@leftHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftLowArm"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftLowArm"]["Yrotation"] - $bvh.frame[@n - 1]["LeftLowArm"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftLowArm.bounds.center, Y_AXIS, (sa).degrees
		@leftHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftLowArm"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftLowArm"]["Zrotation"] - $bvh.frame[@n - 1]["LeftHand"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftLowArm.bounds.center, Z_AXIS, (sa).degrees
		@leftHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftHand"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftHand"]["Xrotation"] - $bvh.frame[@n - 1]["LeftHand"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftHand.bounds.center, X_AXIS, (sa).degrees
		@leftHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftHand"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftHand"]["Yrotation"] - $bvh.frame[@n - 1]["LeftHand"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftHand.bounds.center, Y_AXIS, (sa).degrees
		@leftHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftHand"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftHand"]["Zrotation"] - $bvh.frame[@n - 1]["LeftHand"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftHand.bounds.center, Z_AXIS, (sa).degrees
		@leftHand.transform! trans


		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@rightCollar.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@rightCollar.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@rightCollar.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@rightCollar.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightCollar"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightCollar"]["Xrotation"] - $bvh.frame[@n - 1]["RightCollar"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightCollar.bounds.center, X_AXIS, (sa).degrees
		@rightCollar.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightCollar"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightCollar"]["Yrotation"] - $bvh.frame[@n - 1]["RightCollar"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightCollar.bounds.center, Y_AXIS, (sa).degrees
		@rightCollar.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightCollar"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightCollar"]["Zrotation"] - $bvh.frame[@n - 1]["RightCollar"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightCollar.bounds.center, Z_AXIS, (sa).degrees
		@rightCollar.transform! trans

		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@rightUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@rightUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@rightUpArm.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@rightUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightCollar"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightCollar"]["Xrotation"] - $bvh.frame[@n - 1]["RightCollar"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightCollar.bounds.center, X_AXIS, (sa).degrees
		@rightUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightCollar"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightCollar"]["Yrotation"] - $bvh.frame[@n - 1]["RightCollar"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightCollar.bounds.center, Y_AXIS, (sa).degrees
		@rightUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightCollar"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightCollar"]["Zrotation"] - $bvh.frame[@n - 1]["RightCollar"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightCollar.bounds.center, Z_AXIS, (sa).degrees
		@rightUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpArm"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightUpArm"]["Xrotation"] - $bvh.frame[@n - 1]["RightUpArm"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpArm.bounds.center, X_AXIS, (sa).degrees
		@rightUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpArm"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightUpArm"]["Yrotation"] - $bvh.frame[@n - 1]["RightUpArm"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpArm.bounds.center, Y_AXIS, (sa).degrees
		@rightUpArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpArm"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightUpArm"]["Zrotation"] - $bvh.frame[@n - 1]["RightUpArm"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpArm.bounds.center, Z_AXIS, (sa).degrees
		@rightUpArm.transform! trans

		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@rightLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@rightLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@rightLowArm.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@rightLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightCollar"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightCollar"]["Xrotation"] - $bvh.frame[@n - 1]["RightCollar"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightCollar.bounds.center, X_AXIS, (sa).degrees
		@rightLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightCollar"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightCollar"]["Yrotation"] - $bvh.frame[@n - 1]["RightCollar"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightCollar.bounds.center, Y_AXIS, (sa).degrees
		@rightLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightCollar"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightCollar"]["Zrotation"] - $bvh.frame[@n - 1]["RightCollar"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightCollar.bounds.center, Z_AXIS, (sa).degrees
		@rightLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpArm"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightUpArm"]["Xrotation"] - $bvh.frame[@n - 1]["RightUpArm"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpArm.bounds.center, X_AXIS, (sa).degrees
		@rightLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpArm"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightUpArm"]["Yrotation"] - $bvh.frame[@n - 1]["RightUpArm"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpArm.bounds.center, Y_AXIS, (sa).degrees
		@rightLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpArm"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightUpArm"]["Zrotation"] - $bvh.frame[@n - 1]["RightUpArm"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpArm.bounds.center, Z_AXIS, (sa).degrees
		@rightLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightLowArm"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightLowArm"]["Xrotation"] - $bvh.frame[@n - 1]["RightLowArm"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightLowArm.bounds.center, X_AXIS, (sa).degrees
		@rightLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightLowArm"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightLowArm"]["Yrotation"] - $bvh.frame[@n - 1]["RightLowArm"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightLowArm.bounds.center, Y_AXIS, (sa).degrees
		@rightLowArm.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightLowArm"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightLowArm"]["Zrotation"] - $bvh.frame[@n - 1]["RightLowArm"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightLowArm.bounds.center, Z_AXIS, (sa).degrees
		@rightLowArm.transform! trans

		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@rightHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@rightHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@rightHand.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@rightHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightCollar"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightCollar"]["Xrotation"] - $bvh.frame[@n - 1]["RightCollar"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightCollar.bounds.center, X_AXIS, (sa).degrees
		@rightHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightCollar"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightCollar"]["Yrotation"] - $bvh.frame[@n - 1]["RightCollar"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightCollar.bounds.center, Y_AXIS, (sa).degrees
		@rightHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightCollar"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightCollar"]["Zrotation"] - $bvh.frame[@n - 1]["RightCollar"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightCollar.bounds.center, Z_AXIS, (sa).degrees
		@rightHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpArm"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightUpArm"]["Xrotation"] - $bvh.frame[@n - 1]["RightUpArm"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpArm.bounds.center, X_AXIS, (sa).degrees
		@rightHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpArm"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightUpArm"]["Yrotation"] - $bvh.frame[@n - 1]["RightUpArm"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpArm.bounds.center, Y_AXIS, (sa).degrees
		@rightHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpArm"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightUpArm"]["Zrotation"] - $bvh.frame[@n - 1]["RightUpArm"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpArm.bounds.center, Z_AXIS, (sa).degrees
		@rightHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightLowArm"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightLowArm"]["Xrotation"] - $bvh.frame[@n - 1]["RightLowArm"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightLowArm.bounds.center, X_AXIS, (sa).degrees
		@rightHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightLowArm"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightLowArm"]["Yrotation"] - $bvh.frame[@n - 1]["RightLowArm"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightLowArm.bounds.center, Y_AXIS, (sa).degrees
		@rightHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightLowArm"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightLowArm"]["Zrotation"] - $bvh.frame[@n - 1]["RightHand"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightLowArm.bounds.center, Z_AXIS, (sa).degrees
		@rightHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightHand"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightHand"]["Xrotation"] - $bvh.frame[@n - 1]["RightHand"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightHand.bounds.center, X_AXIS, (sa).degrees
		@rightHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightHand"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightHand"]["Yrotation"] - $bvh.frame[@n - 1]["RightHand"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightHand.bounds.center, Y_AXIS, (sa).degrees
		@rightHand.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightHand"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightHand"]["Zrotation"] - $bvh.frame[@n - 1]["RightHand"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightHand.bounds.center, Z_AXIS, (sa).degrees
		@rightHand.transform! trans


		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@leftUpLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@leftUpLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@leftUpLeg.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@leftUpLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpLeg"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpLeg"]["Xrotation"] - $bvh.frame[@n - 1]["LeftUpLeg"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpLeg.bounds.center, X_AXIS, (sa).degrees
		@leftUpLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpLeg"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpLeg"]["Yrotation"] - $bvh.frame[@n - 1]["LeftUpLeg"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpLeg.bounds.center, Y_AXIS, (sa).degrees
		@leftUpLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpLeg"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpLeg"]["Zrotation"] - $bvh.frame[@n - 1]["LeftUpLeg"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpLeg.bounds.center, Z_AXIS, (sa).degrees
		@leftUpLeg.transform! trans

		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@leftLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@leftLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@leftLowLeg.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@leftLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpLeg"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpLeg"]["Xrotation"] - $bvh.frame[@n - 1]["LeftUpLeg"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpLeg.bounds.center, X_AXIS, (sa).degrees
		@leftLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpLeg"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpLeg"]["Yrotation"] - $bvh.frame[@n - 1]["LeftUpLeg"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpLeg.bounds.center, Y_AXIS, (sa).degrees
		@leftLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpLeg"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpLeg"]["Zrotation"] - $bvh.frame[@n - 1]["LeftUpLeg"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpLeg.bounds.center, Z_AXIS, (sa).degrees
		@leftLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftLowLeg"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftLowLeg"]["Xrotation"] - $bvh.frame[@n - 1]["LeftLowLeg"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftLowLeg.bounds.center, X_AXIS, (sa).degrees
		@leftLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftLowLeg"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftLowLeg"]["Yrotation"] - $bvh.frame[@n - 1]["LeftLowLeg"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftLowLeg.bounds.center, Y_AXIS, (sa).degrees
		@leftLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftLowLeg"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftLowLeg"]["Zrotation"] - $bvh.frame[@n - 1]["LeftLowLeg"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftLowLeg.bounds.center, Z_AXIS, (sa).degrees
		@leftLowLeg.transform! trans

		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@leftFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@leftFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@leftFoot.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@leftFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpLeg"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpLeg"]["Xrotation"] - $bvh.frame[@n - 1]["LeftUpLeg"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpLeg.bounds.center, X_AXIS, (sa).degrees
		@leftFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpLeg"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpLeg"]["Yrotation"] - $bvh.frame[@n - 1]["LeftUpLeg"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpLeg.bounds.center, Y_AXIS, (sa).degrees
		@leftFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftUpLeg"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftUpLeg"]["Zrotation"] - $bvh.frame[@n - 1]["LeftUpLeg"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftUpLeg.bounds.center, Z_AXIS, (sa).degrees
		@leftFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftLowLeg"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftLowLeg"]["Xrotation"] - $bvh.frame[@n - 1]["LeftLowLeg"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftLowLeg.bounds.center, X_AXIS, (sa).degrees
		@leftFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftLowLeg"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftLowLeg"]["Yrotation"] - $bvh.frame[@n - 1]["LeftLowLeg"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftLowLeg.bounds.center, Y_AXIS, (sa).degrees
		@leftFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftLowLeg"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftLowLeg"]["Zrotation"] - $bvh.frame[@n - 1]["LeftLowLeg"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftLowLeg.bounds.center, Z_AXIS, (sa).degrees
		@leftFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftHand"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["LeftHand"]["Xrotation"] - $bvh.frame[@n - 1]["LeftHand"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @leftHand.bounds.center, X_AXIS, (sa).degrees
		@leftFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftHand"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["LeftHand"]["Yrotation"] - $bvh.frame[@n - 1]["LeftHand"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @leftHand.bounds.center, Y_AXIS, (sa).degrees
		@leftFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["LeftHand"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["LeftHand"]["Zrotation"] - $bvh.frame[@n - 1]["LeftHand"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @leftHand.bounds.center, Z_AXIS, (sa).degrees
		@leftFoot.transform! trans


		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@rightUpLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@rightUpLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@rightUpLeg.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@rightUpLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpLeg"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightUpLeg"]["Xrotation"] - $bvh.frame[@n - 1]["RightUpLeg"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpLeg.bounds.center, X_AXIS, (sa).degrees
		@rightUpLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpLeg"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightUpLeg"]["Yrotation"] - $bvh.frame[@n - 1]["RightUpLeg"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpLeg.bounds.center, Y_AXIS, (sa).degrees
		@rightUpLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpLeg"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightUpLeg"]["Zrotation"] - $bvh.frame[@n - 1]["RightUpLeg"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpLeg.bounds.center, Z_AXIS, (sa).degrees
		@rightUpLeg.transform! trans

		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@rightLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@rightLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@rightLowLeg.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@rightLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpLeg"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightUpLeg"]["Xrotation"] - $bvh.frame[@n - 1]["RightUpLeg"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpLeg.bounds.center, X_AXIS, (sa).degrees
		@rightLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpLeg"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightUpLeg"]["Yrotation"] - $bvh.frame[@n - 1]["RightUpLeg"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpLeg.bounds.center, Y_AXIS, (sa).degrees
		@rightLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpLeg"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightUpLeg"]["Zrotation"] - $bvh.frame[@n - 1]["RightUpLeg"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpLeg.bounds.center, Z_AXIS, (sa).degrees
		@rightLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightLowLeg"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightLowLeg"]["Xrotation"] - $bvh.frame[@n - 1]["RightLowLeg"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightLowLeg.bounds.center, X_AXIS, (sa).degrees
		@rightLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightLowLeg"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightLowLeg"]["Yrotation"] - $bvh.frame[@n - 1]["RightLowLeg"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightLowLeg.bounds.center, Y_AXIS, (sa).degrees
		@rightLowLeg.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightLowLeg"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightLowLeg"]["Zrotation"] - $bvh.frame[@n - 1]["RightLowLeg"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightLowLeg.bounds.center, Z_AXIS, (sa).degrees
		@rightLowLeg.transform! trans

		trans = Geom::Transformation.translation [$bvh.frame[@n]["Hips"]["Xposition"] / 4, $bvh.frame[@n]["Hips"]["Yposition"] / 4, $bvh.frame[@n]["Hips"]["Zposition"] / 4]
		@rightFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Xrotation"] - $bvh.frame[@n - 1]["Hips"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, X_AXIS, (sa).degrees
		@rightFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Yrotation"] - $bvh.frame[@n - 1]["Hips"]["Yrotation"]
		end
		@rightFoot.transform! trans
		trans = Geom::Transformation.rotation @hips.bounds.center, Y_AXIS, (sa).degrees
		if @n == 0
			sa = $bvh.frame[@n]["Hips"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["Hips"]["Zrotation"] - $bvh.frame[@n - 1]["Hips"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @hips.bounds.center, Z_AXIS, (sa).degrees
		@rightFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpLeg"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightUpLeg"]["Xrotation"] - $bvh.frame[@n - 1]["RightUpLeg"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpLeg.bounds.center, X_AXIS, (sa).degrees
		@rightFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpLeg"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightUpLeg"]["Yrotation"] - $bvh.frame[@n - 1]["RightUpLeg"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpLeg.bounds.center, Y_AXIS, (sa).degrees
		@rightFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightUpLeg"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightUpLeg"]["Zrotation"] - $bvh.frame[@n - 1]["RightUpLeg"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightUpLeg.bounds.center, Z_AXIS, (sa).degrees
		@rightFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightLowLeg"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightLowLeg"]["Xrotation"] - $bvh.frame[@n - 1]["RightLowLeg"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightLowLeg.bounds.center, X_AXIS, (sa).degrees
		@rightFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightLowLeg"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightLowLeg"]["Yrotation"] - $bvh.frame[@n - 1]["RightLowLeg"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightLowLeg.bounds.center, Y_AXIS, (sa).degrees
		@rightFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightLowLeg"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightLowLeg"]["Zrotation"] - $bvh.frame[@n - 1]["RightLowLeg"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightLowLeg.bounds.center, Z_AXIS, (sa).degrees
		@rightFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightHand"]["Xrotation"]
		else
			sa = $bvh.frame[@n]["RightHand"]["Xrotation"] - $bvh.frame[@n - 1]["RightHand"]["Xrotation"]
		end
		trans = Geom::Transformation.rotation @rightHand.bounds.center, X_AXIS, (sa).degrees
		@rightFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightHand"]["Yrotation"]
		else
			sa = $bvh.frame[@n]["RightHand"]["Yrotation"] - $bvh.frame[@n - 1]["RightHand"]["Yrotation"]
		end
		trans = Geom::Transformation.rotation @rightHand.bounds.center, Y_AXIS, (sa).degrees
		@rightFoot.transform! trans
		if @n == 0
			sa = $bvh.frame[@n]["RightHand"]["Zrotation"]
		else
			sa = $bvh.frame[@n]["RightHand"]["Zrotation"] - $bvh.frame[@n - 1]["RightHand"]["Zrotation"]
		end
		trans = Geom::Transformation.rotation @rightHand.bounds.center, Z_AXIS, (sa).degrees
		@rightFoot.transform! trans

		@view.invalidate
		@n = @n + 1
	end
end

以上。

0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
