cscの作法 その70

概要

cscの作法、調べてみた。
mdbにsql投げて合計求めて、円グラフにしてみた。

参考にしたページ

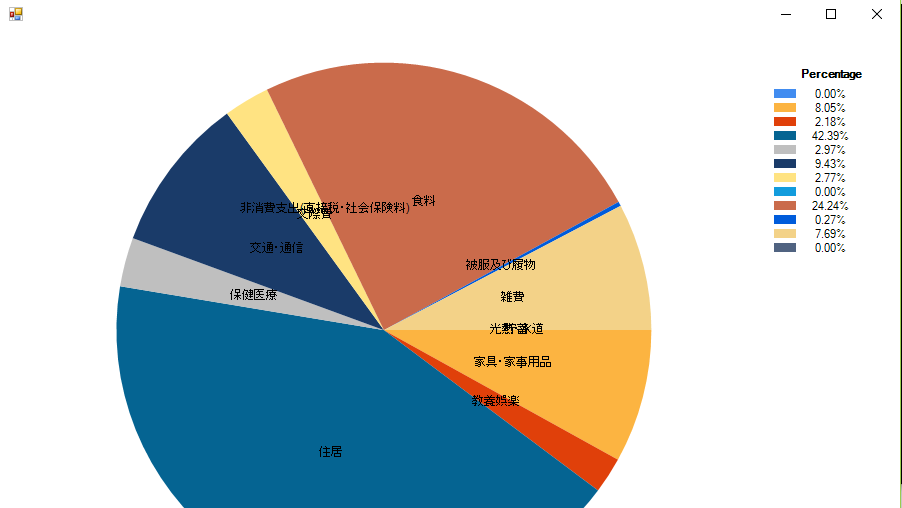

写真

コンパイル手順

>set PATH=C:\Windows\Microsoft.NET\Framework\v4.0.30319;%PATH%

>csc pie0.cs  /platform:x86 /r:System.Windows.Forms.DataVisualization.dll

サンプルコード

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.Windows.Forms.DataVisualization.Charting;
using System.Data.OleDb;
using System.IO;

namespace WindowsFormsApplication1
{
	public partial class Form1 : Form {
		public Form1() {
		ClientSize = new Size(900, 600);
			var chart1 = new Chart {
				Dock = DockStyle.Fill,
			};
			this.Controls.Add(chart1);
			Series mySeries = new Series("series");
			int[] data = new int[] { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 };
			string[] moku = new string[] { "光熱・水道", "家具・家事用品", "教養娯楽", "住居", "保健医療", "交通・通信", "交際費", "非消費支出(直接税・社会保険料)", "食料", "被服及び履物", "雑費", "貯蓄" };
			OleDbConnection con = new OleDbConnection();
			con.ConnectionString = @"Provider=Microsoft.Jet.OLEDB.4.0;Data Source=mydb.mdb;";
			con.Open();
			for (int i = 0; i < 11; i++)
			{
				string sSQL = "SELECT SUM(金額) FROM sisyutu WHERE 項目 = '" + moku[i] + "'";
				OleDbCommand cmd = new System.Data.OleDb.OleDbCommand(sSQL, con);
				object sum = cmd.ExecuteScalar();
				if (sum != DBNull.Value)
				{
					int k = Convert.ToInt32(sum);
					Console.WriteLine(k);
					data[i] = k;
				}
			}
			mySeries.Points.DataBindXY(moku, data);
			mySeries.ChartType = SeriesChartType.Pie;
			mySeries["PieLabelStyle"] = "Inside";
			mySeries["PieDrawingStyle"] = "Default";
			ChartArea myArea = new ChartArea("area");
			chart1.ChartAreas.Add("area");
			chart1.Series.Add(mySeries);
			mySeries.ChartArea = "area";
			chart1.Legends.Add(new Legend("Default"));
			LegendCellColumn firstColumn = new LegendCellColumn();
			firstColumn.ColumnType = LegendCellColumnType.SeriesSymbol;
			firstColumn.HeaderText = "";
			chart1.Legends["Default"].CellColumns.Add(firstColumn);
			LegendCellColumn percentColumn = new LegendCellColumn();
			percentColumn.Text = "#PERCENT";
			percentColumn.HeaderText = "Percentage";
			percentColumn.Name = "nameColumn";
			chart1.Legends["Default"].CellColumns.Add(percentColumn);
			chart1.Legends["Default"].LegendStyle = LegendStyle.Table;
			chart1.Legends["Default"].TableStyle = LegendTableStyle.Tall;
			chart1.Legends["Default"].DockedToChartArea = "area";
			chart1.Legends["Default"].IsDockedInsideChartArea = false;
			chart1.Legends["Default"].Docking = Docking.Right;
		}
		[STAThread]
		static void Main() {
			Application.Run(new Form1());
		}
	}
}

以上。
