e-statの研究 その6

概要

官製lodのe-statを研究してみる。
resasで、都道府県コードを取得。
e-statで、都道府県の総人口を取得。
leafletで、ヒートマップを表示する。

写真

サンプルコード

var population = [
		       0,
     5381733,
     1308265,
     1279594,
     2333899,
     1023119,
     1123891,
     1914039,
     2916976,
     1974255,
     1973115,
     7266534,
     6222666,
    13515271,
     9126214,
     2304264,
     1066328,
     1154008,
      786740,
      834930,
     2098804,
     2031903,
     3700305,
     7483128,
     1815865,
     1412916,
     2610353,
     8839469,
     5534800,
     1364316,
      963579,
      573441,
      694352,
     1921525,
     2843990,
     1404729,
      755733,
      976263,
     1385262,
      728276,
     5101556,
      832832,
     1377187,
     1786170,
     1166338,
     1104069,
     1648177,
     1433566
]

var prefecturesIndex = {
			"Tottoei": 31,
			"Nara": 29,
			"Shiga": 25,
			"Gifu": 21,
			"Toyama": 16,
			"Kyoto": 26,
			"Fukui": 18,
			"Yamanashi": 19,
			"Saitama": 11,
			"Gunma": 10,
			"Tochigi": 9,
			"Shizuoka": 22,
			"Nagano": 20,
			"Ibaragi": 8,
			"Chiba": 12,
			"Fukushima": 7,
			"Yamagata": 6,
			"Akita": 5,
			"Iwate": 3,
			"Aomori": 2,
			"Yamaguchi": 35,
			"Ehime": 38,
			"Shimane": 32,
			"Hiroshima": 34,
			"Okayama": 33,
			"Hyogo": 28,
			"Kagawa": 37,
			"Kochi": 39,
			"Tokushima": 36,
			"Osaka": 27,
			"Wakayama": 30,
			"Aichi": 23,
			"Mie": 24,
			"Ishikawa": 17,
			"Tokyo": 13,
			"Kanagawa": 14,
			"Nigata": 15,
			"Miyagi": 4,
			"Fukuoka": 40,
			"Oita": 44,
			"Saga": 41,
			"Kumamoto": 43,
			"Kagoshima": 46,
			"Miyazaki": 45,
			"Nagasaki": 42,
			"Okinawa": 47,
			"Hokkaido": 1
};

function getColor(d) {
	return d > 22.5 ? '#800000' :
		d > 20	? '#a50f15' :
		d > 17.5	? '#cb181d' :
		d > 15	? '#ef3b2c' :
		d > 12.5	? '#fb6a4a' :
		d > 10	? '#fc9272' :
		d > 7.5	? '#fcbba1' :
		d > 5	? '#fee0d2' :
		d > 2.5	? '#fff5f0' :
		d > 0	? '#ffffff' : 'bule';
}

var map = L.map('map').setView([36.5, 139.5], 5);
var mapLink = '<a href="http://openstreetmap.org">OpenStreetMap</a>';
L.tileLayer('http://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png', {
  attribution: '&copy; ' + mapLink + ' Contributors',
  maxZoom: 18,
}).addTo(map);

var legend = L.control({
	position: 'bottomright'
});
var color_range = [22.5, 20, 17.5, 15, 12.5, 10, 7.5, 5, 2.5];
legend.onAdd = function(map) {
	var div = L.DomUtil.create('div', 'info legend');
	div.innerHTML = "<p>凡例</p>";
	for (var i = 0; i < color_range.length; i++)
	{
		div.innerHTML += '<i style="background:' + getColor(color_range[i]) + '"></i> '
    +	(color_range[i - 1] || color_range[i - 1] == 0 ? color_range[i] : "")
    +	(color_range[i + 1] || color_range[i + 1] == 0 ? ' - ' + color_range[i + 1] : ' ?')
    + '<br>';
	}
	return div;
};
legend.addTo(map);

L.geoJson(j2, {
  style: style
}).addTo(map);

function style(feature) {
	console.log(feature.properties.ObjName);
	console.log(feature.properties.ObjName_1);
	return {
		fillColor: getColor(population[prefecturesIndex[feature.properties.ObjName_1]] / 250000),
		weight: 1,
		opacity: 1,
		color: '#666',
		fillOpacity: 0.7
	};
}

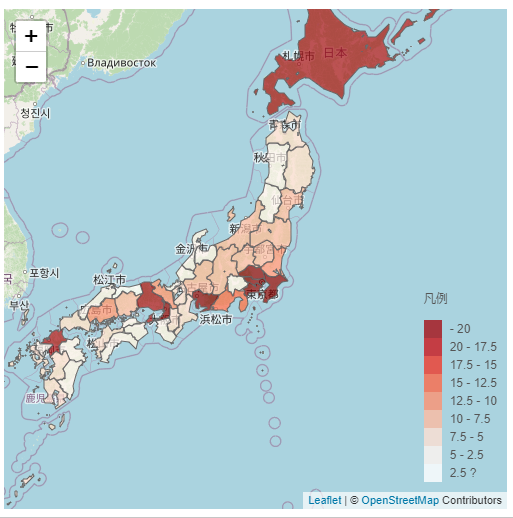

成果物

以上。
