wslでmanim その24

概要

wslでmanimやってみた。
練習問題やってみた。

練習問題

コッホ曲線を描け。

参考にしたページ

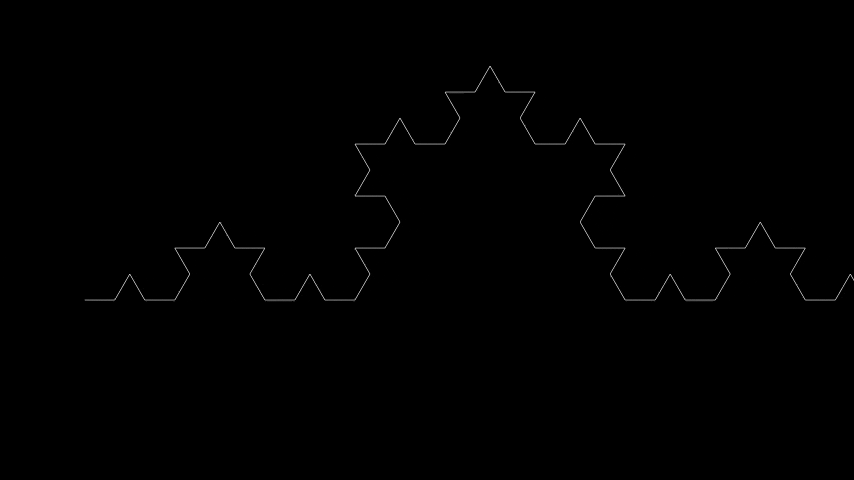

成果物

サンプルコード

from manim import *

class LSystem(Scene):
	def setup(self):
		self.rules = {'F': 'F+F--F+F'}
		self.angle = PI / 3
		self.start_rot = 0
		self.initial = 'F'
		self.actions = {}
		self.locations = []
		self.rotations = []
		self.graphs = []
		self.expression = ''
		self.animation = None
		self.weight = 1
		self.iteration = 3
		self.start_loc = (6.0 - 0.3) * LEFT + DOWN
		self.step_time = 0.1
		self.length = 0.5
		self.actions['F'] = self.draw_forward
		self.actions['+'] = self.rotate_forward
		self.actions['-'] = self.rotate_backward
		self.actions['['] = self.push
		self.actions[']'] = self.pop
		self.cur_loc = self.start_loc
		self.cur_rot = self.start_rot
		self.expression = self.initial
		self.animation = lambda x: self.add(x)
	def draw_forward(self):
		o = self.cur_loc
		l = self.length
		a = self.cur_rot
		e = o + l * np.cos(a) * RIGHT + l * np.sin(a) * UP
		self.cur_loc = e
		g = Line(o, e)
		g.stroke_width = self.weight
		self.animation(g)
	def rotate_forward(self):
		self.cur_rot += self.angle
	def rotate_backward(self):
		self.cur_rot -= self.angle
	def push(self):
		self.locations.append(self.cur_loc)
		self.rotations.append(self.cur_rot)
	def pop(self):
		self.cur_loc = self.locations.pop()
		self.cur_rot = self.rotations.pop()
	def generate(self):
		for i in range(self.iteration):
			print(f'generating iteration {i+1}')
			new_exp = ''
			for e in self.expression:
				new_exp += self.rules.get(e, e)
			self.expression = new_exp
			print(f'iteration {i+1} is finished')
	def draw(self):
		count = self.expression.count("F")
		print(f'Total {count} Fs')
		for e in self.expression:
			act = self.actions.get(e, None)
			if act is not None:
				act()
	def construct(self):
		self.setup()
		self.generate()
		self.draw()
		self.wait()

以上。
