vistaでquartus その11

概要

vistaでquartusやってみた。
serialに、fifoとoneshotを導入してみた。

環境

windows vista 32bit
quartus ii v13.0
ep2c5t144ボード

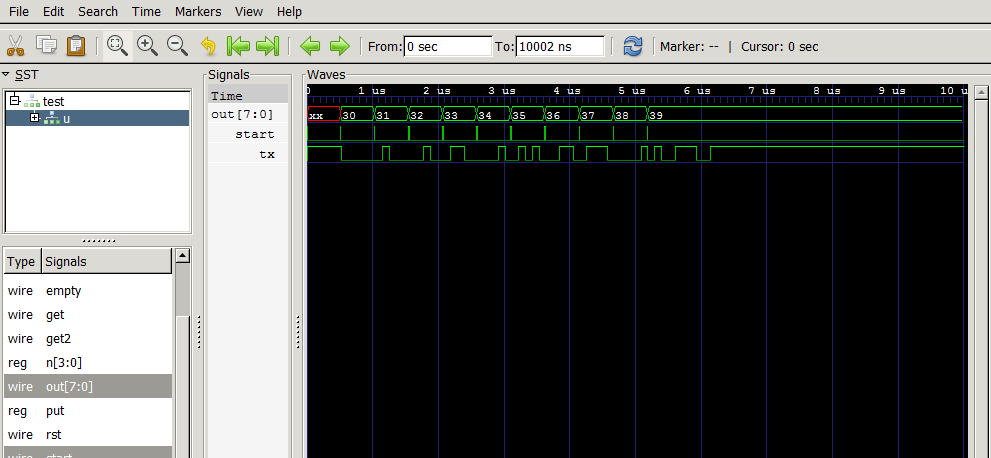

iverilog実行結果

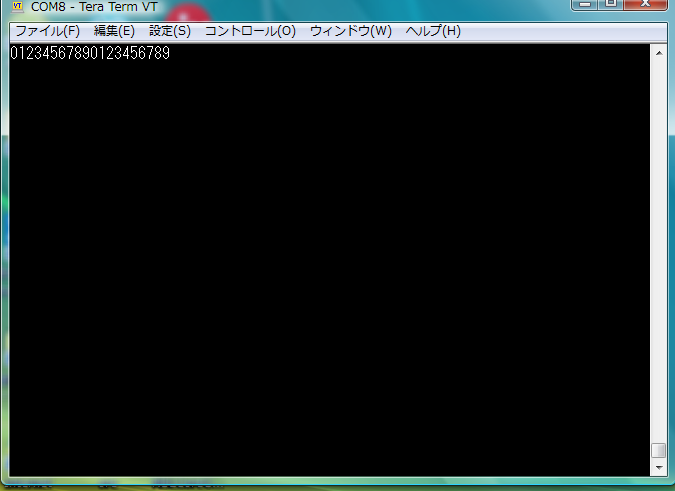

写真

サンプルコード

`timescale 1ns / 1ps


module fifo(input clk, input rst, input put, input get, input [7:0] data, output reg [7:0] out, output empty, output reg start);
    reg [7:0] mem[32:0];
    reg [4:0] rd_pos;
    reg [4:0] wr_pos;
    assign empty = ((wr_pos - rd_pos) == 0) ? 1'b1 : 1'b0;
    assign full = ((wr_pos - rd_pos) == 32) ? 1'b1 : 1'b0;
    always @(posedge clk or negedge rst)
    begin
        if (!rst)
        begin
            wr_pos <= 0;
            rd_pos <= 0;
            start <= 0;
        end
        else
        begin
            if (put & full == 1'b0)
            begin
                mem[wr_pos] <= data;
                wr_pos <= wr_pos + 1;
            end
            if (get & empty == 1'b0)
            begin
                out <= mem[rd_pos];
                rd_pos <= rd_pos + 1;
                start <= 1;
            end
            else
            begin
                start <= 0;
            end
        end
    end
endmodule

module oneshot(input clk, input rst, input in, output reg out);
    reg prev = 0;
    always @(posedge clk)
    begin
        if (in ^ prev)
            out <= in;
        else
            out <= 0;
        prev <= in;
    end
endmodule

module test2(input clk, input rst, output tx);
    localparam NEXT = 4'b0000;
    localparam DONE = 4'b1111;
    wire [7:0] out;
    reg [3:0] n = 0;
    reg [7:0] char;
    reg [3:0] state = NEXT;
    reg put = 0;
    tx2 tx2(.clk(clk), .rst(rst), .start(start), .data(out), .tx(tx), .busy(busy), .get(get));
    oneshot one0(.clk(clk), .rst(rst), .in(get), .out(get2));
    fifo fifo0(.clk(clk), .rst(rst), .put(put), .get(get2), .data(char), .out(out), .empty(empty), .start(start));
    always @(posedge clk or negedge rst)
    begin
        if (!rst)
        begin
            state <= NEXT;
            n <= 0;
        end
        else if (put)
        begin
            put <= 0;
        end
        else if (state == NEXT)
        begin
            state <= 1;
        end
        else if (state != DONE)
        begin
            if (n == 10)
            begin
                state <= DONE;
            end
            else
            begin
                char <= 48 + n;
                put <= 1;
                n <= n + 1;
            end
        end
    end
endmodule

module test;
    reg clk,
        rst;
    test2 u(.clk(clk), .rst(rst), .tx(tx));
    initial
    begin
        clk = 0;
        rst = 1;
        #1
            rst = 0;
        #1
            rst = 1;
        #10000
            $finish;
    end
    always
    begin
        #1
            clk = ~clk;
    end
    initial
    begin
        $dumpfile("test.vcd");
        $dumpvars(0, u);
    end
endmodule

以上。
