windows11で、sketchup6 その112

概要

windows11に、sketchup6を入れてみた。
rubyで、3Dを書く。
タートルグラフィックスを見つけたのでやってみた。

参考にしたページ

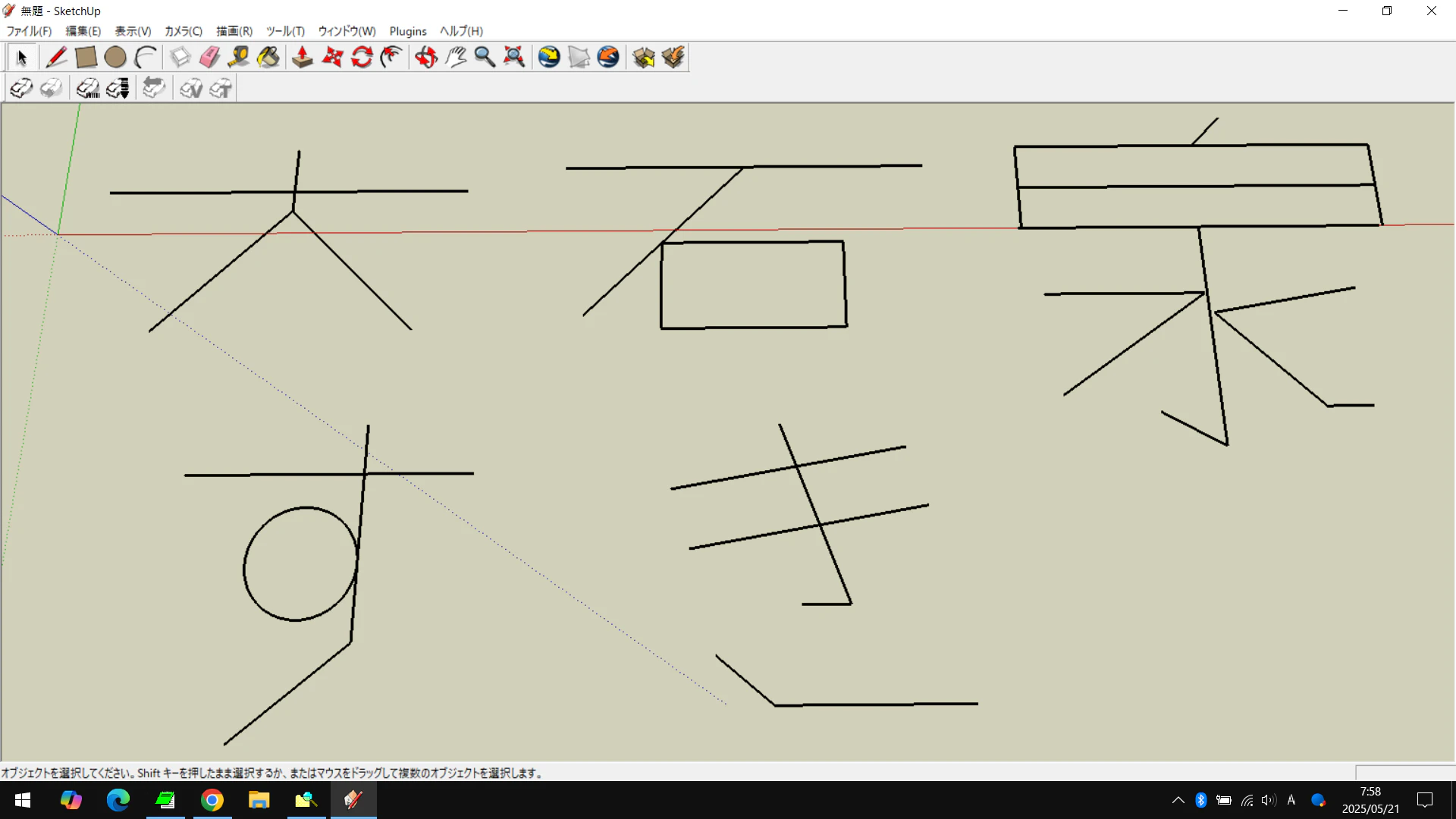

写真

サンプルコード

class Kame4
	def initialize
		model = Sketchup.active_model
		@entities = model.active_entities
		@ANGLE = 0
		@LX = 10
		@LY = 10
		@pen = 1
		run()
	end
	def fmod(a, b)
		x = (a / b).floor
		return a - b * x
	end
	def pen(i)
		if i == 0
			@pen = 0
		else
			@pen = 1
		end
	end
	def turn(a)
		@ANGLE = fmod(@ANGLE + a, 360.0)
	end
	def move(l)
		p = []
		rd = Math::PI / 180.0
		x = l * Math::cos(rd * @ANGLE)
		y = -l * Math::sin(rd * @ANGLE)
		px = @LX
		py = @LY
		p << [px, py, 0]
		@LX += x
		@LY += y
		p << [@LX, @LY, 0]
		if @pen == 1
			@entities.add_curve(p)
		end
	end
	def run()
move 80
pen 0
turn -165
move 40
turn -105
pen 1
move 15
turn 45
move 40
pen 0
turn 180
move 40
turn 90
pen 1
move 40
pen 0
turn -95
move 50
turn 50
pen 1
move 80
pen 0
turn 180
move 40
turn -45
pen 1
move 50
pen 0
turn 180
move 24
turn 135
pen 1
move 20
pen 0
turn 180
move 20
turn 90
pen 1
move 40
turn 90
move 20
pen 0
turn 90
move 40
turn 180
pen 1
move 40
pen 0
turn -30
move 100
turn 165
pen 1
move 10
pen 0
turn 45
move 40
turn -90
pen 1
move 20
pen 0
turn 180
move 20
turn 90
pen 1
move 80
turn 90
move 20
pen 0
turn 97
move 81
turn 173
pen 1
move 80
pen 0
turn 173
move 81
turn -173
pen 1
move 80
pen 0
turn 180
move 40
turn -90
pen 1
move 50
turn 120
move 15
pen 0
turn 20
move 35
turn 130
pen 1
move 35
turn 145
move 40
pen 0
turn -165
move 70
turn 190
pen 1
move 32
turn -125
move 30
turn -45
move 10
pen 0
turn 177
move 250
turn -177
pen 1
move 60
pen 0
turn -155
move 25
turn -115
pen 1
move 30
for i in (1..36)
	turn 10
	move 2
end
move 15
turn 50
move 30
pen 0
turn -170
move 100
turn 20
pen 1
move 50
pen 0
turn 165
move 50
turn -165
pen 1
move 50
pen 0
turn -140
move 35
turn -140
pen 1
move 40
turn 110
move 10
pen 0
turn -30
move 20
turn -110
pen 1
move 15
turn -40
move 40
	end
end

以上。
