grub を作り直す

Last updated at Posted at 2025-03-10

環境

  • Ubuntu 22.04 LTS
  • AMD64アーキテクチャ
  • Fujitsu TX1330 M2
  • SATA AHCIモード

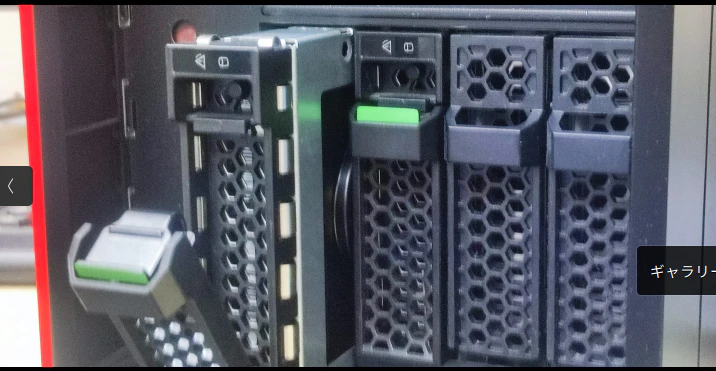

  • 3.5インチ 2TBytes ハードディスク x 2
    • hd1 に OS 、データ、アプリなどシステム一式をインストール
    • hd0 を バックアップストレージとして設定

grub がヘン

Ubuntu 22.04 をインストールするときにうかうかしていて、変な設定になってしまった。

  • 3.5インチ ハードディスク の hd0, hd1 がつながっている状態で hd1 にシステムをインストールしてしまった。
    • 2台 接続していないと起動しなくなってしまった。
  • マシンの BIOS 設定が、Legacy ブートになってしまっている。本当は UEFI ブートにしたかった。

hd0 を取り外すと起動しない

/boot パーティション、 root パーティーションは hd1 にあるので、hd0 を取り外しても起動すると思っていたら・・・

error: unknown filesystem.
entering rescue mode...
grub rescue>

となり、grub 画面で止まってしまった。

grub コンソールを操作

grub rescue> ls
とすると、
(hd0) (hd0,msdos5) (hd0,msdos1)

となったので、

grub rescue> ls (hd0)
(hd0): Filesystem is unknown.
grub rescue> ls (hd0,msdos1)
(hd0,msdos1): Filesystem is unknown.
grub rescue> ls (hd0,msdos5)
(hd0,msdos1): Filesystem is ext2.

いけるかな?

grub rescue> set root=(hd0,msdos5)
grub rescue> set prefix=(hd0,msdos5)/boot/grub
grub rescue> insmod normal
error: symbol `grub_file_filters' not found.

うーん、うまくいかない。

Linux 上で grub の修復

HDD 構成をもとに戻して、Linuxを起動し直す。
その上で、以下のようにやってみる。

残したいハードディスクは hd1 であり、Linux デバイスとしては /dev/sda にあることが確認できた。その上で、

$ sudo grub-install /dev/sda
Installing for i386-pc platform.
Installation finished. No error reported.

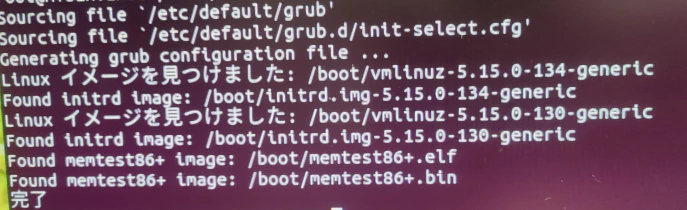

$ sudo update-grub


この状態で、 hd0 を外して起動し直したら Linux が立ち上がるようになった。

Legacy ブートを UEFI ブートに直す

先の修復も、i386-pc platform としての修復だったので UEFI ブートに直す。

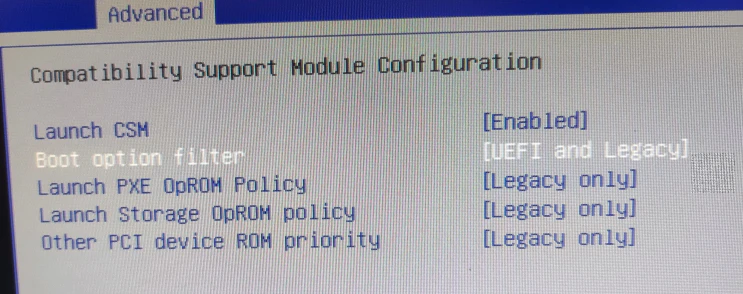

まずは BIOS 設定で、Legacy となっていたのを UEFI and Legacy に変えて


Linux が起動したのを確認。

UEFI 対応ができていないので、

$ ls /boot/efi

としても空っぽ。
この状態で、

$ sudo grub-install --target=x86_64-efi /dev/sda

とすると

grub-install : エラー: /usr/lib/grub/x86_64-efi/modinfo.sh doesn't exist. Please spescify --target or --directory.

と出た。

UEFI 対応の grub に入れ替え

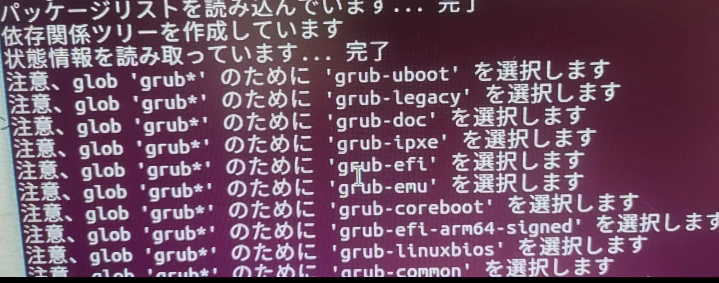

$ sudo apt-get -purge grub\*

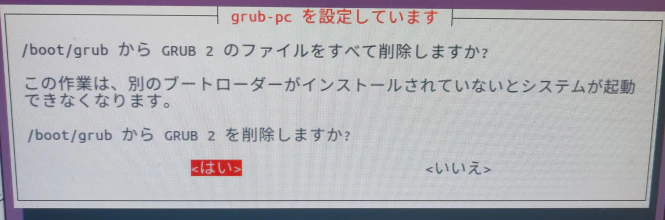

として、以下のダイアログで「はい」とすると、

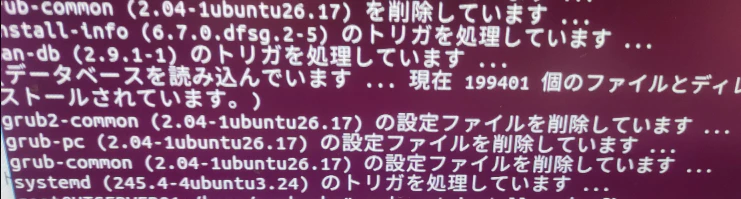

当然ながら結構いろいろと変化。


改めて、

$ sudo apt install grub-efi

念の為に

$ sudo apt autoremove

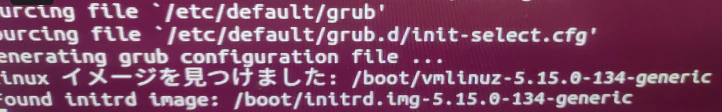

$ sudo update-grub


となりました。UEFI 対応のGRUBがインストールされたかな??

$ ls /boot/efi

としても空っぽなので、generate されたのは BIOS 用の grub らしいです。
改めて

$ sudo grub-install --target=x86_64-efi /dev/sda

とすると

Installing for x86_64-efi platform.
grub-install : 警告: EFI variables are not supported on this system..
Installation finushed. No error reported.

となりインストールされたみたいです。

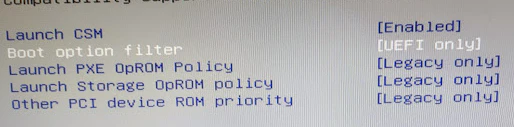

この後BIOS設定を UEFI only とし、
無事UEFIで起動できるようになりました。
