GLSLレイマーチング研究_距離関数について勉強してみた20(Quadの関数をいじる)

Last updated at Posted at 2017-04-19

modeling with distance functionsの距離関数の一覧に沿って記事を書いています.

距離関数は

float dot2( in vec3 v ) { return dot(v,v); }
float udQuad( vec3 p, vec3 a, vec3 b, vec3 c, vec3 d )
{
    vec3 ba = b - a; vec3 pa = p - a;
    vec3 cb = c - b; vec3 pb = p - b;
    vec3 dc = d - c; vec3 pc = p - c;
    vec3 ad = a - d; vec3 pd = p - d;
    vec3 nor = cross( ba, ad );

    return sqrt(
    (sign(dot(cross(ba,nor),pa)) +
        sign(dot(cross(cb,nor),pb)) +
        sign(dot(cross(dc,nor),pc)) +
        sign(dot(cross(ad,nor),pd))<3.0)
        ?
        min( min( min(
        dot2(ba*clamp(dot(ba,pa)/dot2(ba),0.0,1.0)-pa),
        dot2(cb*clamp(dot(cb,pb)/dot2(cb),0.0,1.0)-pb) ),
        dot2(dc*clamp(dot(dc,pc)/dot2(dc),0.0,1.0)-pc) ),
        dot2(ad*clamp(dot(ad,pd)/dot2(ad),0.0,1.0)-pd) )
        :
        dot(nor,pa)*dot(nor,pa)/dot2(nor)
    );
}

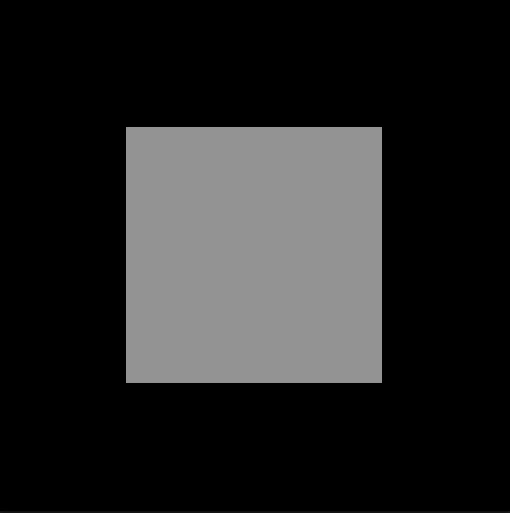

ん？

三角形の拡張じゃないか？


ということは、多角形に拡張できるのではないか？

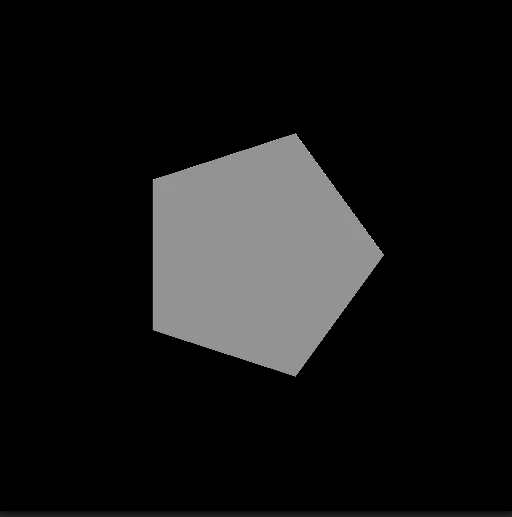

とりあえず、五角形を書いてみた。

float udPentagon( vec3 p, vec3 a, vec3 b, vec3 c, vec3 d, vec3 e )
{
    vec3 ba = b - a; vec3 pa = p - a;
    vec3 cb = c - b; vec3 pb = p - b;
    vec3 dc = d - c; vec3 pc = p - c;
    vec3 ad = e - d; vec3 pd = p - d;
    vec3 ae = a - e; vec3 pe = p - e;
    vec3 nor = cross( ba, ad );

    return sqrt(
    (sign(dot(cross(ba,nor),pa)) +
        sign(dot(cross(cb,nor),pb)) +
        sign(dot(cross(dc,nor),pc)) +
        sign(dot(cross(ad,nor),pd)) +
        sign(dot(cross(ae,nor),pe)) < 4.0)
        ?
        min( min( min( min(
        dot2(ba*clamp(dot(ba,pa)/dot2(ba),0.0,1.0)-pa),
        dot2(cb*clamp(dot(cb,pb)/dot2(cb),0.0,1.0)-pb) ),
        dot2(dc*clamp(dot(dc,pc)/dot2(dc),0.0,1.0)-pc) ),
        dot2(ad*clamp(dot(ad,pd)/dot2(ad),0.0,1.0)-pd) ),
        dot2(ae*clamp(dot(ae,pe)/dot2(ae),0.0,1.0)-pe) )
        :
        dot(nor,pa)*dot(nor,pa)/dot2(nor)
    );
}


書けた！

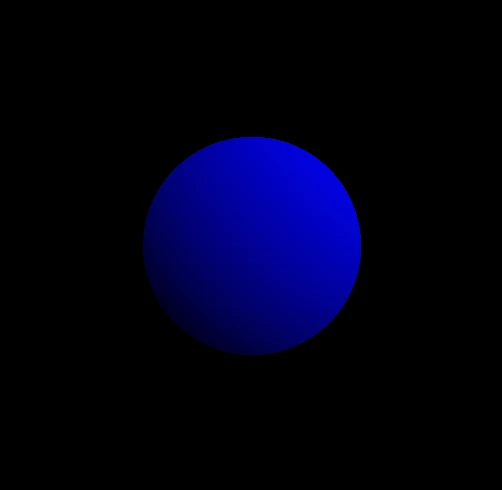

で、とりあえず、球体との変形を交互にかませるときれいになった。

リンク

float pentagonToSphere(in vec3 p)
{
    p = mat3(cos(time),-sin(time),0, sin(time), cos(time),0 ,0,0,1)*p;
    return (length(p)-1.5)*abs(sin(time))+udPentagon(p,vec3(1.0, 0.0, 1.0), vec3(0.3090169943749474241023, 0.9510565162951535721164, 1.0), vec3(-0.8090169943749474241023, 0.5877852522924731291687, 1.0), vec3(-0.8090169943749474241023, -0.5877852522924731291687, 1.0), vec3(0.3090169943749474241023, -0.9510565162951535721164, 1.0))*(1.0-abs(sin(time)));
}

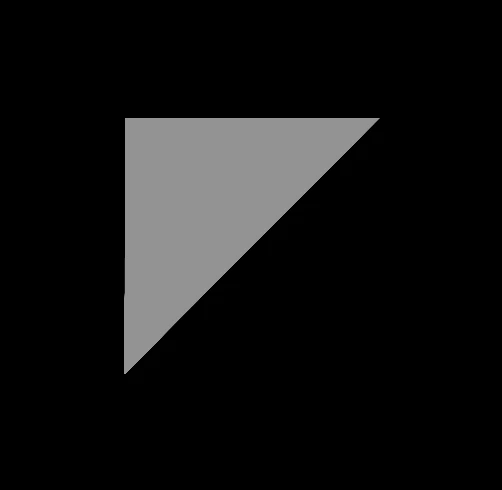

三角形と四角形への変形もいろいろ書いた

float udTriangleToQuad(in vec3 p)
{
    // return udQuad(p, vec3(-1.0*sin(time), 1.0, 1.0), vec3(1.0, 1.0, 1.0), vec3(1.0, -1.0, 1.0),vec3(-1.0, -1.0, 1.0));
    // return udQuad(p, vec3(-1.0*abs(cos(time)), 1.0*abs(sin(time)), 1.0), vec3(1.0, 1.0, 1.0), vec3(1.0, -1.0, 1.0),vec3(-1.0, -1.0, 1.0));
    // return udQuad(p, vec3(-1.0*abs(cos(time)), 1.0*abs(sin(time)), 1.0), vec3(1.0*abs(cos(time)), 1.0, 1.0), vec3(1.0, -1.0, 1.0),vec3(-1.0, -1.0, 1.0));
    return udQuad(p, vec3(-1.0*abs(sin(time)), 1.0, 1.0), vec3(1.0, 1.0, 1.0), vec3(1.0*sin(time), -1.0, 1.0),vec3(-1.0, -1.0, 1.0));
    // return udQuad(p, vec3(-1.0, 1.0, 1.0), vec3(1.0, 1.0, 1.0), vec3(1.0, -1.0, 1.0),vec3(-1.0, -1.0, 1.0) )*abs(sin(time*0.7))+udTriangle(p, vec3(1.0, 1.0, 1.0), vec3(-1.0, 1.0, 1.0), vec3(1.0, -1.0, 1.0) )*(1.0-abs(sin(time*0.7)));
    // return udQuad(p, vec3(-1.0*abs(mod(sin(time), 0.4)), 1.0, 1.0), vec3(1.0, 1.0, 1.0), vec3(1.0, -1.0, 1.0),vec3(-1.0, -1.0, 1.0));
}


ソース

// ============================================================================
// Quad
// ============================================================================

precision mediump float;
uniform vec2 resolution;     // resolution (512.0, 512.0)
uniform vec2 mouse;          // mouse(-1.0 ~ 1.0)
uniform float time;          // time(1second == 1.0)
uniform sampler2D prevScene; // previous scene texture


float dot2( in vec3 v ) { return dot(v,v); }
float udQuad( vec3 p, vec3 a, vec3 b, vec3 c, vec3 d )
{
    vec3 ba = b - a; vec3 pa = p - a;
    vec3 cb = c - b; vec3 pb = p - b;
    vec3 dc = d - c; vec3 pc = p - c;
    vec3 ad = a - d; vec3 pd = p - d;
    vec3 nor = cross( ba, ad );

    return sqrt(
    (sign(dot(cross(ba,nor),pa)) +
        sign(dot(cross(cb,nor),pb)) +
        sign(dot(cross(dc,nor),pc)) +
        sign(dot(cross(ad,nor),pd))<3.0)
        ?
        min( min( min(
        dot2(ba*clamp(dot(ba,pa)/dot2(ba),0.0,1.0)-pa),
        dot2(cb*clamp(dot(cb,pb)/dot2(cb),0.0,1.0)-pb) ),
        dot2(dc*clamp(dot(dc,pc)/dot2(dc),0.0,1.0)-pc) ),
        dot2(ad*clamp(dot(ad,pd)/dot2(ad),0.0,1.0)-pd) )
        :
        dot(nor,pa)*dot(nor,pa)/dot2(nor)
    );
}

float udTriangle( vec3 p, vec3 a, vec3 b, vec3 c )
{
    vec3 ba = b - a; vec3 pa = p - a;
    vec3 cb = c - b; vec3 pb = p - b;
    vec3 ac = a - c; vec3 pc = p - c;
    vec3 nor = cross( ba, ac );

    return sqrt(
        (sign(dot(cross(ba,nor),pa)) +
        sign(dot(cross(cb,nor),pb)) +
        sign(dot(cross(ac,nor),pc))<2.0)
        ?
        min( min(
        dot2(ba*clamp(dot(ba,pa)/dot2(ba),0.0,1.0)-pa),
        dot2(cb*clamp(dot(cb,pb)/dot2(cb),0.0,1.0)-pb) ),
        dot2(ac*clamp(dot(ac,pc)/dot2(ac),0.0,1.0)-pc) )
        :
        dot(nor,pa)*dot(nor,pa)/dot2(nor)
    );
}


float udPentagon( vec3 p, vec3 a, vec3 b, vec3 c, vec3 d, vec3 e )
{
    vec3 ba = b - a; vec3 pa = p - a;
    vec3 cb = c - b; vec3 pb = p - b;
    vec3 dc = d - c; vec3 pc = p - c;
    vec3 ad = e - d; vec3 pd = p - d;
    vec3 ae = a - e; vec3 pe = p - e;
    vec3 nor = cross( ba, ad );

    return sqrt(
    (sign(dot(cross(ba,nor),pa)) +
        sign(dot(cross(cb,nor),pb)) +
        sign(dot(cross(dc,nor),pc)) +
        sign(dot(cross(ad,nor),pd)) +
        sign(dot(cross(ae,nor),pe)) < 4.0)
        ?
        min( min( min( min(
        dot2(ba*clamp(dot(ba,pa)/dot2(ba),0.0,1.0)-pa),
        dot2(cb*clamp(dot(cb,pb)/dot2(cb),0.0,1.0)-pb) ),
        dot2(dc*clamp(dot(dc,pc)/dot2(dc),0.0,1.0)-pc) ),
        dot2(ad*clamp(dot(ad,pd)/dot2(ad),0.0,1.0)-pd) ),
        dot2(ae*clamp(dot(ae,pe)/dot2(ae),0.0,1.0)-pe) )
        :
        dot(nor,pa)*dot(nor,pa)/dot2(nor)
    );
}


float udTriangleToQuad(in vec3 p)
{
    // return udQuad(p, vec3(-1.0*sin(time), 1.0, 1.0), vec3(1.0, 1.0, 1.0), vec3(1.0, -1.0, 1.0),vec3(-1.0, -1.0, 1.0));
    // return udQuad(p, vec3(-1.0*abs(cos(time)), 1.0*abs(sin(time)), 1.0), vec3(1.0, 1.0, 1.0), vec3(1.0, -1.0, 1.0),vec3(-1.0, -1.0, 1.0));
    // return udQuad(p, vec3(-1.0*abs(cos(time)), 1.0*abs(sin(time)), 1.0), vec3(1.0*abs(cos(time)), 1.0, 1.0), vec3(1.0, -1.0, 1.0),vec3(-1.0, -1.0, 1.0));
    return udQuad(p, vec3(-1.0*abs(sin(time)), 1.0, 1.0), vec3(1.0, 1.0, 1.0), vec3(1.0*sin(time), -1.0, 1.0),vec3(-1.0, -1.0, 1.0));
    // return udQuad(p, vec3(-1.0, 1.0, 1.0), vec3(1.0, 1.0, 1.0), vec3(1.0, -1.0, 1.0),vec3(-1.0, -1.0, 1.0) )*abs(sin(time*0.7))+udTriangle(p, vec3(1.0, 1.0, 1.0), vec3(-1.0, 1.0, 1.0), vec3(1.0, -1.0, 1.0) )*(1.0-abs(sin(time*0.7)));
    // return udQuad(p, vec3(-1.0*abs(mod(sin(time), 0.4)), 1.0, 1.0), vec3(1.0, 1.0, 1.0), vec3(1.0, -1.0, 1.0),vec3(-1.0, -1.0, 1.0));
}


float udInstancePentagon(in vec3 p)
{
    // p = mat3(1.0,0,0, 0,cos(time),-sin(time), 0,sin(time),cos(time) )*p;
    // p = mat3(cos(time),0,-sin(time), 0,1,0, sin(time),0,cos(time))*p;
    // p = mat3(cos(time),-sin(time),0, sin(time), cos(time),0 ,0,0,1)*p;
    return udPentagon(p,vec3(1.0, 0.0, 1.0), vec3(0.3090169943749474241023, 0.9510565162951535721164, 1.0), vec3(-0.8090169943749474241023, 0.5877852522924731291687, 1.0), vec3(-0.8090169943749474241023, -0.5877852522924731291687, 1.0), vec3(0.3090169943749474241023, -0.9510565162951535721164, 1.0));
}

float pentagonToSphere(in vec3 p)
{
    p = mat3(cos(time),-sin(time),0, sin(time), cos(time),0 ,0,0,1)*p;
    return (length(p)-1.5)*abs(sin(time))+udPentagon(p,vec3(1.0, 0.0, 1.0), vec3(0.3090169943749474241023, 0.9510565162951535721164, 1.0), vec3(-0.8090169943749474241023, 0.5877852522924731291687, 1.0), vec3(-0.8090169943749474241023, -0.5877852522924731291687, 1.0), vec3(0.3090169943749474241023, -0.9510565162951535721164, 1.0))*(1.0-abs(sin(time)));
}


float udInstanceQuad(in vec3 p)
{
    // p = mat3(1.0,0,0, 0,cos(time),-sin(time), 0,sin(time),cos(time) )*p;
    // p = mat3(cos(time),0,-sin(time), 0,1,0, sin(time),0,cos(time))*p;
    // p = mat3(cos(time),-sin(time),0, sin(time), cos(time),0 ,0,0,1)*p;
    return udQuad(p, vec3(-1.0, 1.0, 1.0), vec3(1.0, 1.0, 1.0), vec3(1.0, -1.0, 1.0),vec3(-1.0, -1.0, 1.0) );

}


float distanceHub(vec3 p){
    // 0.4を書けて、rayの進行を遅らせている
//  return udInstanceQuad(p)*0.3;
//  return pentagonToSphere(p)*0.3;
//  return udInstancePentagon(p)*0.3;
    return udTriangleToQuad(p)*0.3;
}

// 法線
vec3 genNormal(vec3 p){
    float d = 0.001;
    // 法線を生成
    return normalize(vec3(
        distanceHub(p + vec3(  d, 0.0, 0.0)) - distanceHub(p + vec3( -d, 0.0, 0.0)),
        distanceHub(p + vec3(0.0,   d, 0.0)) - distanceHub(p + vec3(0.0,  -d, 0.0)),
        distanceHub(p + vec3(0.0, 0.0,   d)) - distanceHub(p + vec3(0.0, 0.0,  -d))
    ));
}

// 図形ごとに色をわける
vec3 doColor(vec3 p){
    float e = 0.001;
//  if (udInstanceQuad(p)<e){
//      vec3 normal = genNormal(p);
//      vec3 light  = normalize(vec3(1.0, 1.0, 1.0));
//      float diff  = max(dot(normal, light), 0.1);
//      return vec3(diff, diff, diff);
//  }
    if (udTriangleToQuad(p)<e){
        vec3 normal = genNormal(p);
        vec3 light  = normalize(vec3(1.0, 1.0, 1.0));
        float diff  = max(dot(normal, light), 0.1);
        return vec3(diff, diff, diff);
    }
//  if (udInstancePentagon(p)<e){
//      vec3 normal = genNormal(p);
//      vec3 light  = normalize(vec3(1.0, 1.0, 1.0));
//      float diff  = max(dot(normal, light), 0.1);
//      return vec3(diff, diff, diff);
//  }
//  if (pentagonToSphere(p)<e){
//      vec3 normal = genNormal(p);
//      vec3 light  = normalize(vec3(1.0, 1.0, 1.0));
//      float diff  = max(dot(normal, light), 0.1);
//      return vec3(diff*abs(cos(time)*cos(time/2.0)), diff*abs(cos(time)*sin(time/2.0)), diff*abs(sin(time)));
//  }
    return vec3(0.0);
}

// カメラのワーク
void main(){
    // スクリーンスペースを考慮して座標を正規化
    vec2 p = (gl_FragCoord.xy * 2.0 - resolution) / min(resolution.x, resolution.y);
    // カメラを定義
    vec3 cPos  = vec3(0.0, 0.0,  3.0);   // カメラの位置
    vec3 cDir  = vec3(0.0, 0.0, -1.0);   // カメラの向き(視線)
    vec3 cUp   = vec3(0.0, 1.0,  0.0);   // カメラの上方向
    vec3 cSide = cross(cDir, cUp);       // 外積を使って横方向を算出
    float targetDepth = 1.0;             // フォーカスする深度

    // カメラの情報からレイを定義
    vec3 ray = normalize(cSide * p.x + cUp * p.y + cDir * targetDepth);
    // マーチングループを組む
    float dist = 0.0; // レイとオブジェクト間の最短距離
    float rLen = 0.0; // レイに継ぎ足す長さ
    vec3 rPos = cPos; // レイの先端位置(初期位置)

    // レイが進む処理(マーチングループ)
    for(int i = 0; i < 32; ++i){
        dist = distanceHub(rPos);
        rLen += dist;
        rPos = cPos + ray * rLen;
    }

    // レイとオブジェクトの距離を確認
    vec3 color = doColor(rPos);
    gl_FragColor = vec4(color, 1.0);
}
