Catalyst2台とHP2530を1台を使ってSTPを再現します。

環境

Cisco WS-C3560CG-8PC-S 12.2(55)EX3
HP2530 YB.16.10.0011

i/fの情報

役割(Role)の意味

Root：ルートポート
Desg：指定ポート
Altn：非指定ポート

状態(Sts)の意味

FWD：フォワーディング
LIS：リスニング
LRN：ラーニング
BLK：ブロッキング

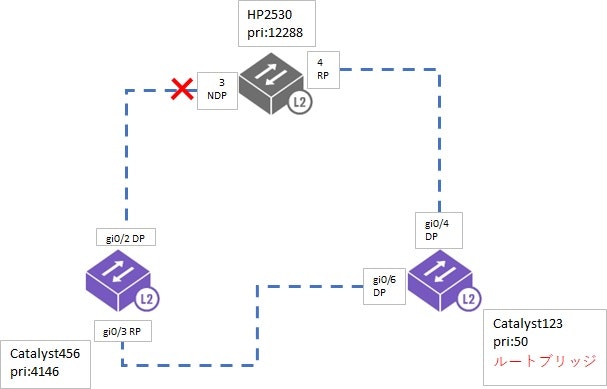

構成イメージ図

HP2530設定

ブリッジプライオリティを12288(4096×3)に変更。
3台の内、最もプライオリティの値を大きくすることで、このスイッチのポート3をブロッキングになるように設定。

HP2530(config)# spanning-tree vlan 50 priority 3

HP2530(config)# show running-config

 Running configuration:

 ; J9779A Configuration Editor; Created on release #YB.16.10.0011
 ; Ver #14:41.44.00.04.19.02.13.98.82.34.61.18.28.c3.84.9c.63.ff.37.27:35
 hostname "HP2530"
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
 vlan 1
    name "DEFAULT_VLAN"
    no untagged 1-2
    untagged 3-28
 -- MORE --, next page: Space, next line: Enter, quit: Control-C  ip address dhcp-bootp
    exit
 vlan 15
    name "Radius"
    untagged 2
    no ip address
    exit
 vlan 40
    name "hoge"
    untagged 1
    ip address 192.0.2.1 255.255.255.0
    exit
 vlan 50
    name "STP_test"
    tagged 3-4
    no ip address
    exit
 spanning-tree
 spanning-tree mode rapid-pvst
 spanning-tree vlan 50 priority 3
 no tftp server
 loop-protect 3-4 receiver-action no-disable
 loop-protect transmit-interval 10 disable-timer 60
 -- MORE --, next page: Space, next line: Enter, quit: Control-Cno dhcp config-file-update
 no dhcp image-file-update
 no dhcp tr69-acs-url

HP2530(config)# show spanning-tree vlan 50

  Spanning Tree Information

   STP Enabled              [No] : Yes
   Mode                          : RPVST
   Extended System ID            : Enabled
   Ignore PVID Inconsistency     : Disabled
   Switch MAC Address            : 1402ec-1de4a0


   VLAN ID                       : 50
   RPVST Enabled                 : Enabled


   Root MAC Address              : 34a84e-da1680
   Root Priority                 : 0
   Root Path Cost                : 200,000
   Root Port                     : 4
   Operational Hello Time (secs) : 2
   Topology Change Count         : 16
   Time Since Last Change        : 2 mins


 -- MORE --, next page: Space, next line: Enter, quit: Control-C  Root Inconsistent Ports       :
   Loop Inconsistent Ports       :
   PVID Inconsistent Ports       :
                                                              Designated
   Port  Type       Cost      Priority  Role       State      Bridge
   ----- ---------- --------- --------- ---------- ---------- ---------------
   3     10/100TX   200000    128       Alternate  Blocking   34a84e-6e7800
   4     10/100TX   200000    128       Root       Forwarding 34a84e-da1680

Catalyst1設定

ルートブリッジになるように設定

Switch123(config)#spanning-tree vlan 50 priority 0

Switch123#show spanning-tree vlan 50


 VLAN0050
   Spanning tree enabled protocol ieee
   Root ID    Priority    50
              Address     34a8.4eda.1680
              This bridge is the root
              Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec

   Bridge ID  Priority    50     (priority 0 sys-id-ext 50)
              Address     34a8.4eda.1680
              Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
              Aging Time  15  sec

 Interface           Role Sts Cost      Prio.Nbr Type
 ------------------- ---- --- --------- -------- --------------------------------
 Gi0/4               Desg FWD 4         128.4    P2p
 Gi0/6               Desg FWD 19        128.6    P2p

Catalyst2設定

プライオリティが4096になるように設定(正確には4096+VLAN番号50=4146になる)

Switch456(config)#spanning-tree vlan 50 priority 4096

Switch456#show spanning-tree vlan 50


 VLAN0050
   Spanning tree enabled protocol ieee
   Root ID    Priority    50
              Address     1402.ec1d.e4a0
              Cost        19
              Port        3 (GigabitEthernet0/3)
              Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec

   Bridge ID  Priority    4146   (priority 4096 sys-id-ext 50)
              Address     34a8.4e6e.7800
              Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
              Aging Time  300 sec

 Interface           Role Sts Cost      Prio.Nbr Type
 ------------------- ---- --- --------- -------- --------------------------------
 Gi0/2               Desg FWD 4         128.2    P2p
 Gi0/3               Root FWD 19        128.3    P2p
