休暇で十分ナマッているところに、熱めなニュースが飛び込んできました!
それはこいつ
Agent Blueprints for Amazon Bedrock
ブログの発表
公式ドキュメントにはまだ言及がありませんでしたが、探したら出てきました。
ドキュメント
GitHubリポジトリ
サンプルプロジェクトのGitHubリポジトリ
サンプルを試してみる
あまり意味もわからず、サンプルに突撃してみました。
-
サンプルプロジェクトをGitHubからCloneします
Consolegit clone https://github.com/aws-samples/amazon-bedrock-samples.git cd amazon-bedrock-samples/agents-for-bedrock/agent-blueprint-templates/
-
blueprint.sh
のinitを実行します。以下のものがインストールされます- nvm
- Node.js
- AWS CLI
- AWS CDK
Console./blueprints.sh init
blueprints.sh
には、init以外のコマンドも用意されています。init
: 必要なモジュールをインストール
ls
: CDKスタックの一覧を出力
deploy <stack>
: CDKスタックをデプロイする実行中のターミナルに設定を反映します。
Consolesource ~/.bashrc
-
AWSの認証情報をセットします
aws configure
セットできたら、
aws s3 ls
で正しくセットされているか確認しましょう -
サンプルに用意されているCDKスタックを確認します
Console./blueprints.sh ls
Available stacks: - 01-agent-with-function-definitions - 02-agent-with-return-of-control - 03-agent-with-kb-and-guardrails - 04-agent-with-lambda-parser - 05-agent-with-classification-instructions
それぞれのCDKスタックの内容は以下のとおりです。
CDKスタック 内容 解説URL 01-agent-with-function-definitions Lambda関数を定義したスタック リンク 02-agent-with-return-of-control Return of controlを定義したスタック リンク 03-agent-with-kb-and-guardrails knowledgeBaseとGuardrailsを定義したスタック リンク 04-agent-with-lambda-parser Parser Lambdaを定義したスタック リンク 05-agent-with-classification-instructions 簡単なクラス分類を定義したスタック リンク -
「01-agent-with-function-definitions」スタックをデプロイします
./blueprints.sh deploy 01-agent-with-function-definitions

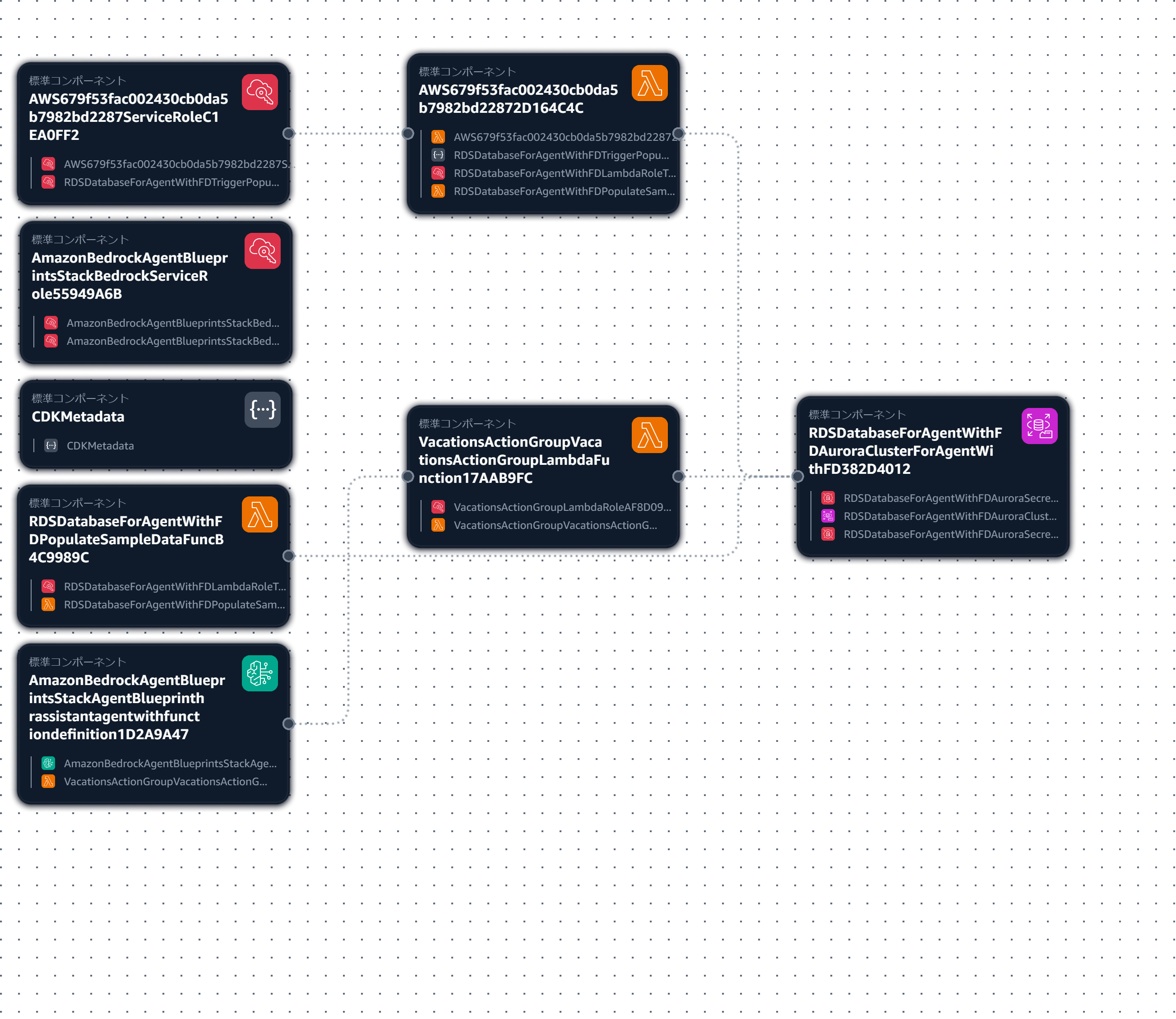

途中で作成される
cdk.out/AgentWithFunctionDefinitionStack.template.json
をApplication Composerで表示してみました。LambdaやAuroraがデプロイされます
同じ内容ですが、デプロイ完了後、
aws cloudformation describe-stack-resources --stack-name AgentWithFunctionDefinitionStack --output text
を実行した結果です。Logical ID Resource Type Status AWS679f53fac002430cb0da5b7982bd22872D164C4C AWS::Lambda::Function CREATE_COMPLETE AWS679f53fac002430cb0da5b7982bd2287ServiceRoleC1EA0FF2 AWS::IAM::Role CREATE_COMPLETE AmazonBedrockAgentBlueprintsStackAgentBlueprinthrassistantagentwithfunctiondefinition1D2A9A47 AWS::Bedrock::Agent CREATE_COMPLETE AmazonBedrockAgentBlueprintsStackBedrockServiceRole55949A6B AWS::IAM::Role CREATE_COMPLETE AmazonBedrockAgentBlueprintsStackBedrockServiceRoleDefaultPolicy52DAA442 AWS::IAM::Policy CREATE_COMPLETE CDKMetadata AWS::CDK::Metadata CREATE_COMPLETE RDSDatabaseForAgentWithFDAuroraClusterForAgentWithFD382D4012 AWS::RDS::DBCluster CREATE_COMPLETE RDSDatabaseForAgentWithFDAuroraSecretForAgentWithFD8B12F67F AWS::SecretsManager::Secret CREATE_COMPLETE RDSDatabaseForAgentWithFDAuroraSecretForAgentWithFDAttachment4D738340 AWS::SecretsManager::SecretTargetAttachment CREATE_COMPLETE RDSDatabaseForAgentWithFDLambdaRoleToPopulateData3DFAB4C7 AWS::IAM::Role CREATE_COMPLETE RDSDatabaseForAgentWithFDPopulateSampleDataFuncB4C9989C AWS::Lambda::Function CREATE_COMPLETE RDSDatabaseForAgentWithFDTriggerPopulateDataFunction0445536E Custom::AWS CREATE_COMPLETE RDSDatabaseForAgentWithFDTriggerPopulateDataFunctionCustomResourcePolicy651A2782 AWS::IAM::Policy CREATE_COMPLETE VacationsActionGroupLambdaRoleAF8D096D AWS::IAM::Role CREATE_COMPLETE VacationsActionGroupVacationsActionGroupLambdaFunction17AAB9FC AWS::Lambda::Function CREATE_COMPLETE VacationsActionGroupVacationsActionGroupLambdaFunctionBedrockAgentInvokePermission91baaf9a5c1D17BC084 AWS::Lambda::Permission CREATE_COMPLETE -

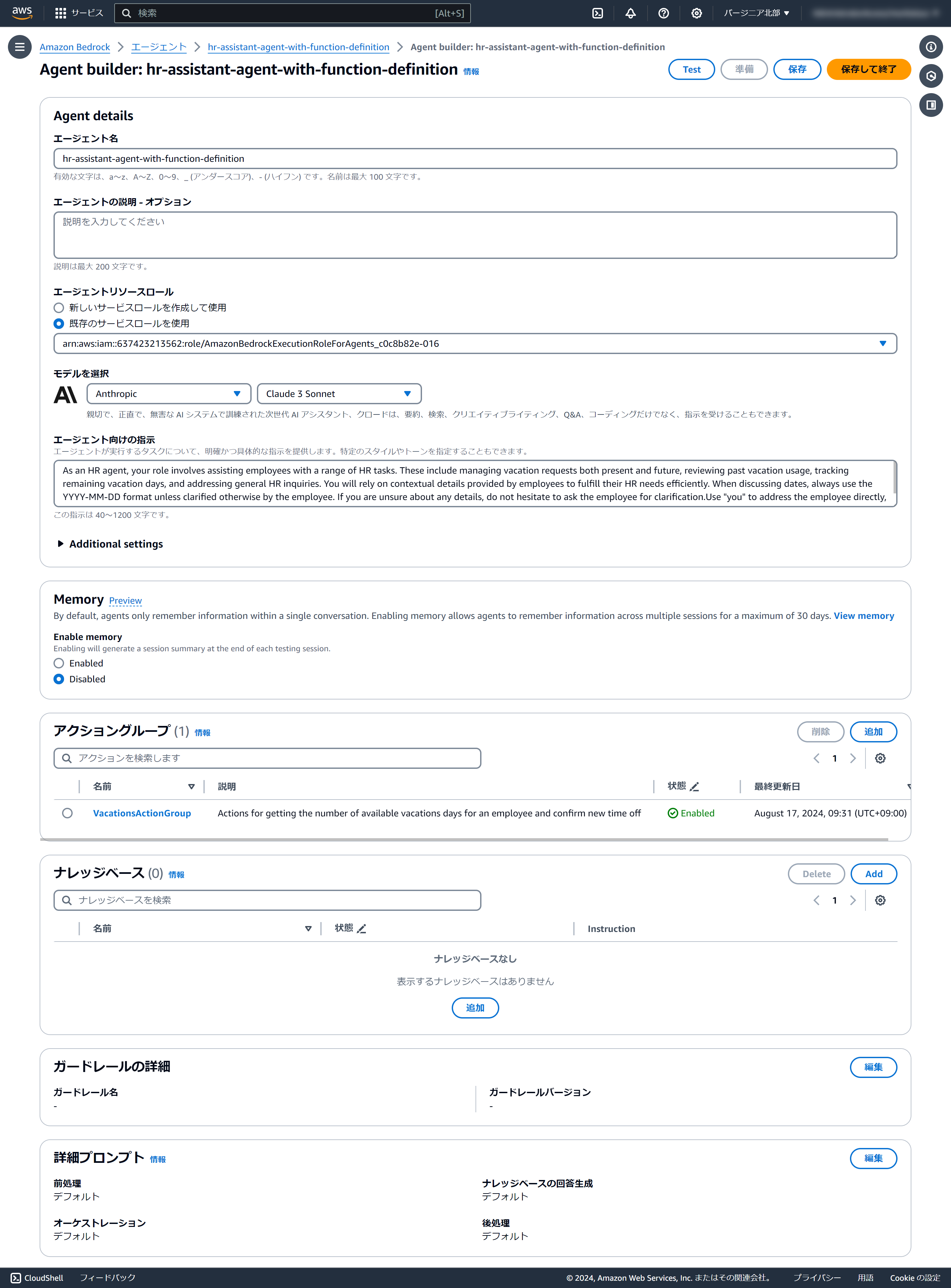

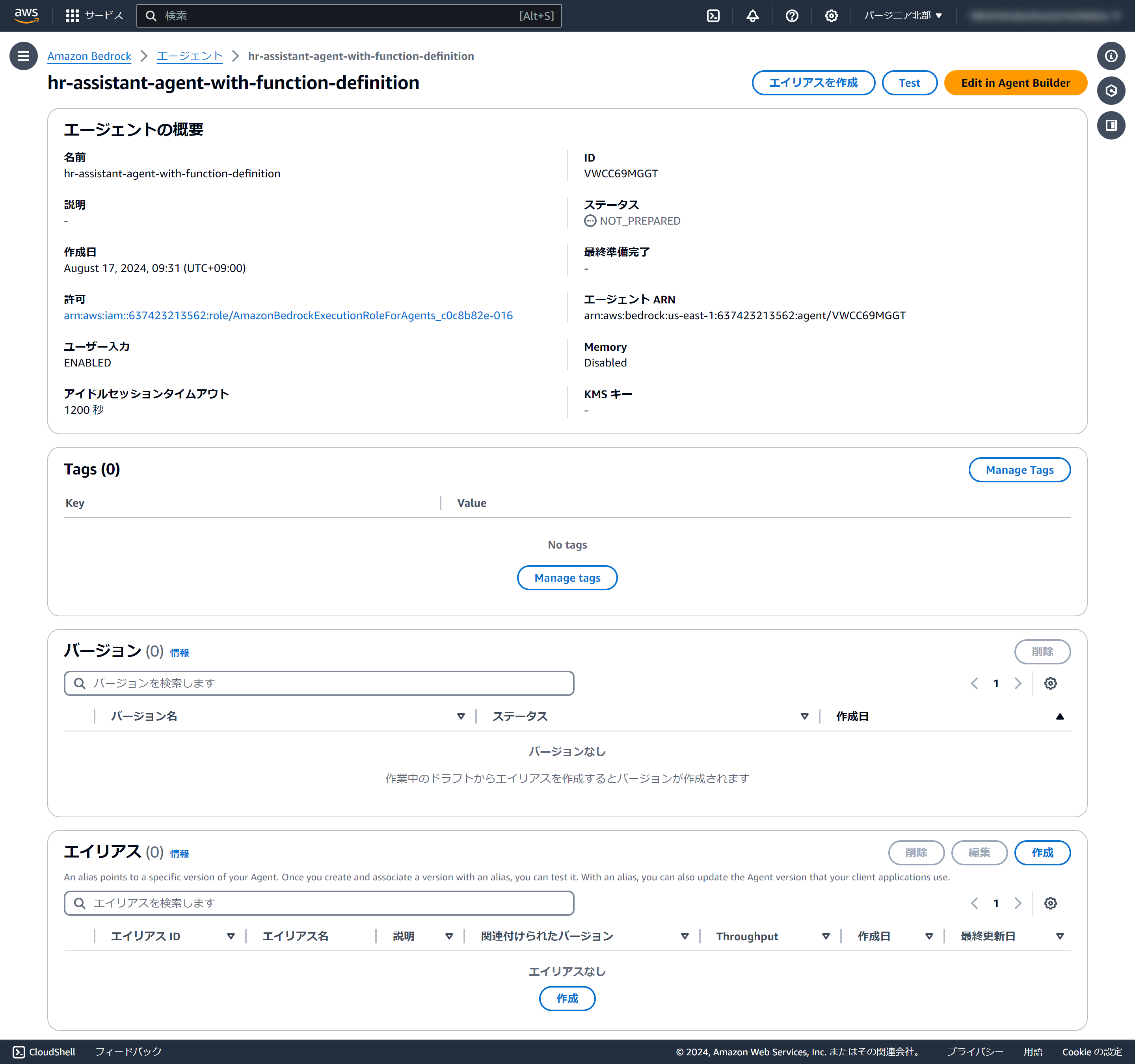

Bedrockの画面で確認します

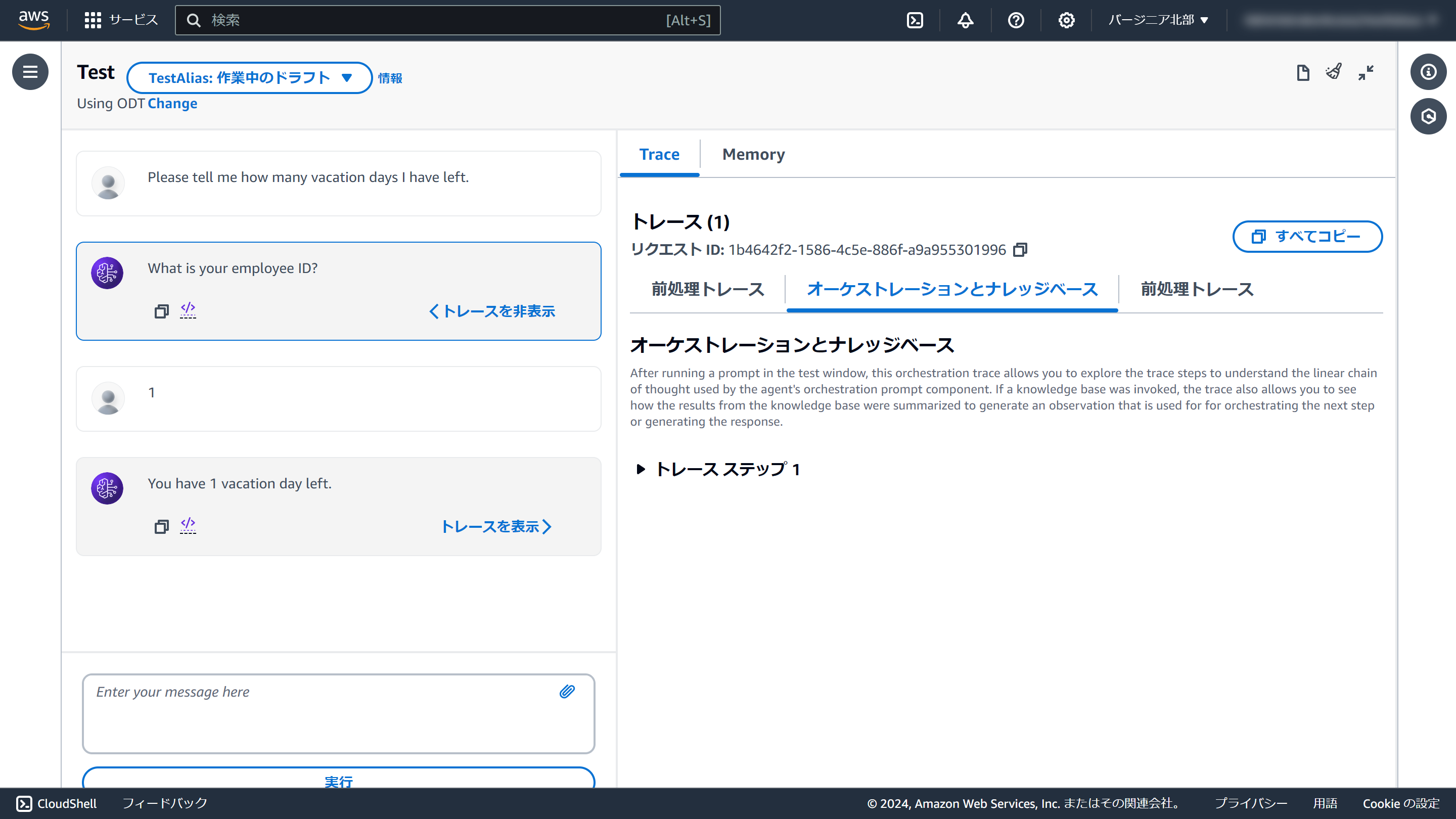

それっぽく動きました
で、結局なんなの?
サンプルだと何がなんだかわからなかったので、いちからやってみます。
cd ~/
mkdir bedrock-agent
cd bedrock-agent
cdk init app --language=typescript
Amazon Bedrock Agents Blueprints
モジュールをインストールします。
npm install @aws/agents-for-amazon-bedrock-blueprints
いつもながら、いい感じに名称が揺れてます。。
パッケージ名:agents-for-amazon-bedrock-blueprints
ドキュメントでの名称:Agent Blueprints for Amazon Bedrock
CDKのコードを書きます。(コードの細かな内容は、先程の「01-agent-with-function-definitions」から拝借しています)
まず、AgentDefinitionBuilderを使って、aws_bedrock.CfnAgentProps
を生成します。
const agentDef = new AgentDefinitionBuilder(this, 'HRAssistantAgent', {})
.withAgentName('hr-assistant-agent-with-function-definition')
.withInstruction(
'As an HR agent, your role involves assisting employees with a range of HR tasks. ' +
'These include managing vacation requests both present and future, ' +
'reviewing past vacation usage, tracking remaining vacation days, and addressing general HR inquiries. ' +
'You will rely on contextual details provided by employees to fulfill their HR needs efficiently. ' +
'When discussing dates, always use the YYYY-MM-DD format unless clarified otherwise by the employee. ' +
'If you are unsure about any details, do not hesitate to ask the employee for clarification.' +
'Use "you" to address the employee directly, making it more personal and actionable.' +
'Make sure the responses are direct, straightforward, and do not contain unnecessary information.'
)
.withFoundationModel('anthropic.claude-3-sonnet-20240229-v1:0')
.withUserInput()
.build();
.withXXX
を使ってビルドできるのはいいですね。
次にAction Groupの定義を行います。
const hrAssistanceAction = new AgentActionGroup(this, 'VacationsActionGroup', {
actionGroupName: 'VacationsActionGroup',
description: 'Actions for getting the number of available vacations days for an employee and confirm new time off',
actionGroupExecutor: {
lambdaDefinition: {
lambdaCode: readFileSync(join(__dirname, '..', 'lambda', 'ag-assist-with-vacations-lambda.ts')),
lambdaHandler: 'handler',
lambdaRuntime: Runtime.NODEJS_18_X,
timeoutInMinutes: 15,
}
},
schemaDefinition: {
functionSchema: {
functions: [{
name: 'get_available_vacation_days',
description: 'Get the number of vacation days available for a certain employee',
parameters: {
employee_id: {
type: 'integer',
description: 'The ID of the employee to get the available vacations',
required: true
}
}
}, {
name: 'reserve_vacation_time',
description: 'Reserve vacation time for a specific employee - you need all parameters to reserve vacation time',
parameters: {
employee_id: {
type: 'integer',
description: 'The ID of the employee to reserve the vacation time for',
required: true
},
start_date: {
type: 'integer',
description: 'The start date of the vacation time to reserve',
required: true
},
end_date: {
type: 'integer',
description: 'The end date of the vacation time to reserve',
required: true
}
}
}]
}
},
});
OpenAPIスキーマを指定する方法も可能です
最後にBedrockAgentBlueprintsConstruct
を生成します。
new BedrockAgentBlueprintsConstruct(this, 'AmazonBedrockAgentBlueprintsStack', {
agentDefinition: agentDef,
actionGroups: [hrAssistanceAction],
});
これで完成です。
bedrock-agent-stack.ts全体
import { AgentActionGroup, AgentDefinitionBuilder, BedrockAgentBlueprintsConstruct } from '@aws/agents-for-amazon-bedrock-blueprints';
import * as cdk from 'aws-cdk-lib';
import { Runtime } from 'aws-cdk-lib/aws-lambda';
import { Construct } from 'constructs';
import { readFileSync } from 'fs';
import { join } from 'path';
export class BedrockAgentStack extends cdk.Stack {
constructor(scope: Construct, id: string, props?: cdk.StackProps) {
super(scope, id, props);
const agentDef = new AgentDefinitionBuilder(this, 'HRAssistantAgent', {})
.withAgentName('hr-assistant-agent-with-function-definition')
.withInstruction(
'As an HR agent, your role involves assisting employees with a range of HR tasks. ' +
'These include managing vacation requests both present and future, ' +
'reviewing past vacation usage, tracking remaining vacation days, and addressing general HR inquiries. ' +
'You will rely on contextual details provided by employees to fulfill their HR needs efficiently. ' +
'When discussing dates, always use the YYYY-MM-DD format unless clarified otherwise by the employee. ' +
'If you are unsure about any details, do not hesitate to ask the employee for clarification.' +
'Use "you" to address the employee directly, making it more personal and actionable.' +
'Make sure the responses are direct, straightforward, and do not contain unnecessary information.'
)
.withFoundationModel('anthropic.claude-3-sonnet-20240229-v1:0')
.withUserInput()
.build();
const hrAssistanceAction = new AgentActionGroup(this, 'VacationsActionGroup', {
actionGroupName: 'VacationsActionGroup',
description: 'Actions for getting the number of available vacations days for an employee and confirm new time off',
actionGroupExecutor: {
lambdaDefinition: {
lambdaCode: readFileSync(join(__dirname, '..', 'lambda', 'ag-assist-with-vacations-lambda.ts')),
lambdaHandler: 'handler',
lambdaRuntime: Runtime.NODEJS_18_X,
timeoutInMinutes: 15,
}
},
schemaDefinition: {
functionSchema: {
functions: [{
name: 'get_available_vacation_days',
description: 'Get the number of vacation days available for a certain employee',
parameters: {
employee_id: {
type: 'integer',
description: 'The ID of the employee to get the available vacations',
required: true
}
}
}, {
name: 'reserve_vacation_time',
description: 'Reserve vacation time for a specific employee - you need all parameters to reserve vacation time',
parameters: {
employee_id: {
type: 'integer',
description: 'The ID of the employee to reserve the vacation time for',
required: true
},
start_date: {
type: 'integer',
description: 'The start date of the vacation time to reserve',
required: true
},
end_date: {
type: 'integer',
description: 'The end date of the vacation time to reserve',
required: true
}
}
}]
}
},
});
new BedrockAgentBlueprintsConstruct(this, 'AmazonBedrockAgentBlueprintsStack', {
agentDefinition: agentDef,
actionGroups: [hrAssistanceAction],
});
}
}
cdk deploy
すると、以下のものが作成されます。
- Agents for Amazon Bedrockの設定もろもろ
- アクショングループ
- アクショングループのLambda
これはいい!!
knowledgeBaseも簡単に作成できるよ!
以下のコードでこれだけのことを行います!!!!!
- ローカルディレクトリ配下にあるファイルをS3に上げる
- OpenSearch Serverlessコレクションを作成する
- S3のバケットをデータソースとして設定し、データ同期
- Agentの一部にknowledgeBaseを設定する
やば
// ローカルにあるファイルの場所を指定する
const assetDir = join(__dirname, '..', 'assets', 'kb_documents');
const assetFiles = readdirSync(assetDir).map(fileName => {
return readFileSync(join(assetDir, fileName));
});
// knowledgeBaseを定義する
const knowledgeBase = new AgentKnowledgeBase(this, "BedrockDocs", {
kbName: 'booking-agent-kb',
agentInstruction: 'Access the knowledge base when customers ask about the plates in the menu.',
assetFiles: assetFiles
})
new BedrockAgentBlueprintsConstruct(this, 'AmazonBedrockAgentBlueprintsStack', {
agentDefinition: agentDef,
actionGroups: [hrAssistanceAction],
knowledgeBases: [knowledgeBase] // ここを追加
});

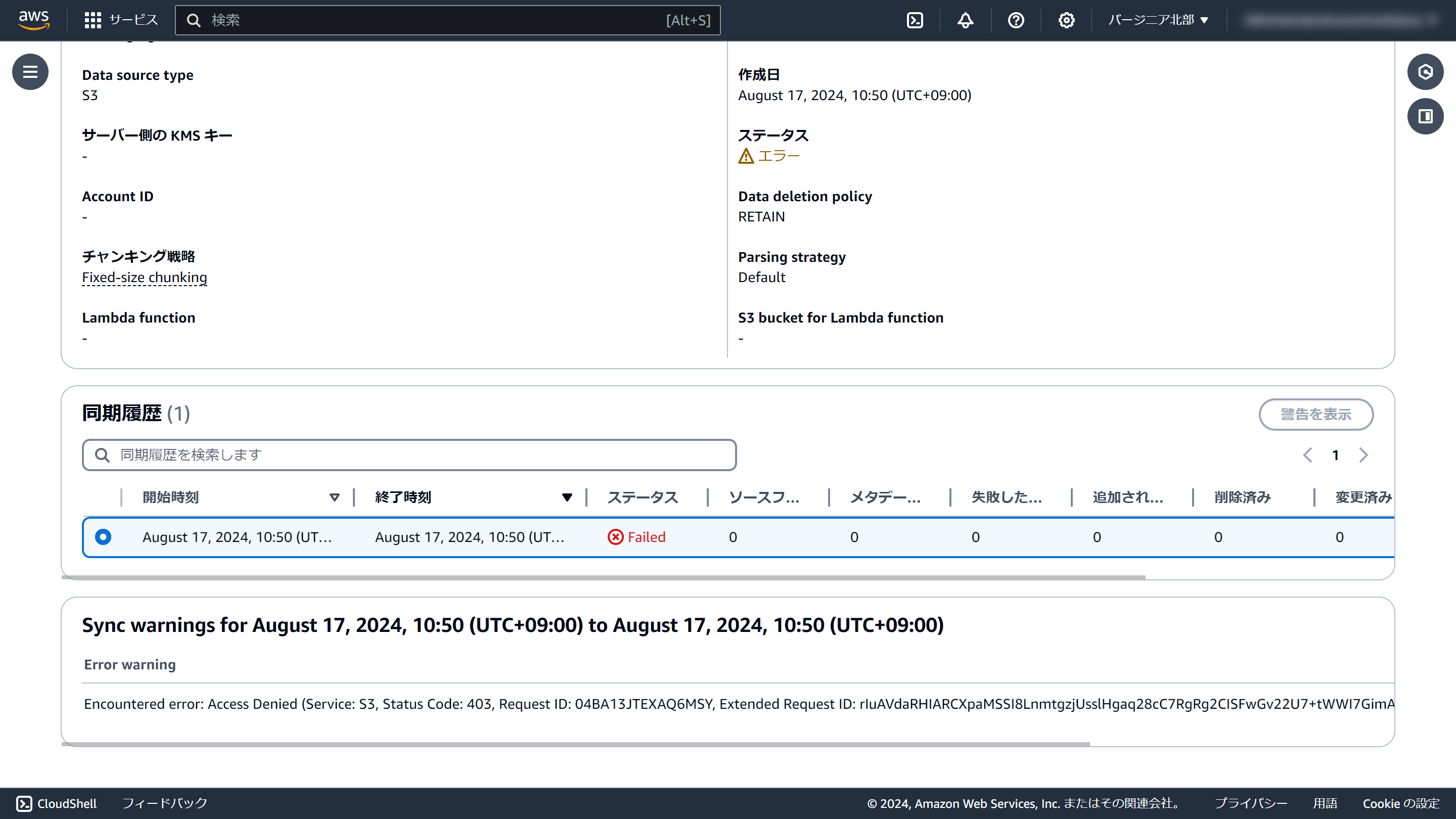

と思ったら、同期に失敗しました。
Oh,no...
どうもIAM権限が変。。
S3の権限部分のaws:SourceAccount
をaws:ResourceAccount
に変えるとうまくいきました。
Issueを上げてみました。
ちなみにスタックを削除すると、OpenSearch Serverlessのコレクションも削除されました。
