【HTML】FirefoxのCanvasでも縦書きしたい!

Posted at

すべての始まり

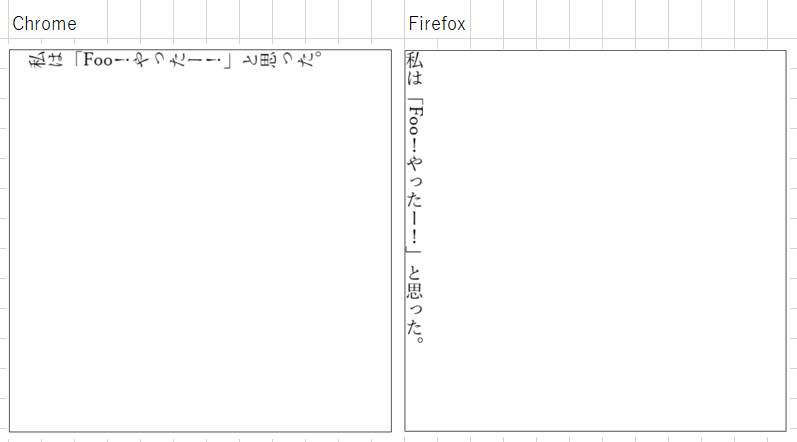

そんなまさかね…と思い検証してみたところ…


ソース
<!DOCTYPE html>
<html>
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>縦書き</title>
  <style>
    canvas {
      border: 1px solid black;
    }
    .vertical {
      writing-mode: vertical-rl;
    }
  </style>
</head>
<body>
  <canvas id="canvas" class="vertical" width="500" height="500"></canvas>
  <script>
    const canvas = document.querySelector("#canvas");
    const context = canvas.getContext("2d");
    context.textBaseline = 'top';
    context.font = "24px serif";
    // x座標を24pxずらしているのは、こうしないとFirefoxでCanvas外に文字が描画されて見えないから
    context.fillText("私は「Foo!やったー!」と思った。", 24, 0);
  </script>
</body>
</html>

はぁ~(クソデカため息)

という訳でFirefoxをChrome化させる

drawChromeStyleVerticalText(
    document.querySelector("#canvas"),
    "私は「Foo!やったー!」と思った。",
    "24px serif", 100, 100
);

function drawChromeStyleVerticalText(canvas, text, font, x, y) {
    const context = canvas.getContext("2d");
    context.textBaseline = 'top';
    context.font = font;

    if (/^.*Firefox.*$/.test(window.navigator.userAgent)) {
        context.save();
        context.translate(0, 0);
        context.rotate(-Math.PI / 2);
        context.fillText(text, -x, y);
        context.restore();
    }
    else {
        context.fillText(text, x, y);
    }
}
<!DOCTYPE html>
<html>
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>縦書き</title>
  <style>
    canvas {
      border: 1px solid black;
    }
    .vertical {
      writing-mode: vertical-rl;
    }
  </style>
</head>
<body>
  <canvas id="canvas" class="vertical" width="500" height="500"></canvas>
  <script src="main.js"></script>
</body>
</html>

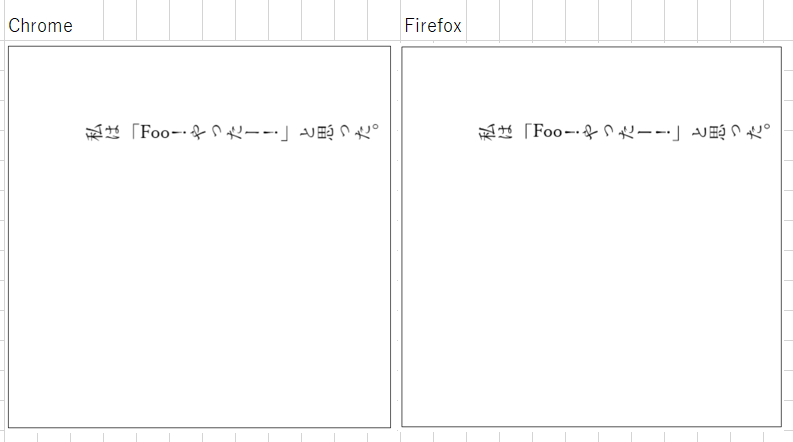

結果


OK!

おまけ

テキストが縦書きされたキャンバスを生成するライブラリ
