Dplayer: JavaScript open sources media playerの使用法

More than 1 year has passed since last update.

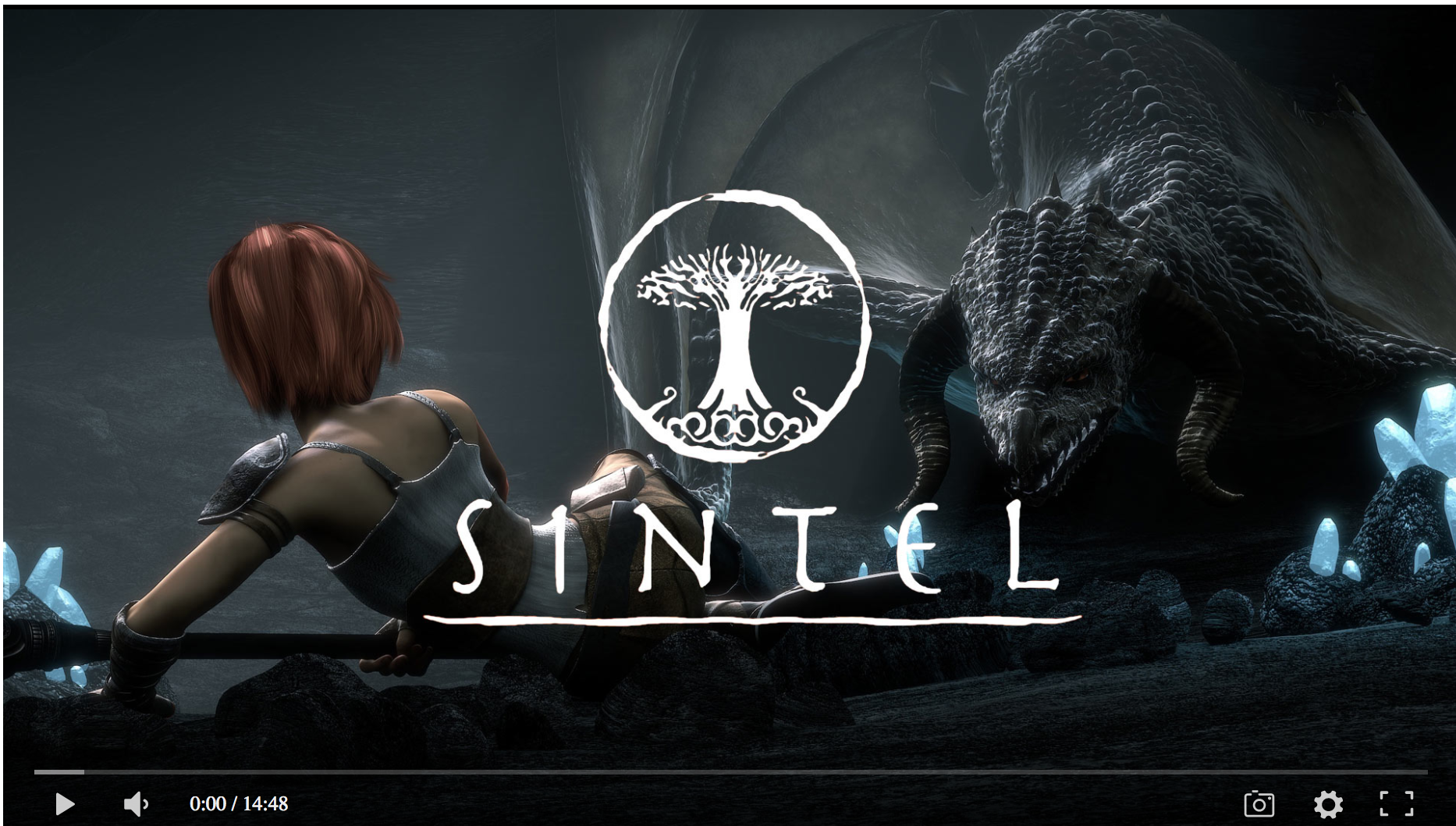

Screen Shot 2018-03-13 at 10.29.00.png

Screen Shot 2018-03-13 at 10.29.00.png

はじめに

こんにちは streampack チームのメディです。
https://cloudpack.jp/service/option/streampack.html

In my opinion Dplayer is a really interesting player and I would like to show you common use cases.
Dplayer は興味深いプレイヤーなので、一般的な使用法を説明します。

Copyrights of videos

Big Buck Bunny
© copyright 2008, Blender Foundation | www.bigbuckbunny.org
Sintel
© copyright Blender Foundation | www.sintel.org

What is Dplayer ・ Dplayerとは

Dplayer is an open sources JavasScript media player for the web.
Dplayer はウェブ用のオープンソースJavascriptメディアプレーヤーです。

Objective・目的

Learning how to use Dplayer through simple examples.
Dplayerの簡単な例を学ぶこと。

Simple example・ 簡単な実装

Implementation・実装

<head>
  <title>Dplayer</title>
  <meta charset="UTF-8">
  <!-- Style -->
  <link rel=stylesheet type="text/css" href="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.css"></link>
  <!-- Player -->
  <script type="text/javascript" src="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.js"></script>
</head>

<body>
  <div id="dplayer"></div>
  <script>
    const dp = new DPlayer({
      container: document.getElementById('dplayer'),
      video: {
        url: 'sintel_trailer-720p.mp4',
        type: 'auto'
      },
    });
  </script>
</body>

subtitles・字幕

Screen Shot 2018-03-30 at 10.38.36.png

Implementation・実装

<head>
  <title>Dplayer</title>
  <meta charset="UTF-8">
  <!-- Style -->
  <link rel=stylesheet type="text/css" href="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.css"></link>
  <!-- hls -->
  <script src="//cdn.jsdelivr.net/npm/hls.js@latest"></script>
  <!-- Player -->
  <script type="text/javascript" src="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.js"></script>
</head>

<body>
  <div id="dplayer"></div>
  <script>
    const dp = new DPlayer({
      container: document.getElementById('dplayer'),
      video: {
        url: '//bitdash-a.akamaihd.net/content/sintel/hls/playlist.m3u8',
        type: 'hls'
      },
      subtitle: {
        url: '//raw.githubusercontent.com/elyseko/web-vtt-example/master/src/captions/sintel-en-us.vtt',
        type: 'webvtt',
        fontSize:'30px',
        bottom: '10%',
        color: '#ee1289'
      }
    });
  </script>
</body>

Screen Capture & movie poster・スクリーンキャプチャ&ビデオポスター

Screen Shot 2018-03-29 at 10.15.37.png

Implementation・実装

<head>
  <title>Dplayer</title>
  <meta charset="UTF-8">
  <!-- Style -->
  <link rel=stylesheet type="text/css" href="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.css"></link>
  <!-- hls -->
 <script src="//cdn.jsdelivr.net/npm/hls.js@latest"></script>
  <!-- Player -->
  <script type="text/javascript" src="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.js"></script>
</head>

<body>
  <div id="dplayer"></div>
  <script>
    const dp = new DPlayer({
      container: document.getElementById('dplayer'),
      screenshot:true,
      video: {
        url: '//bitdash-a.akamaihd.net/content/sintel/hls/playlist.m3u8',
        type: 'hls',
        pic: 'sintel_poster.jpeg'
      },
    });
  </script>
</body>

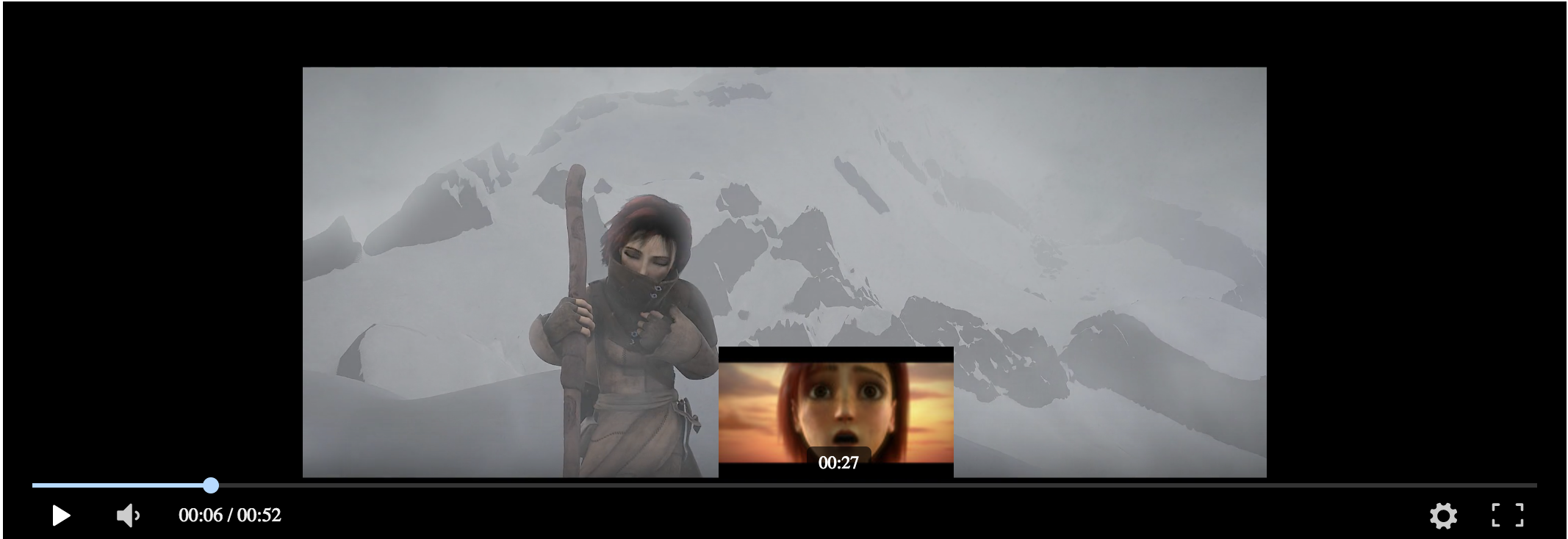

Seekbar preview ・ シークバープレビュー

Screen Shot 2018-03-30 at 15.23.50.png

N.B: The final montage file must be created with exactly 100 thumbnails.
注意: 最終的なモンタージュファイルは正確に100個のサムネイルで作成する必要があります。

Take screenshots with FFMPEG・ FFMPEGで画面キャプチャがする

ffmpeg -i sintel_trailer-720p.mp4 -f image2 -bt 20M -vf fps=100/VIDEO_LENGTH_IN_SEC -aspect 16:9 %03d.jpg

For example, Sintel trailer is 52 seconds length.
たとえば、Sintelの予告編の長さは52秒です。

ffmpeg -i sintel_trailer-720p.mp4 -f image2 -bt 20M -vf fps=100/52 -aspect 16:9 %03d.jpg

Generate montage file with ImageMagick・ ImageMagickでモンタージュファイルを生成する

montage *jpg -tile x1 -geometry 160x montage.jpg

Result結果

Implementation・実装

<head>
  <title>Dplayer</title>
  <meta charset="UTF-8">
  <!-- Style -->
  <link rel=stylesheet type="text/css" href="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.css"></link>
  <!-- Player -->
  <script type="text/javascript" src="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.js"></script>
</head>

<body>
  <div id="dplayer"></div>
  <script>
    const dp = new DPlayer({
      container: document.getElementById('dplayer'),
      video: {
        url: 'sintel_trailer-720p.mp4',
        type: 'auto',
        thumbnails:'montage.jpg'
      },

    });
  </script>
</body>

WebTorrent

Screen Shot 2018-03-30 at 9.59.30.png

N.B : WebTorrent is based on the WebRTC protocol. Safari does not support WebTorrent yet.
注意 :WebTorrentはWebRTCプロトコルに基づいています。 SafariはまだWebTorrentをサポートしていません。

Implementation・実装

<head>
  <title>Dplayer</title>
  <meta charset="UTF-8">
  <!-- Player Style -->
  <link rel=stylesheet type="text/css" href="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.css"></link>
  <!-- WebTorrent  -->
  <script src="//cdn.jsdelivr.net/webtorrent/latest/webtorrent.min.js"></script>
  <!-- Player -->
  <script type="text/javascript" src="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.js"></script>
</head>

<body>
  <div id="dplayer"></div>
  <script>
  var torrentId = 'magnet:?xt=urn:btih:6a9759bffd5c0af65319979fb7832189f4f3c35d&dn=sintel.mp4&tr=wss%3A%2F%2Ftracker.btorrent.xyz&tr=wss%3A%2F%2Ftracker.fastcast.nz&tr=wss%3A%2F%2Ftracker.openwebtorrent.com&tr=wss%3A%2F%2Ftracker.webtorrent.io&ws=https%3A%2F%2Fwebtorrent.io%2Ftorrents%2Fsintel-1024-surround.mp4';
  const dp = new DPlayer({
    container: document.getElementById('dplayer'),
    video: {
        url: `${torrentId}`,
        type: 'customWebTorrent',
        customType: {
            'customWebTorrent': function (video, player) {
                player.container.classList.add('dplayer-loading');
                const client = new WebTorrent();
                const torrentId = video.src;
                client.add(torrentId, (torrent) => {
                    const file = torrent.files.find((file) => file.name.endsWith('.mp4'));
                    file.renderTo(video, {
                        autoplay: player.options.autoplay
                    }, () => {
                        player.container.classList.remove('dplayer-loading');
                    });
                });
            }
        }
    }
});
  </script>
</body>

HLS

Screen Shot 2018-03-30 at 16.30.10.png

Implementation・実装

<head>
  <title>Dplayer</title>
  <meta charset="UTF-8">
  <!-- Style -->
  <link rel=stylesheet type="text/css" href="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.css"></link>
  <!-- hls -->
  <script src="//cdn.jsdelivr.net/npm/hls.js@latest"></script>
  <!-- Player -->
  <script type="text/javascript" src="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.js"></script>
</head>

<body>
  <div id="dplayer"></div>
  <script>
    const dp = new DPlayer({
      container: document.getElementById('dplayer'),
      screenshot: true,
      video: {
        url: '//bitdash-a.akamaihd.net/content/sintel/hls/playlist.m3u8',
        type: 'hls'
      },
    });
  </script>
</body>

MPEG-DASH

N.B: iOS does not support MPEG-DASH yet.
注意: iOSはまだMPEG-DASHをサポートしていません。
Screen Shot 2018-03-29 at 10.27.25.png

Implementation・実装

<head>
  <title>Dplayer</title>
  <meta charset="UTF-8">
  <!-- Style -->
  <link rel=stylesheet type="text/css" href="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.css"></link>
  <!-- dash -->
  <script src="//cdnjs.cloudflare.com/ajax/libs/dashjs/2.6.7/dash.all.min.js"></script>
  <!-- Player -->
  <script type="text/javascript" src="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.js"></script>
</head>

<body>
  <div id="dplayer"></div>
  <script>
    const dp = new DPlayer({
      container: document.getElementById('dplayer'),
      video: {
        url: '//rdmedia.bbc.co.uk/dash/ondemand/bbb/2/client_manifest-common_init.mpd',
        type: 'dash'
      },
    });
  </script>
</body>

NicoNico danmaku style (Comments wave)・ニコニコ弾幕コメント波

Screenshot from 2018-03-10 15-17-58.png

Implementation・実装

<head>
  <title>Dplayer</title>
  <meta charset="UTF-8">
  <!-- Style -->
  <link rel=stylesheet type="text/css" href="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.css"></link>
  <!-- Player -->
  <script type="text/javascript" src="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.js"></script>
</head>

<body>
  <div id="dplayer"></div>
  <script>
    const dp = new DPlayer({
      container: document.getElementById('dplayer'),
      video: {
        url: 'sintel_trailer-720p.mp4',
        type: 'auto'
      },
      //testing credentials
      danmaku: {
        id: '9E2E3368B56CDBB4',
        api: 'https://api.prprpr.me/dplayer/',
        token: 'tokendemo',
        maximum: 1000,
        addition: ['https://api.prprpr.me/dplayer/bilibili?aid=4157142'],
        user: 'DIYgod',
        bottom: '15%',
        unlimited: true
      },
    });
  </script>
</body>

N.B: For live comments, please refer to the Dplayer homepage.
注意: ライブコメントについては、Dplayerのホームページを参照してください。

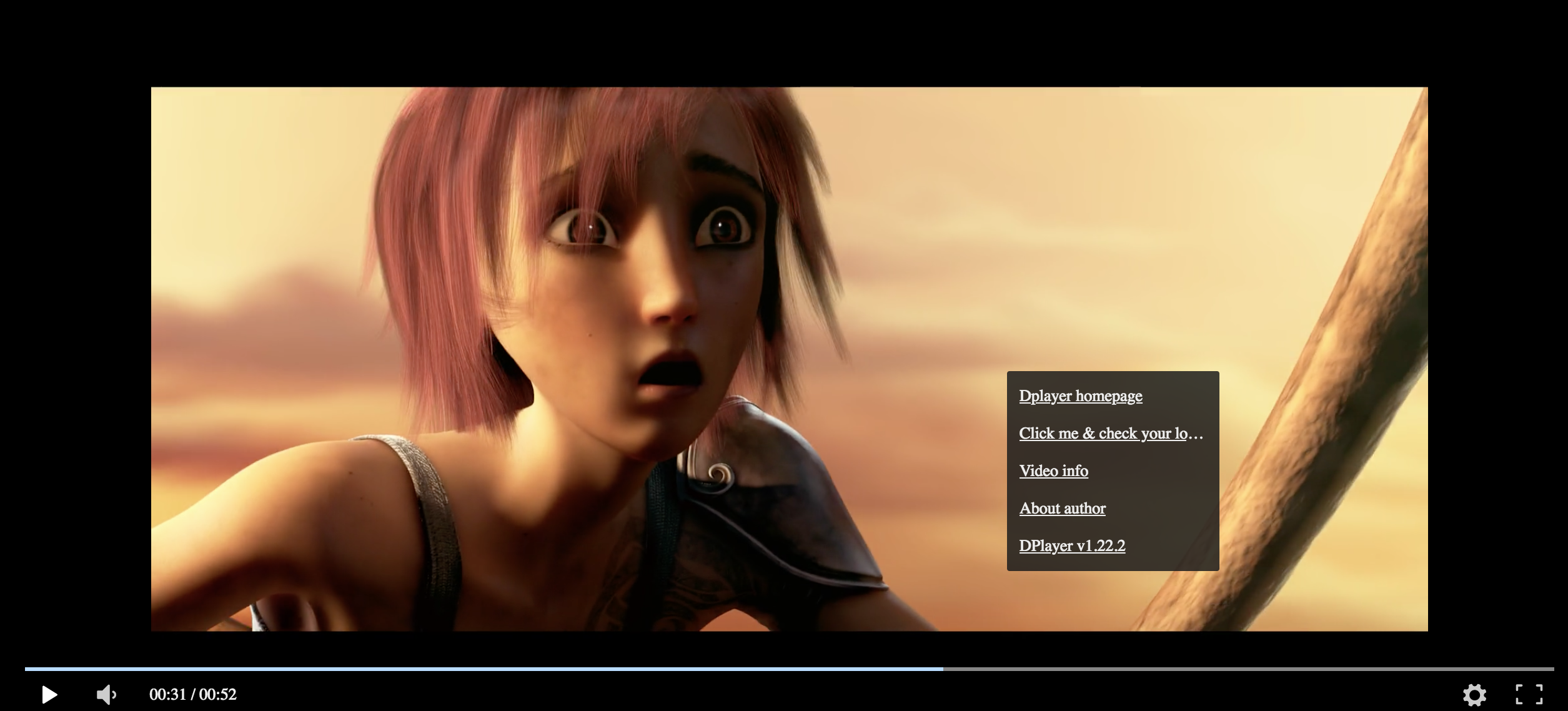

Custom context menu (Right click)・カスタムコンテキストメニュー『右クリック』

Screen Shot 2018-03-29 at 12.41.25.png

Implementation・実装

<head>
  <title>Dplayer</title>
  <meta charset="UTF-8">
  <!-- Style -->
  <link rel=stylesheet type="text/css" href="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.css"></link>
  <!-- Player -->
  <script type="text/javascript" src="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.js"></script>
</head>

<body>
  <div id="dplayer"></div>
  <script>
    const dp = new DPlayer({
      container: document.getElementById('dplayer'),
      video: {
        url: 'sintel_trailer-720p.mp4',
        type: 'auto'
      },
      contextmenu: [{
          text: 'Dplayer homepage',
          link: 'https://github.com/MoePlayer/DPlayer'
        },
        {
          text: 'Click me & check your logs!',
          click: (player) => {
            console.log(player);
          }
        }
      ]
    });
  </script>
</body>

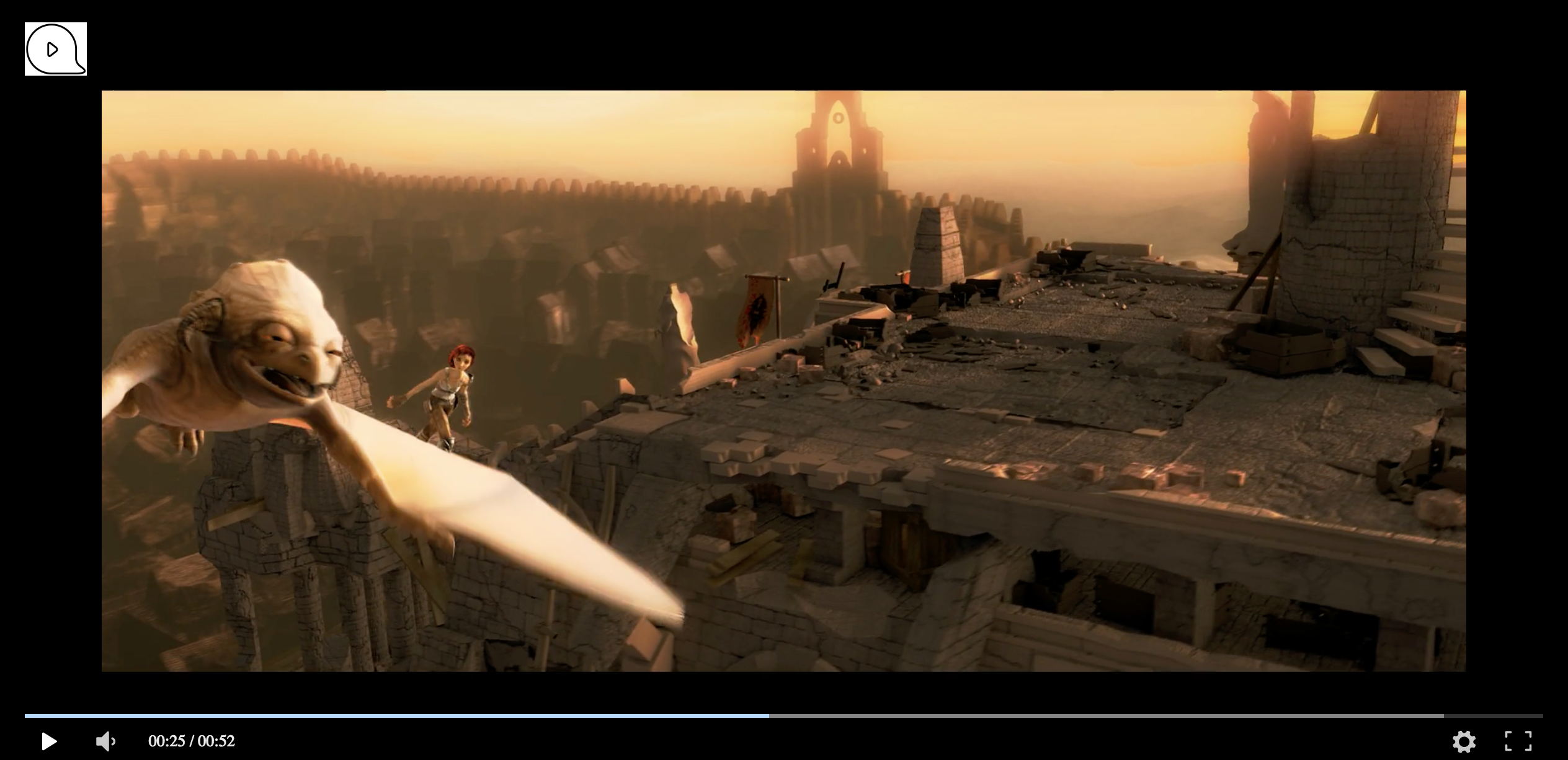

Watermark・動画にウォーターマーク

Watermark size & position can be adjusted by CSS.
CSSでウォーターマークの位置を調整することができます。

Screen Shot 2018-03-29 at 12.23.05.png

Implementation・実装

<head>
  <title>Dplayer</title>
  <meta charset="UTF-8">
  <!-- Style -->
  <link rel=stylesheet type="text/css" href="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.css"></link>
  <!-- Player -->
  <script type="text/javascript" src="//cdnjs.cloudflare.com/ajax/libs/dplayer/1.22.2/DPlayer.min.js"></script>
</head>

<body>
  <div id="dplayer"></div>
  <script>
    const dp = new DPlayer({
      container: document.getElementById('dplayer'),
      logo:"logo.png",
      video: {
        url: 'sintel_trailer-720p.mp4',
        type: 'auto'
      },
    });
  </script>
</body>

Information sources ・ 情報源

Player homepage
https://github.com/MoePlayer/DPlayer
http://dplayer.js.org

Player Documentation
http://dplayer.js.org/#/home

WebTorrent
https://webtorrent.io/

Media files
http://www.bbc.co.uk/rd/blog/2013-09-mpeg-dash-test-streams
http://docs.evostream.com/sample_content/table_of_contents
https://bitmovin.com/mpeg-dash-hls-examples-sample-streams/
http://iandevlin.github.io/mdn/video-player-with-captions/
