Nextflow を使ってみる

Nextflow

動作した場所

• Mac
• Linux
• Windows WSL 1 でも動いた

Nextflow syntax highlighter

Atom

• language-nextflow

VSCode

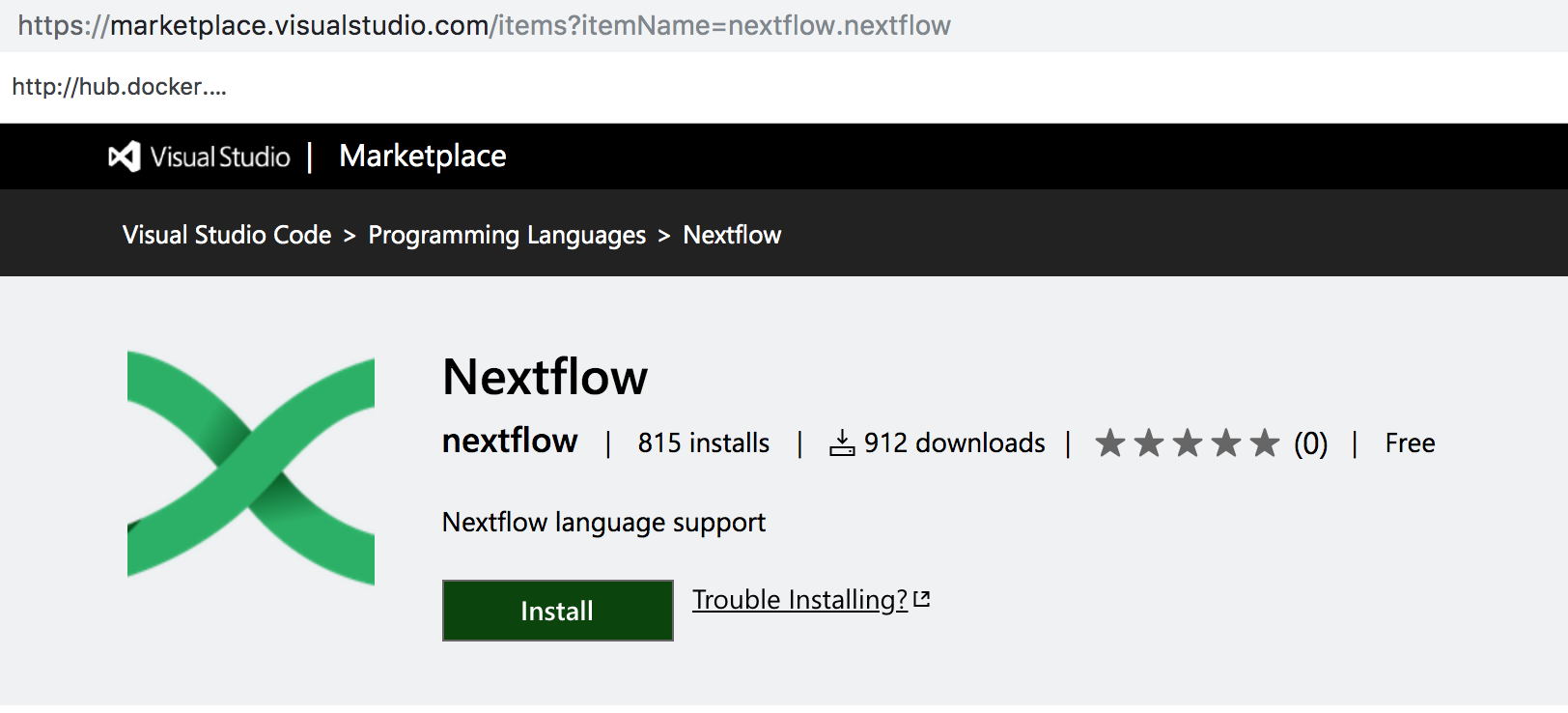

• Nextflow - Visual Studio Marketplace

その他

nextflow は、 groovy の派生のため
nextflow のシンタックスハイライターがない環境では、
groovy のハイライターを使うという手もある。

nextflow を使ってみよう

インストールなど

• Nextflow - A DSL for parallel and scalable computational pipelines

1. Javaの8以降をいれておく
2. curl -s https://get.nextflow.io | bash
3. ./nextflow run hello

ダウンロードしているときのログなど

ダウンロードすると、
依存するjavaライブラリをダウンロードしているっぽいログがでてきて
最終的に動く環境がてにはいる

いろいろデータは、 ~/.nextflow に入るようである。

インストールおわったときの、ログ

CAPSULE: Downloading dependency commons-codec:commons-codec:jar:1.10

N E X T F L O W
version 19.04.1 build 5072
last modified 03-05-2019 12:29 UTC (21:29 JDT)
cite doi:10.1038/nbt.3820
http://nextflow.io


Nextflow installation completed. Please note:
- the executable file `nextflow` has been created in the folder: /Users/manabu/work/nextflow
- you may complete the installation by moving it to a directory in your $PATH

はじめてのコマンド実行

$ ./nextflow run hello
N E X T F L O W  ~  version 19.04.1
Pulling nextflow-io/hello ...
downloaded from https://github.com/nextflow-io/hello.git
Launching `nextflow-io/hello` [high_mayer] - revision: a9012339ce [master]
[warm up] executor > local
executor >  local (4)
[27/9839a3] process > sayHello [100%] 4 of 4 ✔
Ciao world!

Bonjour world!

Hola world!

Hello world!

Completed at: 28-Jun-2019 11:11:33
Duration    : 1.1s
CPU hours   : (a few seconds)
Succeeded   : 4

$  nextflow file nextflow
nextflow: Bourne-Again shell script text executable, ASCII text

• Nextflow - Basic pipeline

のサンプルを、example1.nf として、保存する

$  nextflow ./nextflow example1.nf
N E X T F L O W  ~  version 19.04.1
Launching `example1` [suspicious_yalow] - revision: 3c1734c90b
[warm up] executor > local
executor >  local (1)
[ab/9776d1] process > splitSequences [  0%] 0 of 1
ERROR ~ Error executing process > 'splitSequences'

executor >  local (1)
[ab/9776d1] process > splitSequences [100%] 1 of 1, failed: 1 ✘
ERROR ~ Error executing process > 'splitSequences'

Caused by:
  Process `splitSequences` terminated with an error exit status (1)

Command executed:

  awk '/^>/{f="seq_"++d} {print > f}' < input.fa

Command exit status:
  1

Command output:
  (empty)

Command error:
  .command.sh: line 2: input.fa: No such file or directory

Work dir:
  /Users/manabu/work/nextflow/work/ab/9776d1a5bb20bbd2415b237cfda7d7

Tip: view the complete command output by changing to the process work dir and entering the command `cat .command.out`

 -- Check '.nextflow.log' file for details

FASTA - Wikipedia

>gi|5524211|gb|AAD44166.1| cytochrome b [Elephas maximus maximus]
LCLYTHIGRNIYYGSYLYSETWNTGIMLLLITMATAFMGYVLPWGQMSFWGATVITNLFSAIPYIGTNLV
EWIWGGFSVDKATLNRFFAFHFILPFTMVALAGVHLTFLHETGSNNPLGLTSDSDKIPFHPYYTIKDFLG
LLILILLLLLLALLSPDMLGDPDNHMPADPLNTPLHIKPEWYFLFAYAILRSVPNKLGGVLALFLSIVIL
GLMPFLHTSKHRSMMLRPLSQALFWTLTMDLLTLTWIGSQPVEYPYTIIGQMASILYFSIILAFLPIAGX
IENY

失敗したときのエラーを

入力ファイルを、デフォルトに合わせる

$ mv data/input.fa data/sample.fa

実行する。

• 分解(split)したものは、ファイルに出力されて
• 反転させたものは、標準出力に出力される

$  ./nextflow example1.nf
N E X T F L O W  ~  version 19.04.1
Launching `example1` [nauseous_mirzakhani] - revision: 3c1734c90b
[warm up] executor > local
executor >  local (2)
[43/3398fe] process > splitSequences [100%] 1 of 1 ✔
[3b/5a7487] process > reverse        [  0%] 0 of 1
]sumixam sumixam sahpelE[ b emorhcotyc |1.66144DAA|bg|1124255|ig>
VLNTGIYPIASFLNTIVTAGWFSMQGWPLVYGMFATAMTILLLMIGTNWTESYLYSGYYINRGIHTYLCL
GLFDKITYYPHFPIKDSDSTLGLPNNSGTEHLFTLHVGALAVMTFPLIFHFAFFRNLTAKDVSFGGWIWE
LIVISLFLALVGGLKNPVSRLIAYAFLFYWEPKIHLPTNLPDAPMHNDPDGLMDPSLLALLLLLLILILL
executor >  local (2)
[43/3398fe] process > splitSequences [100%] 1 of 1 ✔
[3b/5a7487] process > reverse        [100%] 1 of 1 ✔
Completed at: 28-Jun-2019 11:20:22
Duration    : 1.1s
CPU hours   : (a few seconds)
Succeeded   : 2

$ ./nextflow example1.nf
N E X T F L O W  ~  version 19.04.1
Launching `example1` [maniac_poisson] - revision: 3c1734c90b
[warm up] executor > local
executor >  local (2)
[ac/3e7150] process > splitSequences [100%] 1 of 1 ✔
[c4/de9f8e] process > reverse        [  0%] 0 of 1
]sumixam sumixam sahpelE[ b emorhcotyc |1.66144DAA|bg|1124255|ig>
VLNTGIYPIASFLNTIVTAGWFSMQGWPLVYGMFATAMTILLLMIGTNWTESYLYSGYYINRGIHTYLCL
GLFDKITYYPHFPIKDSDSTLGLPNNSGTEHLFTLHVGALAVMTFPLIFHFAFFRNLTAKDVSFGGWIWE
LIVISLFLALVGGLKNPVSRLIAYAFLFYWEPKIHLPTNLPDAPMHNDPDGLMDPSLLALLLLLLILILL
executor >  local (2)
[ac/3e7150] process > splitSequences [100%] 1 of 1 ✔
[c4/de9f8e] process > reverse        [100%] 1 of 1 ✔
Completed at: 28-Jun-2019 11:21:10
Duration    : 1.1s
CPU hours   : (a few seconds)
Succeeded   : 2

FASTA format - Wikipedia
より、以下の配列を、data/sample2.fa として保存

>MCHU - Calmodulin - Human, rabbit, bovine, rat, and chicken
ADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTID
FPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREA
DIDGDGQVNYEEFVQMMTAK*

>gi|5524211|gb|AAD44166.1| cytochrome b [Elephas maximus maximus]
LCLYTHIGRNIYYGSYLYSETWNTGIMLLLITMATAFMGYVLPWGQMSFWGATVITNLFSAIPYIGTNLV
EWIWGGFSVDKATLNRFFAFHFILPFTMVALAGVHLTFLHETGSNNPLGLTSDSDKIPFHPYYTIKDFLG
LLILILLLLLLALLSPDMLGDPDNHMPADPLNTPLHIKPEWYFLFAYAILRSVPNKLGGVLALFLSIVIL
GLMPFLHTSKHRSMMLRPLSQALFWTLTMDLLTLTWIGSQPVEYPYTIIGQMASILYFSIILAFLPIAGX
IENY

入力ファイルを変更してみる

$ ./nextflow example1.nf --in=data/sample2.fa

work の下に、データがでてきている

seq-1
seq-2
