はじめに
JETSON ORIN NANO Developer kitを起動してNode-REDを動かすまでのメモです。
SDカードイメージのダウンロード
JP511-orin-nano-sd-card-image.zip (10.4GB)というファイルがダウンロードされます。
SDカードイメージの書き込み
Etcherを使用してSDカード (32GB以上) へファイルを書き込みます。

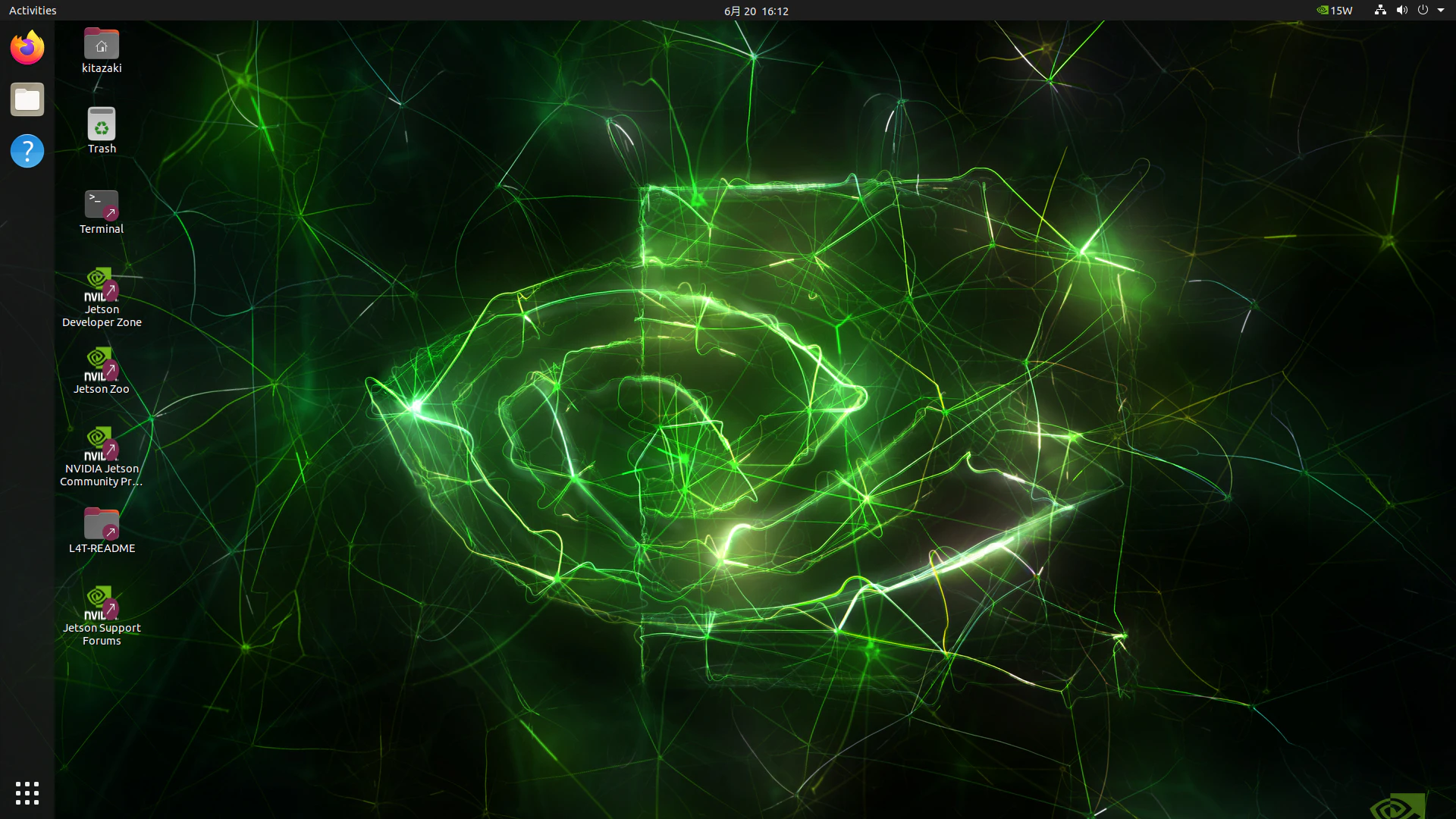

起動

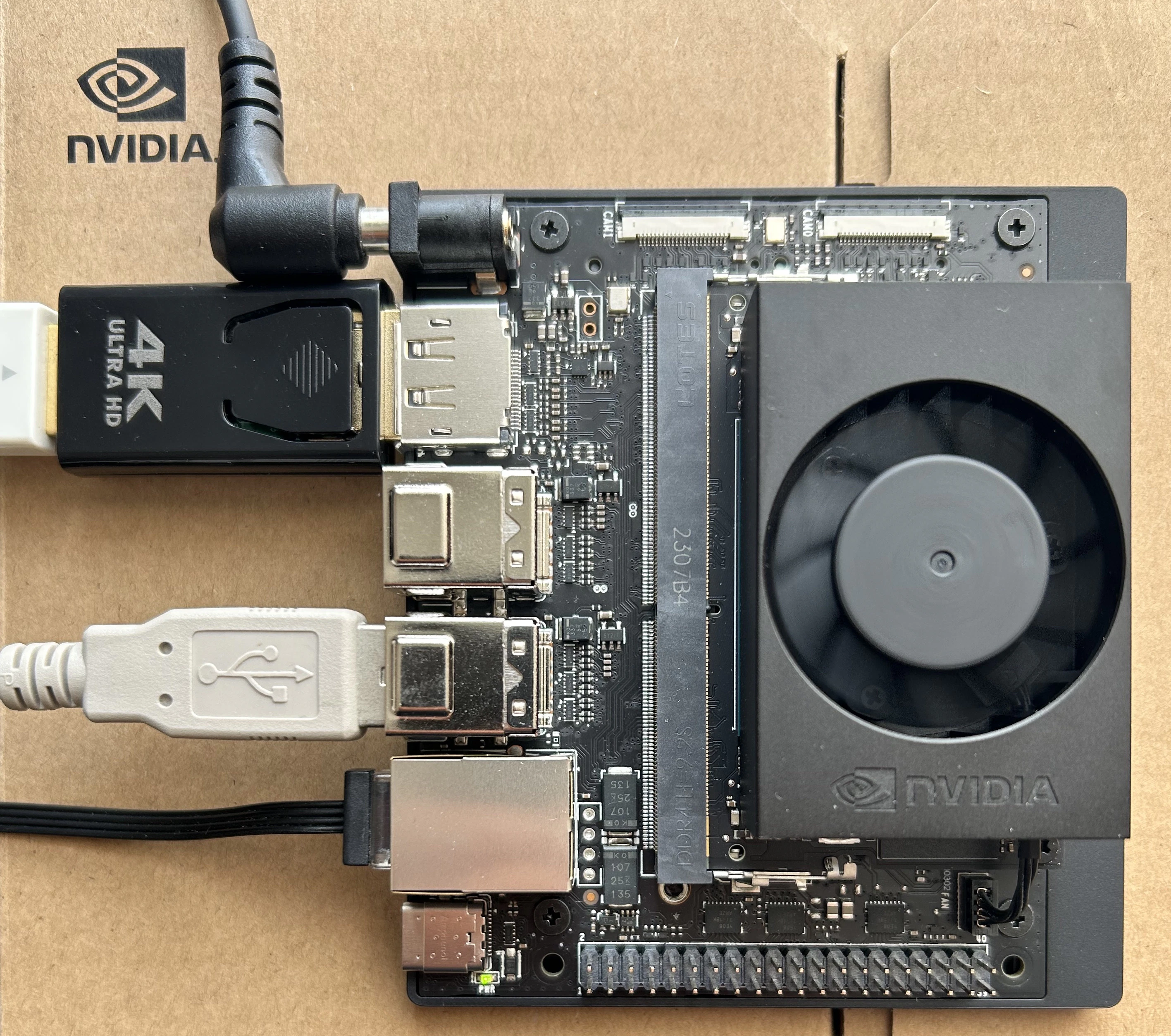

JETSON ORIN NANOへSDカードを挿入し、HDMIケーブル(DisplayPort - HDMI変換アダプタ経由)、USBキーボード・マウス、Ethernetケーブル、DC電源ケーブル(AC電源アダプタ)を接続して、JETSON ORIN NANO Developer kitを起動します。
Node-REDのインストール
Xtermを起動してターミナル画面を表示します。
(リモートからJETSON ORIN NANOへSSHアクセスしても可。)
ソフトウェアアップデートを実行し、curlコマンドをインストールします。
$ sudo apt update
$ sudo apt upgrade
$ sudo apt install curl
以下のコマンドを実行して、JETSON ORIN NANO に Node-RED をインストールします。
$ bash <(curl -sL https://raw.githubusercontent.com/node-red/linux-installers/master/deb/update-nodejs-and-nodered)
質問を聞かれた場合は、y を入力します。(2回)
インストール完了後に質問を聞かれた場合は、 n または Enterを入力します。(1回)
Are you really sure you want to do this ? [y/N] ? (← y を入力)
Would you like to install the Pi-specific nodes ? [y/N] ? (← y を入力)
Running Node-RED install for user kitazaki at /home/kitazaki on ubuntu
This can take 20-30 minutes on the slower Pi versions - please wait.
Stop Node-RED ✔
Remove old version of Node-RED ✔
Remove old version of Node.js ✔
Install Node.js 16 LTS ✔ v16.20.0 Npm 8.19.4
Clean npm cache ✔
Install Node-RED core ✔ 3.0.2
Move global nodes to local -
Npm rebuild existing nodes ✔
Install extra Pi nodes ✔
Add shortcut commands ✔
Update systemd script ✔
Any errors will be logged to /var/log/nodered-install.log
All done.
You can now start Node-RED with the command node-red-start
or using the icon under Menu / Programming / Node-RED
Then point your browser to localhost:1880 or http://{your_pi_ip-address}:1880
Started : 2023年 6月 20日 火曜日 15:46:35 JST
Finished: 2023年 6月 20日 火曜日 15:49:06 JST
**********************************************************************************
### WARNING ###
DO NOT EXPOSE NODE-RED TO THE OPEN INTERNET WITHOUT SECURING IT FIRST
Even if your Node-RED doesn't have anything valuable, (automated) attacks will
happen and could provide a foothold in your local network
Follow the guide at https://nodered.org/docs/user-guide/runtime/securing-node-red
to setup security.
### ADDITIONAL RECOMMENDATIONS ###
- You can customise the initial settings by running:
node-red admin init
- After running Node-RED for the first time, change the ownership of the settings
file to 'root' to prevent unauthorised changes:
sudo chown root:root ~/.node-red/settings.js
**********************************************************************************
Would you like to customise the settings now (y/N) ? (← N または Enterを入力)
Node-REDを動かす
$ node-red start
20 Jun 15:49:36 - [info]
Welcome to Node-RED
===================
20 Jun 15:49:36 - [info] Node-RED version: v3.0.2
20 Jun 15:49:36 - [info] Node.js version: v16.20.0
20 Jun 15:49:36 - [info] Linux 5.10.104-tegra arm64 LE
20 Jun 15:49:36 - [info] Loading palette nodes
20 Jun 15:49:38 - [info] Settings file : /home/kitazaki/.node-red/settings.js
20 Jun 15:49:38 - [info] Context store : 'default' [module=memory]
20 Jun 15:49:38 - [info] User directory : /home/kitazaki/.node-red
20 Jun 15:49:38 - [warn] Projects disabled : editorTheme.projects.enabled=false
20 Jun 15:49:38 - [info] Flows file : /home/kitazaki/.node-red/start
20 Jun 15:49:38 - [info] Creating new flow file
20 Jun 15:49:38 - [warn]
---------------------------------------------------------------------
Your flow credentials file is encrypted using a system-generated key.
If the system-generated key is lost for any reason, your credentials
file will not be recoverable, you will have to delete it and re-enter
your credentials.
You should set your own key using the 'credentialSecret' option in
your settings file. Node-RED will then re-encrypt your credentials
file using your chosen key the next time you deploy a change.
---------------------------------------------------------------------
20 Jun 15:49:38 - [info] Server now running at http://127.0.0.1:1880/
20 Jun 15:49:38 - [warn] Encrypted credentials not found
20 Jun 15:49:38 - [info] Starting flows
20 Jun 15:49:38 - [info] Started flows

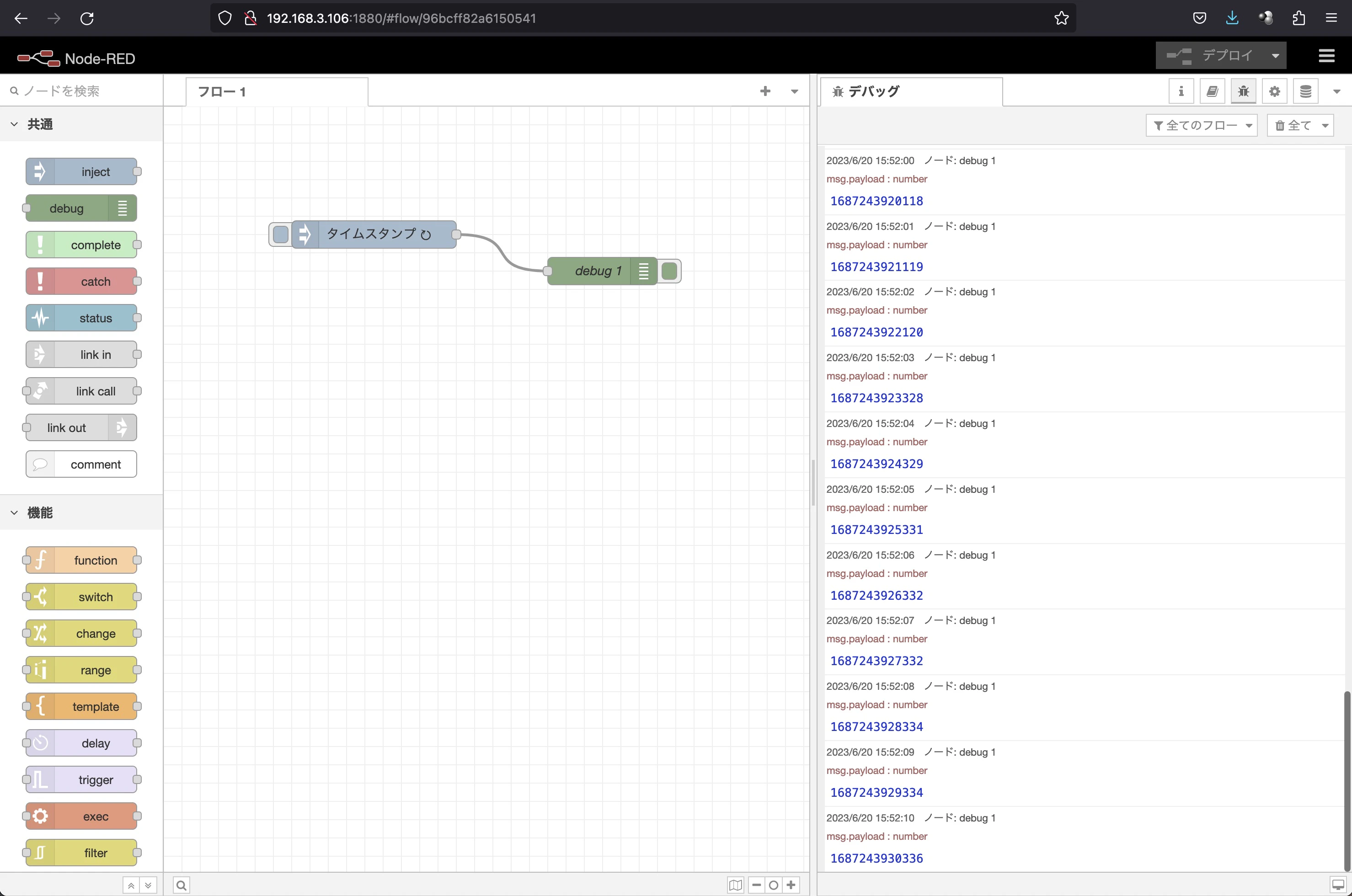

フローエディタを表示する
ブラウザからhttp://[JETSON ORIN NANOのIPアドレス]:1880へアクセスします。
