MSSQLのEC2上のパフォーマンス計測用のダッシュボード。
移行のダウンタイム短縮等でモニタリングできるように使います。
今まで環境ごとにリソースIDを書いていましたが、変数で解決できそう。
環境固定で使いたい場合、variablesで定義している、defaultValueを各リソースIDに変更すればOK。

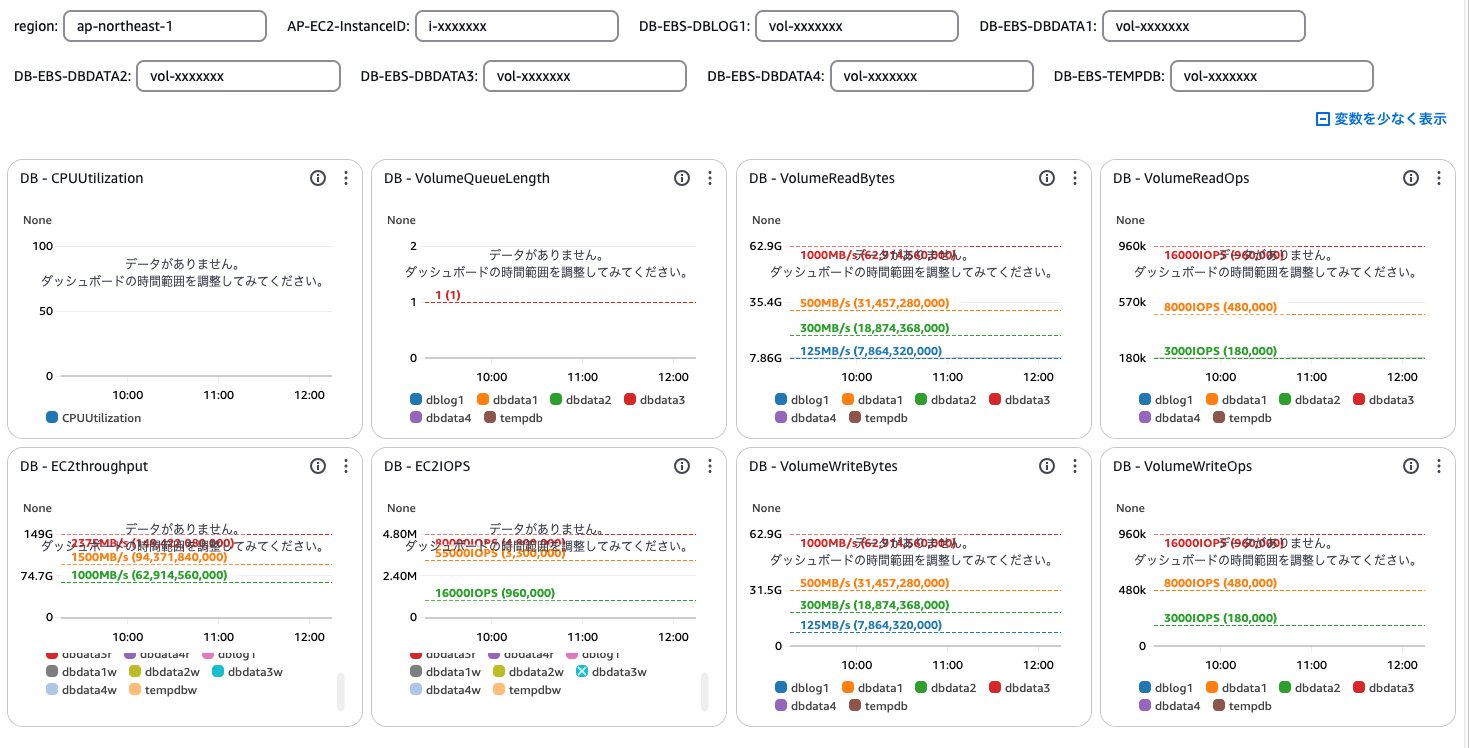

完成はこんな感じ。
CloudWatchDashboards_MSSQL
{
"variables": [
{
"type": "property",
"property": "region",
"inputType": "input",
"id": "region",
"label": "region",
"defaultValue": "ap-northeast-1",
"visible": true
},
{
"type": "pattern",
"pattern": "AP-EC2-InstanceID",
"inputType": "input",
"id": "AP-EC2-InstanceID",
"label": "AP-EC2-InstanceID",
"defaultValue": "i-xxxxxxx",
"visible": true
},
{
"type": "pattern",
"pattern": "db-ebs-dblog1",
"inputType": "input",
"id": "DB-EBS-DBLOG1",
"label": "DB-EBS-DBLOG1",
"defaultValue": "vol-xxxxxxx",
"visible": true
},
{
"type": "pattern",
"pattern": "db-ebs-dbdata1",
"inputType": "input",
"id": "DB-EBS-DBDATA1",
"label": "DB-EBS-DBDATA1",
"defaultValue": "vol-xxxxxxx",
"visible": true
},
{
"type": "pattern",
"pattern": "db-ebs-dbdata2",
"inputType": "input",
"id": "DB-EBS-DBDATA2",
"label": "DB-EBS-DBDATA2",
"defaultValue": "vol-xxxxxxx",
"visible": true
},
{
"type": "pattern",
"pattern": "db-ebs-dbdata3",
"inputType": "input",
"id": "DB-EBS-DBDATA3",
"label": "DB-EBS-DBDATA3",
"defaultValue": "vol-xxxxxxx",
"visible": true
},
{
"type": "pattern",
"pattern": "db-ebs-dbdata4",
"inputType": "input",
"id": "DB-EBS-DBDATA4",
"label": "DB-EBS-DBDATA4",
"defaultValue": "vol-xxxxxxx",
"visible": true
},
{
"type": "pattern",
"pattern": "db-ebs-tempdb",
"inputType": "input",
"id": "DB-EBS-TEMPDB",
"label": "DB-EBS-TEMPDB",
"defaultValue": "vol-xxxxxxx",
"visible": true
}
],
"widgets": [
{
"height": 6,
"width": 6,
"y": 0,
"x": 0,
"type": "metric",
"properties": {
"metrics": [
[ "AWS/EC2", "CPUUtilization", "InstanceId", "AP-EC2-InstanceID", { "stat": "Average", "id": "m0" } ]
],
"legend": {
"position": "bottom"
},
"period": 60,
"view": "timeSeries",
"stacked": false,
"title": "DB - CPUUtilization",
"region": "ap-northeast-1",
"yAxis": {
"left": {
"max": 100,
"min": 0
}
}
}
},
{
"height": 6,
"width": 6,
"y": 6,
"x": 0,
"type": "metric",
"properties": {
"metrics": [
[ "AWS/EBS", "VolumeReadBytes", "VolumeId", "db-ebs-dblog1", { "id": "m1", "label": "dblog1" } ],
[ "...", "db-ebs-dbdata1", { "id": "m2", "label": "dbdata1r" } ],
[ "...", "db-ebs-dbdata2", { "id": "m3", "label": "dbdata2r" } ],
[ "...", "db-ebs-dbdata3", { "id": "m4", "label": "dbdata3r" } ],
[ "...", "db-ebs-dbdata4", { "id": "m5", "label": "dbdata4r" } ],
[ "...", "db-ebs-tempdb", { "id": "m6", "label": "tempdbr" } ],
[ ".", "VolumeWriteBytes", ".", "db-ebs-dblog1", { "id": "m11", "label": "dblog1" } ],
[ "...", "db-ebs-dbdata1", { "id": "m12", "label": "dbdata1w" } ],
[ "...", "db-ebs-dbdata2", { "id": "m13", "label": "dbdata2w" } ],
[ "...", "db-ebs-dbdata3", { "id": "m14", "label": "dbdata3w" } ],
[ "...", "db-ebs-dbdata4", { "id": "m15", "label": "dbdata4w" } ],
[ "...", "db-ebs-tempdb", { "id": "m6", "label": "tempdbw" } ]
],
"legend": {
"position": "bottom"
},
"period": 60,
"view": "timeSeries",
"stacked": true,
"title": "DB - EC2throughput",
"region": "ap-northeast-1",
"stat": "Sum",
"annotations": {
"horizontal": [
{
"label": "2375MB/s",
"value": 149422080000
},
{
"label": "1500MB/s",
"value": 94371840000
},
{
"label": "1000MB/s",
"value": 62914560000
}
]
}
}
},
{
"height": 6,
"width": 6,
"y": 6,
"x": 6,
"type": "metric",
"properties": {
"metrics": [
[ "AWS/EBS", "VolumeReadOps", "VolumeId", "db-ebs-dblog1", { "id": "m1", "label": "dblog1", "region": "ap-northeast-1" } ],
[ "...", "db-ebs-dbdata1", { "id": "m2", "label": "dbdata1r", "region": "ap-northeast-1" } ],
[ "...", "db-ebs-dbdata2", { "id": "m3", "label": "dbdata2r", "region": "ap-northeast-1" } ],
[ "...", "db-ebs-dbdata3", { "id": "m4", "label": "dbdata3r", "region": "ap-northeast-1" } ],
[ "...", "db-ebs-dbdata4", { "id": "m5", "label": "dbdata4r", "region": "ap-northeast-1" } ],
[ "...", "db-ebs-tempdb", { "id": "m6", "label": "tempdbr", "region": "ap-northeast-1" } ],
[ ".", "VolumeWriteOps", ".", "db-ebs-dblog1", { "id": "m11", "label": "dblog1", "region": "ap-northeast-1" } ],
[ "...", "db-ebs-dbdata1", { "id": "m12", "label": "dbdata1w", "region": "ap-northeast-1" } ],
[ "...", "db-ebs-dbdata2", { "id": "m13", "label": "dbdata2w", "region": "ap-northeast-1" } ],
[ "...", "db-ebs-dbdata3", { "id": "m14", "label": "dbdata3w", "region": "ap-northeast-1" } ],
[ "...", "db-ebs-dbdata4", { "id": "m15", "label": "dbdata4w", "region": "ap-northeast-1" } ],
[ "...", "db-ebs-tempdb", { "id": "m6", "label": "tempdbw", "region": "ap-northeast-1" } ]
],
"legend": {
"position": "bottom"
},
"period": 60,
"view": "timeSeries",
"stacked": true,
"title": "DB - EC2IOPS",
"region": "ap-northeast-1",
"stat": "Sum",
"annotations": {
"horizontal": [
{
"label": "80000IOPS",
"value": 4800000
},
{
"label": "55000IOPS",
"value": 3300000
},
{
"label": "16000IOPS",
"value": 960000
}
]
}
}
},
{
"height": 6,
"width": 6,
"y": 6,
"x": 12,
"type": "metric",
"properties": {
"metrics": [
[ "AWS/EBS", "VolumeWriteBytes", "VolumeId", "db-ebs-dblog1", { "id": "m1", "label": "dblog1" } ],
[ "...", "db-ebs-dbdata1", { "id": "m2", "label": "dbdata1" } ],
[ "...", "db-ebs-dbdata2", { "id": "m3", "label": "dbdata2" } ],
[ "...", "db-ebs-dbdata3", { "id": "m4", "label": "dbdata3" } ],
[ "...", "db-ebs-dbdata4", { "id": "m5", "label": "dbdata4" } ],
[ "...", "db-ebs-tempdb", { "id": "m6", "label": "tempdb" } ]
],
"legend": {
"position": "bottom"
},
"period": 60,
"view": "timeSeries",
"stacked": false,
"title": "DB - VolumeWriteBytes",
"region": "ap-northeast-1",
"stat": "Sum",
"yAxis": {
"left": {
"min": 0,
"showUnits": true
}
},
"annotations": {
"horizontal": [
{
"label": "1000MB/s",
"value": 62914560000
},
{
"label": "500MB/s",
"value": 31457280000
},
{
"label": "300MB/s",
"value": 18874368000
},
{
"label": "125MB/s",
"value": 7864320000
}
]
}
}
},
{
"height": 6,
"width": 6,
"y": 6,
"x": 18,
"type": "metric",
"properties": {
"metrics": [
[ "AWS/EBS", "VolumeWriteOps", "VolumeId", "db-ebs-dblog1", { "id": "m1", "label": "dblog1" } ],
[ "...", "db-ebs-dbdata1", { "id": "m2", "label": "dbdata1" } ],
[ "...", "db-ebs-dbdata2", { "id": "m3", "label": "dbdata2" } ],
[ "...", "db-ebs-dbdata3", { "id": "m4", "label": "dbdata3" } ],
[ "...", "db-ebs-dbdata4", { "id": "m5", "label": "dbdata4" } ],
[ "...", "db-ebs-tempdb", { "id": "m6", "label": "tempdb" } ]
],
"legend": {
"position": "bottom"
},
"period": 60,
"view": "timeSeries",
"stacked": false,
"title": "DB - VolumeWriteOps",
"region": "ap-northeast-1",
"stat": "Sum",
"yAxis": {
"left": {
"min": 0,
"label": "",
"showUnits": true
},
"right": {
"min": 0,
"label": "",
"showUnits": false
}
},
"annotations": {
"horizontal": [
{
"label": "16000IOPS",
"value": 960000
},
{
"label": "8000IOPS",
"value": 480000
},
{
"label": "3000IOPS",
"value": 180000
}
]
}
}
},
{
"height": 6,
"width": 6,
"y": 0,
"x": 6,
"type": "metric",
"properties": {
"metrics": [
[ "AWS/EBS", "VolumeQueueLength", "VolumeId", "db-ebs-dblog1", { "stat": "Average", "id": "m1", "label": "dblog1", "region": "ap-northeast-1" } ],
[ "...", "db-ebs-dbdata1", { "stat": "Average", "id": "m2", "label": "dbdata1" } ],
[ "...", "db-ebs-dbdata2", { "stat": "Average", "id": "m3", "label": "dbdata2" } ],
[ "...", "db-ebs-dbdata3", { "stat": "Average", "id": "m4", "label": "dbdata3" } ],
[ "...", "db-ebs-dbdata4", { "stat": "Average", "id": "m5", "label": "dbdata4" } ],
[ "...", "db-ebs-tempdb", { "stat": "Average", "id": "m6", "label": "tempdb" } ]
],
"legend": {
"position": "bottom"
},
"period": 60,
"view": "timeSeries",
"stacked": false,
"title": "DB - VolumeQueueLength",
"region": "ap-northeast-1",
"yAxis": {
"left": {
"min": 0
}
},
"annotations": {
"horizontal": [
{
"label": "1",
"value": 1
}
]
}
}
},
{
"height": 6,
"width": 6,
"y": 0,
"x": 12,
"type": "metric",
"properties": {
"metrics": [
[ "AWS/EBS", "VolumeReadBytes", "VolumeId", "db-ebs-dblog1", { "id": "m1", "label": "dblog1" } ],
[ "...", "db-ebs-dbdata1", { "id": "m2", "label": "dbdata1" } ],
[ "...", "db-ebs-dbdata2", { "id": "m3", "label": "dbdata2" } ],
[ "...", "db-ebs-dbdata3", { "id": "m4", "label": "dbdata3" } ],
[ "...", "db-ebs-dbdata4", { "id": "m5", "label": "dbdata4" } ],
[ "...", "db-ebs-tempdb", { "id": "m6", "label": "tempdb" } ]
],
"legend": {
"position": "bottom"
},
"period": 60,
"view": "timeSeries",
"stacked": false,
"title": "DB - VolumeReadBytes",
"region": "ap-northeast-1",
"stat": "Sum",
"annotations": {
"horizontal": [
{
"label": "1000MB/s",
"value": 62914560000
},
{
"label": "500MB/s",
"value": 31457280000
},
{
"label": "300MB/s",
"value": 18874368000
},
{
"label": "125MB/s",
"value": 7864320000
}
]
}
}
},
{
"height": 6,
"width": 6,
"y": 0,
"x": 18,
"type": "metric",
"properties": {
"metrics": [
[ "AWS/EBS", "VolumeReadOps", "VolumeId", "db-ebs-dblog1", { "id": "m1", "label": "dblog1" } ],
[ "...", "db-ebs-dbdata1", { "id": "m2", "label": "dbdata1" } ],
[ "...", "db-ebs-dbdata2", { "id": "m3", "label": "dbdata2" } ],
[ "...", "db-ebs-dbdata3", { "id": "m4", "label": "dbdata3" } ],
[ "...", "db-ebs-dbdata4", { "id": "m5", "label": "dbdata4" } ],
[ "...", "db-ebs-tempdb", { "id": "m6", "label": "tempdb" } ]
],
"legend": {
"position": "bottom"
},
"period": 60,
"view": "timeSeries",
"stacked": false,
"title": "DB - VolumeReadOps",
"region": "ap-northeast-1",
"stat": "Sum",
"annotations": {
"horizontal": [
{
"label": "16000IOPS",
"value": 960000
},
{
"label": "8000IOPS",
"value": 480000
},
{
"label": "3000IOPS",
"value": 180000
}
]
}
}
}
]
}
