シンプルなggplot作図設定

Posted at

私が論文に載せる図を描くときに使っているggplot2の設定。条件は
・ 背景は白
・ 枠線は四方ありでちょっと太め、色は黒
のみ。

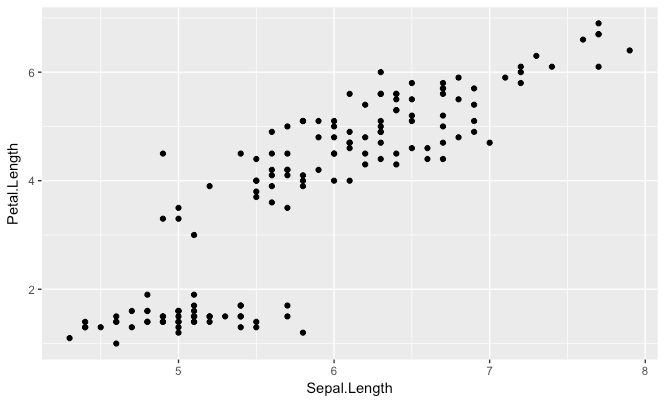

ggplot2のデフォルトだと次のようになる。

plotiris.R
library(ggplot2)
ggp <- ggplot(data=iris) +
  geom_point(aes(x=Sepal.Length, y=Petal.Length))
print(ggp)


背景が灰色だしなんか見にくい。そこで次のようなtheme()を書いてやる。

plotiris.R
ggp <- ggplot(data=iris) +
  geom_point(aes(x=Sepal.Length, y=Petal.Length)) +
  theme(
        axis.text = element_text(size = 20, colour = "black"), #目盛の数字
        axis.title = element_text(size = 20), #軸タイトル
        panel.grid.major = element_blank(),   #グリッドは入れない
        panel.grid.minor = element_blank(),   #グリッドは入れない
        panel.background = element_rect(fill = "white", colour = "black", size = 1.2)
#fillは枠内の色、colourは枠線の色、sizeは枠線の太さ
        )
print(ggp)


これで論文に載せる図もバッチリ!
