# Pipesライブラリ　超図解

pipesライブラリを図解します。

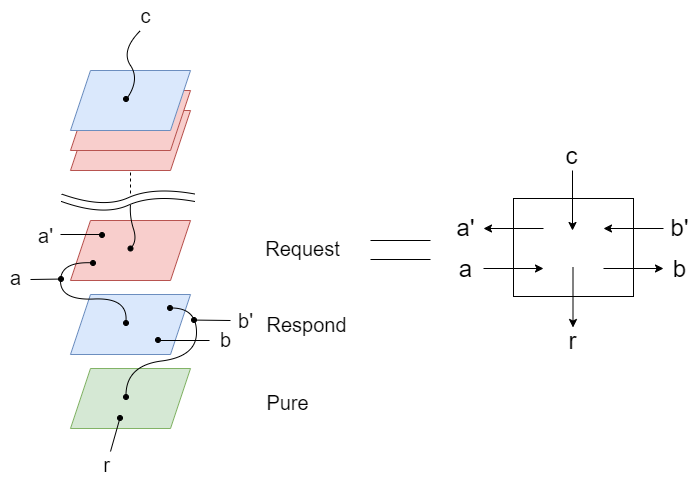

## Proxy a' a b' b m r

Pipes.Internalより
```data Proxy a' a b' b m r
= Request a' (a  -> Proxy a' a b' b m r )
| Respond b  (b' -> Proxy a' a b' b m r )
| M          (m    (Proxy a' a b' b m r))
| Pure    r
```

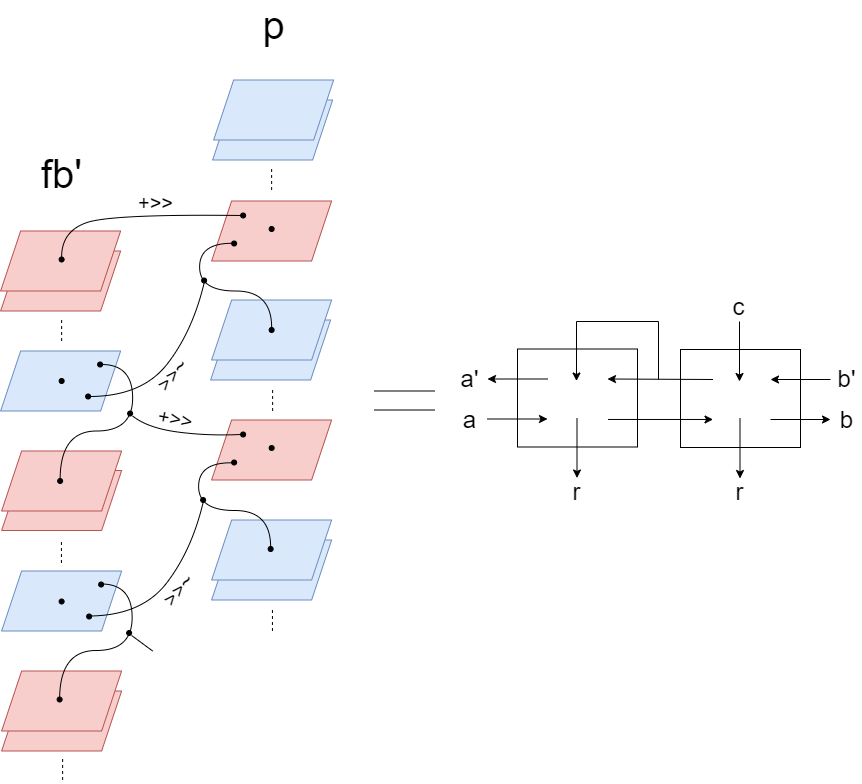

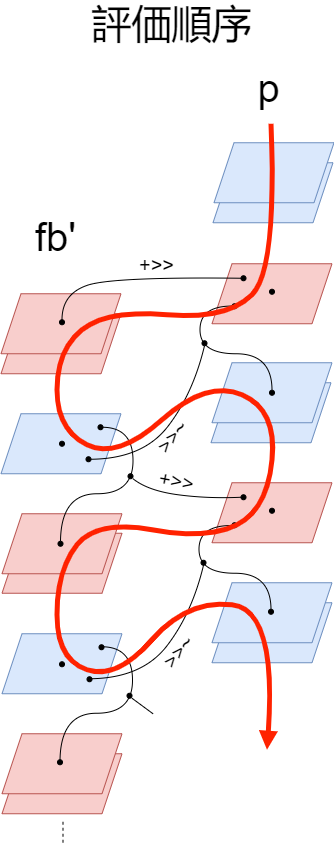

## fb' +>> p

Pipes.Coreより
```(+>>)
=> (b' -> Proxy a' a b' b m r)
->        Proxy b' b c' c m r
->        Proxy a' a c' c m r
fb' +>> p = case p of
Request b' fb  -> fb' b' >>~ fb
Respond c  fc' -> Respond c (\c' -> fb' +>> fc' c')
M          m   -> M (m >>= \p' -> return (fb' +>> p'))
Pure       r   -> Pure r
```

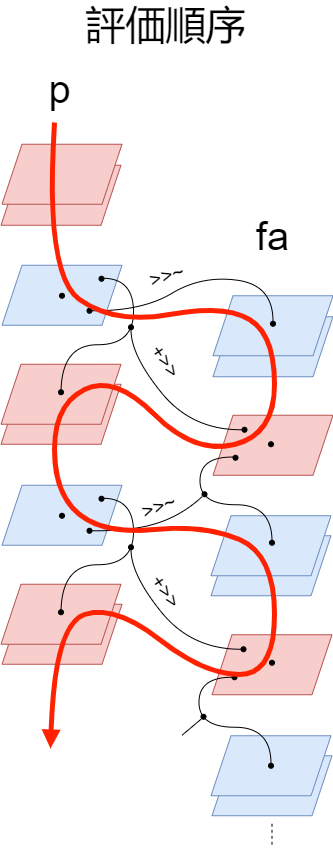

## p >>~ fa

Pipes.Coreより
```(>>~)
=>       Proxy a' a b' b m r
-> (b -> Proxy b' b c' c m r)
->       Proxy a' a c' c m r
p >>~ fb = case p of
Request a' fa  -> Request a' (\a -> fa a >>~ fb)
Respond b  fb' -> fb' +>> fb b
M          m   -> M (m >>= \p' -> return (p' >>~ fb))
Pure       r   -> Pure r
```

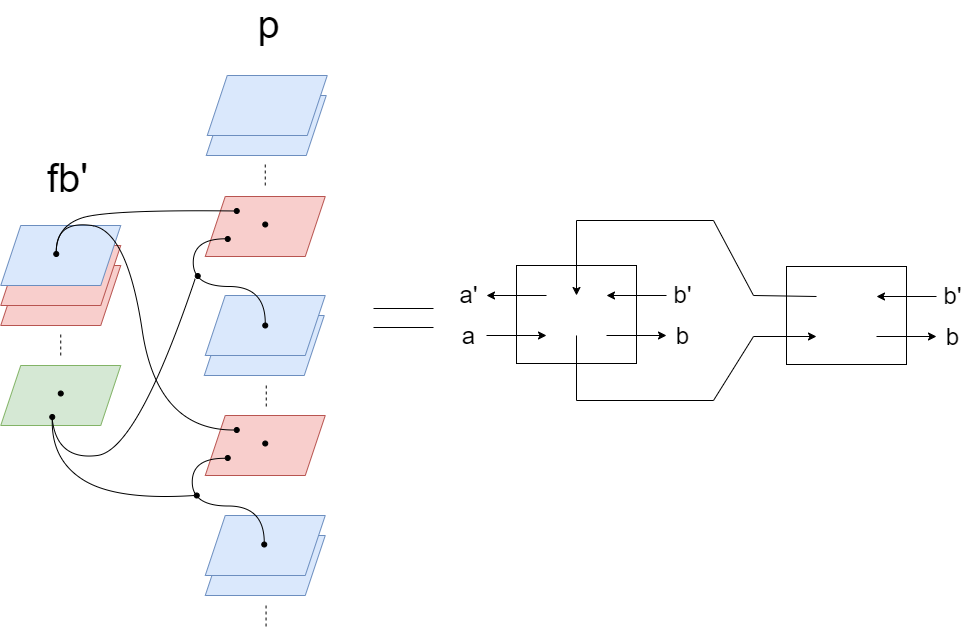

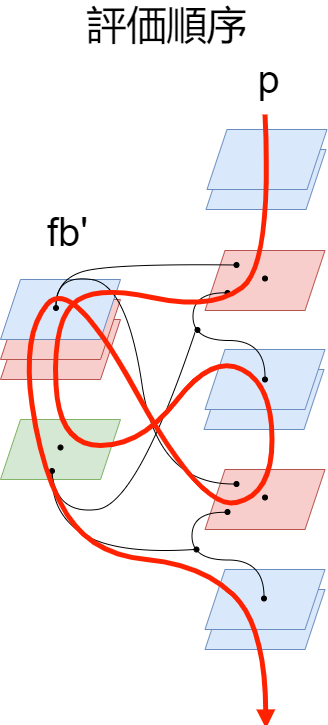

## fb' >\\ p

Pipes.Coreより
```(>\\)
=> (b' -> Proxy a' a y' y m b)
->        Proxy b' b y' y m c
->        Proxy a' a y' y m c
fb' >\\ p0 = go p0
where
go p = case p of
Request b' fb  -> fb' b' >>= \b -> go (fb b)
Respond x  fx' -> Respond x (\x' -> go (fx' x'))
M          m   -> M (m >>= \p' -> return (go p'))
Pure       a   -> Pure a
```

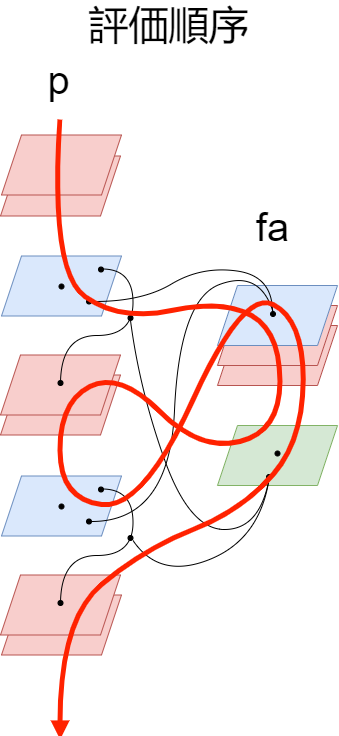

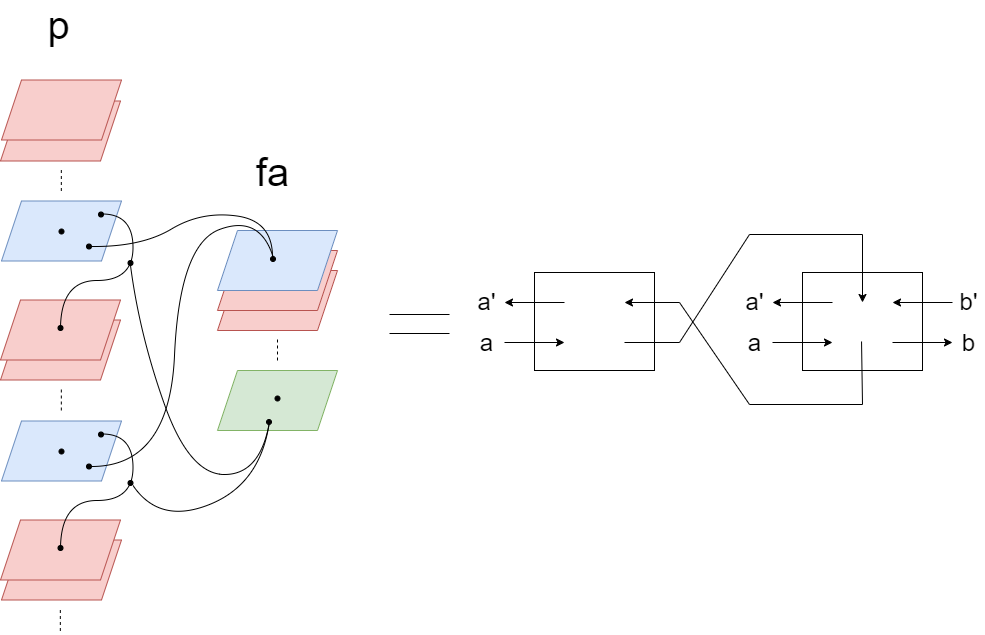

## p //> fa

Pipes.Coreより
```(//>)
=>       Proxy x' x b' b m a'
-> (b -> Proxy x' x c' c m b')
->       Proxy x' x c' c m a'
p0 //> fb = go p0
where
go p = case p of
Request x' fx  -> Request x' (\x -> go (fx x))
Respond b  fb' -> fb b >>= \b' -> go (fb' b')
M          m   -> M (m >>= \p' -> return (go p'))
Pure       a   -> Pure a
```
