checkin, use case diagram, plantuml

Last updated at 2025-06-25Posted at 2025-06-25

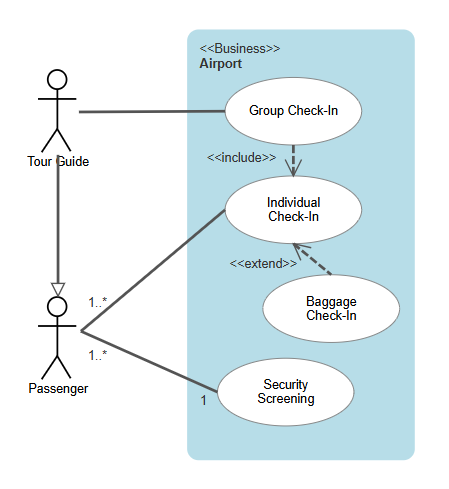

USE CASE
https://app.smartdraw.com/editor.aspx?templateId=78c8d1ff-e0fb-46d2-b573-42ef2fca1dce

checkin

@startuml
left to right direction
skinparam packageStyle rectangle
actor passenger
actor tourguide
rectangle checkin {
  passenger -> (individualcheckin)
  (individualcheckin) .> (payment) : include
  (baggagecheckin) .> (individualcheckin) : extends
  (groupcheckin) <- tourguide
}
@enduml

plantuml

@startuml
left to right direction
skinparam packageStyle rectangle
actor passenger
actor tourguide
rectangle checkin {
  passenger -> (individualcheckin)
  (individualcheckin) .> (groupcheckin) : include
  (baggagecheckin) .> (individualcheckin) : extends
  (groupcheckin) <- tourguide
}
@enduml
