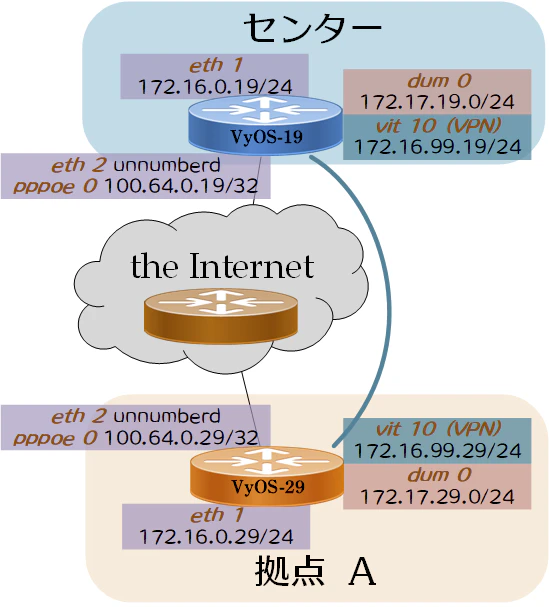

構成
| インターフェース | 目的 |
|---|---|
| eth0 | ssh 接続 (vrf MGT) |
| eth1 | ルーターの先の LAN |
| eth2 | インターネット (pppoe) |
| pppoe | pppoe トンネル |
| vit10 | vpn トンネル |
| dum0 | 通信試験用 (ルーターの先の LAN) |
基本設定
set system host-name VyOS-19
set system domain-name home.my
set system login user vyos authentication encrypted-password vyos
delete system login user vyos authentication plaintext-password
set system time-zone Asia/Tokyo
set service lldp interface all
set service lldp legacy-protocols cdp
set service ntp server 172.30.10.254
set interfaces ethernet eth1 address 172.16.0.19/24
set interfaces ethernet eth2
vrf、マネージメント設定
set vrf name MGT ip disable-forwarding
set vrf name MGT table 100
set interfaces ethernet eth0 address 172.30.10.19/24
set interfaces ethernet eth0 description MGT
set interfaces ethernet eth0 vrf MGT
set service ntp vrf MGT
set service ssh listen-address '172.30.10.19'
set service ssh vrf MGT
管理用 LAN を vrf MGT にして、サービス用ネットワークからログインできないよう分離。
ntp も管理用 LAN を利用。
pppoe 設定
set interfaces pppoe pppoe0 authentication password pass_Center
set interfaces pppoe pppoe0 authentication username Center@Cisco
set interfaces pppoe pppoe0 description to_PPPoE
set interfaces pppoe pppoe0 mtu 1454
set interfaces pppoe pppoe0 source-interface eth2
pppoe の設定
VPN 設定
vpn 共通部分
IKE ＆ ESP
set vpn ipsec esp-group ESP_DEFAULT lifetime '3600'
set vpn ipsec esp-group ESP_DEFAULT mode 'tunnel'
set vpn ipsec esp-group ESP_DEFAULT pfs 'dh-dh-group32'
set vpn ipsec esp-group ESP_DEFAULT proposal 1 encryption 'aes256gcm128'
set vpn ipsec esp-group ESP_DEFAULT proposal 1 hash 'sha512'
set vpn ipsec ike-group IKE_DEFAULT dead-peer-detection action 'restart'
set vpn ipsec ike-group IKE_DEFAULT dead-peer-detection interval '15'
set vpn ipsec ike-group IKE_DEFAULT dead-peer-detection timeout '30'
set vpn ipsec ike-group IKE_DEFAULT ikev2-reauth
set vpn ipsec ike-group IKE_DEFAULT key-exchange 'ikev2'
set vpn ipsec ike-group IKE_DEFAULT lifetime '28800'
set vpn ipsec ike-group IKE_DEFAULT proposal 1 dh-group '31'
set vpn ipsec ike-group IKE_DEFAULT proposal 1 encryption 'chacha20poly1305'
set vpn ipsec ike-group IKE_DEFAULT proposal 1 hash 'sha512'
set vpn ipsec interface 'pppoe0'
IKEv2 sa (IKEv1 の Phase1 / IKE sa) の lifetime は 24時間程度
IPsec sa (IKEv1 の Phase2 / Child sa) の lifetime は 数時間程度にすることが多い
# この id は対向だけあれば良いけど
# 両方入れても問題ないので両方とも書いて共通設定とする
set vpn ipsec authentication psk Site2Site id '100.64.0.29'
set vpn ipsec authentication psk Site2Site id '100.64.0.19'
set vpn ipsec authentication psk Site2Site secret 'secret_ABC-def'
set vpn ipsec site-to-site peer Site2Site authentication mode 'pre-shared-secret'
set vpn ipsec site-to-site peer Site2Site ike-group 'IKE_DEFAULT'
set vpn ipsec site-to-site peer Site2Site vti bind 'vti10'
set vpn ipsec site-to-site peer Site2Site vti esp-group 'ESP_DEFAULT'
vpn センター側
set interfaces vti vti10
set interfaces vti vti10 address '172.16.99.19/24'
set interfaces vti vti10 description 'to_SiteA'
set interfaces vti vti10 ip adjust-mss '1350'
set vpn ipsec site-to-site peer Site2Site authentication local-id '100.64.0.19'
set vpn ipsec site-to-site peer Site2Site authentication remote-id '100.64.0.29'
set vpn ipsec site-to-site peer Site2Site local-address '100.64.0.19'
set vpn ipsec site-to-site peer Site2Site remote-address '100.64.0.29'
set interfaces dummy dum0 address 172.17.19.0/32
set protocols static route 172.17.0.0/16 interface vti10
dum0 は通信試験用。dum0 向けのルートを vpn トンネルに向ける。
拠点A (差分のみ)
set system host-name VyOS-29
set interfaces ethernet eth0 address 172.30.10.29/24
set interfaces ethernet eth1 address 172.16.0.29/24
set service ssh listen-address '172.30.10.29'
# pppoe
set interfaces pppoe pppoe0 authentication password pass_A
set interfaces pppoe pppoe0 authentication username site-A@Cisco
# vpn
set interfaces vti vti10 address '172.16.99.29/24'
set vpn ipsec site-to-site peer Site2Site authentication local-id '100.64.0.29'
set vpn ipsec site-to-site peer Site2Site authentication remote-id '100.64.0.19'
set vpn ipsec site-to-site peer Site2Site local-address '100.64.0.29'
set vpn ipsec site-to-site peer Site2Site remote-address '100.64.0.19'
set interfaces dummy dum0 address 172.17.29.0/32
172.17.0.0/16 向けのルーティングが適当なので、一対一の VPN にしか使えません。
一対多の場合はセンターから各拠点向けを一つづつ書いていく必要があります。
最低限の設定としては以下が参考になると思います。
状態確認
センター側
vyos@VyOS-19:~$ show vpn ike sa
Peer ID / IP Local ID / IP
------------ -------------
100.64.0.29 100.64.0.29 100.64.0.19 100.64.0.19
State IKEVer Encrypt Hash D-H Group NAT-T A-Time L-Time
----- ------ ------- ---- --------- ----- ------ ------
up IKEv2 CHACHA20_POLY1305 n/a CURVE_25519 no 817 0
vyos@VyOS-19:~$
vyos@VyOS-19:~$ show vpn ike secrets
PSK Id Secret
--------- ----------- --------------
Site2Site 100.64.0.19 secret_ABC-def
100.64.0.29
vyos@VyOS-19:~$
vyos@VyOS-19:~$ show vpn ipsec connections
Connection State Type Remote address Local TS Remote TS Local id Remote id Proposal
------------- ------- ------ ---------------- ---------- ----------- ----------- ----------- ---------------------------------------
Site2Site up IKEv2 100.64.0.29 - - 100.64.0.19 100.64.0.29 CHACHA20_POLY1305/None/None/CURVE_25519
Site2Site-vti up IPsec 100.64.0.29 0.0.0.0/0 0.0.0.0/0 100.64.0.19 100.64.0.29 AES_GCM/256/None/None
::/0 ::/0
vyos@VyOS-19:~$
vyos@VyOS-19:~$ show vpn ipsec sa
Connection State Uptime Bytes In/Out Packets In/Out Remote address Remote ID Proposal
------------- ------- -------- -------------- ---------------- ---------------- ----------- --------------
Site2Site-vti up 40m46s 0B/0B 0/0 100.64.0.29 100.64.0.29 AES_GCM_16_256
Site2Site-vti up 40m52s 0B/0B 0/0 100.64.0.29 100.64.0.29 AES_GCM_16_256
vyos@VyOS-19:~$
vyos@VyOS-19:~$ show interfaces
Codes: S - State, L - Link, u - Up, D - Down, A - Admin Down
Interface IP Address MAC VRF MTU S/L Description
----------- --------------- ----------------- ------- ----- ----- -------------
dum0 172.17.0.19/32 4e:ea:ac:b2:50:38 default 1500 u/u
eth0 172.30.10.19/24 00:0c:29:3f:f6:f2 MGT 1500 u/u MGT
eth1 172.16.0.19/24 00:0c:29:3f:f6:fc default 1500 u/u to_vEOS-21
eth2 - 00:0c:29:3f:f6:06 default 1500 u/u
lo 127.0.0.1/8 00:00:00:00:00:00 default 65536 u/u
::1/128
pppoe0 100.64.0.19/32 n/a default 1454 u/u to_PPPoE
vti10 172.16.99.19/24 n/a default 1500 u/u to_Center
vyos@VyOS-19:~$
vyos@VyOS-19:~$ ping 172.17.0.29 source-address 172.17.0.19
PING 172.17.0.29 (172.17.0.29) from 172.17.0.19 : 56(84) bytes of data.
64 bytes from 172.17.0.29: icmp_seq=1 ttl=64 time=0.952 ms
64 bytes from 172.17.0.29: icmp_seq=2 ttl=64 time=1.16 ms
64 bytes from 172.17.0.29: icmp_seq=3 ttl=64 time=1.03 ms
64 bytes from 172.17.0.29: icmp_seq=4 ttl=64 time=1.08 ms
^C
--- 172.17.0.29 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3005ms
rtt min/avg/max/mdev = 0.952/1.053/1.157/0.074 ms
vyos@VyOS-19:~$
パケットキャプチャ
トンネルの中 (vti10) と外 (pppoe0) を同時にキャプチャ
vyos@VyOS-19:~$ ( tcpdump -i vti10 > /dev/tty &) | ( tcpdump -i pppoe0 )
tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on vti10, link-type RAW (Raw IP), snapshot length 262144 bytes
tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on pppoe0, link-type LINUX_SLL (Linux cooked v1), snapshot length 262144 bytes
23:08:15.719811 IP 100.64.0.29.ipsec-nat-t > 100.64.0.19.ipsec-nat-t: NONESP-encap: isakmp: child_sa inf2
23:08:15.965494 IP 100.64.0.29.ipsec-nat-t > 100.64.0.19.ipsec-nat-t: NONESP-encap: isakmp: child_sa inf2[I]
23:08:15.972373 IP 100.64.0.19.ipsec-nat-t > 100.64.0.29.ipsec-nat-t: NONESP-encap: isakmp: child_sa inf2[IR]
23:08:16.205793 IP 100.64.0.19.ipsec-nat-t > 100.64.0.29.ipsec-nat-t: NONESP-encap: isakmp: child_sa inf2[R]
23:08:16.288026 IP 100.64.0.29.isakmp > 100.64.0.19.isakmp: isakmp: parent_sa ikev2_init[I]
23:08:16.288776 IP 100.64.0.19.isakmp > 100.64.0.29.isakmp: isakmp: parent_sa ikev2_init[R]
23:08:16.290203 IP 100.64.0.29.ipsec-nat-t > 100.64.0.19.ipsec-nat-t: NONESP-encap: isakmp: child_sa ikev2_auth[I]
23:08:16.624455 IP 100.64.0.19.ipsec-nat-t > 100.64.0.29.ipsec-nat-t: NONESP-encap: isakmp: child_sa ikev2_auth[R]
23:08:21.045392 IP 172.17.0.29 > 172.17.0.19: ICMP echo request, id 16806, seq 1, length 64
23:08:21.045423 IP 172.17.0.19 > 172.17.0.29: ICMP echo reply, id 16806, seq 1, length 64
23:08:21.045305 IP 100.64.0.29 > 100.64.0.19: ESP(spi=0xc9d4df77,seq=0x1), length 120
23:08:21.045440 IP 100.64.0.19 > 100.64.0.29: ESP(spi=0xc02a0c0d,seq=0x1), length 120
23:08:22.046958 IP 172.17.0.29 > 172.17.0.19: ICMP echo request, id 16806, seq 2, length 64
23:08:22.046992 IP 172.17.0.19 > 172.17.0.29: ICMP echo reply, id 16806, seq 2, length 64
23:08:22.046866 IP 100.64.0.29 > 100.64.0.19: ESP(spi=0xc9d4df77,seq=0x2), length 120
23:08:22.047010 IP 100.64.0.19 > 100.64.0.29: ESP(spi=0xc02a0c0d,seq=0x2), length 120
23:08:23.048330 IP 172.17.0.29 > 172.17.0.19: ICMP echo request, id 16806, seq 3, length 64
23:08:23.048351 IP 172.17.0.19 > 172.17.0.29: ICMP echo reply, id 16806, seq 3, length 64
23:08:23.048275 IP 100.64.0.29 > 100.64.0.19: ESP(spi=0xc9d4df77,seq=0x3), length 120
23:08:23.048363 IP 100.64.0.19 > 100.64.0.29: ESP(spi=0xc02a0c0d,seq=0x3), length 120
^C
6 packets captured
6 packets received by filter
0 packets dropped by kernel
14 packets captured
14 packets received by filter
0 packets dropped by kernel
vyos@VyOS-19:~$
意図してなかったのですがセンターの eth1 : 172.16.0.19/24 と、拠点 A の eth1 : 172.16.0.29/24 が繋がってますねぇ。L2 を伸ばすことができるんですねぇ。一対一だから通るのかな。一対多だと、ホスト単位でルーティングを書かないと通らないでしょうね。
dum0 の 172.17.0.19/32 と 172.17.0.29/32 がルータの下の LAN というイメージだったのですが。
