Cisco で ikev2 VPN

Posted at

構成

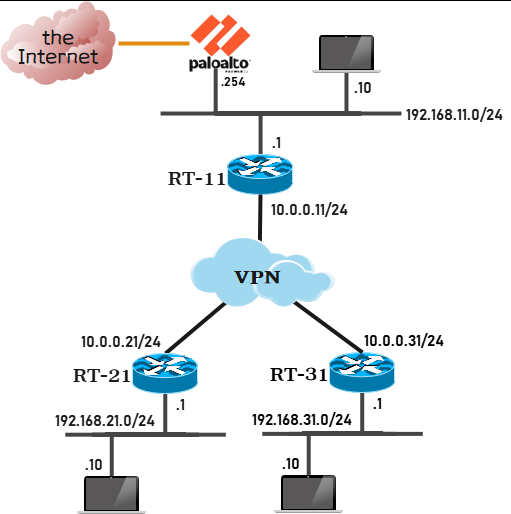

  • インターネットへの出口は画像上の Palo Alto (NGFW:次世代ファイヤーウォール) から出ていく
  • 各拠点が固定 IP を持っている
  • ikev2 で接続する
  • DMVPN ではなく、拠点間の通信は RT-11 (HUB) を経由する

機器

EVE-NG 上で実行。

  • Cisco router : isrv-17.03.03 (Cisco IOS XE Software, Version 17.03.03)
  • 端末 : debian 12.9
  • PA-VM : PAN-OS 11.1.4-h7

設定

共通部分

ホスト名、ログ、時刻を設定 (不要なものは削除)

共通
hostname RT-11
ip domain name my.home
no ip domain lookup

clock timezone JST 9

service timestamps debug datetime msec localtime show-timezone
service timestamps log datetime msec localtime show-timezone

no service config

no ip http server
no ip http authentication local
no ip http secure-server
no ip http client source-interface GigabitEthernet1

no ip tftp source-interface GigabitEthernet1

ntp server 192.168.0.252

結線確認用

仮想環境なので、接続が間違えていないことを確認できるようにしておく。

共通
cdp run
lldp run

ssh ログインの設定

パスワードは適宜変更してください

共通
ip ssh version 2
username admin privilege 9 secret Cisco123
enable secret Cisco123

line vty 0 4
 login local
 transport input ssh

ライセンスのメッセージがうるさいのでダミー

共通
service call-home

license boot level ax
license smart url http://127.0.0.1/
license smart transport smart

インターフェース、ルーティングの設定 RT-11―RT-21 間

RT-11

RT-11
hostname RT-11

int Gi1
 desc /// LAN - Internet
 no ip dhcp client client-id
 ip address 10.0.0.11 255.255.255.0
 no shut
!
int Gi3
 desc /// VPN
 no ip dhcp client client-id
 ip address 192.168.11.1 255.255.255.0
 no shut
!
ip route 0.0.0.0 0.0.0.0 192.168.11.254

RT-21

VPN の設定が入っていないのでルーティングはまだ

RT-21

int Gi1
 desc /// LAN
 no ip dhcp client client-id
 ip address 10.0.0.21 255.255.255.0
 no shut
!
int Gi3
 desc /// VPN
 no ip dhcp client client-id
 ip address 192.168.21.1 255.255.255.0
 no shut

VPN設定 RT-11―RT-21 間

RT-11 側

RT-11
! プロポーサル
! aes-gcm-xx を使うときは DH group は定義しない
crypto ikev2 proposal ike2-prop1
 encryption aes-cbc-256
 integrity SHA512 sha384
 group 24 21 19 14
!
! ポリシー
crypto ikev2 policy ike2-pol1
 match fvrf any
 proposal ike2-prop1
!
! キーリング
crypto ikev2 keyring RT11-RT21
 peer RT21
  address 10.0.0.21
  pre-shared-key RT11-RT21
 !
!
! プロファイル
crypto ikev2 profile prof-RT21
 match fvrf any
 match identity remote address 10.0.0.21 255.255.255.255
 authentication local pre-share
 authentication remote pre-share
 keyring local RT11-RT21
 lifetime 1800
 dpd 30 6 on-demand
!
!
crypto ipsec transform-set trans esp-sha384-hmac esp-256-aes
!
crypto ipsec profile ipsec-RT21
 set transform-set trans
 set pfs group24
 set ikev2-profile prof-RT21


interface Tunnel2
 desc to RT-21
 ip unnumbered Gi3
 tunnel source 10.0.0.11
 tunnel mode ipsec ipv4
 tunnel destination 10.0.0.21
 tunnel protection ipsec profile ipsec-RT21
!

ip route 192.168.21.0 255.255.255.0 Tunnel2

RT-21 側

RT-21
! プロポーサル
! aes-gcm-xx を使うときは DH group は定義しない
crypto ikev2 proposal ike2-prop1
 encryption aes-cbc-256
 integrity SHA512 sha384
 group 24 21 19 14
!
! ポリシー
crypto ikev2 policy ike2-pol1
 match fvrf any
 proposal ike2-prop1
!
! キーリング
crypto ikev2 keyring RT21-RT11
 peer RT11
  address 10.0.0.11
  pre-shared-key RT11-RT21
 !
!
! プロファイル
crypto ikev2 profile prof-RT11
 match fvrf any
 match identity remote address 10.0.0.11 255.255.255.255
 authentication local pre-share
 authentication remote pre-share
 keyring local RT21-RT11
 lifetime 1800
 dpd 30 6 on-demand
!
!
crypto ipsec transform-set trans esp-sha384-hmac esp-256-aes
!
crypto ipsec profile ipsec-RT11
 set transform-set trans
 set pfs group24
 set ikev2-profile prof-RT11


interface Tunnel1
 desc to RT-11
 ip unnumbered Gi3
 tunnel source 10.0.0.21
 tunnel mode ipsec ipv4
 tunnel destination 10.0.0.11
 tunnel protection ipsec profile ipsec-RT11
!

ip route 0.0.0.0 0.0.0.0 Tunnel1

状態を確認

RT-11

RT-11
RT-11#show crypto session
Crypto session current status

Interface: Tunnel2
Profile: prof-RT21
Session status: UP-ACTIVE
Peer: 10.0.0.21 port 500
  Session ID: 36
  IKEv2 SA: local 10.0.0.11/500 remote 10.0.0.21/500 Active
  IPSEC FLOW: permit ip 0.0.0.0/0.0.0.0 0.0.0.0/0.0.0.0
        Active SAs: 2, origin: crypto map

RT-11#
RT-11#show crypto ikev2 sa
 IPv4 Crypto IKEv2  SA

Tunnel-id Local                 Remote                fvrf/ivrf            Status
3         10.0.0.11/500         10.0.0.21/500         none/none            READY
      Encr: AES-CBC, keysize: 256, PRF: SHA384, Hash: SHA384, DH Grp:24, Auth sign: PSK, Auth verify: PSK
      Life/Active Time: 1800/1595 sec

 IPv6 Crypto IKEv2  SA

RT-11#
RT-11#show crypto ipsec sa

interface: Tunnel2
    Crypto map tag: Tunnel2-head-0, local addr 10.0.0.11

   protected vrf: (none)
   local  ident (addr/mask/prot/port): (0.0.0.0/0.0.0.0/0/0)
   remote ident (addr/mask/prot/port): (0.0.0.0/0.0.0.0/0/0)
   current_peer 10.0.0.21 port 500
     PERMIT, flags={origin_is_acl,}
    #pkts encaps: 53, #pkts encrypt: 53, #pkts digest: 53
    #pkts decaps: 53, #pkts decrypt: 53, #pkts verify: 53
    #pkts compressed: 0, #pkts decompressed: 0
    #pkts not compressed: 0, #pkts compr. failed: 0
    #pkts not decompressed: 0, #pkts decompress failed: 0
    #send errors 0, #recv errors 0

     local crypto endpt.: 10.0.0.11, remote crypto endpt.: 10.0.0.21
     plaintext mtu 1422, path mtu 1500, ip mtu 1500, ip mtu idb GigabitEthernet1
     current outbound spi: 0x5A51C743(1515308867)
     PFS (Y/N): Y, DH group: group24

     inbound esp sas:
      spi: 0xC9F18F00(3388051200)
        transform: esp-256-aes esp-sha384-hmac ,
        in use settings ={Tunnel, }
        conn id: 2056, flow_id: CSR:56, sibling_flags FFFFFFFF80000048, crypto map: Tunnel2-head-0
         sa timing: remaining key lifetime (k/sec): (4608000/3495)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE(ACTIVE)

     inbound ah sas:

     inbound pcp sas:

     outbound esp sas:
      spi: 0x5A51C743(1515308867)
        transform: esp-256-aes esp-sha384-hmac ,
        in use settings ={Tunnel, }
        conn id: 2055, flow_id: CSR:55, sibling_flags FFFFFFFF80000048, crypto map: Tunnel2-head-0
         sa timing: remaining key lifetime (k/sec): (4608000/3495)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE(ACTIVE)

     outbound ah sas:

     outbound pcp sas:
RT-11#

RT-21

RT-21
RT-21#show crypto session
Crypto session current status

Interface: Tunnel1
Profile: prof-RT11
Session status: UP-ACTIVE
Peer: 10.0.0.11 port 500
  Session ID: 2
  IKEv2 SA: local 10.0.0.21/500 remote 10.0.0.11/500 Active
  IPSEC FLOW: permit ip 0.0.0.0/0.0.0.0 0.0.0.0/0.0.0.0
        Active SAs: 2, origin: crypto map

RT-21#
RT-21#show crypto ikev2 sa
 IPv4 Crypto IKEv2  SA

Tunnel-id Local                 Remote                fvrf/ivrf            Status
3         10.0.0.21/500         10.0.0.11/500         none/none            READY
      Encr: AES-CBC, keysize: 256, PRF: SHA384, Hash: SHA384, DH Grp:24, Auth sign: PSK, Auth verify: PSK
      Life/Active Time: 1800/68 sec

 IPv6 Crypto IKEv2  SA

RT-21#
RT-21#show crypto ipsec sa

interface: Tunnel1
    Crypto map tag: Tunnel1-head-0, local addr 10.0.0.21

   protected vrf: (none)
   local  ident (addr/mask/prot/port): (0.0.0.0/0.0.0.0/0/0)
   remote ident (addr/mask/prot/port): (0.0.0.0/0.0.0.0/0/0)
   current_peer 10.0.0.11 port 500
     PERMIT, flags={origin_is_acl,}
    #pkts encaps: 4, #pkts encrypt: 4, #pkts digest: 4
    #pkts decaps: 4, #pkts decrypt: 4, #pkts verify: 4
    #pkts compressed: 0, #pkts decompressed: 0
    #pkts not compressed: 0, #pkts compr. failed: 0
    #pkts not decompressed: 0, #pkts decompress failed: 0
    #send errors 0, #recv errors 0

     local crypto endpt.: 10.0.0.21, remote crypto endpt.: 10.0.0.11
     plaintext mtu 1422, path mtu 1500, ip mtu 1500, ip mtu idb GigabitEthernet1
     current outbound spi: 0xC9F18F00(3388051200)
     PFS (Y/N): Y, DH group: group24

     inbound esp sas:
      spi: 0x5A51C743(1515308867)
        transform: esp-256-aes esp-sha384-hmac ,
        in use settings ={Tunnel, }
        conn id: 2005, flow_id: CSR:5, sibling_flags FFFFFFFF80000048, crypto map: Tunnel1-head-0
         sa timing: remaining key lifetime (k/sec): (4607999/3312)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE(ACTIVE)

     inbound ah sas:

     inbound pcp sas:

     outbound esp sas:
      spi: 0xC9F18F00(3388051200)
        transform: esp-256-aes esp-sha384-hmac ,
        in use settings ={Tunnel, }
        conn id: 2006, flow_id: CSR:6, sibling_flags FFFFFFFF80000048, crypto map: Tunnel1-head-0
         sa timing: remaining key lifetime (k/sec): (4607999/3312)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE(ACTIVE)

     outbound ah sas:

     outbound pcp sas:
RT-21#

疎通確認

RT-21
RT-21#ping 192.168.11.10
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.11.10, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 2/7/22 ms
RT-21#ping 1.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 1.1.1.1, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 5/5/6 ms
RT-21#
RT-11
RT-11#ping 192.168.21.10
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.21.10, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/4 ms
RT-11#

RT-11―RT-31

RT-31の初期設定

int Gi1
 no ip dhcp client client-id
 ip address 10.0.0.31 255.255.255.0
 no shut
!
int Gi3
 no ip dhcp client client-id
 ip address 192.168.31.1 255.255.255.0
 no shut

RT-11

RT-11
crypto ikev2 keyring RT11-RT31
 peer RT31
  address 10.0.0.31
  pre-shared-key RT11-RT31
 !
!
! プロファイル
crypto ikev2 profile prof-RT31
 match fvrf any
 match identity remote address 10.0.0.31 255.255.255.255
 authentication local pre-share
 authentication remote pre-share
 keyring local RT11-RT31
 lifetime 1800
 dpd 30 6 on-demand
!
crypto ipsec profile ipsec-RT31
 set transform-set trans
 set pfs group24
 set ikev2-profile prof-RT31

interface Tunnel3
 desc to RT-31
 ip unnumbered Gi3
 tunnel source 10.0.0.11
 tunnel mode ipsec ipv4
 tunnel destination 10.0.0.31
 tunnel protection ipsec profile ipsec-RT31

ip route 192.168.31.0 255.255.255.0 Tunnel3

RT-31

RT-31
! プロポーサル
! aes-gcm-xx を使うときは DH group は定義しない
crypto ikev2 proposal ike2-prop1
 encryption aes-cbc-256
 integrity SHA512 sha384
 group 24 21 19 14
!
! ポリシー
crypto ikev2 policy ike2-pol1
 match fvrf any
 proposal ike2-prop1
!
! キーリング
crypto ikev2 keyring RT31-RT11
 peer RT11
  address 10.0.0.11
  pre-shared-key RT11-RT31
 !
!
! プロファイル
crypto ikev2 profile prof-RT11
 match fvrf any
 match identity remote address 10.0.0.11 255.255.255.255
 authentication local pre-share
 authentication remote pre-share
 keyring local RT31-RT11
 lifetime 1800
 dpd 30 6 on-demand
!
!
crypto ipsec transform-set trans esp-sha384-hmac esp-256-aes
!
crypto ipsec profile ipsec-RT11
 set transform-set trans
 set pfs group24
 set ikev2-profile prof-RT11


interface Tunnel1
 desc to RT-11
 ip unnumbered Gi3
 tunnel source 10.0.0.31
 tunnel mode ipsec ipv4
 tunnel destination 10.0.0.11
 tunnel protection ipsec profile ipsec-RT11
!
ip route 0.0.0.0 0.0.0.0 Tunnel1

RT-11 から

RT-11#ping 192.168.21.10
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.21.10, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/2 ms
RT-11#ping 192.168.31.10
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.31.10, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/4 ms

RT-31 から

RT-31#ping 192.168.11.10
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.11.10, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 2/3/4 ms
RT-31#ping 192.168.21.10
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.21.10, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 2/2/3 ms
RT-31#ping 1.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 1.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 4/5/7 ms
RT-31#

かきかけ...

0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
