Note Book : OpenCV v4.5.0-openvino Mask CNN by With Spring Boot

Last updated at Posted at 2020-11-28

Mask RCNN

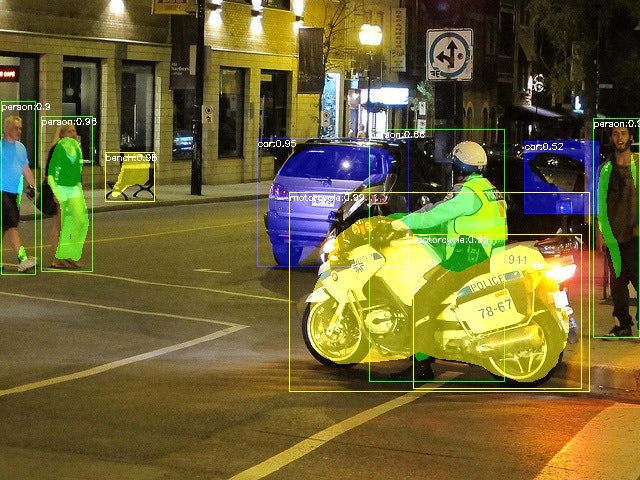

####Final Result

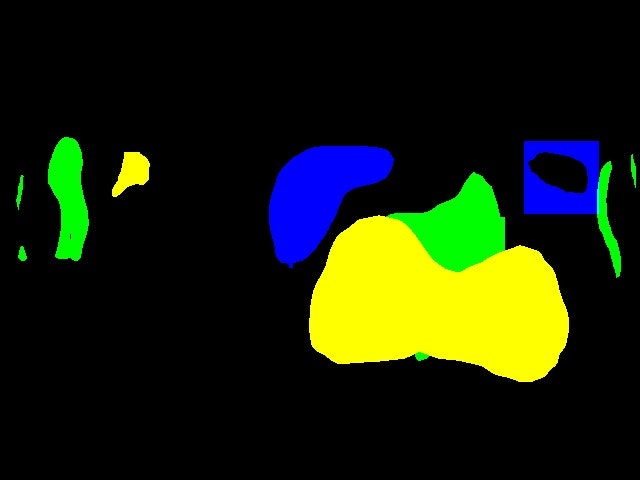

####Mask

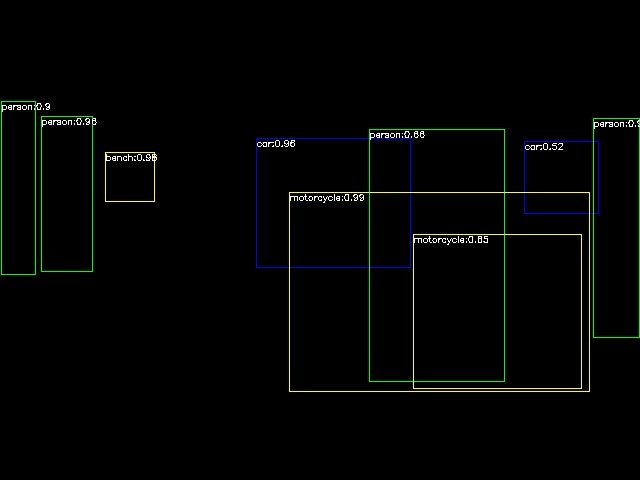

####Rectangle Mask
####log
2020-11-28 12:30:59.341 INFO 6778 --- [ main] deepl.dnn.impl.MaskRCnn : Running 24 / 29
2020-11-28 12:30:59.341 INFO 6778 --- [ main] deepl.dnn.impl.MaskRCnn : Iinput file /usr/local/src/Mask_RCNN/images/8829708882_48f263491e_z.jpg
2020-11-28 12:30:59.536 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : file rows 427 file cols 640 threshold 0.5
2020-11-28 12:30:59.536 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : bus:1.0
2020-11-28 12:30:59.539 INFO 6778 --- [ main] deepl.dnn.impl.MaskRCnn : Output file ./output/mask_rcnn_inception_v2_coco_2018_01_28/8829708882_48f263491e_z.jpg
2020-11-28 12:30:59.539 INFO 6778 --- [ main] deepl.dnn.impl.MaskRCnn : Running 25 / 29
2020-11-28 12:30:59.539 INFO 6778 --- [ main] deepl.dnn.impl.MaskRCnn : Iinput file /usr/local/src/Mask_RCNN/images/8734543718_37f6b8bd45_z.jpg
2020-11-28 12:30:59.740 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : file rows 394 file cols 640 threshold 0.5
2020-11-28 12:30:59.740 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : donut:0.83
2020-11-28 12:30:59.741 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : donut:0.77
2020-11-28 12:30:59.741 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : donut:0.58
2020-11-28 12:30:59.741 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : donut:0.53
2020-11-28 12:30:59.744 INFO 6778 --- [ main] deepl.dnn.impl.MaskRCnn : Output file ./output/mask_rcnn_inception_v2_coco_2018_01_28/8734543718_37f6b8bd45_z.jpg

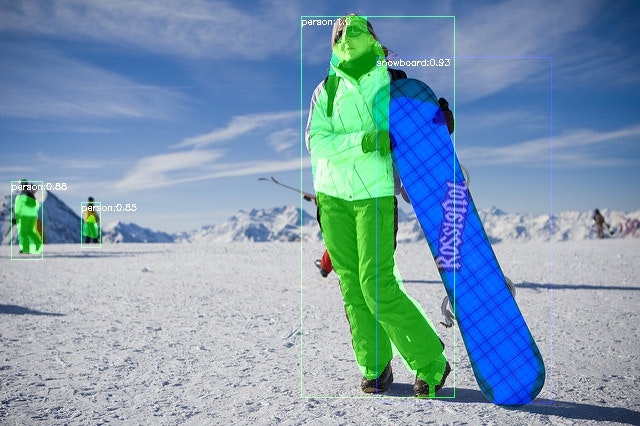

####Final Result

####Mask

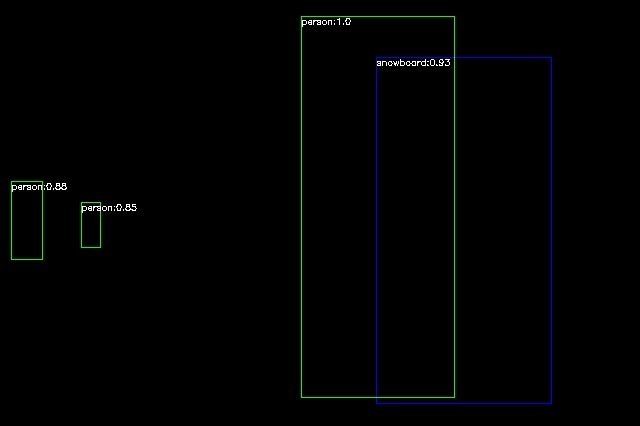

####Rectangle Mask

####log
2020-11-28 12:30:58.340 INFO 6778 --- [ main] deepl.dnn.impl.MaskRCnn : Running 19 / 29
2020-11-28 12:30:58.340 INFO 6778 --- [ main] deepl.dnn.impl.MaskRCnn : Iinput file /usr/local/src/Mask_RCNN/images/7933423348_c30bd9bd4e_z.jpg
2020-11-28 12:30:58.535 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : file rows 480 file cols 640 threshold 0.5
2020-11-28 12:30:58.535 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : motorcycle:0.99
2020-11-28 12:30:58.535 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : bench:0.98
2020-11-28 12:30:58.536 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : person:0.96
2020-11-28 12:30:58.536 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : car:0.96
2020-11-28 12:30:58.536 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : person:0.95
2020-11-28 12:30:58.536 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : person:0.9
2020-11-28 12:30:58.536 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : person:0.66
2020-11-28 12:30:58.537 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : motorcycle:0.65
2020-11-28 12:30:58.537 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : car:0.52
2020-11-28 12:30:58.541 INFO 6778 --- [ main] deepl.dnn.impl.MaskRCnn : Output file ./output/mask_rcnn_inception_v2_coco_2018_01_28/7933423348_c30bd9bd4e_z.jpg

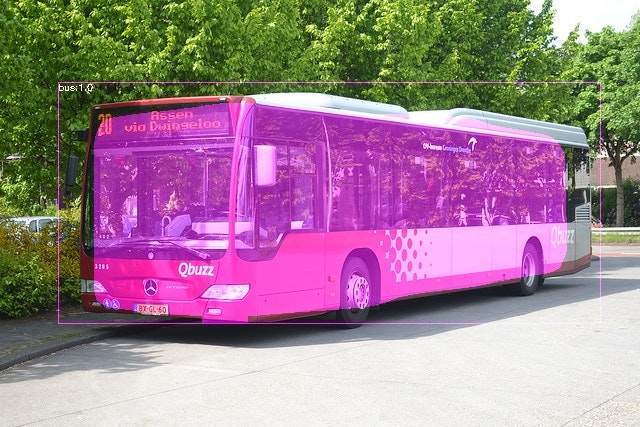

####Final Result

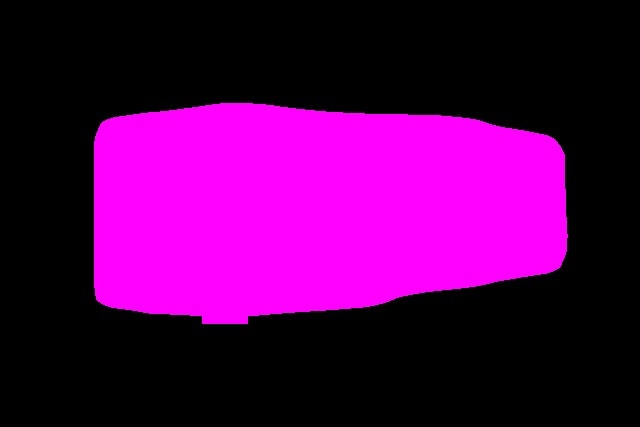

####Mask

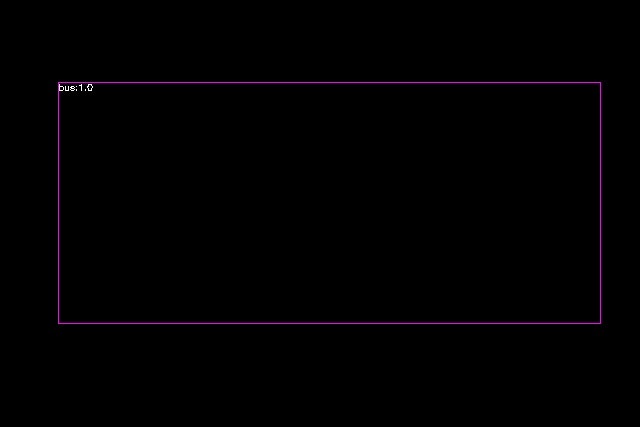

####Rectangle Mask

####log
2020-11-28 12:30:59.942 INFO 6778 --- [ main] deepl.dnn.impl.MaskRCnn : Running 27 / 29
2020-11-28 12:30:59.942 INFO 6778 --- [ main] deepl.dnn.impl.MaskRCnn : Iinput file /usr/local/src/Mask_RCNN/images/4410436637_7b0ca36ee7_z.jpg
2020-11-28 12:31:00.137 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : file rows 426 file cols 640 threshold 0.5
2020-11-28 12:31:00.138 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : person:1.0
2020-11-28 12:31:00.138 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : snowboard:0.93
2020-11-28 12:31:00.139 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : person:0.88
2020-11-28 12:31:00.139 INFO 6778 --- [ main] deepl.dnn.impl.SimpleRCnn : person:0.85
2020-11-28 12:31:00.141 INFO 6778 --- [ main] deepl.dnn.impl.MaskRCnn : Output file ./output/mask_rcnn_inception_v2_coco_2018_01_28/4410436637_7b0ca36ee7_z.jpg

RCnn.java
/*
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package deepl.dnn;

import org.opencv.core.Mat;

/**
 * @author jashika.t.e
 * @since 0.1
 */
public interface RCnn<T> {
    Mat run(T targetObject);
}

####Source Code

SimpleRCnn.java

/*
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package deepl.dnn.impl;

import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
import java.util.stream.IntStream;

import org.opencv.core.Core;
import org.opencv.core.CvType;
import org.opencv.core.Mat;
import org.opencv.core.MatOfPoint;
import org.opencv.core.Point;
import org.opencv.core.Rect;
import org.opencv.core.Scalar;
import org.opencv.core.Size;
import org.opencv.dnn.Dnn;
import org.opencv.dnn.Net;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import deepl.dnn.RCnn;

/**
 * @author jashika.t.e
 * @since 0.1
 */
public class SimpleRCnn implements RCnn<Mat> {

    /**
     * logger.
     */
    protected static final Logger log = LoggerFactory.getLogger(SimpleRCnn.class);

    /**
     * properties.
     */
    protected RCnnProperties properties;

    /**
     * network.
     */
    protected Net net;

    /**
     * constractor.
     *
     * @param properties
     */
    public SimpleRCnn(RCnnProperties properties, Net net) {
        this.properties = properties;
        this.net = net;
    }

    public Mat run(Mat orgImage) {

        Mat dstImage = orgImage.clone();
        List<Mat> outputBlobs = getOutputBlobs(dstImage);

        Mat detectionOutFinal = outputBlobs.get(0);
        Mat detectionMasks = outputBlobs.get(1);

        // Output size of masks is NxCxHxW where
        // N - number of detected boxes
        // C - number of classes (excluding background)
        // HxW - segmentation shape
        Mat detection = detectionOutFinal.reshape(1, (int) detectionOutFinal.total() / detectionOutFinal.size(3));
        Mat reshapeMask = detectionMasks.reshape(1, (int) detectionMasks.total() / (detectionMasks.size(2) * detectionMasks.size(3)));

        log.debug("detectionOutFinal.reshape(1, " + (int) (detectionOutFinal.total() / detectionOutFinal.size(3)) + ")");
        log.debug("detectionOutFinal.size(2) == " + detectionOutFinal.size(2));
        log.debug("detectionMasks.reshape(1, " + (int) detectionMasks.total() / (detectionMasks.size(2) * detectionMasks.size(3)) + ")");

        int cols = dstImage.cols();
        int rows = dstImage.rows();
        List<Mat> masks = new ArrayList<Mat>();
        List<Mat> ractangleMasks = new ArrayList<Mat>();
        List<double[]> colors = properties.getColors();
        List<String> names = properties.getNames();
        double threshold = properties.getThreshold();

        log.info("file rows " + rows + " file cols " + cols + " threshold " + threshold);
        IntStream.range(0, detectionOutFinal.size(2)).filter(i -> detection.get(i, 2)[0] > threshold).forEach(i -> {
            int classId = (int) detection.get(i, 1)[0];
            // color from txt
            Scalar color = new Scalar(colors.get(classId % colors.size()));
            color.val[3] = 255d;
            // axis
            Rect box = createRect(detection, i, cols, rows);
            // for rectangle txt
            String label = createLabel(detection, i, cols, rows, names);
            // create and collect ractangle mask
            ractangleMasks.add(createRectangleMask(dstImage.size(), label, color, box));
            // 1 x 255
            Mat objectMask = reshapeMask.row(i * detectionMasks.size(0) + classId);
            // 15 x 15
            objectMask = objectMask.reshape(1, detectionMasks.size(2));
            // create and collect mask
            masks.add(createMask(objectMask, dstImage.size(), color, box));
            log.info("result " + label);
        });
        return createFinalDst(dstImage, masks, ractangleMasks);
    }

    protected Mat createFinalDst(Mat targetMat, List<Mat> masks, List<Mat> ractangleMasks) {
        Mat mask = new Mat();
        masks.stream().forEach(m -> m.copyTo(mask, m));
        Imgcodecs.imwrite("/tmp/mask.png", mask);

        Mat ractangleMask = new Mat();
        ractangleMasks.stream().forEach(m -> m.copyTo(ractangleMask, m));
        Imgcodecs.imwrite("/tmp/mask.png", ractangleMask);

        ractangleMask.copyTo(targetMat, ractangleMask);

//        mask.copyTo(targetMat, mask);

        Core.addWeighted(targetMat, properties.getMask().getAlpha(), mask, properties.getMask().getBeta(), properties.getMask().getGannma(),
                targetMat);

      Imgcodecs.imwrite("/tmp/mask.png", targetMat);
        return targetMat;
    }

    protected List<Mat> getOutputBlobs(Mat orgImage) {
        net.setInput(Dnn.blobFromImage(orgImage));

        List<Mat> outputBlobs = new ArrayList<>();
        // outputNames = detection_out_final, detection_masks
        List<String> outputNames = Arrays.asList(properties.getDetection().getNames());
        net.forward(outputBlobs, outputNames);

        log.debug("output blob size " + outputBlobs.size());
        return outputBlobs;
    }

    protected Mat createRectangleMask(Size maskSize, String label, Scalar color, Rect box) {
        int thickness = properties.getRectangle().getThickness();
        double fontScale = properties.getRectangle().getFontScale();
        Mat dstMask = Mat.zeros(maskSize, CvType.CV_8UC3);

        // non alpha
        Imgproc.rectangle(dstMask, new Point(box.x, box.y), new Point(box.x + box.width, box.y + box.height), color, thickness);

        // text box size
        Size size = Imgproc.getTextSize(label, Imgproc.FONT_HERSHEY_SIMPLEX, fontScale, thickness, null);
        Imgproc.putText(dstMask, label, new Point(box.x, box.y + size.height - 1), Imgproc.FONT_HERSHEY_SIMPLEX, fontScale - 0.1,
                new Scalar(255, 255, 255, 255), thickness);

        return dstMask;
    }

    protected Mat createMask(Mat objectMask, Size maskSize, Scalar color, Rect box) {
        Imgproc.resize(objectMask, objectMask, new Size(box.width + 1, box.height + 1));

        Mat mask = new Mat();
        objectMask.convertTo(mask, CvType.CV_8U);

        Mat dstMask = Mat.zeros(maskSize, CvType.CV_8UC3);
        List<MatOfPoint> contours = new ArrayList<>();
        Mat hierarchy = new Mat();

        Imgproc.findContours(mask, contours, hierarchy, Imgproc.RETR_CCOMP, Imgproc.CHAIN_APPROX_SIMPLE);
        Imgproc.drawContours(dstMask, contours, -1, color, Imgproc.FILLED, Imgproc.LINE_8, hierarchy, 500, new Point(box.x, box.y));

        return dstMask;
    }

    protected String createLabel(Mat detection, int detectionNumber, int cols, int rows, List<String> names) {
        return names.get((int) detection.get(detectionNumber, 1)[0]) + ":"
                + (double) Math.round(detection.get(detectionNumber, 2)[0] * 100) / 100;
    }

    protected Rect createRect(Mat detection, int detectionNumber, int cols, int rows) {
        double left = detection.get(detectionNumber, 3)[0] * cols;
        double top = detection.get(detectionNumber, 4)[0] * rows;
        double right = detection.get(detectionNumber, 5)[0] * cols;
        double bottom = detection.get(detectionNumber, 6)[0] * rows;
        left = Math.max(0, Math.min(left, cols - 1));
        top = Math.max(0, Math.min(top, rows - 1));
        right = Math.max(0, Math.min(right, cols - 1));
        bottom = Math.max(0, Math.min(bottom, rows - 1));
        log.debug("rect data left " + left + " top " + top + " right " + right + " bottom " + bottom);
        return new Rect(new double[] { left, top, right - left + 1, bottom - top + 1 });
    }
}

MaskRCnnRunner
/*
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package deepl.controller.dnn;

import java.nio.file.FileSystems;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.util.List;
import java.util.stream.Collectors;
import java.util.stream.IntStream;

import org.opencv.core.Mat;
import org.opencv.core.Size;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.boot.CommandLineRunner;

import deepl.dnn.impl.MaskRCnn;
import deepl.dnn.impl.RCnnProperties;
import deepl.support.io.MediaFormat;

/**
 * @author jashika.t.e
 * @since 0.1
 */
public class MaskRCnnRunner implements CommandLineRunner {

    /**
     * logger.
     */
    private Logger log = LoggerFactory.getLogger(MaskRCnn.class);

    /**
     * @see MaskRCnn
     */
    private MaskRCnn maskRCnn;

    /**
     * settings.
     */
    private RCnnProperties properties;

    /**
     * constructor.
     *
     * @param maskRCnn
     * @param properties
     */
    public MaskRCnnRunner(MaskRCnn maskRCnn, RCnnProperties properties) {
        this.maskRCnn = maskRCnn;
        this.properties = properties;
    }

    @Override
    public void run(String... args) throws Exception {
        List<Path> files = properties.getInputFileExtension() == MediaFormat.NONE
                ? Files.walk(Files.createDirectories(Paths.get(properties.getInputDir())))
                        .filter(p -> p.toFile().isFile()).collect(Collectors.toList())
                : Files.walk(Files.createDirectories(Paths.get(properties.getInputDir())))
                        .filter(FileSystems.getDefault()
                                .getPathMatcher("regex:.+" + properties.getInputFileExtension())::matches)
                        .collect(Collectors.toList());

        int size = files.size();
        Paths.get(properties.getOutputDir()).toFile().mkdirs();
        IntStream.range(0, files.size()).forEach(i -> {
            log.info("Running " + (i + 1) + " / " + size);

            Path targetFile = files.get(i);
            String inputFile = targetFile.toString();
            String outputFile = properties.getOutputDir() + "/" + targetFile.getFileName().toString();
            log.info("Iinput file " + targetFile);

            Mat input = Imgcodecs.imread(inputFile);
            Imgproc.resize(input, input, new Size(input.width() * 1.5, input.height() * 1.5));
            Mat dstImage = maskRCnn.run(input);
            Imgcodecs.imwrite(outputFile, dstImage);

            log.info("Output file " + outputFile);
        });
    }
}
DnnConfiguration
/*
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package deepl.configre.dnn;

import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.Arrays;

import org.opencv.dnn.Dnn;
import org.opencv.dnn.Net;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
/**
 * @author jashika.t.e
 * @since 0.1
 */
import org.springframework.context.annotation.Configuration;

import deepl.controller.dnn.MaskRCnnRunner;
import deepl.dnn.impl.MaskRCnn;
import deepl.dnn.impl.RCnnProperties;

@Configuration
public class DnnConfiguration {

    @Bean
    public MaskRCnnRunner dnnRunner(MaskRCnn maskRCnn, RCnnProperties maskRCnnProperties) {
        return new MaskRCnnRunner(maskRCnn, maskRCnnProperties);
    }

    @Bean
    @ConfigurationProperties(prefix = "mask.rcnn")
    public RCnnProperties maskRCnnProperties() {
        RCnnProperties properties = new RCnnProperties();
        return properties;
    }

    @Bean
    public MaskRCnn maskRCnn(RCnnProperties maskRCnnProperties) throws IOException {

        maskRCnnProperties.setNames(Files.readAllLines(Paths.get(maskRCnnProperties.getLabelNamesTextPath())));
        for (String line : Files.readAllLines(Paths.get(maskRCnnProperties.getColorsTextPath()))) {
            maskRCnnProperties.getColors()
                    .add(Arrays.stream(line.split(" ")).mapToDouble(Double::parseDouble).toArray());
        }

        Net net = Dnn.readNetFromTensorflow(maskRCnnProperties.getModelPath(), maskRCnnProperties.getConfigPath());
        net.setPreferableBackend(Dnn.DNN_BACKEND_CUDA);
        net.setPreferableTarget(Dnn.DNN_TARGET_CUDA);

        return new MaskRCnn(maskRCnnProperties, net);
    }
}

RCnnProperties.java
/*
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package deepl.dnn.impl;

import java.util.ArrayList;
import java.util.List;

import deepl.support.io.MediaFormat;

/**
 * @author jashika.t.e
 * @since 0.1
 */
public class RCnnProperties {

    /**
     * default input directory.
     */
    private String DEFAULT_INPUT_DIR = "./data/input";

    /**
     * default output directory.
     */
    private String DEFAULT_OUTPUT_DIR = "./data/output";

    /**
     * TensorFlowModel:frozen_inference_graph.pb file path string.
     */
    private String modelPath = DEFAULT_INPUT_DIR + "/metadata/frozen_inference_graph.pb";

    /**
     * TensorFlowModel:pbtxt file path string.
     */
    private String configPath = DEFAULT_INPUT_DIR + "/metadata/mask_rcnn_inception_v2_coco_2018_01_28.pbtxt";

    /**
     * Coco:mscoco_labels.names text file path strein.
     */
    private String labelNamesTextPath = DEFAULT_INPUT_DIR + "/metadata/mscoco_labels.names";

    /**
     * Coco:mscoco_labels.color text file path strein.
     */
    private String colorsTextPath = DEFAULT_INPUT_DIR + "/metadata/colors.txt";

    /**
     * input data dir.
     */
    private String inputDir = DEFAULT_INPUT_DIR + "/images";

    /**
     * output data dir.
     */
    private String outputDir = DEFAULT_OUTPUT_DIR + "/images";

    /**
     * input file extension.
     */
    private MediaFormat inputFileExtension = MediaFormat.NONE;

    /**
     * output file extension.
     */
    private MediaFormat outputFileExtension = MediaFormat.NONE;

    /**
     * labelNames.
     */
    private List<String> names;

    /**
     * colors.
     */
    private List<double[]> colors = new ArrayList<>();

    private Rectangle rectangle = new Rectangle();

    private Mask mask = new Mask();

    private Detection detection = new Detection();

    /**
     * threshold
     */
    private double threshold = 0.5;

    /**
     * @return the modelPath
     */
    public String getModelPath() {
        return modelPath;
    }

    /**
     * @param modelPath the modelPath to set
     */
    public void setModelPath(String modelPath) {
        this.modelPath = modelPath;
    }

    /**
     * @return the configPath
     */
    public String getConfigPath() {
        return configPath;
    }

    /**
     * @param configPath the configPath to set
     */
    public void setConfigPath(String configPath) {
        this.configPath = configPath;
    }

    /**
     * @return the labelNamesTextPath
     */
    public String getLabelNamesTextPath() {
        return labelNamesTextPath;
    }

    /**
     * @param labelNamesTextPath the labelNamesTextPath to set
     */
    public void setLabelNamesTextPath(String labelNamesTextPath) {
        this.labelNamesTextPath = labelNamesTextPath;
    }

    /**
     * @return the colorsTextPath
     */
    public String getColorsTextPath() {
        return colorsTextPath;
    }

    /**
     * @param colorsTextPath the colorsTextPath to set
     */
    public void setColorsTextPath(String colorsTextPath) {
        this.colorsTextPath = colorsTextPath;
    }

    /**
     * @return the names
     */
    public List<String> getNames() {
        return names;
    }

    /**
     * @param names the names to set
     */
    public void setNames(List<String> names) {
        this.names = names;
    }

    /**
     * @return the colors
     */
    public List<double[]> getColors() {
        return colors;
    }

    /**
     * @param colors the colors to set
     */
    public void setColors(List<double[]> colors) {
        this.colors = colors;
    }

    /**
     * @return the threshold
     */
    public double getThreshold() {
        return threshold;
    }

    /**
     * @param threshold the threshold to set
     */
    public void setThreshold(double threshold) {
        this.threshold = threshold;
    }

    /**
     * @return the inputDir
     */
    public String getInputDir() {
        return inputDir;
    }

    /**
     * @param inputDir the inputDir to set
     */
    public void setInputDir(String inputDir) {
        this.inputDir = inputDir;
    }

    /**
     * @return the outputDir
     */
    public String getOutputDir() {
        return outputDir;
    }

    /**
     * @param outputDir the outputDir to set
     */
    public void setOutputDir(String outputDir) {
        this.outputDir = outputDir;
    }

    /**
     * @return the inputFileExtension
     */
    public MediaFormat getInputFileExtension() {
        return inputFileExtension;
    }

    /**
     * @return the outputFileExtension
     */
    public MediaFormat getOutputFileExtension() {
        return outputFileExtension;
    }

    /**
     * @param outputFileExtension the outputFileExtension to set
     */
    public void setOutputFileExtension(MediaFormat outputFileExtension) {
        this.outputFileExtension = outputFileExtension;
    }

    /**
     * @param inputFileExtension the inputFileExtension to set
     */
    public void setInputFileExtension(MediaFormat inputFileExtension) {
        this.inputFileExtension = inputFileExtension;
    }

    /**
     * @return the rectangle
     */
    public Rectangle getRectangle() {
        return rectangle;
    }

    /**
     * @param rectangle the rectangle to set
     */
    public void setRectangle(Rectangle rectangle) {
        this.rectangle = rectangle;
    }

    public Mask getMask() {
        return mask;
    }

    public void setMask(Mask mask) {
        this.mask = mask;
    }

    static class Detection {
        private String[] names = { "detection_out_final", "detection_masks" };

        /**
         * @return the names
         */
        public String[] getNames() {
            return names;
        }

        /**
         * @param names the names to set
         */
        public void setNames(String[] names) {
            this.names = names;
        }
    }

    static class Rectangle {
        /**
         * thickness.
         */
        private int thickness = 1;

        /**
         * fontScale.
         */
        private double fontScale = 0.4d;

        /**
         * @return the fontScale
         */
        public double getFontScale() {
            return fontScale;
        }

        /**
         * @param fontScale the fontScale to set
         */
        public void setFontScale(double fontScale) {
            this.fontScale = fontScale;
        }

        /**
         * @return the thickness
         */
        public int getThickness() {
            return thickness;
        }

        /**
         * @param thickness the thickness to set
         */
        public void setThickness(int thickness) {
            this.thickness = thickness;
        }
    }

    static class Mask {
        private double alpha = 1.0;
        private double beta = 0.5;
        private double gannma = 0;

        /**
         * @return the alpha
         */
        public double getAlpha() {
            return alpha;
        }

        /**
         * @param alpha the alpha to set
         */
        public void setAlpha(double alpha) {
            this.alpha = alpha;
        }

        /**
         * @return the beta
         */
        public double getBeta() {
            return beta;
        }

        /**
         * @param beta the beta to set
         */
        public void setBeta(double beta) {
            this.beta = beta;
        }

        /**
         * @return the gannma
         */
        public double getGannma() {
            return gannma;
        }

        /**
         * @param gannma the gannma to set
         */
        public void setGannma(double gannma) {
            this.gannma = gannma;
        }
    }

    /**
     * @return the detection
     */
    public Detection getDetection() {
        return detection;
    }

    /**
     * @param detection the detection to set
     */
    public void setDetection(Detection detection) {
        this.detection = detection;
    }
}
application.yml
spring:
  main:
    banner-mode: off

management:
  endpoint:
    shutdown:
      enabled: true

logging:
  level:
    org.springframework.aop.interceptor.PerformanceMonitorInterceptor: trace

model:
  rcnn:
    name: mask_rcnn_inception_v2_coco_2018_01_28

mask:
  rcnn:
    model-path: ./data/${model.rcnn.name}/frozen_inference_graph.pb
    config-path: ./data/${model.rcnn.name}/mask_rcnn_inception_v2_coco_2018_01_28.pbtxt
    colors-text-path: ./data/${model.rcnn.name}/colors.txt
    label-names-text-path: ./data/${model.rcnn.name}/mscoco_labels.names
    input-dir: /usr/local/src/Mask_RCNN/images
    output-dir: ./output/${model.rcnn.name}

If there is demand, put it in git.

0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
