JavaはPDFに表を追加します

Posted at

本文では、Javaを通じてPDFドキュメントに表を追加する方法を紹介します。表を追加すると、表の枠、セルの配置、セルの背景色、セルの結合、画像の挿入、行の高さ、列の幅、フォント、サイズなどを設定できます。

使用ツール:Free Spire.PDF for Java (無料版)

Jarファイルの取得と導入:

方法1:ホームページを通じてjarファイルのカバンをダウンロードします。ダウンロード後、ファイルを解凍して、libフォルダの下Spire.Pdf.jarファイルをJavaプログラムに導入します。

方法2:Maven倉庫設置による導入。

import com.spire.pdf.graphics.*;
import com.spire.pdf.grid.PdfGrid;
import java.awt.*;

public class CreateGrid {

    public static void main(String[] args) {
        //文書を作成し、PDFページを追加します
        PdfDocument doc = new PdfDocument();
        PdfPageBase page = doc.getPages().add();

        // PdfGridオブジェクトを作成します
        PdfGrid grid = new PdfGrid();

        //セル内余白、標準フォント、フォント色、標準背景色を設定します
        grid.getStyle().setCellPadding(new PdfPaddings(3,3,3,3));
        grid.getStyle().setFont(new PdfTrueTypeFont(new Font("Arial Unicode MS", Font.PLAIN,10), true));
        grid.getStyle().setTextBrush(PdfBrushes.getBlack());
        grid.getStyle().setBackgroundBrush(PdfBrushes.getLightGray());

        // PdfBordersオブジェクトを作成し、色と太さを設定します
        PdfBorders borders= new PdfBorders();
        borders.setAll(new PdfPen(PdfBrushes.getWhite(),1f));

        //データの定義
        String[] data = {"Continent;Country;Population;Ratio to World Pop;Flag",
                "Asia;China;1,391,190,000;18.2%; ",
                "Asia;Japan;126,490,000;1.66%; ",
                "Europe;United Kingdom;65,648,054;0.86%; ",
                "Europe;Germany;82,665,600;1.08%; ",
                "North America; Canada; 37,119,000; 0.49%; ",
                "North America; United States; 327,216,000; 4.29%; "
                };
        String[][] dataSource = new String[data.length][];
        for (int i = 0; i < data.length; i++) {
            dataSource[i] = data[i].split("[;]", -1);
        }

        //テーブルにデータを埋める
        grid.setDataSource(dataSource);

        //セルの背景色を設定grid.getRows().get(1).getCells().get(4).getStyle().setBackgroundImage(PdfImage.fromFile("F:\\Documents\\flags\\flag-of-China.png"));
        grid.getRows().get(2).getCells().get(4).getStyle().setBackgroundImage(PdfImage.fromFile("F:\\Documents\\flags\\flag-of-Japan.png"));
        grid.getRows().get(3).getCells().get(4).getStyle().setBackgroundImage(PdfImage.fromFile("F:\\Documents\\flags\\flag-of-United-Kingdom.png"));
        grid.getRows().get(4).getCells().get(4).getStyle().setBackgroundImage(PdfImage.fromFile("F:\\Documents\\flags\\flag-of-Germany.png"));
        grid.getRows().get(5).getCells().get(4).getStyle().setBackgroundImage(PdfImage.fromFile("F:\\Documents\\flags\\flag-of-Canada.png"));
        grid.getRows().get(6).getCells().get(4).getStyle().setBackgroundImage(PdfImage.fromFile("F:\\Documents\\flags\\flag-of-United-States-of-America.png"));

        //行ごとの高さを設定します
        grid.getColumns().get(grid.getColumns().getCount()-1).setWidth(60f);

        //セルを縦に結合
        grid.getRows().get(1).getCells().get(0).setRowSpan(2);
        grid.getRows().get(3).getCells().get(0).setRowSpan(2);
        grid.getRows().get(5).getCells().get(0).setRowSpan(2);

        for (int i = 0; i < data.length ; i++) {

            //列ごとの高さを設定します
            grid.getRows().get(i).setHeight(30f);

            //最初の列の背景色を設定しますgrid.getRows().get(i).getCells().get(0).getStyle().setBackgroundBrush(PdfBrushes.getDarkGray());
            //最初の列のフォントを設定します
grid.getRows().get(i).getCells().get(0).getStyle().setFont(new PdfTrueTypeFont(new Font("Arial",Font.PLAIN,12),true));

            for (int j = 0; j < grid.getColumns().getCount(); j++) {

                //すべてのセルの外枠スタイルを設定します
grid.getRows().get(i).getCells().get(j).getStyle().setBorders(borders);

                //すべてのセル内のテキストの配置を設定します
grid.getRows().get(i).getCells().get(j).setStringFormat(new PdfStringFormat(PdfTextAlignment.Center,PdfVerticalAlignment.Middle));

                //最初の行のフォントを設定します
grid.getRows().get(0).getCells().get(j).getStyle().setFont(new PdfTrueTypeFont(new Font("Arial",Font.PLAIN,12),true));

                //最初の行の背景色を設定します
grid.getRows().get(0).getCells().get(j).getStyle().setBackgroundBrush(PdfBrushes.getDarkGray());

            }
        }

        //表をPDFに描画します
        grid.draw(page,0,30);

        //文書を保存
        doc.saveToFile("Grid.pdf");
        doc.close();
    }
}

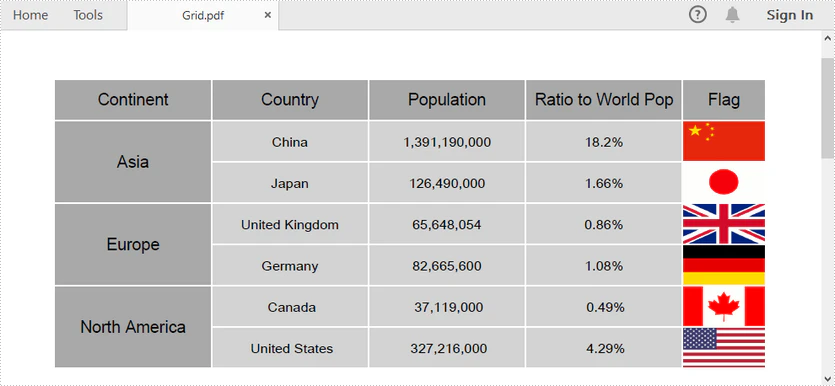

PDF table.png
