ZXingを用いたQRコード変換

Posted at

VB.net初心者です。困っています。助けてください
PictureBoxコントロールに、内臓カメラで取得した画像を常時表示し、その画像(撮影しているQRコード)をボタンクリック時に文字列変換し、テキスト表示するアプリを作っています。

問題は以下の2つです。

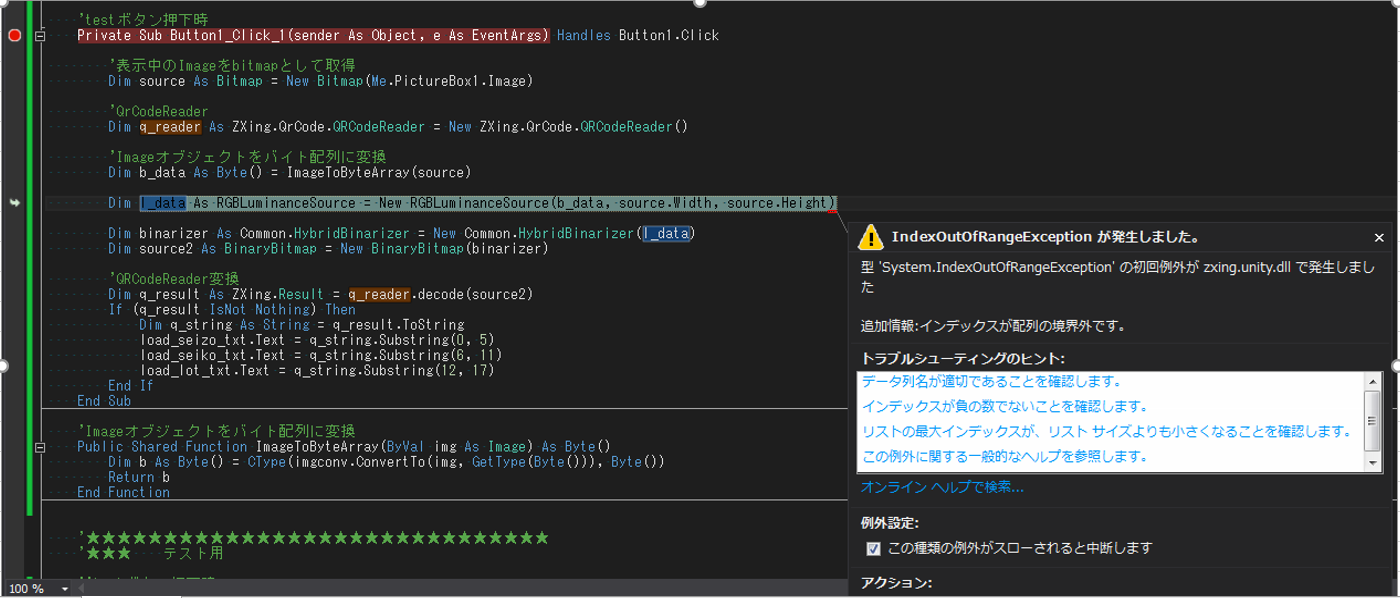

1.変換処理でエラーが発生し、プロセスが死ぬ?
  ⇒Dim l_data As RGBLuminanceSource = New RGBLuminanceSource(b_data, source.Width, source.Height)
   この処理で毎回エラーが発生します。

2.上記1で該当処理が上手くいったとしても、QRコードから文字列への変換ができない。

言語はVB.netです。
ソースコードは以下になります。
ボタンを押してから、問題となっている「QRコード⇒文字列変換」の部分を載せておきます。
※念のため、インポートしている情報も載せておきます。
Imports ZXing
Imports ZXing.BinaryBitmap
Imports ZXing.Binarizer
Imports ZXing.LuminanceSource
Imports ZXing.Result
Imports ZXing.QrCode
Imports ZXing.QrCode.QRCodeReader

Imports UnityEngine
Imports UnityEngine.Color
Imports UnityEngine.Color32

'testボタン押下時
Private Sub Button1_Click_1(sender As Object, e As EventArgs) Handles Button1.Click

    '表示中のImageをbitmapとして取得
    Dim source As Bitmap = New Bitmap(Me.PictureBox1.Image)

    'QrCodeReader
    Dim q_reader As ZXing.QrCode.QRCodeReader = New ZXing.QrCode.QRCodeReader()

    'Imageオブジェクトをバイト配列に変換
    Dim b_data As Byte() = ImageToByteArray(source)

    Dim l_data As RGBLuminanceSource = New RGBLuminanceSource(b_data, source.Width, source.Height)

    Dim binarizer As Common.HybridBinarizer = New Common.HybridBinarizer(l_data)
    Dim source2 As BinaryBitmap = New BinaryBitmap(binarizer)

    'QRCodeReader変換
    Dim q_result As ZXing.Result = q_reader.decode(source2)
    If (q_result IsNot Nothing) Then
        Dim q_string As String = q_result.ToString
        load_seizo_txt.Text = q_string.Substring(0, 5)
        load_seiko_txt.Text = q_string.Substring(6, 11)
        load_lot_txt.Text = q_string.Substring(12, 17)
    End If
End Sub


'Imageオブジェクトをバイト配列に変換
Public Shared Function ImageToByteArray(ByVal img As Image) As Byte()
    Dim b As Byte() = CType(imgconv.ConvertTo(img, GetType(Byte())), Byte())
    Return b
End Function

ちなみに撮影中のQR画像ではなく、ネットに転がっていたきれいなQRコードの画像を同様に変換処理してもエラーが発生します。
なので画像ではなく、ZXsingによる変換処理中の問題なのかと考えています。

以上です。
乱文で申し訳ございませんが、どなたかご教授お願い致します。
