Kotlin Multiplatform Mobile を使ってiOS・Androidの処理を共通化する

Posted at

はじめに

Kotlin Multiplatform Mobile がアルファ段階に移行 – Kotlin Blog | JetBrains ということなので、触ってみます

インストール

[Preferences] -> [Plugins] -> Kotlin Multiplatform Mobile で検索

Kotlin Multiplatform Mobile の作成

Create your first multiplatform application—Kotlin Multiplatform Mobile Docs を参考にすすめます。

  1. New Project から KMM Application を選択して各種Project名を作成

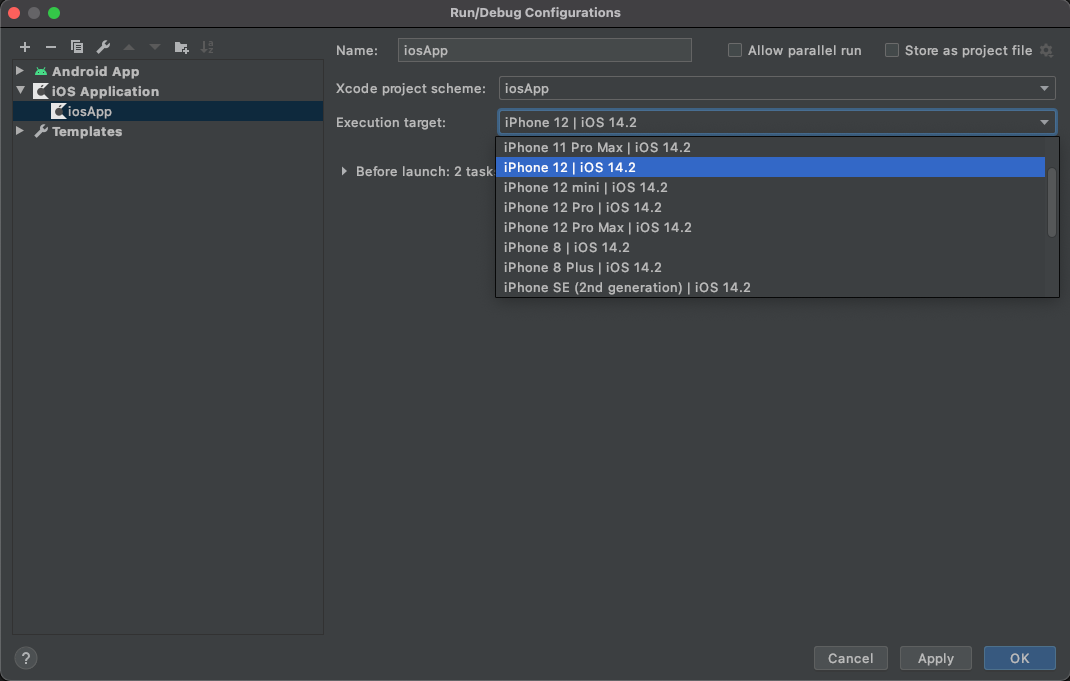

  2. androidApp、iOSAppのビルド設定をする(iOS simulatorを使うためにはXcodeのインストールが必要なので注意


プロジェクトを開くといくつかのサンプルコードが用意されています。

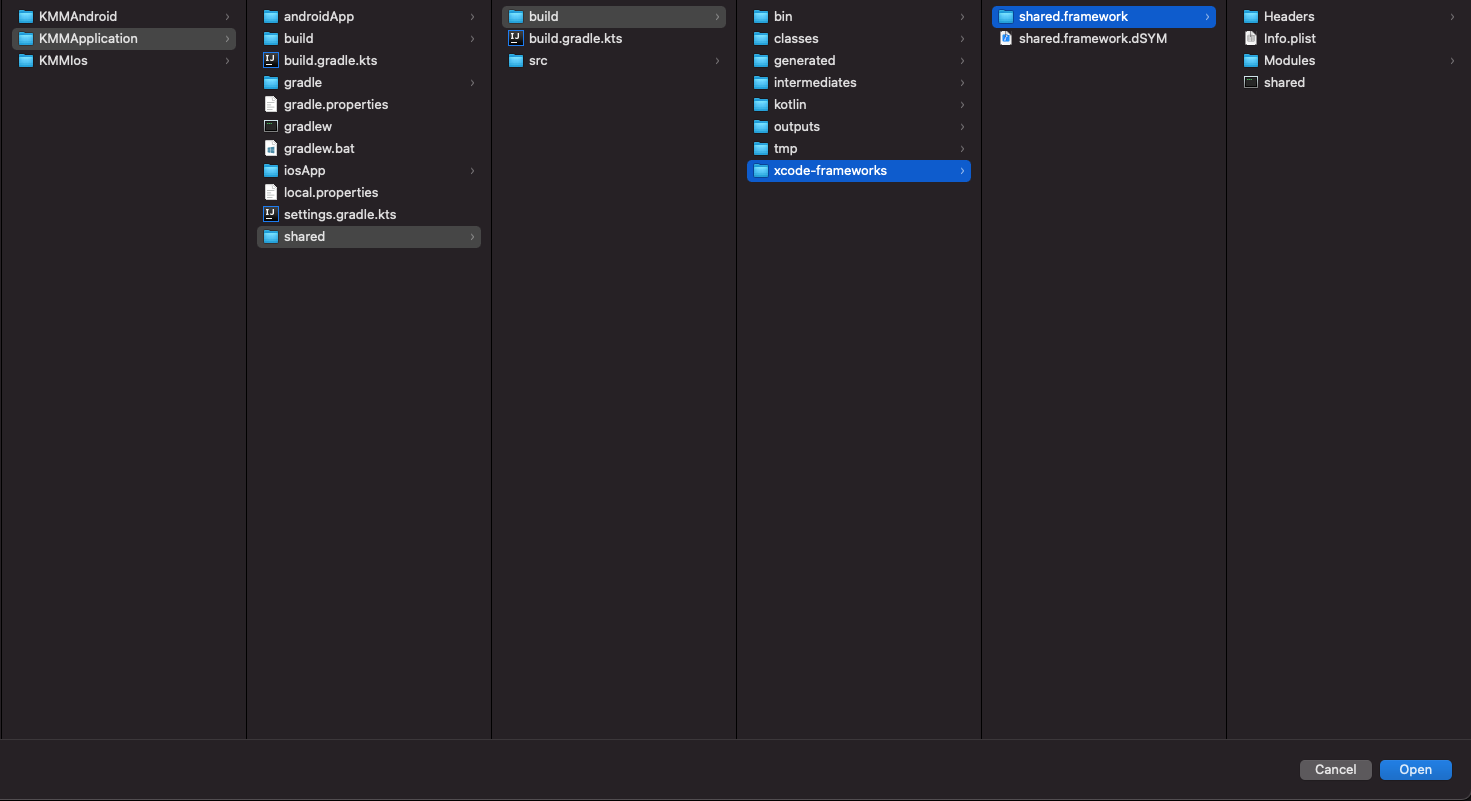

iOSでビルドすると、shared/build/xcode-frameworksにshared.frameworkが生成されます。(Run Scriptで./gradlew :shared:packForXCodeが実行されている)

Greeting.kt
class Greeting {
    fun greeting(): String {
        return "Guess what it is! > ${Platform().platform.reversed()}!"
    }
}
commonMain/.../Platform.kt
expect class Platform() {
    val platform: String
}
androidMain/.../Platform.kt
package com.example.kmmapplication.shared

actual class Platform actual constructor() {
    actual val platform: String = "Android ${android.os.Build.VERSION.SDK_INT}"
}
iOSMain/.../Platform.kt
import platform.UIKit.UIDevice

actual class Platform actual constructor() {
    actual val platform: String = UIDevice.currentDevice.systemName() + " " + UIDevice.currentDevice.systemVersion
}

外部のプロジェクトからの参照する

Kotlin Multiplatform Mobileを作成すると同時にAndroid・iOSプロジェクトが作成されるがここでは、別のプロジェクトから使用してみます。
適当に以下のようにプロジェクトを作成します

KMM
 ├ KMMIos
 ├ KMMAndroid
 └ KMMApplication

iOSプロジェクトから参照する

KMM内のiOSプロジェクトではなく、別のiOSプロジェクトからKMMのコードを使用する方法です。
iOSプロジェクトからはフレームワーク経由での参照になります。普通のフレームワーク同様リンクすれば使用できます。(Framework Search Pathsの設定も忘れずに)
その際、iOSのプロジェクトにも、RunScriptにもFrameworkを生成するgradleの処理をいれておくと最新のモジュールを取得できるので追加しておきます。

これで使えるようになります。

ContentView.swift
import shared

struct ContentView: View {
    var body: some View {
        Text(Greeting().greeting())
    }
}

Androidプロジェクトから参照する

KMM内のAndroidプロジェクトではなく、別のAndroidプロジェクトからKMMのコードを使用する方法です。
Androidプロジェクトからは、gradle経由で参照します。

settings.gradle
include ':app', ':shared'
project(':shared').projectDir = new File(settingsDir, '../KMMApplication/shared')
build.gradle
dependencies {
  implementation project(':shared')
}

これで使えるようになります。

MainActivity.kt
import com.example.kmmapplication.shared.Greeting

class MainActivity : AppCompatActivity() {
  override fun onCreate(savedInstanceState: Bundle?) {
    super.onCreate(savedInstanceState)
    setContentView(R.layout.activity_main)

    val tv: TextView = findViewById(R.id.text_view)
    tv.text = Greeting().greeting()
  }
}
