Aurora の Blue/Green デプロイで少し遊んでみた(スイッチオーバー編)

こちらは Aurora の Blue/Green デプロイで少し遊んでみた の続きです。

前回は、入口で大きく躓いて時間がなくなったため、Blue/Green 環境構築後のスイッチオーバーまで試すことができませんでした。

そのため、Green 環境を作成するところから再チャレンジしてみます。

5. Green 環境を再作成する

前回使った(元)Blue 環境のクラスタで再びブルー/グリーンデプロイを作成します。


Blue 環境に接続してみます。

Blue環境に接続
$ mysql -u admin -h my56.cluster-XXXX.ap-northeast-1.rds.amazonaws.com -p
(中略)
mysql> show processlist;
+----+----------+--------------------+------+---------+------+------------+------------------+
| Id | User     | Host               | db   | Command | Time | State      | Info             |
+----+----------+--------------------+------+---------+------+------------+------------------+
|  7 | rdsadmin | localhost          | NULL | Sleep   |    1 | cleaned up | NULL             |
|  8 | rdsadmin | localhost          | NULL | Sleep   |    1 | cleaned up | NULL             |
|  9 | rdsadmin | localhost          | NULL | Sleep   |    0 | cleaned up | NULL             |
| 10 | rdsadmin | localhost          | NULL | Sleep   |    6 | cleaned up | NULL             |
| 11 | admin    | 172.31.40.50:52838 | NULL | Query   |    0 | init       | show processlist |
+----+----------+--------------------+------+---------+------+------------+------------------+
5 rows in set (0.00 sec)

特に何かのプロセスが走っているわけではなさそうです。

Blue環境のbinlog設定
mysql> call mysql.rds_show_configuration;
+------------------------+-------+------------------------------------------------------------------------------------------------------+
| name                   | value | description                                                                                          |
+------------------------+-------+------------------------------------------------------------------------------------------------------+
| binlog retention hours | NULL  | binlog retention hours specifies the duration in hours before binary logs are automatically deleted. |
+------------------------+-------+------------------------------------------------------------------------------------------------------+
1 row in set (0.00 sec)

mysql> show binary logs;
+----------------------------+-----------+
| Log_name                   | File_size |
+----------------------------+-----------+
| mysql-bin-changelog.000001 |       120 |
| mysql-bin-changelog.000002 |       120 |
| mysql-bin-changelog.000003 |       120 |
+----------------------------+-----------+
3 rows in set (0.00 sec)

Blue 環境のbinlog retention hours は設定されていませんね。この状態では、クラスタを一時停止したときに binlog は保持されないので、Blue/Green 環境構築中にクラスタを一時停止できないのも分かります。

実際、一時停止から復帰した状態でSHOW BINARY LOGSすると binlog が存在しないのが分かります(Aurora MySQL v1 で binlog のファイルサイズが 120 バイトの場合、DDL・DML および行データは記録されていません)。

Green 環境作成中に Blue 環境にデータを追加してみる

このタイミングで Blue 環境に DB(スキーマ)とテーブルを作成し、データをINSERTしてみます。

Blue環境にデータを追加
mysql> create database bg_test;
Query OK, 1 row affected (0.02 sec)

mysql> use bg_test;
Database changed
mysql> create table test_table (id int primary key auto_increment, val int not null, str text);
Query OK, 0 rows affected (0.04 sec)

mysql> insert into test_table set val = 100, str = 'abcdefg';
Query OK, 1 row affected (0.01 sec)

mysql> insert into test_table set val = 110, str = 'ABCDEFG';
Query OK, 1 row affected (0.01 sec)

mysql> show binary logs;
+----------------------------+-----------+
| Log_name                   | File_size |
+----------------------------+-----------+
| mysql-bin-changelog.000001 |       120 |
| mysql-bin-changelog.000002 |       120 |
| mysql-bin-changelog.000003 |       952 |
+----------------------------+-----------+
3 rows in set (0.01 sec)

binlog にも記録されたようです。

Green 環境の作成が完了したらデータレプリケーションの成否を確認する


Green 環境に接続して確認します。

Green環境で確認
$ mysql -u admin -h my56-green-syojh1.cluster-XXXX.ap-northeast-1.rds.amazonaws.com -p
(中略)
mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| bg_test            |
| mysql              |
| performance_schema |
| sakila             |
+--------------------+
5 rows in set (0.01 sec)

mysql> use bg_test;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A

Database changed
mysql> show tables;
+-------------------+
| Tables_in_bg_test |
+-------------------+
| test_table        |
+-------------------+
1 row in set (0.00 sec)

mysql> select * from test_table;
+----+-----+---------+
| id | val | str     |
+----+-----+---------+
|  1 | 100 | abcdefg |
|  2 | 110 | ABCDEFG |
+----+-----+---------+
2 rows in set (0.00 sec)

複製されていますね。

binlog レプリケーションも確認してみます。

レプリケーション確認
mysql> show slave status\G
*************************** 1. row ***************************
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 10.7.15.0
                  Master_User: rdsrepladmin
                  Master_Port: 3306
                Connect_Retry: 60
              Master_Log_File: mysql-bin-changelog.000003
          Read_Master_Log_Pos: 952
               Relay_Log_File: relaylog.000005
                Relay_Log_Pos: 1125
        Relay_Master_Log_File: mysql-bin-changelog.000003
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes
              Replicate_Do_DB:
          Replicate_Ignore_DB:
           Replicate_Do_Table:
       Replicate_Ignore_Table: mysql.rds_replication_status,mysql.rds_monitor,mysql.rds_sysinfo,mysql.rds_configuration,mysql.rds_history
      Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
                   Last_Errno: 0
                   Last_Error:
                 Skip_Counter: 0
          Exec_Master_Log_Pos: 952
              Relay_Log_Space: 1464
              Until_Condition: None
               Until_Log_File:
                Until_Log_Pos: 0
           Master_SSL_Allowed: No
           Master_SSL_CA_File:
           Master_SSL_CA_Path:
              Master_SSL_Cert:
            Master_SSL_Cipher:
               Master_SSL_Key:
        Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
                Last_IO_Errno: 0
                Last_IO_Error:
               Last_SQL_Errno: 0
               Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
             Master_Server_Id: 2056585966
                  Master_UUID: 2d99a024-273f-3a6b-bdff-e4b44775b2f4
             Master_Info_File: mysql.slave_master_info
                    SQL_Delay: 0
          SQL_Remaining_Delay: NULL
      Slave_SQL_Running_State: Slave has read all relay log; waiting for the slave I/O thread to update it
           Master_Retry_Count: 86400
                  Master_Bind:
      Last_IO_Error_Timestamp:
     Last_SQL_Error_Timestamp:
               Master_SSL_Crl:
           Master_SSL_Crlpath:
           Retrieved_Gtid_Set:
            Executed_Gtid_Set:
                Auto_Position: 0
1 row in set (0.00 sec)

なぜかMaster_Hostが(Blue 環境の本来の IP アドレスとは全く別の)10.7.15.0になっていますね。

6. Green 環境をバージョンアップする

こちらも前回やったのですが、再び Aurora MySQL v2 にバージョンアップしてみます。


Green 環境バージョンアップ中に Blue 環境にデータを追加してみる

Blue 環境に接続し、データを追加します。

Blue環境にデータを追加
mysql> insert into test_table set val = 120, str = 'hijklmn';
Query OK, 1 row affected (0.01 sec)

mysql> insert into test_table set val = 130, str = 'HIJKLMN';
Query OK, 1 row affected (0.01 sec)

mysql> show binary logs;
+----------------------------+-----------+
| Log_name                   | File_size |
+----------------------------+-----------+
| mysql-bin-changelog.000001 |       120 |
| mysql-bin-changelog.000002 |       120 |
| mysql-bin-changelog.000003 |      1514 |
+----------------------------+-----------+
3 rows in set (0.00 sec)

Green 環境のバージョンアップが完了したらデータレプリケーションの成否を確認する


バージョンアップが完了したようです。

Green 環境に接続し、確認します。

Green環境でデータ確認
$ mysql -u admin -h my56-green-syojh1.cluster-XXXX.ap-northeast-1.rds.amazonaws.com -p
(中略)
mysql> use bg_test;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A

Database changed
mysql> select * from test_table;
+----+-----+---------+
| id | val | str     |
+----+-----+---------+
|  1 | 100 | abcdefg |
|  2 | 110 | ABCDEFG |
|  3 | 120 | hijklmn |
|  4 | 130 | HIJKLMN |
+----+-----+---------+
4 rows in set (0.00 sec)

複製されていました。

7. スイッチオーバーする

いよいよスイッチオーバーです。

その前に、Blue 環境に接続し、接続先インスタンスのバージョンを確認しておきます。

Blue環境でバージョン確認
$ mysql -u admin -h my56.cluster-XXXX.ap-northeast-1.rds.amazonaws.com -p
(中略)
mysql> select @@aurora_version;
+------------------+
| @@aurora_version |
+------------------+
| 1.23.4           |
+------------------+
1 row in set (0.01 sec)

1.23.4 ですね。

スイッチオーバーします。

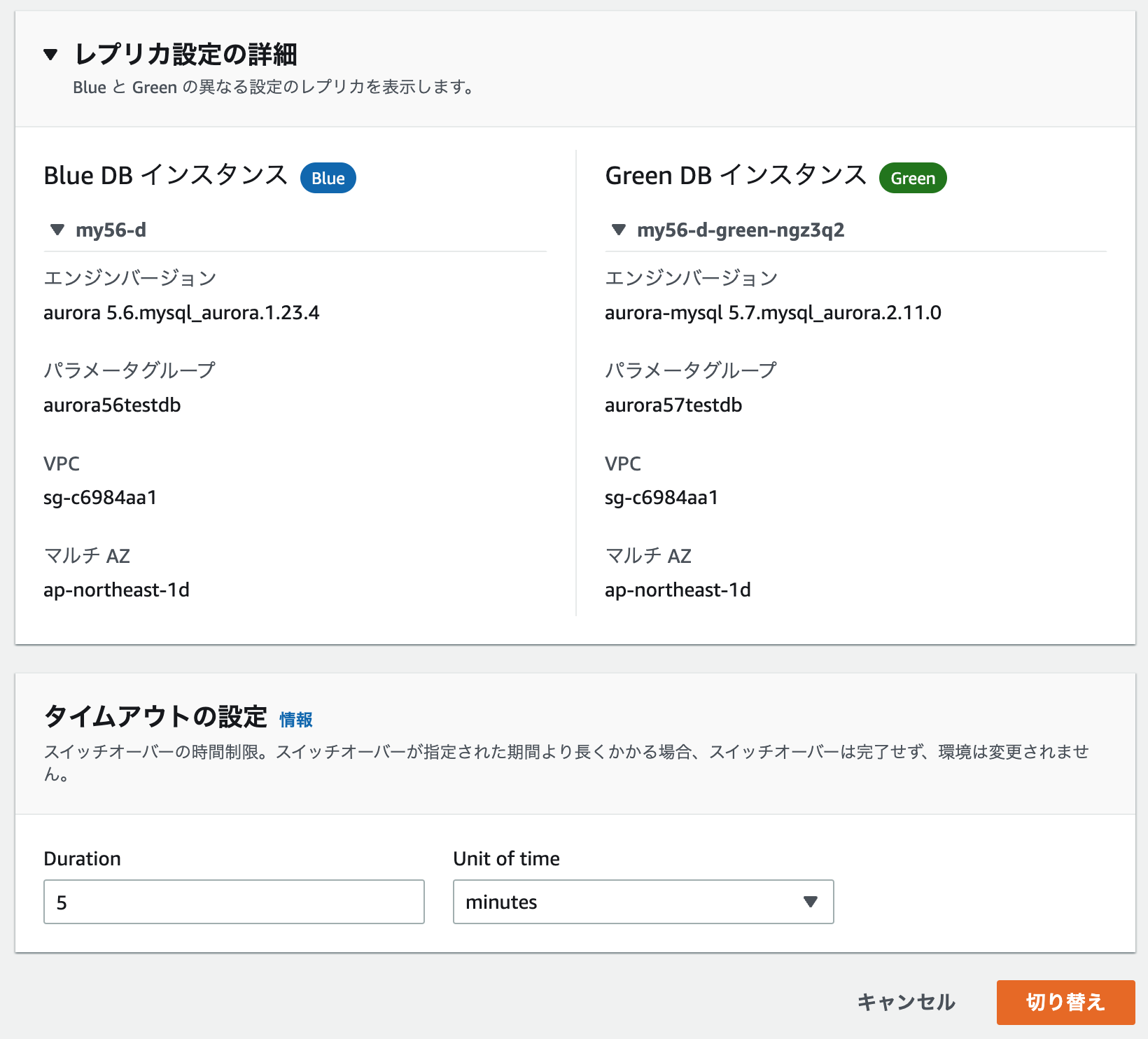

タイムアウトの設定がありますね。

(「VPC」には VPC の ID ではなくてなぜかセキュリティグループの ID が表示されています)

レプリカ設定の詳細を開くと、Blue 環境と Green 環境の差異が表示されます。


スイッチオーバーが始まり、


数分待つと完了です…と思ったら不吉なメッセージが。なにこれこわい。


再読み込みしても画面の動きが不安定だったので、ブラウザでページを開き直しました。



切り替え完了です!

本番側のエンドポイントが入れ替わっていますね。

さて、先ほどの Blue 環境への接続で、バージョンを確認してみます。

Blue環境のバージョン再確認
mysql> select @@aurora_version;
ERROR 2013 (HY000): Lost connection to MySQL server during query
No connection. Trying to reconnect...
Connection id:    42
Current database: *** NONE ***

+------------------+
| @@aurora_version |
+------------------+
| 2.11.0           |
+------------------+
1 row in set (0.03 sec)

スイッチオーバー時に一度接続が切れていたので再接続されて、バージョン 2.11.0 に変わっていることが確認できました!

ちなみに、スイッチオーバー後、切り戻し方向のレプリケーションは設定されないようです。ちょっと残念ですが仕方がないところではあります。

旧Blue環境に接続して確認
$ mysql -u admin -h my56-old1.cluster-XXXX.ap-northeast-1.rds.amazonaws.com -p
(中略)
mysql> show slave status\G
Empty set (0.01 sec)

mysql> select @@read_only;
+-------------+
| @@read_only |
+-------------+
|           1 |
+-------------+
1 row in set (0.00 sec)

また、Writer インスタンスに接続されていますが、read_only1になっていますね。

そして、スイッチオーバー後の旧 Blue 環境は一時停止可能なようです(フラグ?)。


8. ブルー/グリーンデプロイを削除する

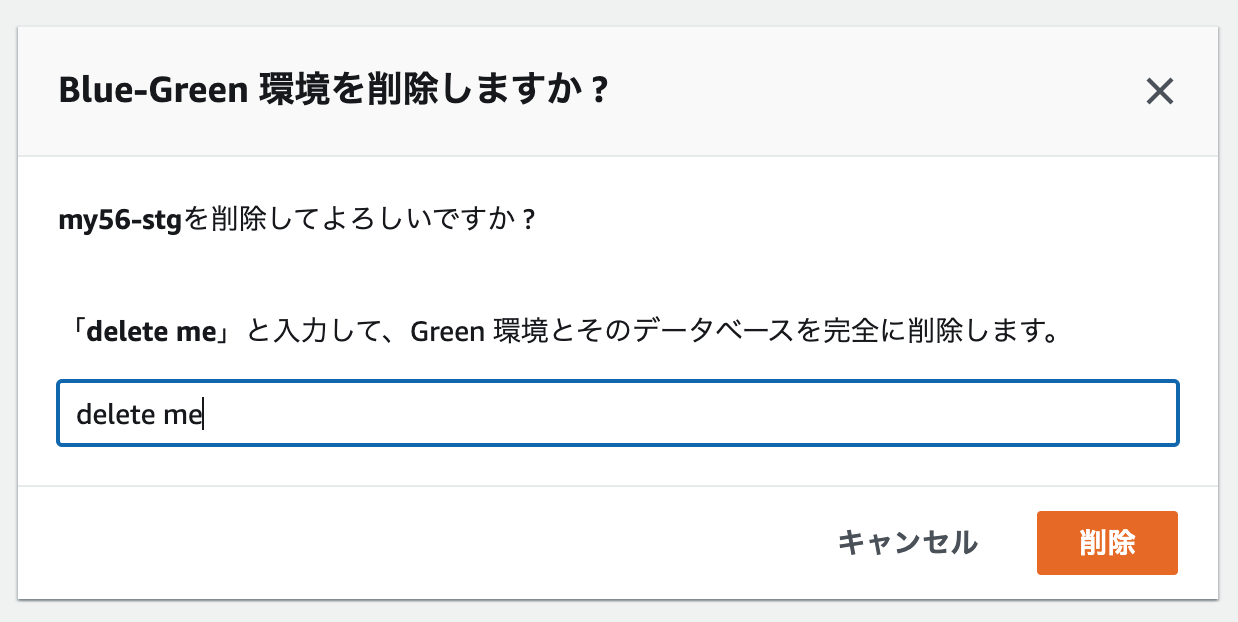

スイッチオーバーが完了したので、ブルー/グリーンデプロイを削除します。




この後、一番下の「my56-stg」だけは消えましたが、いつまで経っても完了しません。

どうやら、旧 Blue 環境を一時停止したのがいけなかったようです(なぜアラートが出なかった?)。

旧 Blue 環境を起動し、手作業で各インスタンスを削除しました。


9. 続きは…

アドベントカレンダーで何か書 くかもしれません きました。
