ESXi and Cisco Switch LACP Configuration Memo

Objectives

• Set same configuration at next timing...

Refs

Cisco Switch Configuration Memo

Check Mode Actice

interface Port-channel2
 switchport trunk encapsulation dot1q
 switchport mode trunk

interface GigabitEthernet0/2
 switchport trunk encapsulation dot1q
 switchport mode trunk
 channel-group 2 mode active

interface GigabitEthernet0/3
 switchport trunk encapsulation dot1q
 switchport mode trunk
 channel-group 2 mode active

Check src-dst-ip

c3560-2#config t
c3560-2(config)#port-channel load-balance src-dst-ip

 c3560-2#show etherchannel load-balance
EtherChannel Load-Balancing Configuration:
        src-dst-ip

EtherChannel Load-Balancing Addresses Used Per-Protocol:
Non-IP: Source XOR Destination MAC address
  IPv4: Source XOR Destination IP address
  IPv6: Source XOR Destination IP address

c3560-2#show etherchannel summary
Flags:  D - down        P - bundled in port-channel
        I - stand-alone s - suspended
        H - Hot-standby (LACP only)
        R - Layer3      S - Layer2
        U - in use      f - failed to allocate aggregator

        M - not in use, minimum links not met
        u - unsuitable for bundling
        w - waiting to be aggregated
        d - default port


Number of channel-groups in use: 2
Number of aggregators:           2

Group  Port-channel  Protocol    Ports
------+-------------+-----------+-----------------------------------------------
1      Po1(SU)         PAgP      Gi0/9(P)    Gi0/10(P)
2      Po2(SU)         LACP      Gi0/2(P)    Gi0/3(P)

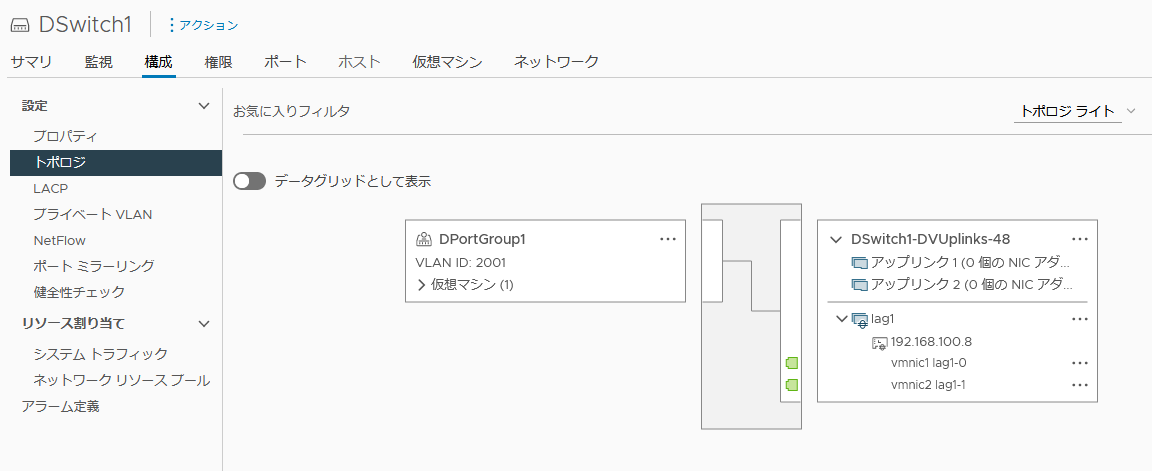

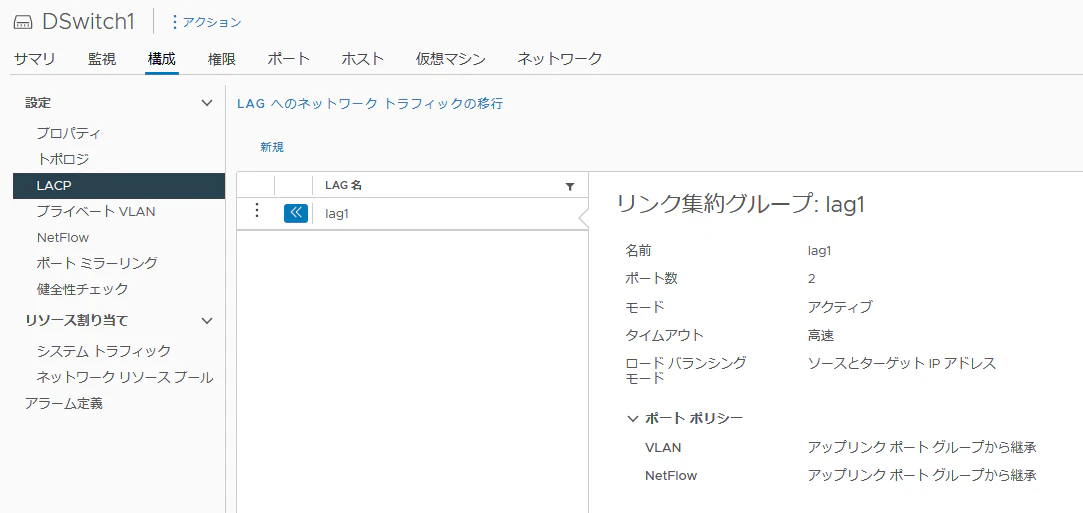

VCSA Configuration Memo

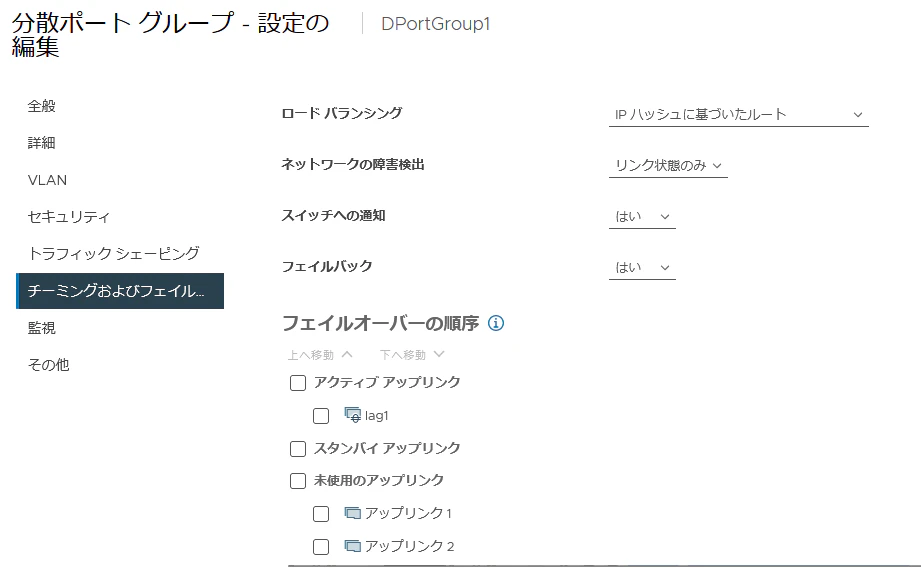

ロードバランシングモード -> ソースとターゲットIPアドレス

ロードバランシング -> IPハッシュに基づいたルート

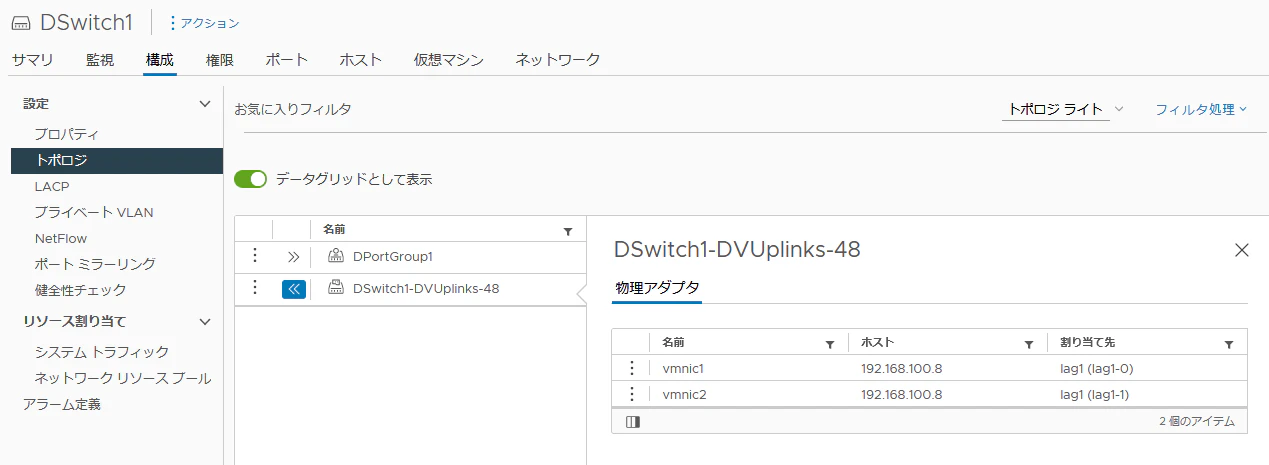

アクティブアップリンク -> LAG
