Visualize SQL | Hierarchical and Recursive Query in SQL

Posted at

Beginning

It's probably running the same process
over and over again ・・
Like other languages such as C++, Java
it is not easy to follow whole process

I explain how recursive processing is executed
using images

You should know how to use CTE
to read this article

There are many articles published
about recursion processing,
so I hope you can check this as well
　⇒ I put some links below

First, let's look at a simple example

【Recursion】Add by 5 from 0 to 25

SQL
WITH RECURSIVE cte_table AS (

    -- Execute only the first time
	SELECT 0 AS num

	UNION ALL

    -- Executed from second time ～
	SELECT num + 5 AS num
	FROM cte_table
	WHERE num < 25

)

SELECT * FROM cte_table;

▼ Output

num
0
5
10
15
20
25

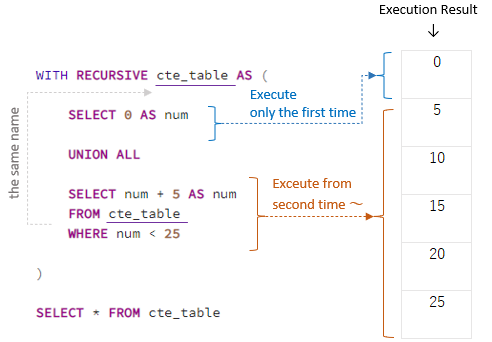

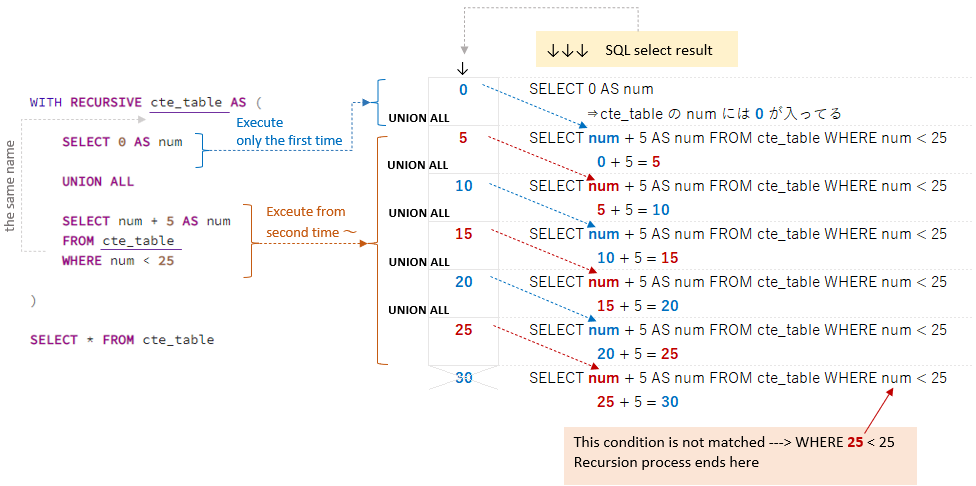

Behavior of Recursion

I will briefly explain the flow of recursion processing
and visualize it

Recursion processing consists of two queries.
The results of the following two queries
are combined using UNION ALL

　■ Execute only the first time
　　SELECT 0 AS num
　　　⇒ It's like creating the initial data
　　　⇒ Put 0 in the num column of cte_table

　■ Executed from second time ～
　　SELECT num + 5 AS num FROM cte_table WHERE num < 25
　　　⇒ Use cte_table that is the same name as the CTE,
　　　　 in the FROM clause
　　　⇒ It's like calling myself
　　　⇒ Continue to add 5 to num
　　　　 while num is less than 25
　　　⇒ Write terminate condition of recursion
　　　　 in the WHERE clause

▼　The second query is recursive

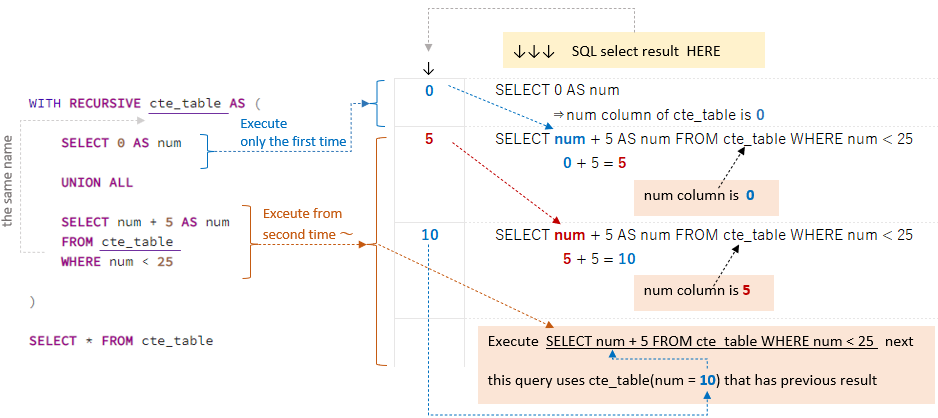

▼　Use previous result for excequting next query

▼　When recursion ends

～～～～～～～～～～～～～～～～～～～～～～～～～～～～～～～～～～～～～～
Let's look at a slightly more complicated process

【Recursion】Tree Structure | Preparation

SQL
-- Table Definition
CREATE TABLE tbl_employee (
    emp_id INTEGER       -- Employee ID
    ,employee_name TEXT  -- Employee Name
    ,manager_id INTEGER  -- Employee's boss ID
);

-- INSERT data
INSERT INTO tbl_employee VALUES (1, 'King', NULL);
INSERT INTO tbl_employee VALUES (33, 'Jeff', 1);
INSERT INTO tbl_employee VALUES (55, 'Nancy', 1);
INSERT INTO tbl_employee VALUES (88, 'Bob', 1);
INSERT INTO tbl_employee VALUES (222, 'Dan', 33);
INSERT INTO tbl_employee VALUES (666, 'Kate', 33);
INSERT INTO tbl_employee VALUES (4444, 'Bill', 666);

SELECT * FROM tbl_employee;

▼ Output

emp_id employee_name manager_id
1 King NULL
33 Jeff 1
55 Nancy 1
88 Bob 1
222 Dan 33
666 Kate 33
4444 Bill 666

▼ Table Structure Image

Extract staff members under the parent(King)

SQL
WITH RECURSIVE cte_table AS (
    -- Information of King
	SELECT emp_id, emp_name, manager_id
	FROM tbl_employee WHERE emp_id = 1

	UNION ALL

    -- Extract staff members under the parent(King)
	SELECT emp.emp_id,emp.emp_name, emp.manager_id
	FROM cte_table AS cte
	INNER JOIN tbl_employee AS emp ON emp.manager_id = cte.emp_id

)

SELECT * FROM cte_table

▼ Output

employee_id employee_name manager_id
1 King NULL
33 Jeff 1
55 Nancy 1
55 Bob 1
222 Dan 33
666 Kate 33
4444 Bill 666

Is it the same as tbl_employee(table)?
・・well
King is the TOP person(root), so
everyone will be under him

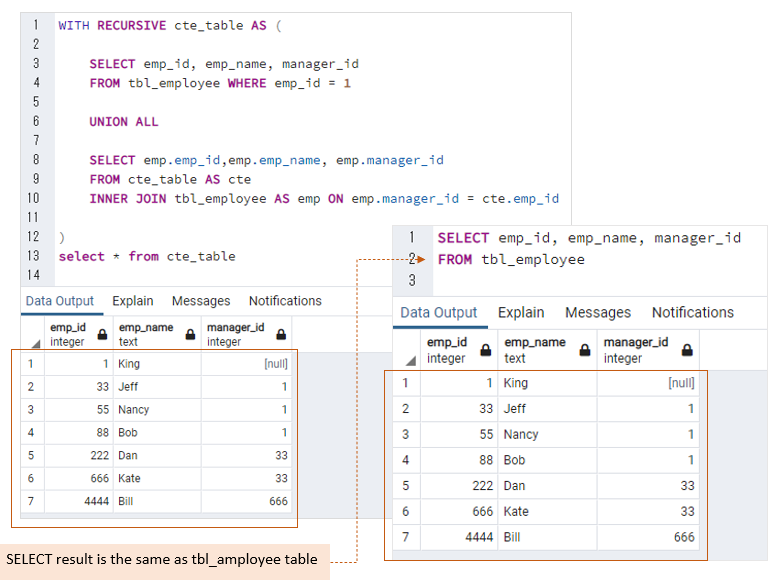

Compare query output and tbl_employee

What is the differenct from "select * from tbl_employee"?
Is this query recursive　(๑• •๑)??

you might think this way・・but Yes!!
This query is recursive process

▼　it's working like this but its process is unclear(￣Д￣;)

let's see more detail・・・

Extract staff members under the parent(Jeff)

SQL
WITH RECURSIVE cte_table AS (
    -- Jeff's information
	SELECT emp_id, emp_name, manager_id
	FROM tbl_employee WHERE emp_id = 33 -- modified

	UNION ALL

    -- Extract staff members under the parent(Jeff)
	SELECT emp.emp_id,emp.emp_name, emp.manager_id
	FROM cte_table AS cte
	INNER JOIN tbl_employee AS emp ON emp.manager_id = cte.emp_id

)
SELECT * FROM cte_table

▼ Output

employee_id employee_name manager_id
33 Jeff 1
222 Dan 33
666 Kate 33
4444 Bill 666

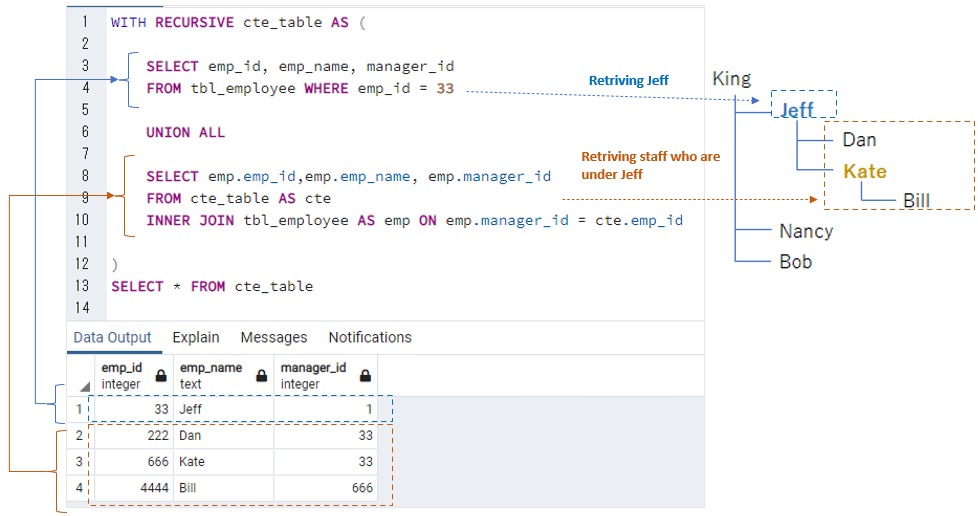

▼　Image of extracting staff under Jeff

Step1：Retrieve Jeff's information

SQL
WITH RECURSIVE cte_table AS (
    -- Jeff's information
	SELECT emp_id, emp_name, manager_id
	FROM tbl_employee WHERE emp_id = 33 -- 修正

 -- UNION ALL

    -- Extract staff members under the parent(Jeff)
 -- SELECT emp.emp_id,emp.emp_name, emp.manager_id
 -- FROM cte_table AS cte
 -- INNER JOIN tbl_employee AS emp ON emp.manager_id = cte.emp_id

)
SELECT * FROM cte_table

▼ Output | we got Jeff

employee_id employee_name manager_id
33 Jeff 1

Step2：Extract staff under Jeff

SQL
WITH RECURSIVE cte_table AS (
    -- Jeff's information
 -- SELECT emp_id, emp_name, manager_id
 -- FROM tbl_employee WHERE emp_id = 33 -- modifi

 -- UNION ALL

    -- Extract staff members under the parent(Jeff)
    SELECT emp.emp_id,emp.emp_name, emp.manager_id
    FROM cte_table AS cte
    INNER JOIN tbl_employee AS emp ON emp.manager_id = cte.emp_id

)
SELECT * FROM cte_table

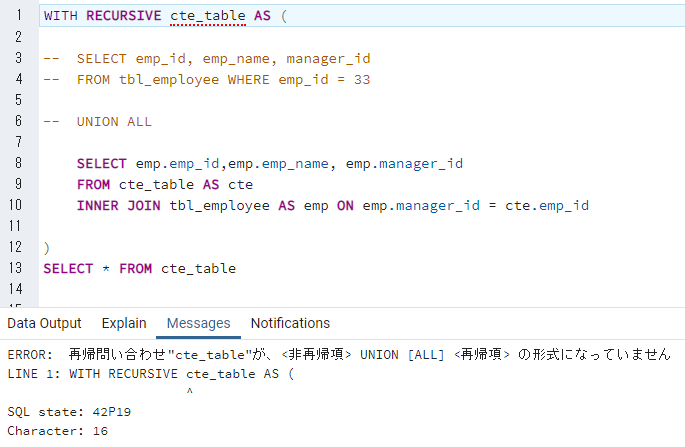

▼ Output is Error!!

I wanted to perform only recursive part, but
an error occurs because it is not right query for recursion
Write another query without using recursion
　⇒　rewrite Step2：Extract staff under Jeff

Step2：Extract Jeff's staff Dan & Kate(NOT recursive)

SQL
-- Dan,Kate's Information
SELECT emp.emp_id,emp.emp_name, emp.manager_id
FROM (
    -- Jeff's information
	SELECT emp_id, emp_name, manager_id
	FROM tbl_employee WHERE emp_id = 33
) AS cte
INNER JOIN tbl_employee AS emp ON emp.manager_id = cte.emp_id

▼ Output | we got Dan, Kate

employee_id employee_name manager_id
222 Dan 33
666 Kate 33

detail process
　⇒ To extract staff(Dan,Kate) whose boss is Jeff is
　　 join tbl_employee table to Jeff's information
　　 that is taken at the beginning
　⇒ cte_table holds Jeff's information
　⇒ Extract the row with the same manager_id
　　 as emp_id(33) of Jeff from tbl_employee table

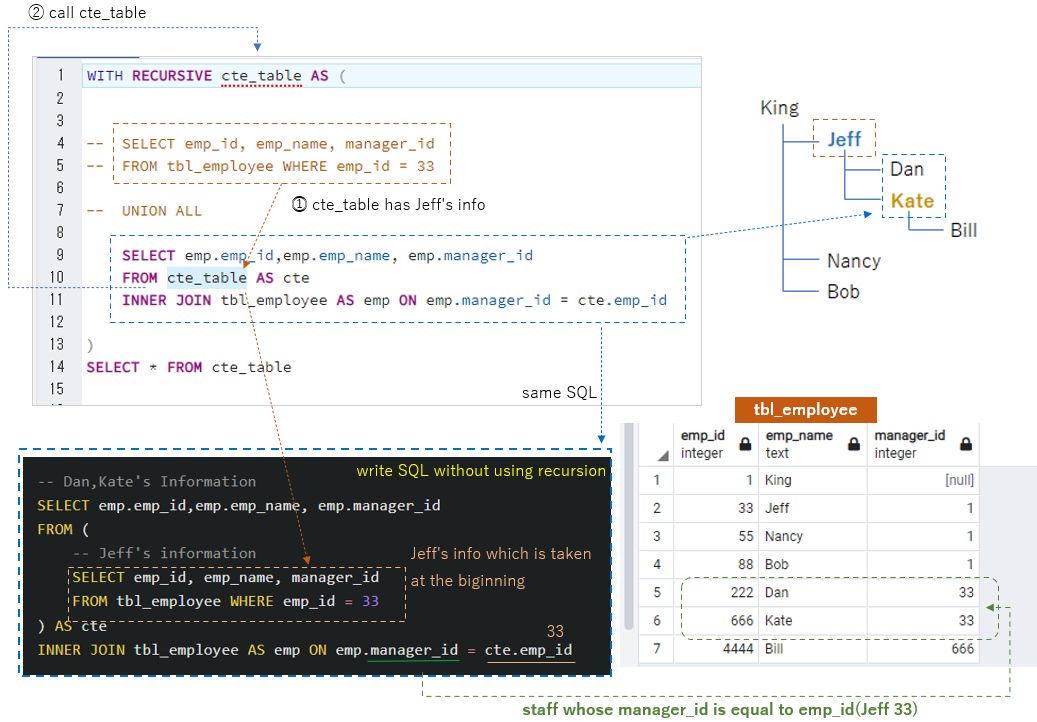

▼ Image of extracting Jeff's staff(Dan & Kate)

Step3：Extract Kate's staff Bill(NOT recursive)

SQL
-- Bill's information
SELECT emp.emp_id,emp.emp_name, emp.manager_id
FROM(
    -- Dan,Kate's information
	SELECT emp.emp_id,emp.emp_name, emp.manager_id
	FROM (
        -- Jeff's information
		SELECT emp_id, emp_name, manager_id
		FROM tbl_employee WHERE emp_id = 33
	) AS cte
	INNER JOIN tbl_employee AS emp ON emp.manager_id = cte.emp_id
) AS cte
INNER JOIN tbl_employee AS emp ON emp.manager_id = cte.emp_id

▼ Output | we got Bill

employee_id employee_name manager_id
4444 Bill 666

detail process
　⇒ join tbl_employee table to previous result
　　 that is Dan, Kate's info
　⇒ cte_table holds Dan, Kate's info
　⇒ Extract the row with the same manager_id
　　 as emp_id(222,666) of Dan,Kate from tbl_employee table

▼ Image of extracting Kate's staff(Bill)

Step4：Bill has no staff. Recursion ends

SQL
-- Bill's staff
SELECT emp.emp_id,emp.emp_name, emp.manager_id
FROM (
	-- Bill's information
	SELECT emp.emp_id,emp.emp_name, emp.manager_id
	FROM(
		-- Dan,Kate's information
		SELECT emp.emp_id,emp.emp_name, emp.manager_id
		FROM (
			-- Jeff's information
			SELECT emp_id, emp_name, manager_id
			FROM tbl_employee WHERE emp_id = 33
		) AS cte
		INNER JOIN tbl_employee AS emp ON emp.manager_id = cte.emp_id
	) AS cte
	INNER JOIN tbl_employee AS emp ON emp.manager_id = cte.emp_id
) AS cte
INNER JOIN tbl_employee AS emp ON emp.manager_id = cte.emp_id

▼ Output no result

employee_id employee_name manager_id
　 　 　

detail process
　⇒ join tbl_employee table to previous result
　　 that is Bill's info
　⇒ cte_table holds Bill's info
　⇒ Extract the row with the same manager_id
　　 as emp_id(4444) of Bill from tbl_employee table

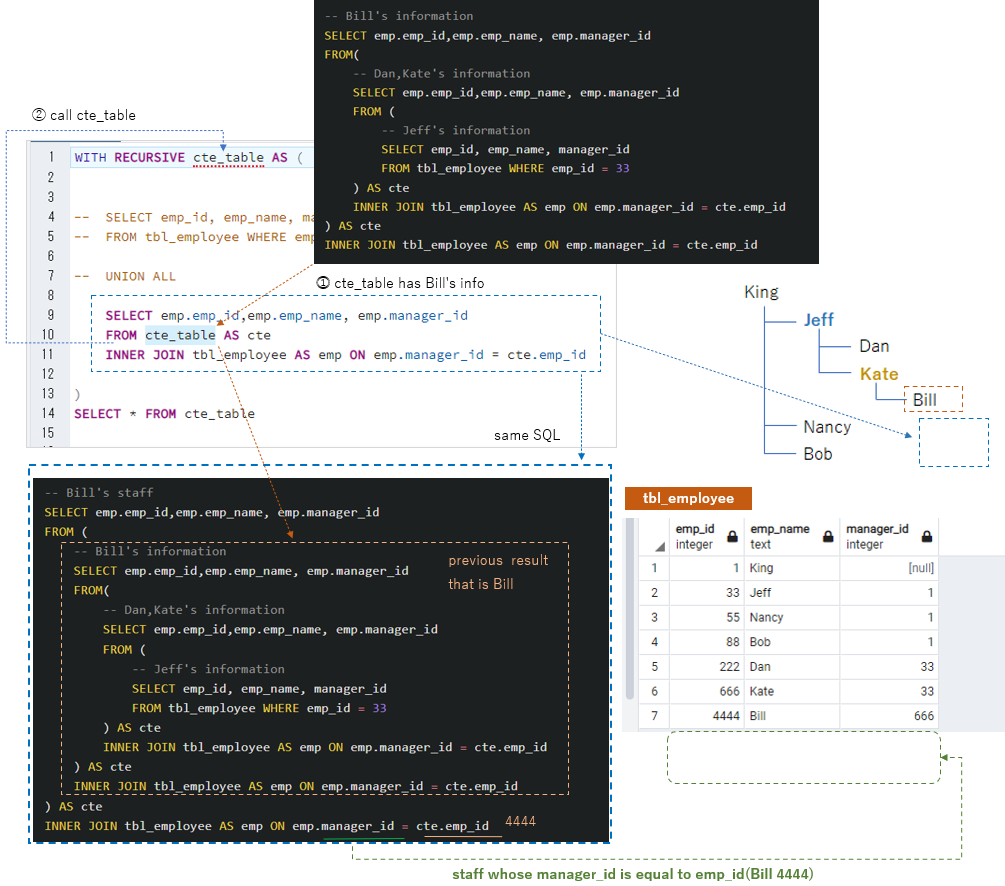

▼ Try to extract Bill's staff but does not exist

no return value ⇒ recursion ends

There are no staff whose boss is Bill
　⇒ No return from query
　⇒ Recursion ends here
　⇒ Step4 is the last process

In the first example
the condition for ending recursion
is written in the WHERE clause
　⇒　WHERE num < 25
In this recursive query
the recursive process ends on the condition
that no results are returned

『Process flow』&『whole image of recursion』

Step1 : Extract Jeff's information
　UNION ALL
Step2 : Extract Dan, Kate's information
　UNION ALL
Step3 : Extract Bill's information

Step4 : Recursion ends because no return value

【Recursive Query】
SELECT emp.emp_id,emp.emp_name, emp.manager_id
FROM cte_table AS cte
INNER JOIN tbl_employee AS emp ON emp.manager_id = cte.emp_id

Recursive query is executed in Step2, Step3, Step4
Since no results are returned in Step 4
the entire process ends here

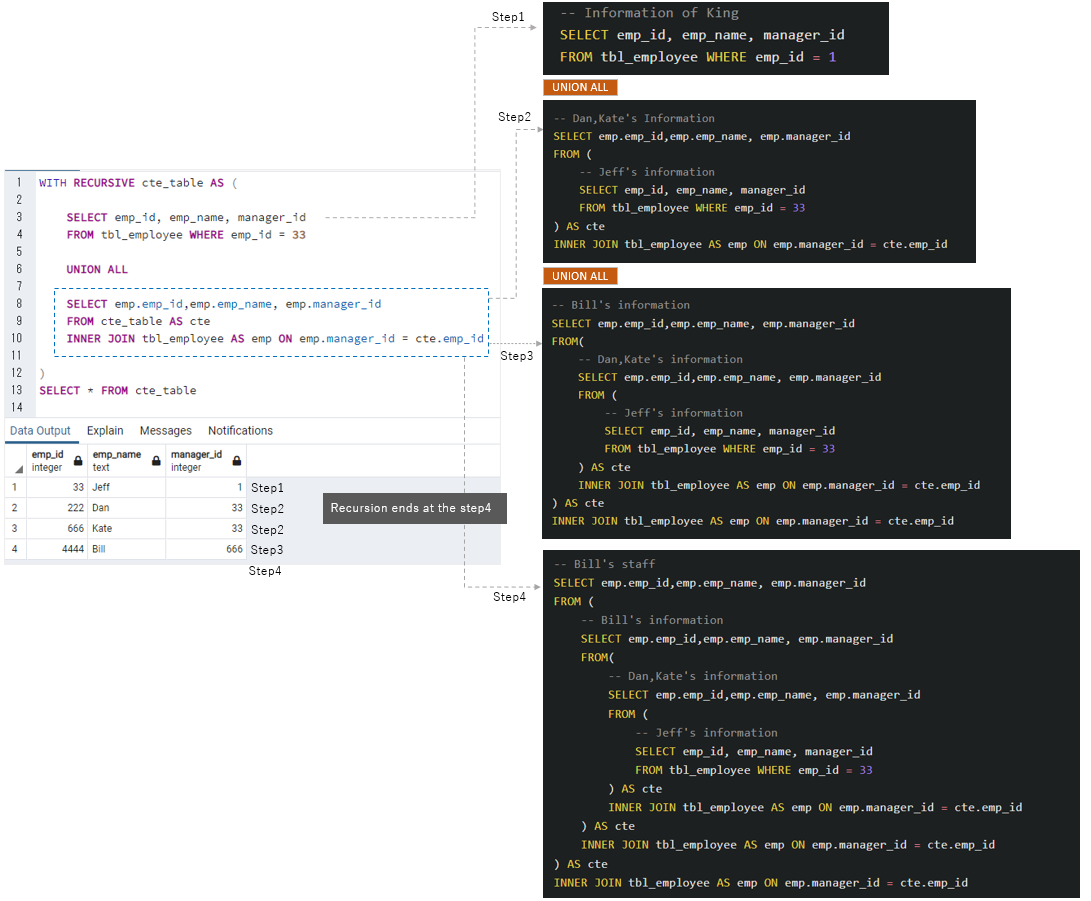

▼ whole image of recursion

That's all
Hope you understand recursive query
