AWS CDKv2でCognito認証されたAPI Gatewayを構築して swaggeruiで疎通確認したメモ

概要

AWS CDKでCognito認証されたAPI Gateway(HTTP API)を構築するをcdk v2で試してみた。

ソースコード(API)
ソースコード(Swagger)

環境

• windows10
• docker-desktop(Docker version 20.10.13, build a224086)
• cdk 2.16.0

CDK構築

package.json

cdk/package.json

{
  "name": "cdk",
  "version": "0.1.0",
  "bin": {
    "cdk": "bin/cdk.js"
  },
  "scripts": {
    "build": "tsc",
    "watch": "tsc -w",
    "test": "jest",
    "lambda-with-cognito-deploy": "cdk -a \"npx ts-node --prefer-ts-exts bin/lambdaWithCognito.ts\" deploy LambdaWithCognitoStack -c @aws-cdk/core:newStyleStackSynthesis=true"
  },
  "devDependencies": {
    "@types/fs-extra": "^9.0.13",
    "@types/jest": "^27.4.1",
    "@types/node": "17.0.21",
    "aws-cdk": "2.16.0",
    "fs-extra": "^10.0.1",
    "jest": "^27.5.1",
    "ts-jest": "^27.1.3",
    "ts-node": "^10.7.0",
    "typescript": "~4.6.2"
  },
  "dependencies": {
    "@aws-cdk/aws-apigatewayv2-alpha": "^2.16.0-alpha.0",
    "@aws-cdk/aws-apigatewayv2-authorizers-alpha": "^2.16.0-alpha.0",
    "@aws-cdk/aws-apigatewayv2-integrations-alpha": "^2.16.0-alpha.0",
    "aws-cdk-lib": "2.16.0",
    "constructs": "^10.0.89",
    "dotenv": "^16.0.0",
    "eslint": "^8.11.0",
    "source-map-support": "^0.5.21"
  }
}

cdk/.env

PROJECT_ID=hogefuga
DOMAIN_PREFIX=piyo
CALLBACK_URLS=http://localhost:3200/oauth2-redirect.html
LOGOUT_URLS=http://localhost:3200/oauth2-redirect.html
FRONTEND_URLS=http://localhost:3200

cdk/lib/LambdaWithCognitoStack.ts

import * as lambda from 'aws-cdk-lib/aws-lambda'
import * as cognito from 'aws-cdk-lib/aws-cognito'
import * as apigw from '@aws-cdk/aws-apigatewayv2-alpha'
import * as intg from '@aws-cdk/aws-apigatewayv2-integrations-alpha'
import * as authz from '@aws-cdk/aws-apigatewayv2-authorizers-alpha'
import { NodejsFunction } from 'aws-cdk-lib/aws-lambda-nodejs'
import { CfnOutput, RemovalPolicy, Stack, StackProps } from 'aws-cdk-lib'
import { Construct } from 'constructs'

interface Props extends StackProps {
  projectId: string
  domainPrefix: string
  frontendUrls: string[]
  callbackUrls: string[]
  logoutUrls: string[]
}
export class LambdaWithCognitoStack extends Stack {
  constructor(scope: Construct, id: string, props: Props) {
    super(scope, id, props)

    const userPool = new cognito.UserPool(this, `${props.projectId}-userPool`, {
      selfSignUpEnabled: false,
      standardAttributes: {
        email: { required: true, mutable: true },
        phoneNumber: { required: false },
      },
      signInCaseSensitive: true,
      autoVerify: { email: true },
      signInAliases: { email: true },
      accountRecovery: cognito.AccountRecovery.EMAIL_ONLY,
      removalPolicy: RemovalPolicy.DESTROY,
    })
    userPool.addDomain(`${props.projectId}-userPool-domain`, {
      cognitoDomain: { domainPrefix: props.domainPrefix },
    })
    const userPoolClient = userPool.addClient('client', {
      oAuth: {
        scopes: [
          cognito.OAuthScope.EMAIL,
          cognito.OAuthScope.OPENID,
          cognito.OAuthScope.PROFILE,
        ],

        callbackUrls: props.callbackUrls,
        logoutUrls: props.logoutUrls,
        flows: { authorizationCodeGrant: true },
      },
    })
    const authorizer = new authz.HttpUserPoolAuthorizer(
      `${props.projectId}-CognitoAuthorizer`,
      userPool,
      {
        authorizerName: 'CognitoAuthorizer',
        userPoolClients: [userPoolClient],
      },
    )

    const handler = new NodejsFunction(
      this,
      `${props.projectId}-scenario-lambda`,
      {
        runtime: lambda.Runtime.NODEJS_14_X,
        entry: '../src/handler/api/getScenario.ts',
        functionName: 'scenario',
        description: 'シナリオ',
      },
    )

    const httpApi = new apigw.HttpApi(this, `${props.projectId}-apigw`, {
      createDefaultStage: false,
      corsPreflight: {
        allowOrigins: props.frontendUrls,
        allowMethods: [apigw.CorsHttpMethod.ANY],
        allowHeaders: ['authorization'],
      },
    })

    httpApi.addRoutes({
      methods: [apigw.HttpMethod.GET],
      path: '/scenario',
      integration: new intg.HttpLambdaIntegration(
        `${props.projectId}-scenarioIntegration`,
        handler,
      ),
      authorizer,
    })
    const stage = new apigw.HttpStage(this, `${props.projectId}-apistage`, {
      httpApi,
      stageName: 'api',
      autoDeploy: true,
    })

    new CfnOutput(this, 'OutputApiUrl', { value: stage.url })
    new CfnOutput(this, 'OutputDomainPrefix', { value: props.domainPrefix })
    new CfnOutput(this, 'OutputClientId', {
      value: userPoolClient.userPoolClientId,
    })
  }
}

cdk/bin/lambdaWithCognito.ts

#!/usr/bin/env node
import 'source-map-support/register'
import * as cdk from 'aws-cdk-lib'
import { LambdaWithCognitoStack } from '../lib/LambdaWithCognitoStack'
import * as dotenv from 'dotenv'

dotenv.config()
const envList = [
  'PROJECT_ID',
  'DOMAIN_PREFIX',
  'CALLBACK_URLS',
  'LOGOUT_URLS',
  'FRONTEND_URLS',
] as const
for (const key of envList) {
  if (!process.env[key]) throw new Error(`please add ${key} to .env`)
}
const processEnv = process.env as Record<typeof envList[number], string>

const app = new cdk.App()
const env = {
  account: process.env.CDK_DEFAULT_ACCOUNT,
  region: process.env.CDK_DEFAULT_REGION,
}
const projectId = processEnv.PROJECT_ID

new LambdaWithCognitoStack(app, `${projectId}-stack`, {
  projectId,
  domainPrefix: processEnv.DOMAIN_PREFIX,
  callbackUrls: processEnv.CALLBACK_URLS.split(','),
  logoutUrls: processEnv.LOGOUT_URLS.split(','),
  frontendUrls: processEnv.FRONTEND_URLS.split(','),
  env
})

デプロイ後に表示されるURL、clientID、OutputDomainPrefixは次のSwaggerの環境変数に使うため控えておく。

SWaggerUIでの確認

SwaggerUIが現在(2022/03/17)openapi3.0.3までしか対応していないので、3.1で書いたファイルを一つにまとめた後、versionを3.1から3.0に書き換えるスクリプトを追記した。

redocを使ってもいいかもしれない。

openapi

documents/api-schema/package.json

{
  "name": "app",
  "version": "0.0.1",
  "description": "",
  "main": "index.js",
  "scripts": {
    "redoc": "redoc-cli bundle ./openapi.yml --options.menuToggle --options.pathInMiddlePanel  -o ./dist/index.html",
    "preswaggerui": "openapi bundle openapi.yml --output swagger.yaml && bash replace.sh",
    "swaggerui": "bash ./bin/swagger.sh"
  },
  "keywords": [],
  "author": "hibohiboo <[e-mail]>",
  "license": "MIT",
  "devDependencies": {
    "@redocly/openapi-cli": "^1.0.0-beta.87",
    "redoc": "^2.0.0-rc.65",
    "redoc-cli": "^0.13.9"
  }
}

documents/api-schema/.env.sample

OUTPUT_API_URL=https://hogehoge.execute-api.ap-northeast-1.amazonaws.com/api
OUTPUT_DOMAIN_PREFIX=piyo

documents/api-schema/replace.sh

#!/bin/bash

. .env

sed -i -e "s/openapi: 3.1.0/openapi: 3.0.3/" swagger.yaml
sed -i -e "s|{{OutputApiUrl}}|$OUTPUT_API_URL|" swagger.yaml
sed -i -e "s|{{OutputDomainPrefix}}|$OUTPUT_DOMAIN_PREFIX|g" swagger.yaml

documents/api-schema/openapi.yml

openapi: 3.1.0
info:
  title: hoge
  description: fugaAPI
  version: 0.0.1
servers:
  - url: "{{OutputApiUrl}}"
paths:
  /scenario:
    $ref: ./paths/cartagraph.yml

components:
  securitySchemes:
    OAuth2:
      $ref: ./components/schemas/oauth2.yml

documents/api-schema/components/schemas/oauth2.yml

type: oauth2
description: For more information, see https://docs.aws.amazon.com/cognito/latest/developerguide/cognito-userpools-server-contract-reference.html
flows:
  authorizationCode:
    authorizationUrl: https://{{OutputDomainPrefix}}.auth.ap-northeast-1.amazoncognito.com/oauth2/authorize
    tokenUrl: https://{{OutputDomainPrefix}}.auth.ap-northeast-1.amazoncognito.com/oauth2/token
    scopes:
      openid: openid token

documents/api-schema/components/schemas/oauth2.yml

type: oauth2
description: For more information, see https://docs.aws.amazon.com/cognito/latest/developerguide/cognito-userpools-server-contract-reference.html
flows:
  authorizationCode:
    authorizationUrl: https://{{OutputDomainPrefix}}.auth.ap-northeast-1.amazoncognito.com/oauth2/authorize
    tokenUrl: https://{{OutputDomainPrefix}}.auth.ap-northeast-1.amazoncognito.com/oauth2/token
    scopes:
      openid: openid token

documents/api-schema/paths/cartagraph.yml

get:
  operationId: scenarios
  security:
    - OAuth2: [ openid, token ]
  responses:
    200:
      description: 200 OK
      content:
        application/json:
          schema:
            required:
              - scenarios
            properties:
              scenarios:
                type: array
                items:
                  required:
                    - name
                  properties:
                    name:
                      type: string
            example:
              scenarios:
                - name: hina
                - name: koharu
                - name: konatsu

swaggerui

documents/api-schema/docker/docker-compose.yml

version: '3.8'

services:
  swagger:
    image: swaggerapi/swagger-ui:latest
    environment:
      API_URL: /swagger.yaml
      BASE_URL: /
    env_file: .env
    volumes:
      - ../swagger.yaml:/usr/share/nginx/html/swagger.yaml
      - ../components:/usr/share/nginx/html/components
      - ../paths:/usr/share/nginx/html/paths
    ports:
      - 3200:8080

documents/api-schema/docker/.env

OAUTH_CLIENT_ID=発行されたcliendID
DOMAIN_PREFIX=piyo

cognitoの設定

デプロイされたらコンソールにログインし、cognitoの画面から検証用のユーザを作成する。

動作確認

dockerを起動し、 http://localhost:3200/に移動。

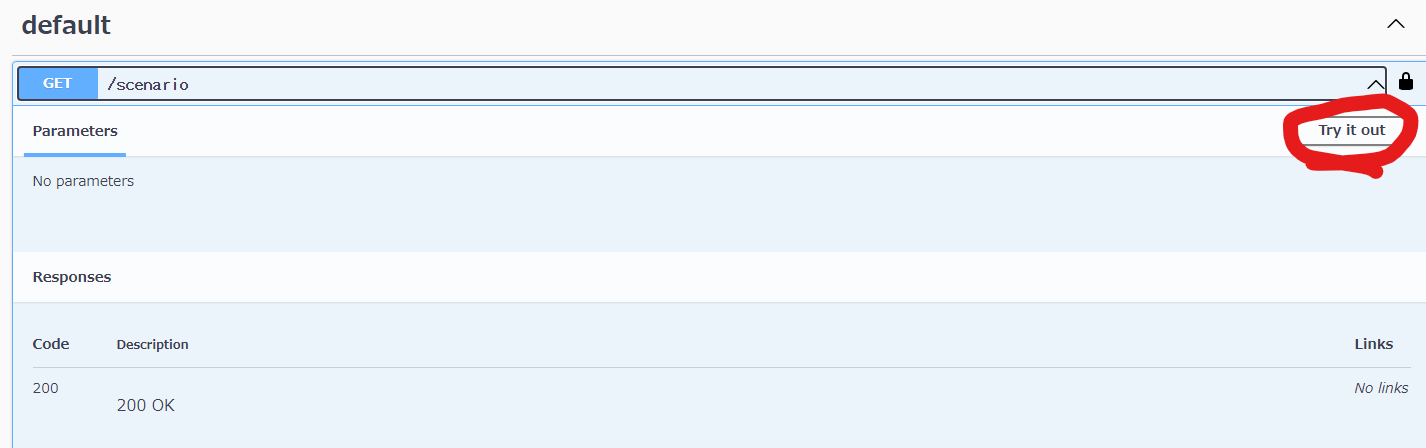

APIの認証有効確認

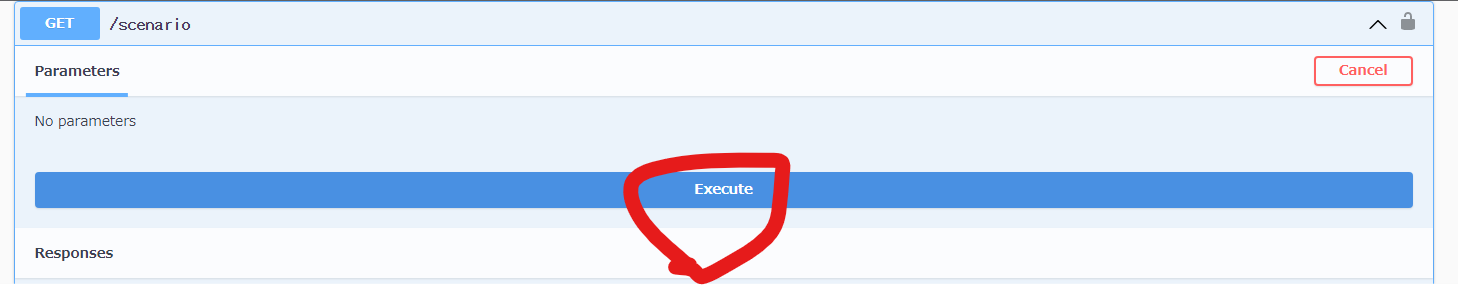

ただ叩いて401が帰ってくれば正常


401であることを確認

認証

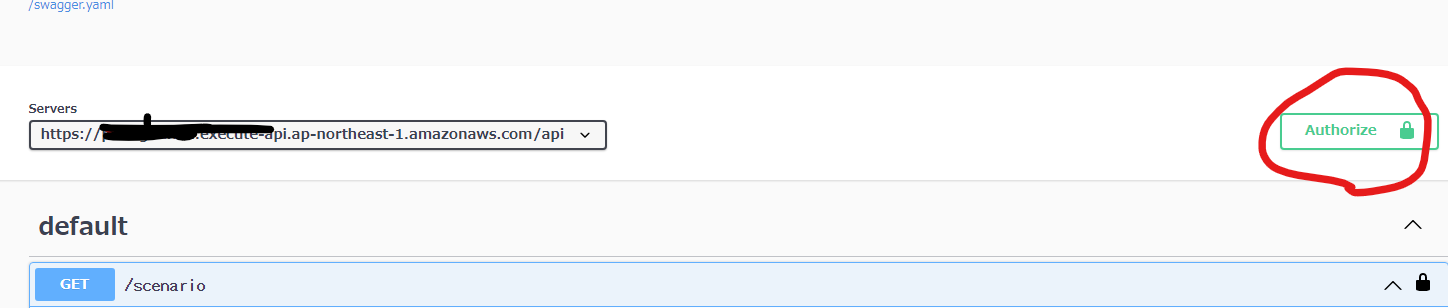

client secretには何も入れずにAuthorizeをクリック

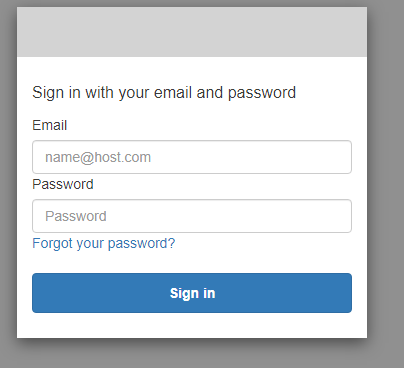

メールアドレスとパスワードを入力し、認証に成功すると元の画面が以下の表示となる。

再度executeとして結果が変化することを確認。

遭遇したエラー

認証画面に飛ぼうとすると以下のエラー。

An error was encountered with the requested page.

原因はコールバックURLの設定ミス。

# エラーとなるコード
CALLBACK_URLS=http://localhost:3200/
# 成功するコード
CALLBACK_URLS=http://localhost:3200/oauth2-redirect.html
