Amazon Kendra のIndexを構築する

Last updated at Posted at 2023-10-18

なんの記事？

  • AWS上でのAmazonBedrockを利用したRAGパターン実装のためにKendraのIndexを構築する
  • この後、LangChainからKendraのAPIとbedrock(Claude-v2)のAPI実行によりRAG実装を目指す

参考ドキュメント

かきBuilders-flashの記事を参考にIndexを作成する
https://aws.amazon.com/jp/builders-flash/202302/kendra-search-system/?awsf.filter-name=*all

Indexの作成

  • Indexの作成はコンソールから実行する
  • AWS Manegement ConsoleからKendraにアクセス
  • リージョンは東京
  • Create Indexを押下
  • 新規にロールを作成
  • 他はデフォルトでNextを押下
  • デフォルトでNextを押下
  • DeveloperEditionで構築する(今回は最初なので無料枠が適用されるはず)
  • Create を押下
  • 作成にめっちゃ時間かかる
  • 作成成功

DataSouceの作成

  • CloudShellからS3バケットの作成とデータ登録を行う
cloudshell .
[cloudshell-user@ip-10-2-77-33 ~]$ BUCKET_NAME=kendra-datasource-bucket-test-20231018
[cloudshell-user@ip-10-2-77-33 ~]$ aws s3 mb s3://${BUCKET_NAME}
make_bucket: kendra-datasource-bucket-test-20231018
[cloudshell-user@ip-10-2-77-33 ~]$ mkdir awsdoc
[cloudshell-user@ip-10-2-77-33 ~]$ pushd awsdoc
~/awsdoc ~
[cloudshell-user@ip-10-2-77-33 awsdoc]$ wget https://docs.aws.amazon.com/ja_jp/amazondynamodb/latest/developerguide/dynamodb-dg.pdf -O DynamoDB.pdf
--2023-10-18 14:31:36--  https://docs.aws.amazon.com/ja_jp/amazondynamodb/latest/developerguide/dynamodb-dg.pdf
Resolving docs.aws.amazon.com (docs.aws.amazon.com)... 99.84.133.100, 99.84.133.122, 99.84.133.24, ...
Connecting to docs.aws.amazon.com (docs.aws.amazon.com)|99.84.133.100|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 34032310 (32M) [application/pdf]
Saving to: ‘DynamoDB.pdf’

100%[==============================================================================================================================================================================================>] 34,032,310  26.4MB/s   in 1.2s

2023-10-18 14:31:38 (26.4 MB/s) - ‘DynamoDB.pdf’ saved [34032310/34032310]

[cloudshell-user@ip-10-2-77-33 awsdoc]$ wget https://docs.aws.amazon.com/ja_jp/lambda/latest/dg/lambda-dg.pdf -O Lambda.pdf
--2023-10-18 14:31:47--  https://docs.aws.amazon.com/ja_jp/lambda/latest/dg/lambda-dg.pdf
Resolving docs.aws.amazon.com (docs.aws.amazon.com)... 99.84.133.105, 99.84.133.24, 99.84.133.122, ...
Connecting to docs.aws.amazon.com (docs.aws.amazon.com)|99.84.133.105|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 20743829 (20M) [application/pdf]
Saving to: ‘Lambda.pdf’

100%[==============================================================================================================================================================================================>] 20,743,829  28.1MB/s   in 0.7s

2023-10-18 14:31:47 (28.1 MB/s) - ‘Lambda.pdf’ saved [20743829/20743829]

[cloudshell-user@ip-10-2-77-33 awsdoc]$ wget https://docs.aws.amazon.com/ja_jp/vpc/latest/userguide/vpc-ug.pdf -O VPC.pdf
--2023-10-18 14:31:57--  https://docs.aws.amazon.com/ja_jp/vpc/latest/userguide/vpc-ug.pdf
Resolving docs.aws.amazon.com (docs.aws.amazon.com)... 99.84.133.100, 99.84.133.105, 99.84.133.24, ...
Connecting to docs.aws.amazon.com (docs.aws.amazon.com)|99.84.133.100|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 4310360 (4.1M) [application/pdf]
Saving to: ‘VPC.pdf’

100%[==============================================================================================================================================================================================>] 4,310,360   5.98MB/s   in 0.7s

2023-10-18 14:31:57 (5.98 MB/s) - ‘VPC.pdf’ saved [4310360/4310360]

[cloudshell-user@ip-10-2-77-33 awsdoc]$ wget https://docs.aws.amazon.com/ja_jp/kendra/latest/dg/kendra-dg.pdf -O Kendra.pdf
--2023-10-18 14:32:06--  https://docs.aws.amazon.com/ja_jp/kendra/latest/dg/kendra-dg.pdf
Resolving docs.aws.amazon.com (docs.aws.amazon.com)... 99.84.133.122, 99.84.133.100, 99.84.133.105, ...
Connecting to docs.aws.amazon.com (docs.aws.amazon.com)|99.84.133.122|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 6436120 (6.1M) [application/pdf]
Saving to: ‘Kendra.pdf’

100%[==============================================================================================================================================================================================>] 6,436,120   8.85MB/s   in 0.7s

2023-10-18 14:32:07 (8.85 MB/s) - ‘Kendra.pdf’ saved [6436120/6436120]

[cloudshell-user@ip-10-2-77-33 awsdoc]$ wget https://docs.aws.amazon.com/ja_jp/Route53/latest/DeveloperGuide/route53-dg.pdf -O Route53.pdf
--2023-10-18 14:32:16--  https://docs.aws.amazon.com/ja_jp/Route53/latest/DeveloperGuide/route53-dg.pdf
Resolving docs.aws.amazon.com (docs.aws.amazon.com)... 99.84.133.24, 99.84.133.122, 99.84.133.100, ...
Connecting to docs.aws.amazon.com (docs.aws.amazon.com)|99.84.133.24|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 8692485 (8.3M) [application/pdf]
Saving to: ‘Route53.pdf’

100%[==============================================================================================================================================================================================>] 8,692,485   9.30MB/s   in 0.9s

2023-10-18 14:32:17 (9.30 MB/s) - ‘Route53.pdf’ saved [8692485/8692485]

[cloudshell-user@ip-10-2-77-33 awsdoc]$ popd
~
[cloudshell-user@ip-10-2-77-33 ~]$ aws s3 cp awsdoc s3://${BUCKET_NAME}/awsdoc/ --recursive
upload: awsdoc/VPC.pdf to s3://kendra-datasource-bucket-test-20231018/awsdoc/VPC.pdf
upload: awsdoc/Kendra.pdf to s3://kendra-datasource-bucket-test-20231018/awsdoc/Kendra.pdf
upload: awsdoc/DynamoDB.pdf to s3://kendra-datasource-bucket-test-20231018/awsdoc/DynamoDB.pdf
upload: awsdoc/Route53.pdf to s3://kendra-datasource-bucket-test-20231018/awsdoc/Route53.pdf
upload: awsdoc/Lambda.pdf to s3://kendra-datasource-bucket-test-20231018/awsdoc/Lambda.pdf
  • また下記のようなテキストをS3に配置する
office_info.txt
■オフィス間取りについて
一般受付は2Fの東側にあります。
オフィスフロアは19Fから35Fです。
来客向け会議室は36Fの南側にあります。
展望室は37Fです。

■ワークフロー申請方法について
交通費申請はグループ会社共有Webシステムからワークフローの申請をしてください。
在宅勤務申請は自社Webシステムから申請してください。
部内備品の持ち出しはExcelにて申請してください。
cloudshell .
[cloudshell-user@ip-10-2-77-33 ~]$ mkdir officedoc
[cloudshell-user@ip-10-2-77-33 ~]$ pushd officedoc
~/officedoc ~
[cloudshell-user@ip-10-2-77-33 officedoc]$ touch office_info.txt
[cloudshell-user@ip-10-2-77-33 officedoc]$ vim office_info.txt
[cloudshell-user@ip-10-2-77-33 officedoc]$ popd
~
[cloudshell-user@ip-10-2-77-33 ~]$ aws s3 cp officedoc s3://${BUCKET_NAME}/officedoc/ --recursive
upload: officedoc/office_info.txt to s3://kendra-datasource-bucket-test-20231018/officedoc/office_info.txt

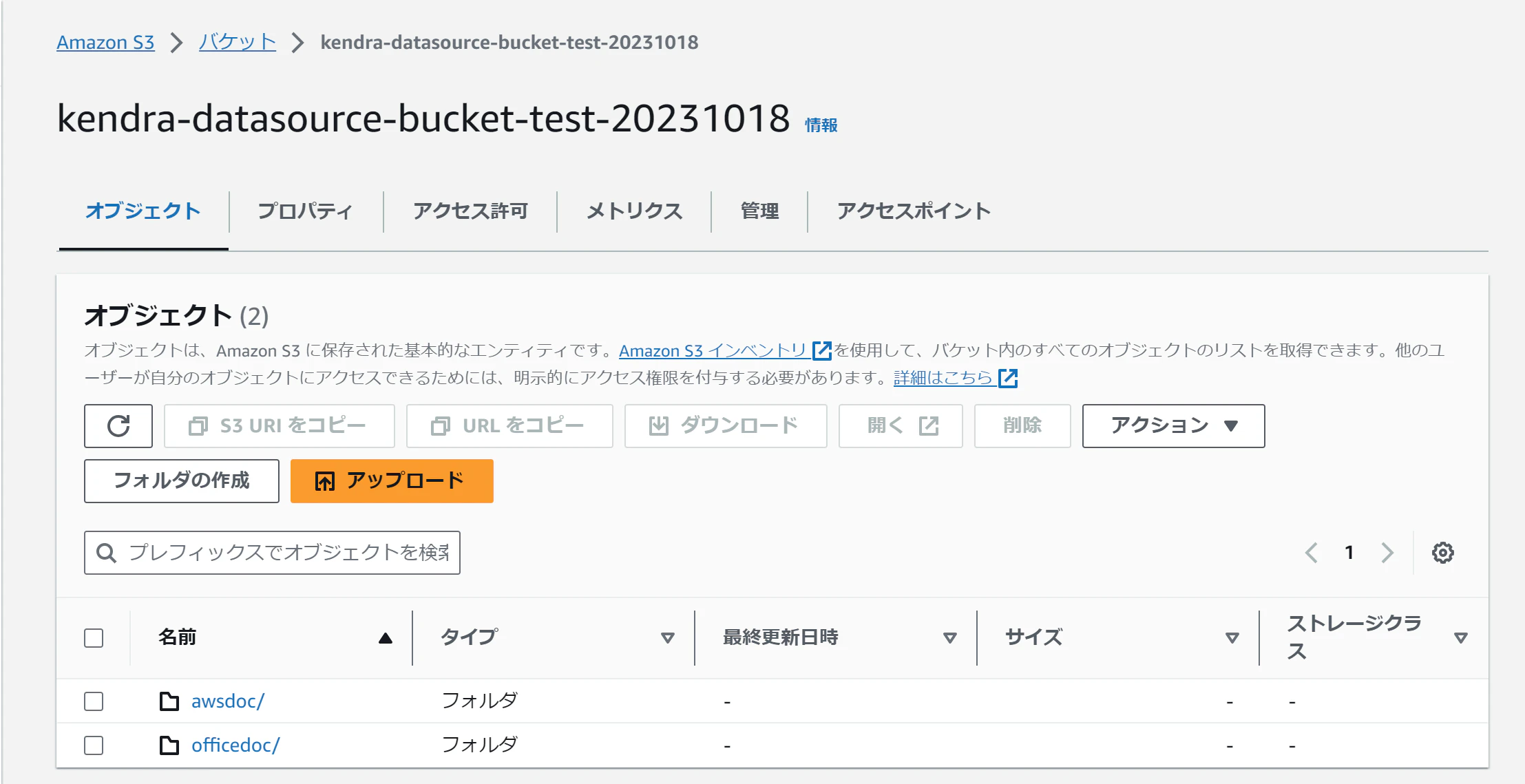

  • バケット確認

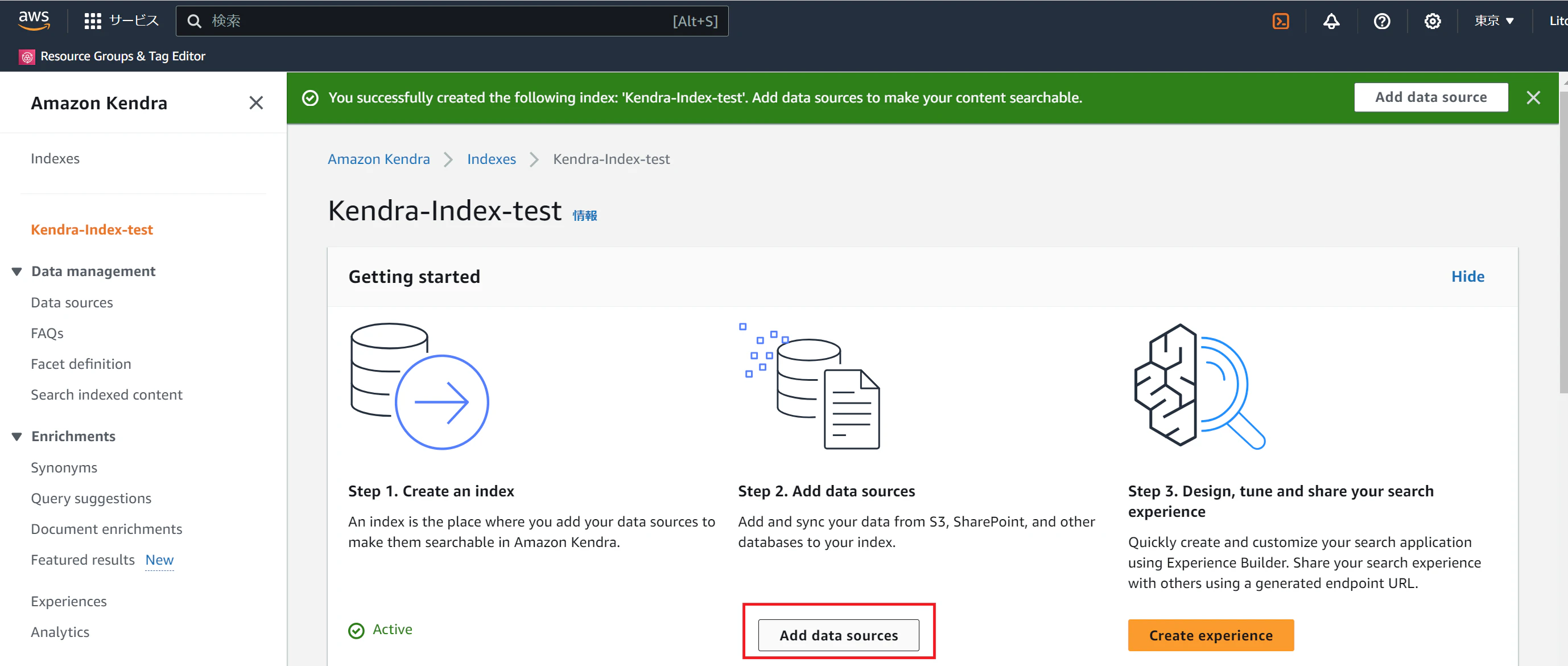

  • add data sourcesを押下

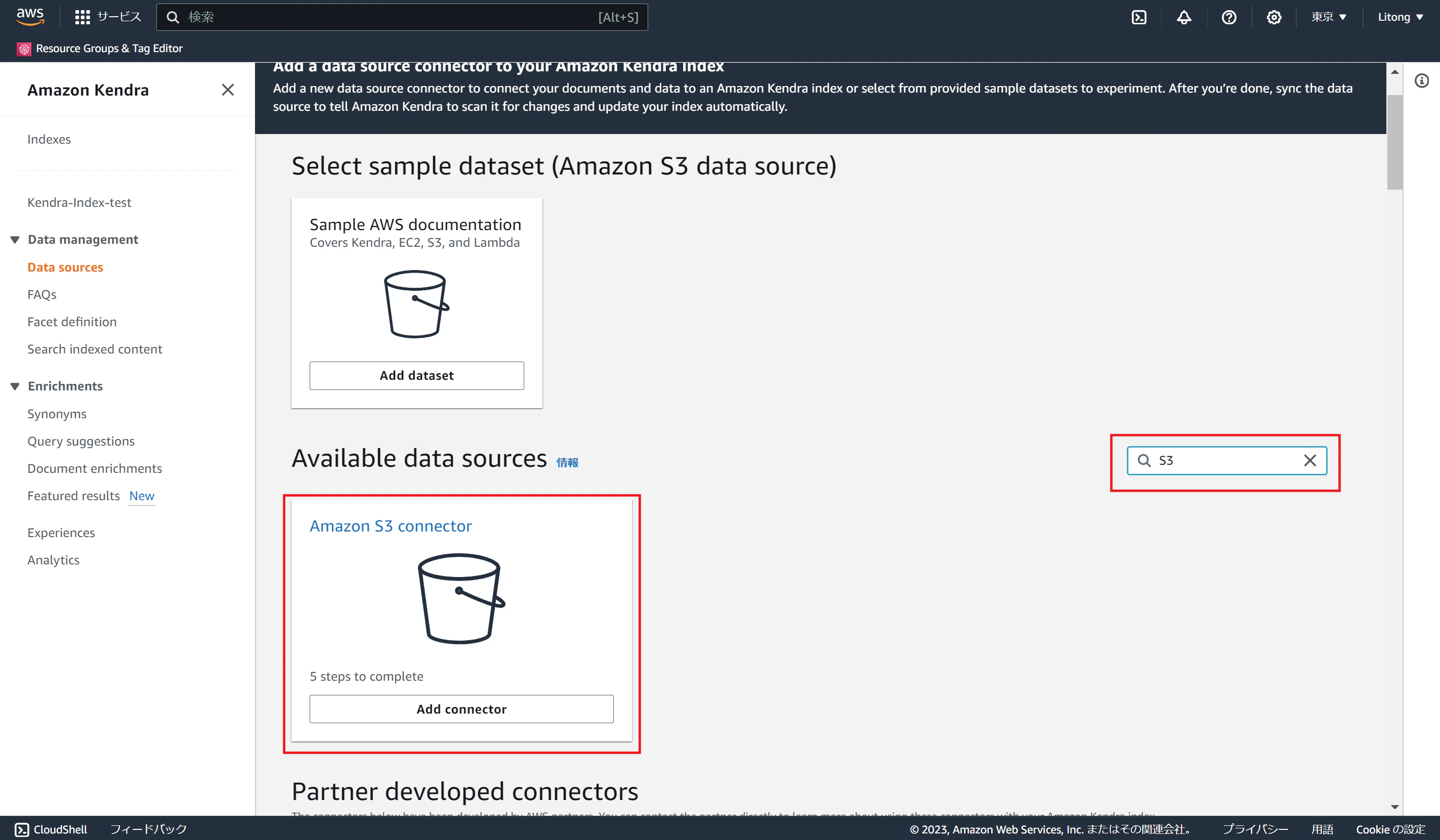

  • 検索ボックスにS3を入力し、Amazon S3 connectorを選択

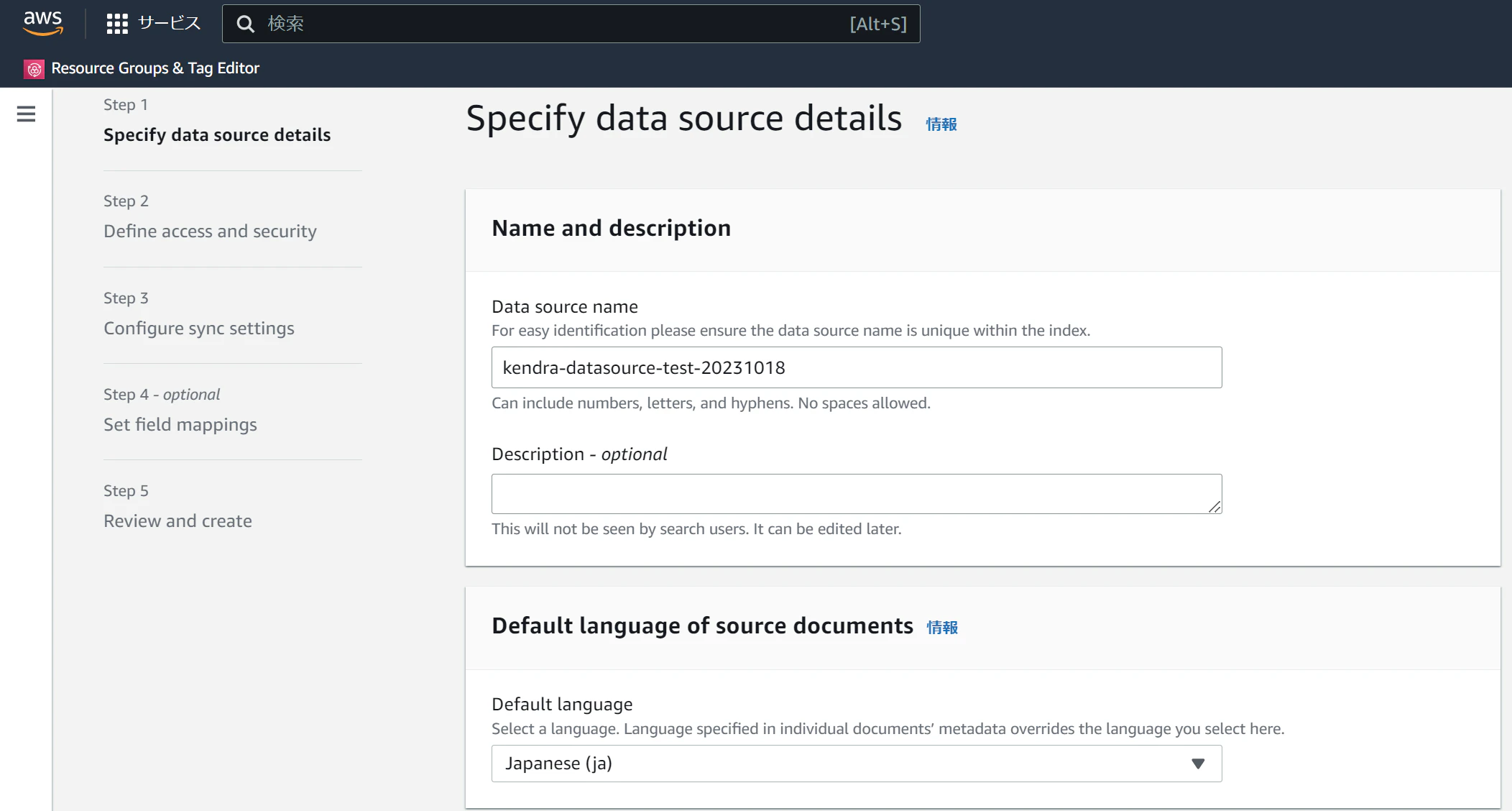

  • 名前を入力

  • Default language of source documents を日本語(Japanese)に設定
    ![image.png](https://qiita-image-store.s3.ap-northeast-
    1.amazonaws.com/0/573632/b81c5606-bb5c-fcef-9eba-eea1585eb211.png)

  • Create New Roleを選択

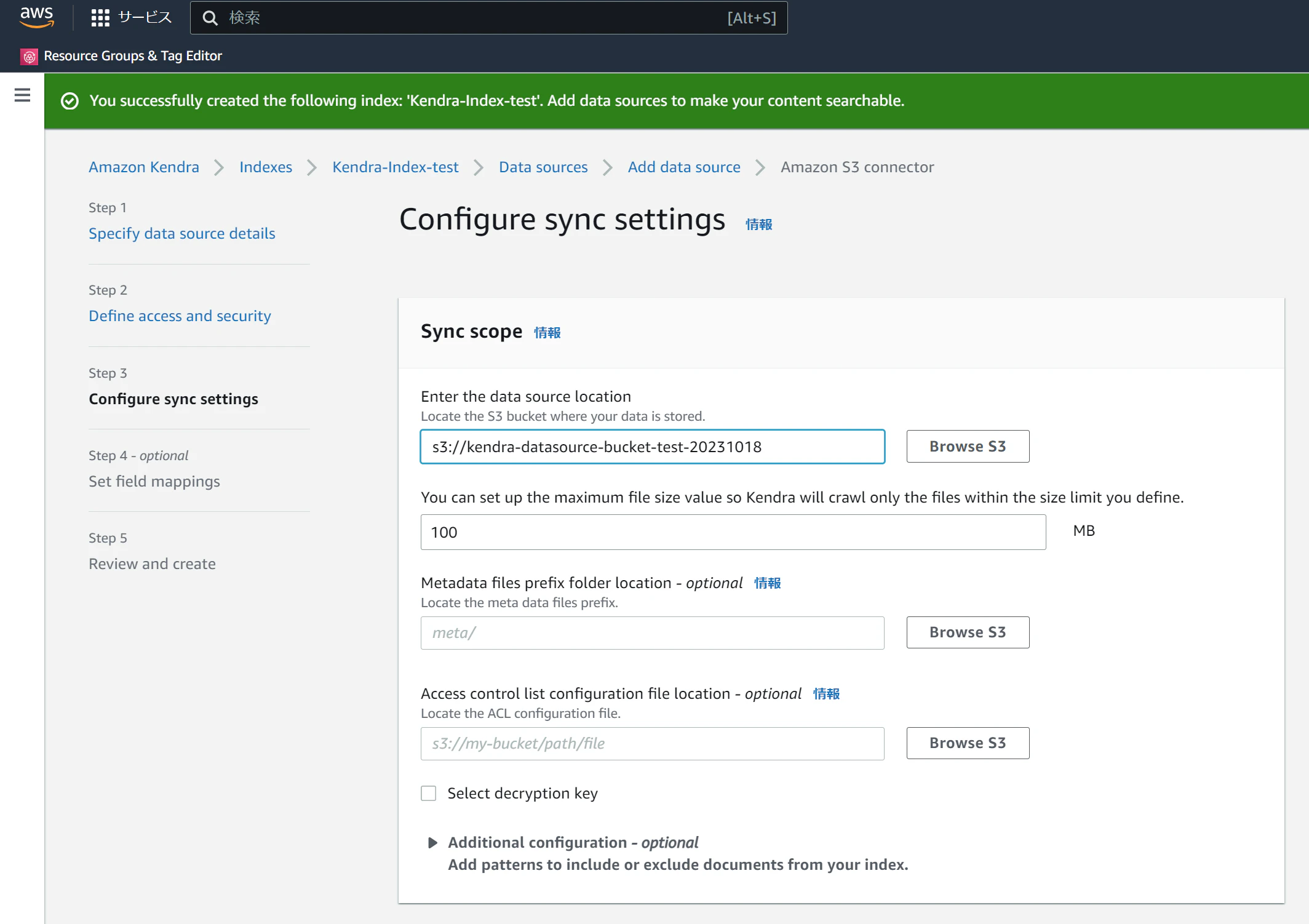

  • バケットを指定し、S3バケットのプレフィックスを設定

  • Sync のスケジュールを Run on demand を設定

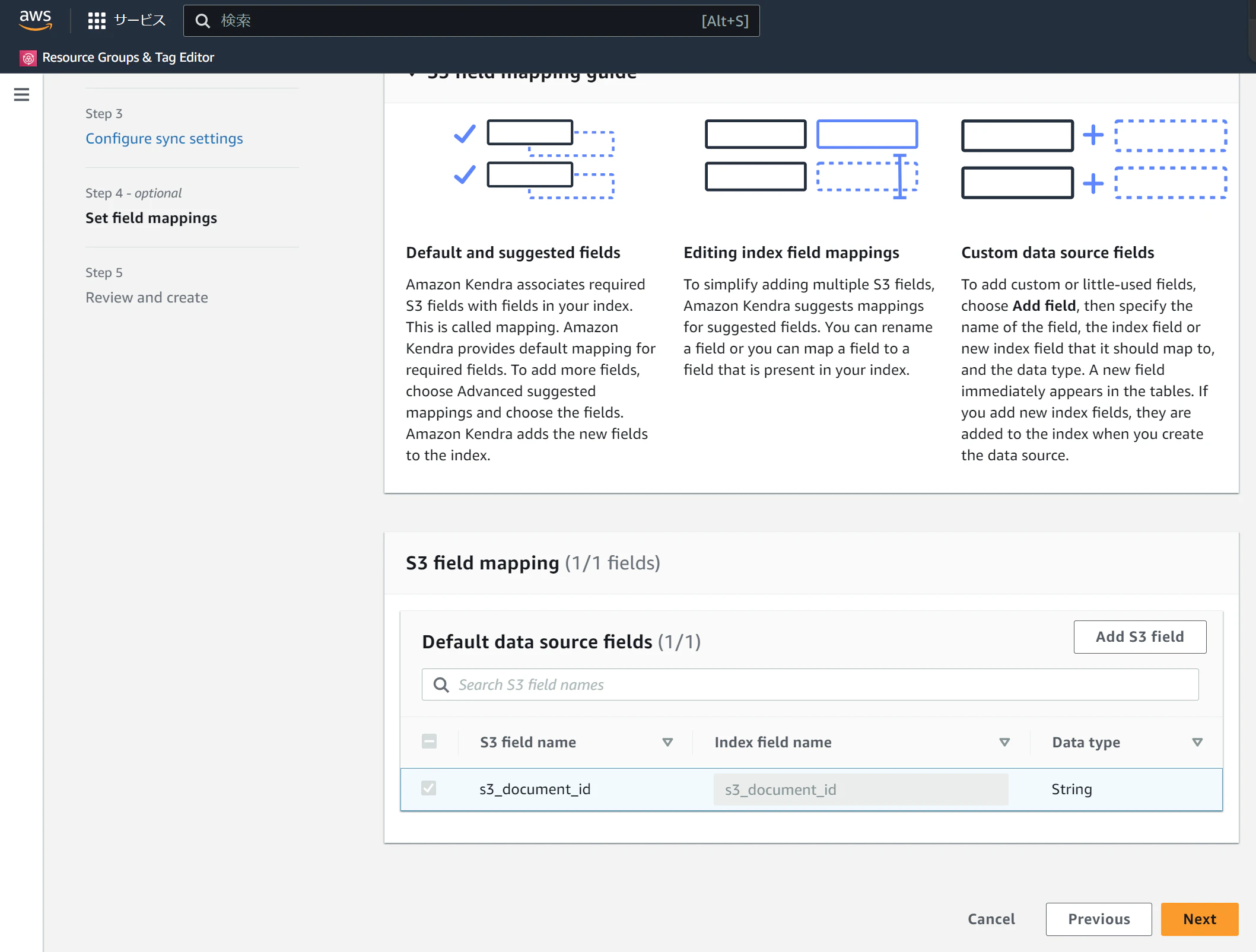

  • Nextを押下

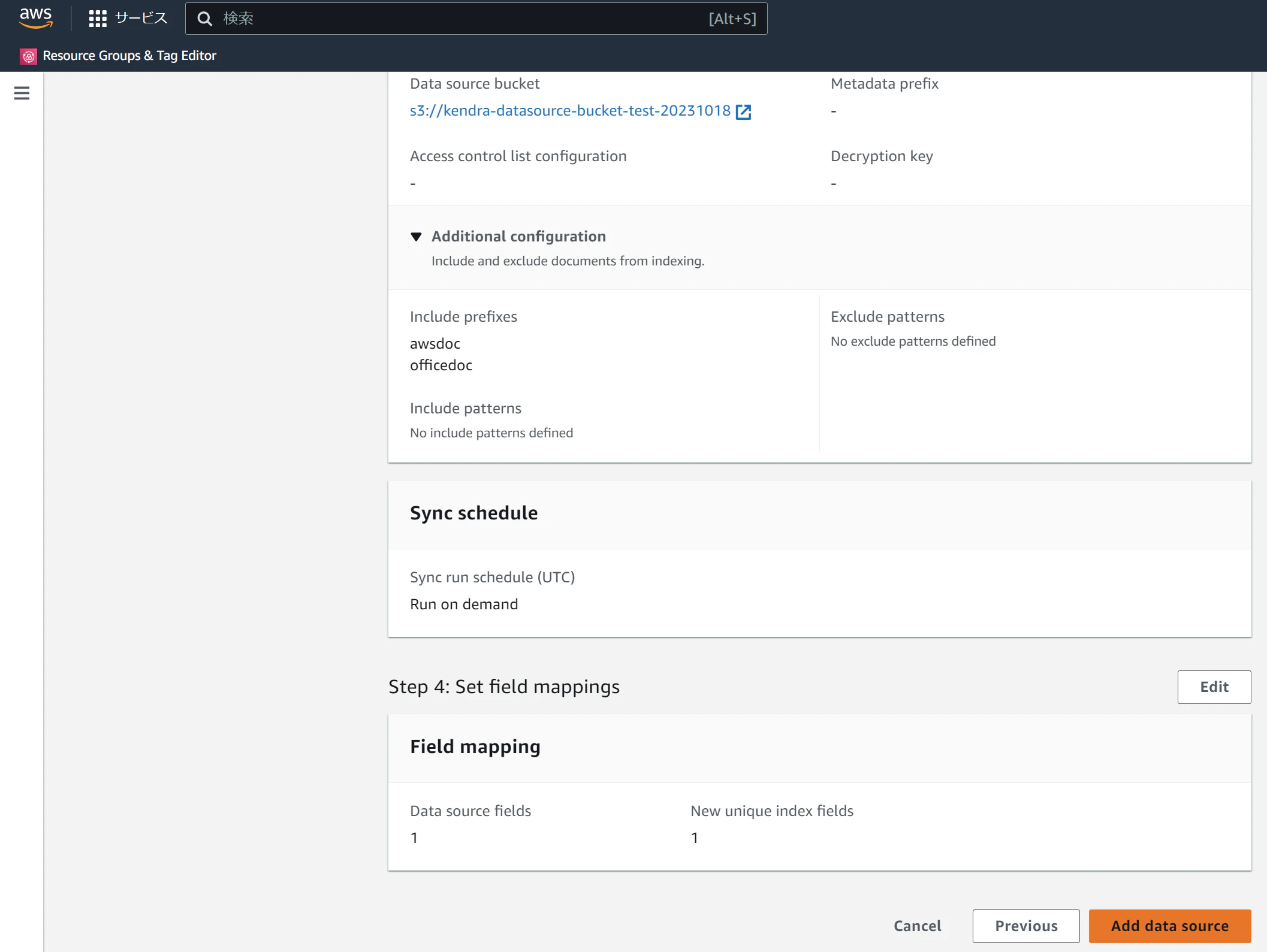

  • 内容を確認してadd data source を押下

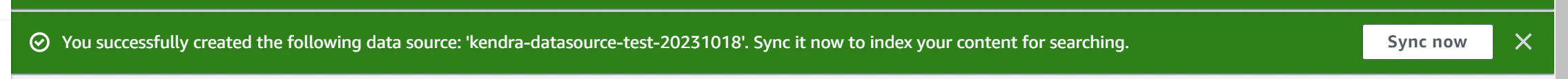

  • できた

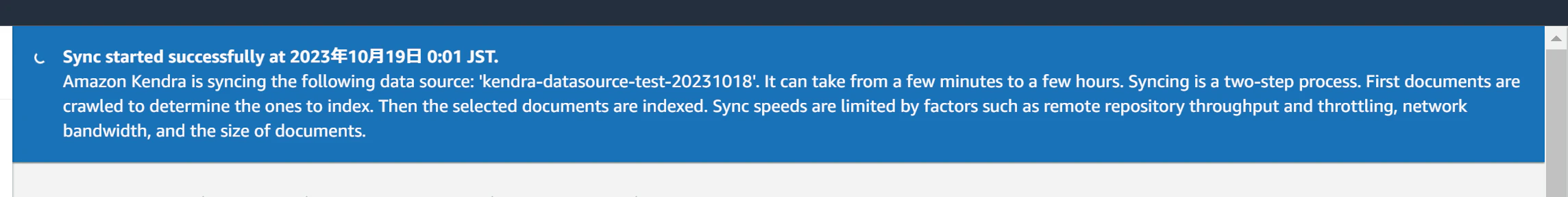

  • Sync Nowを押下

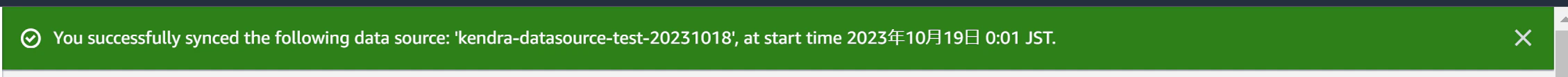

  • Syncにめっちゃ時間がかかる

検索してみる

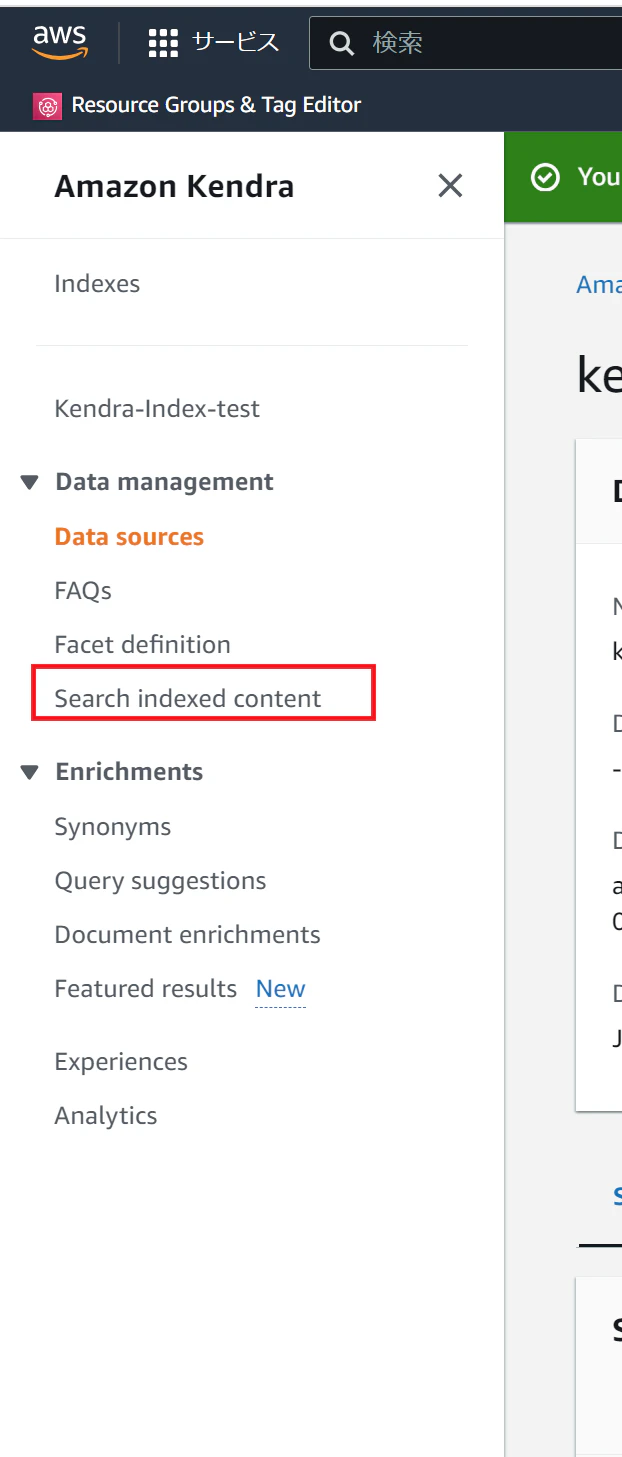

  • Search Indexed Content をクリック

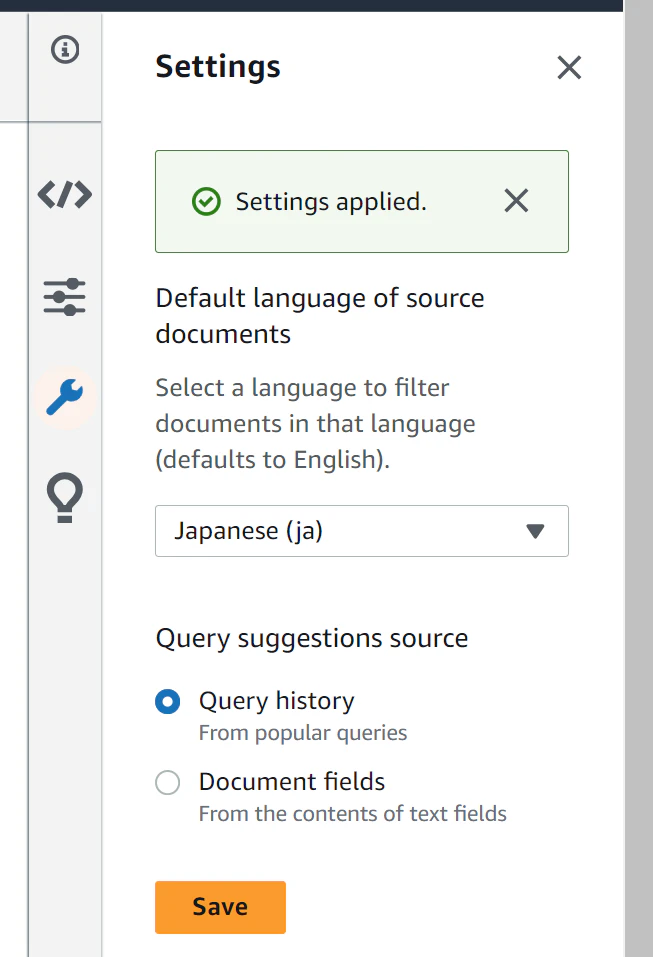

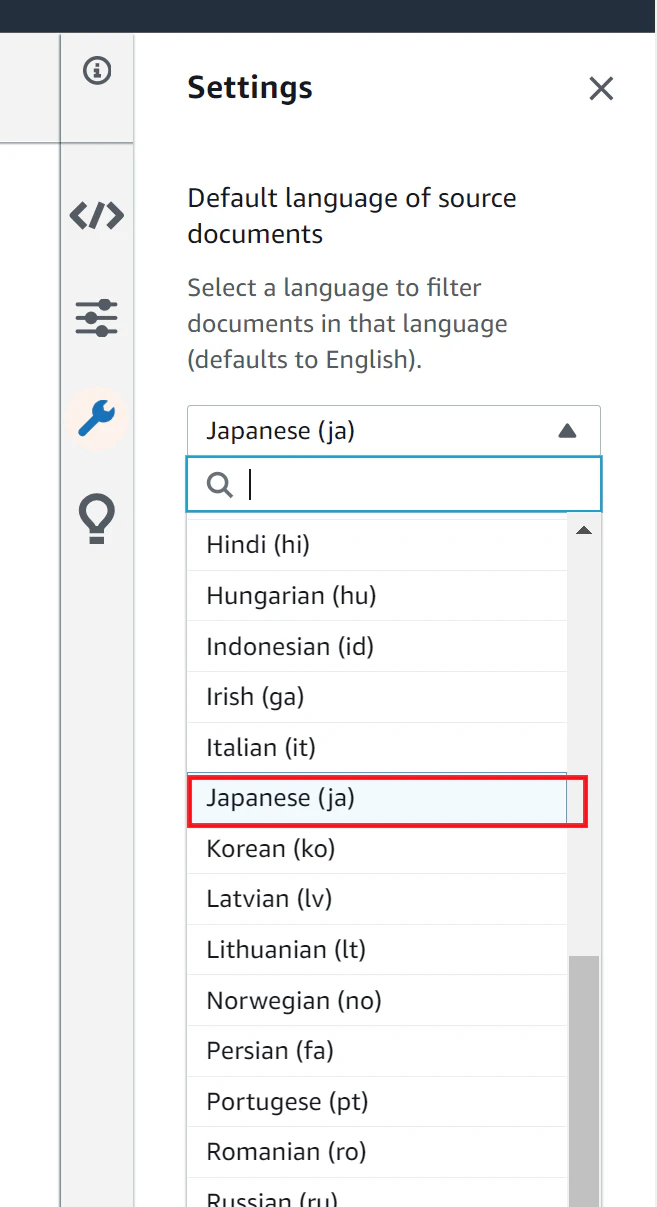

  • 画面右のスパナアイコンをクリックし、言語を日本語に設定

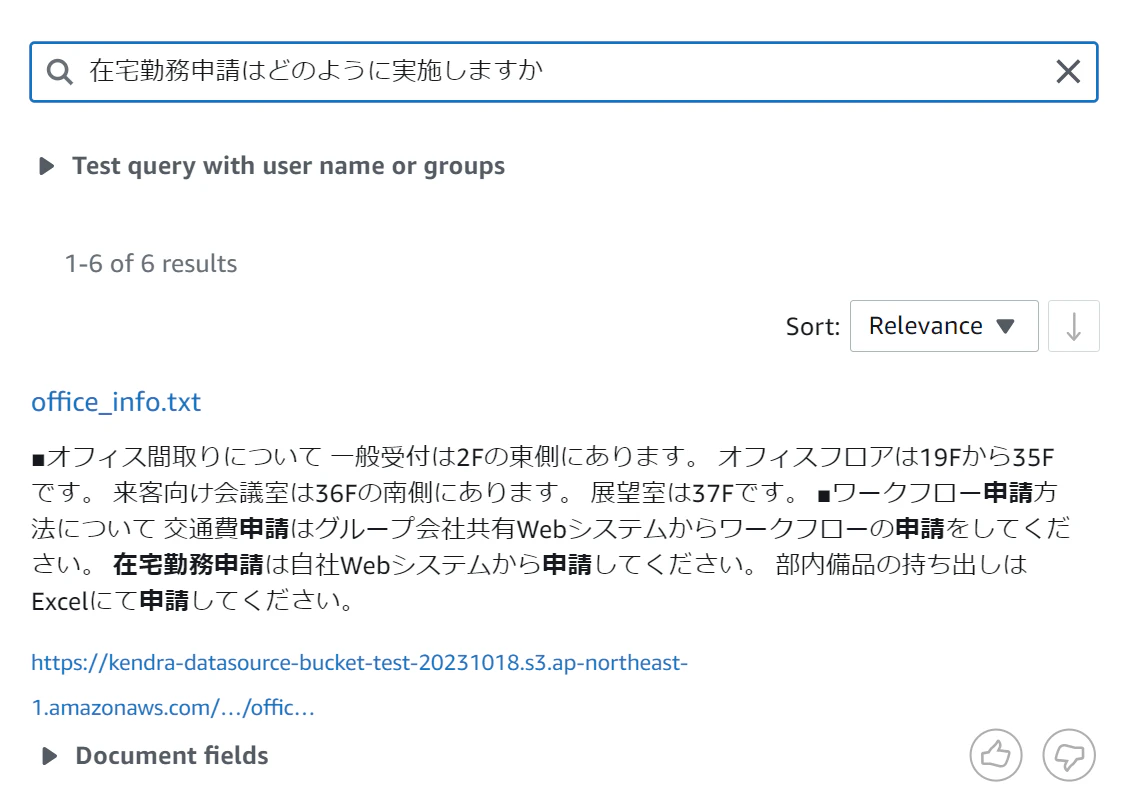

  • 検索できた

感想

  • 意外とセマンティック検索にならないので、datasourceに配置するドキュメントの作りこみに工夫が必要かもしれない
  • セマンティック検索にはまらない場合は単純にRAGの検索先としてはOpenSearchとかでいいと思う
  • S3を簡単にdatasourceにできるのが圧倒的な強み
  • ただし、高コスト

以上
