HL向け初めてのLINE API

linebot

Last updated at 2023-10-13Posted at 2023-09-16

1. ヒーローズリーグについて

What's HL

Proto Pedia作品チラ見！

LINE APIを使った作品が盛りだくさん紹介!!

2. LINE APIを見てみよう！

各プロダクト
https://developers.line.biz/ja/services/

Messaging API

LINE Bot を開発するならまずはこれです！

グループに追加されていれば、グループ内でメッセージを送信することも

Messaging APIの概要
https://developers.line.biz/ja/docs/messaging-api/overview/

ハンズオン！

以下を使用します。
LINE Developer console: https://developers.line.biz/ja/docs/line-developers-console/
Replit: https://replit.com/

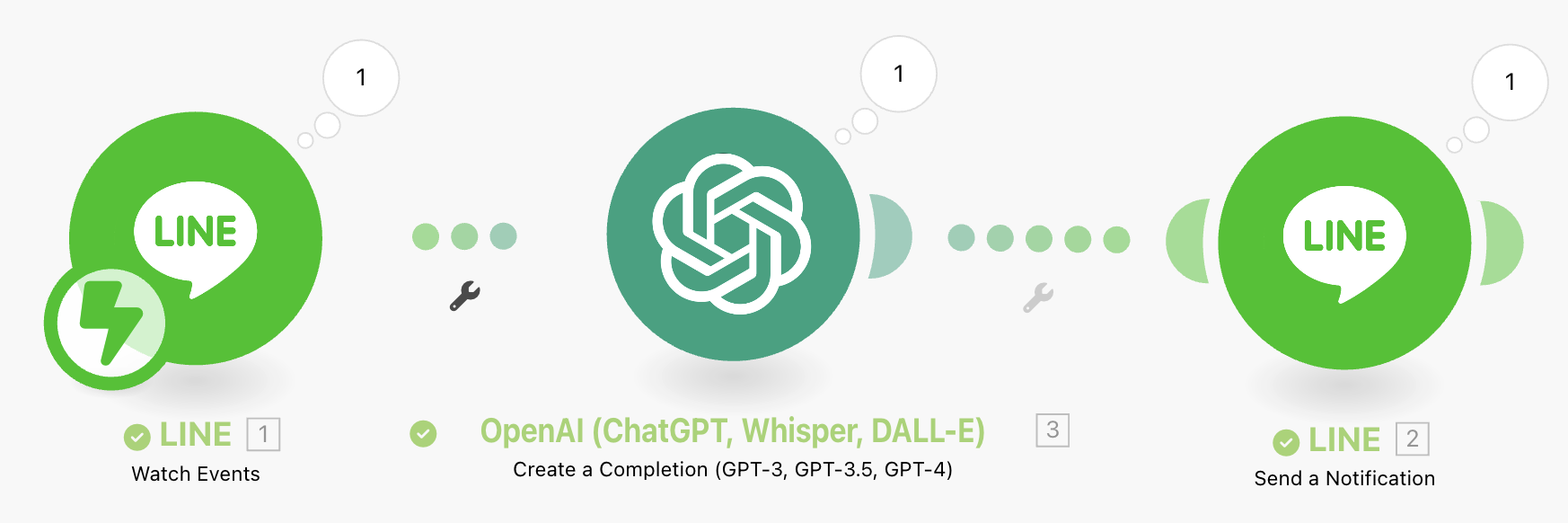

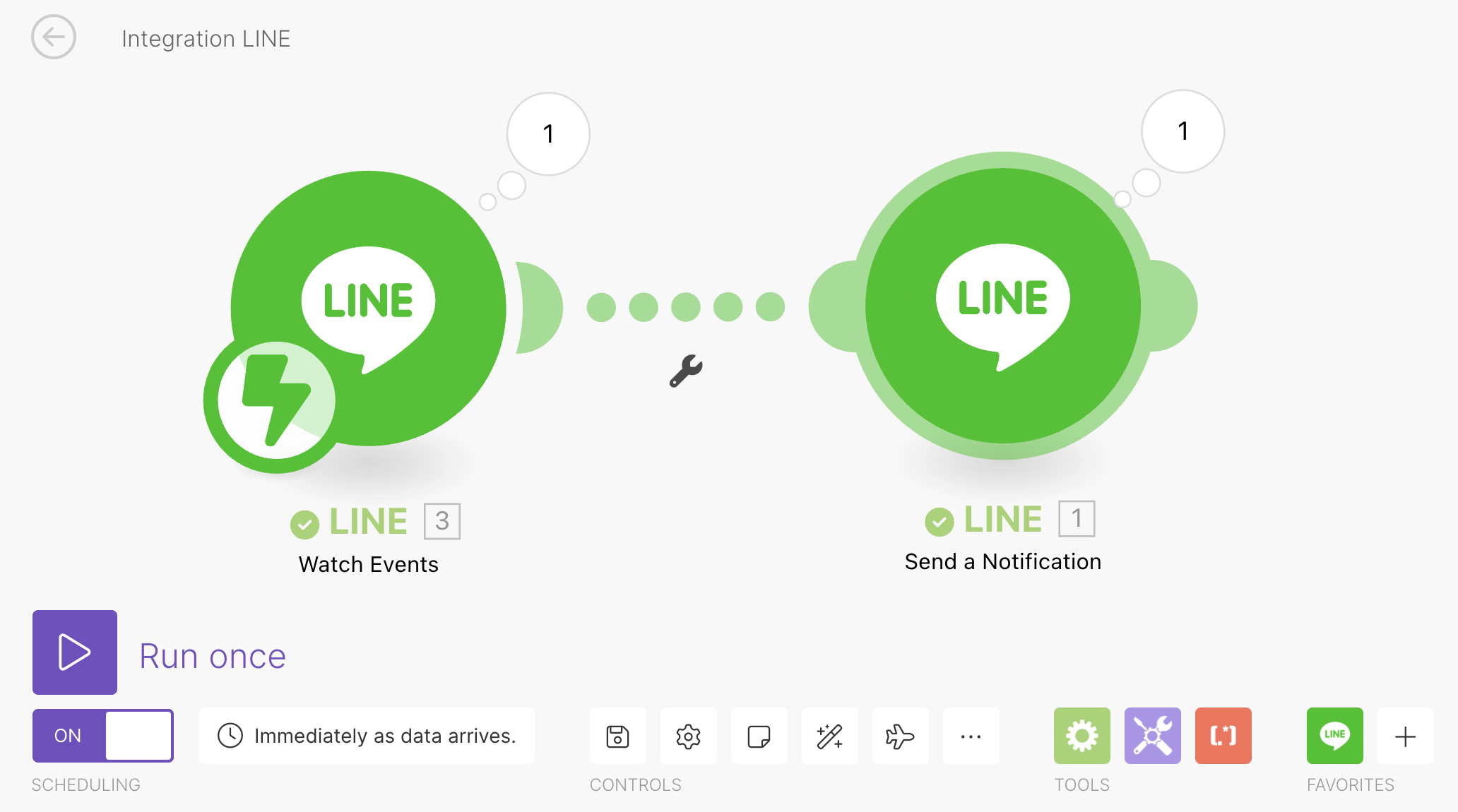

Make: https://www.make.com/en

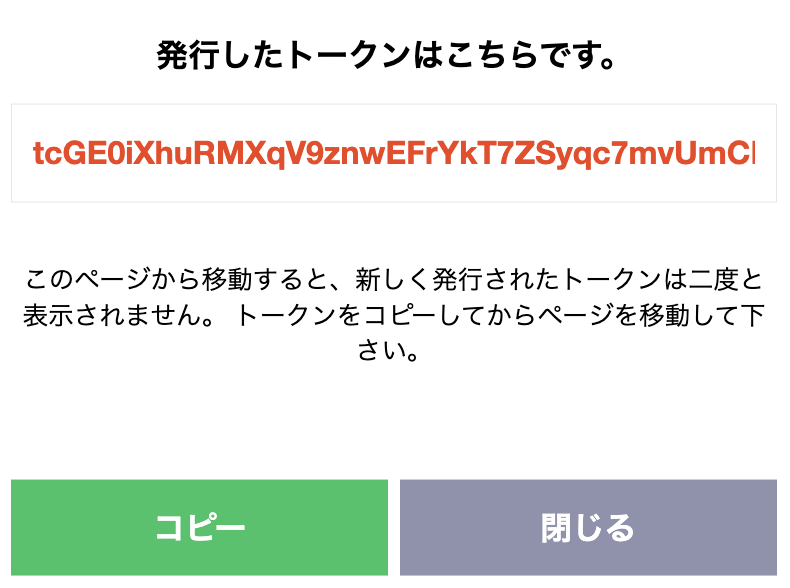

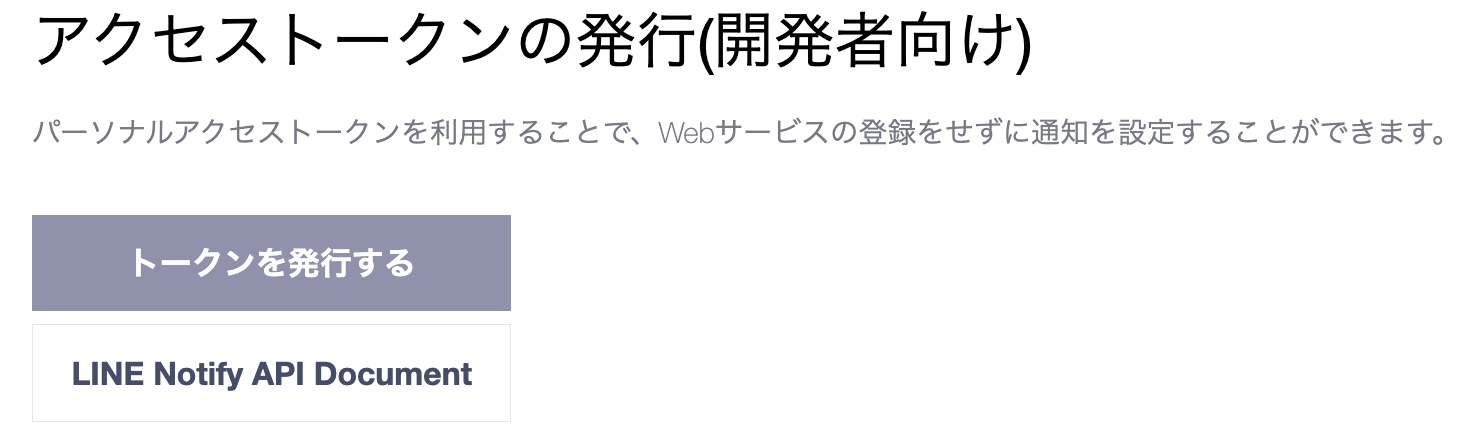

LINE Notify: https://notify-bot.line.me/ja/
Open AI: https://platform.openai.com/

とにもかくにも、まずはおうむ返しボットを作成してみます。

以下を参考に進めます。

色々なメッセージタイプ
https://developers.line.biz/ja/docs/messaging-api/message-types/

Messaging API リファレンス
https://developers.line.biz/ja/reference/messaging-api/

公式SDK
https://developers.line.biz/ja/docs/messaging-api/line-bot-sdk/

実装サンプル（Node.js）
https://github.com/line/line-bot-sdk-nodejs

Flex Message Simulator
https://developers.line.biz/flex-simulator/

スタンプ定義
https://developers.line.biz/ja/docs/messaging-api/sticker-list/

Replit

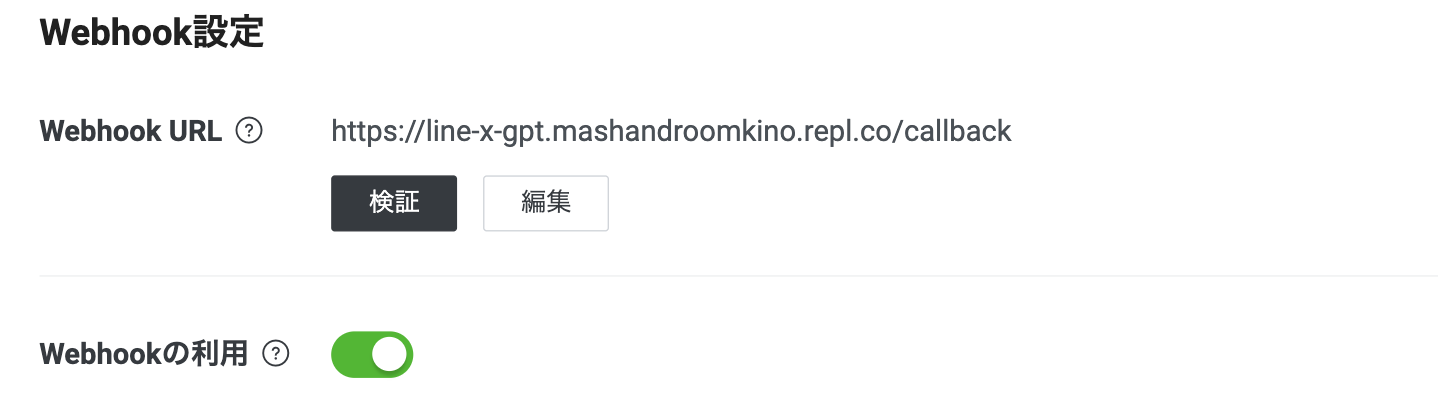

ボットをホストするサーバーを準備とありますが、ここでは Replit　を使います。
ハッカソンなどでも役立ちそうです！

アカウントを作成後、node.js プロジェクトを新規に作成し、以下のサンプルコードをまるっとコピペします。

無料プランの場合はプロジェクトがpublicになるので、アクセスキーなどの取り扱いにはご注意ください。

今回使うサンプルコード

クリック

参考： https://developers.line.biz/ja/docs/messaging-api/line-bot-sdk/

'use strict';

const line = require('@line/bot-sdk');
const express = require('express');
const OpenAI = require("openai");
const axios = require('axios');


// create LINE SDK config from env variables
const config = {
  channelAccessToken: process.env.LINE_CHANNEL_ACCESS_TOKEN,
  channelSecret: process.env.LINE_CHANNEL_SECRET,
};

const IMG_URL = 'https://mashandroom.org/wp-content/uploads/2017/04/logo-320x320.png';

// ユーザーとGPTのメッセージを合わせて最大6つ（ユーザー3、GPT3）
const MAX_HISTORY = 6;
const userMessages = {};

// create LINE SDK client
const client = new line.Client(config);

// create Express app
// about Express itself: https://expressjs.com/
const app = express();



// register a webhook handler with middleware
// about the middleware, please refer to doc
app.post('/callback', line.middleware(config), (req, res) => {
  Promise
    .all(req.body.events.map(handleEvent))
    // .all(req.body.events.map(handleEventWithGPT))
    // .all(req.body.events.map(handleEventWithGPTHistory))
    .then((result) => res.status(200).json(result))
    .catch((err) => {
      console.error(err);
      res.status(500).end();
    });
});

// event handler
function handleEvent(event) {
  if (event.type !== 'message' || event.message.type !== 'text') {
    // ignore non-text-message event
    return Promise.resolve(null);
  }

  if (event.message.text === "キノコ") {
    return notify();
  }

  const messageHandlers = {
    // おうむ返し＋スタンプ
    'スタンプ': createEchoWithStamp,
    // おうむ返し+画像
    '画像': createEchoWithImage,
    // おうむ返し+Flex Message
    'フレックス1': createFlex1,
    'フレックス2': createFlex2,
    "フレックス3": createFlex3
  };

  const handler = messageHandlers[event.message.text];
  const reply = handler ? handler(event.message.text) : createEcho(event.message.text);

  // use reply API
  return client.replyMessage(event.replyToken, reply);
}

function createEcho(userMessage) {
  return { type: 'text', text: userMessage };
}

function createEchoWithStamp(userMessage) {
  return [
    { type: 'text', text: userMessage },
    { type: 'sticker', packageId: '446', stickerId: '1989' }
  ];
}

function createEchoWithImage(userMessage) {
  return [
    { type: 'text', text: userMessage },
    { type: 'image', originalContentUrl: IMG_URL, previewImageUrl: IMG_URL }
  ];
}

function createFlex1(userMessage) {
  return [
    { type: 'text', text: userMessage },
    {
      "type": "flex",
      "altText": "this is a flex message",
      "contents": {
        "type": "bubble",
        "body": {
          "type": "box",
          "layout": "vertical",
          "contents": [
            {
              "type": "text",
              "text": "hello"
            },
            {
              "type": "text",
              "text": "world"
            }
          ]
        }
      }
    }];
}

function createFlex2(userMessage) {
  return [
    { type: 'text', text: userMessage },
    {
      "type": "flex",
      "altText": "this is a flex message",
      "contents": {
        "type": "bubble",
        "body": {
          "type": "box",
          "layout": "vertical",
          "contents": [
            {
              "type": "image",
              "url": IMG_URL
            },
            {
              "type": "separator"
            },
            {
              "type": "text",
              "text": "Text in the box"
            },
            {
              "type": "box",
              "layout": "vertical",
              "contents": [],
              "width": "30px",
              "height": "30px",
              "background": {
                "type": "linearGradient",
                "angle": "90deg",
                "startColor": "#FFFF00",
                "endColor": "#0080ff"
              }
            }
          ],
          "height": "400px",
          "justifyContent": "space-evenly",
          "alignItems": "center"
        }
      }
    }];
}

function createFlex3(userMessage) {
  return [
    { type: 'text', text: userMessage },
    {
      "type": "flex",
      "altText": "this is a flex message",
      "contents": {
        "type": "carousel",
        "contents": [
          {
            "type": "bubble",
            "size": "micro",
            "hero": {
              "type": "image",
              "url": "https://scdn.line-apps.com/n/channel_devcenter/img/flexsnapshot/clip/clip10.jpg",
              "size": "full",
              "aspectMode": "cover",
              "aspectRatio": "320:213"
            },
            "body": {
              "type": "box",
              "layout": "vertical",
              "contents": [
                {
                  "type": "text",
                  "text": "Brown Cafe",
                  "weight": "bold",
                  "size": "sm",
                  "wrap": true
                },
                {
                  "type": "box",
                  "layout": "baseline",
                  "contents": [
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gold_star_28.png"
                    },
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gold_star_28.png"
                    },
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gold_star_28.png"
                    },
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gold_star_28.png"
                    },
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gray_star_28.png"
                    },
                    {
                      "type": "text",
                      "text": "4.0",
                      "size": "xs",
                      "color": "#8c8c8c",
                      "margin": "md",
                      "flex": 0
                    }
                  ]
                },
                {
                  "type": "box",
                  "layout": "vertical",
                  "contents": [
                    {
                      "type": "box",
                      "layout": "baseline",
                      "spacing": "sm",
                      "contents": [
                        {
                          "type": "text",
                          "text": "東京旅行",
                          "wrap": true,
                          "color": "#8c8c8c",
                          "size": "xs",
                          "flex": 5
                        }
                      ]
                    }
                  ]
                }
              ],
              "spacing": "sm",
              "paddingAll": "13px"
            }
          },
          {
            "type": "bubble",
            "size": "micro",
            "hero": {
              "type": "image",
              "url": "https://scdn.line-apps.com/n/channel_devcenter/img/flexsnapshot/clip/clip11.jpg",
              "size": "full",
              "aspectMode": "cover",
              "aspectRatio": "320:213"
            },
            "body": {
              "type": "box",
              "layout": "vertical",
              "contents": [
                {
                  "type": "text",
                  "text": "Brow&Cony's Restaurant",
                  "weight": "bold",
                  "size": "sm",
                  "wrap": true
                },
                {
                  "type": "box",
                  "layout": "baseline",
                  "contents": [
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gold_star_28.png"
                    },
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gold_star_28.png"
                    },
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gold_star_28.png"
                    },
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gold_star_28.png"
                    },
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gray_star_28.png"
                    },
                    {
                      "type": "text",
                      "text": "4.0",
                      "size": "sm",
                      "color": "#8c8c8c",
                      "margin": "md",
                      "flex": 0
                    }
                  ]
                },
                {
                  "type": "box",
                  "layout": "vertical",
                  "contents": [
                    {
                      "type": "box",
                      "layout": "baseline",
                      "spacing": "sm",
                      "contents": [
                        {
                          "type": "text",
                          "text": "東京旅行",
                          "wrap": true,
                          "color": "#8c8c8c",
                          "size": "xs",
                          "flex": 5
                        }
                      ]
                    }
                  ]
                }
              ],
              "spacing": "sm",
              "paddingAll": "13px"
            }
          },
          {
            "type": "bubble",
            "size": "micro",
            "hero": {
              "type": "image",
              "url": "https://scdn.line-apps.com/n/channel_devcenter/img/flexsnapshot/clip/clip12.jpg",
              "size": "full",
              "aspectMode": "cover",
              "aspectRatio": "320:213"
            },
            "body": {
              "type": "box",
              "layout": "vertical",
              "contents": [
                {
                  "type": "text",
                  "text": "Tata",
                  "weight": "bold",
                  "size": "sm"
                },
                {
                  "type": "box",
                  "layout": "baseline",
                  "contents": [
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gold_star_28.png"
                    },
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gold_star_28.png"
                    },
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gold_star_28.png"
                    },
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gold_star_28.png"
                    },
                    {
                      "type": "icon",
                      "size": "xs",
                      "url": "https://scdn.line-apps.com/n/channel_devcenter/img/fx/review_gray_star_28.png"
                    },
                    {
                      "type": "text",
                      "text": "4.0",
                      "size": "sm",
                      "color": "#8c8c8c",
                      "margin": "md",
                      "flex": 0
                    }
                  ]
                },
                {
                  "type": "box",
                  "layout": "vertical",
                  "contents": [
                    {
                      "type": "box",
                      "layout": "baseline",
                      "spacing": "sm",
                      "contents": [
                        {
                          "type": "text",
                          "text": "東京旅行",
                          "wrap": true,
                          "color": "#8c8c8c",
                          "size": "xs",
                          "flex": 5
                        }
                      ]
                    }
                  ]
                }
              ],
              "spacing": "sm",
              "paddingAll": "13px"
            }
          }
        ]
      }
    }
  ];
}

// GhatGPT event handler

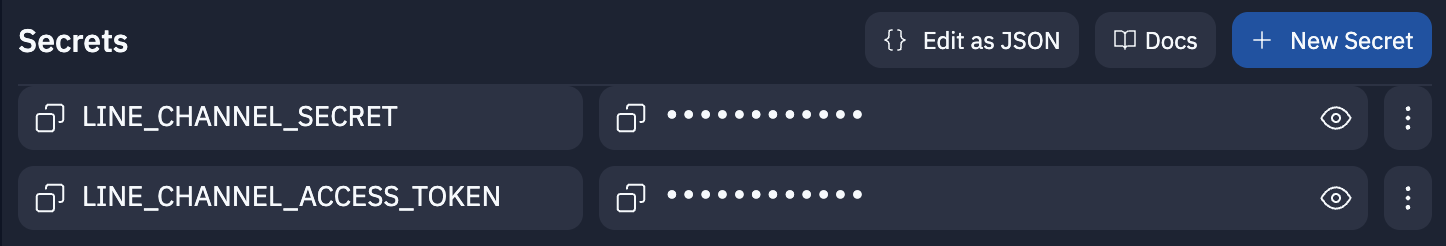

// !!!!SecretsにOPENAI_API_KEYを設定してください。
async function handleEventWithGPT(event) {
  if (event.type !== 'message' || event.message.type !== 'text') {
    // ignore non-text-message event
    return Promise.resolve(null);
  }

  const messages =
    [
      // systemメッセージ: gptの役割
      // ChatGPTに役割を与えることで、精度を高められる
      { "role": "system", "content": "優秀な詩人です。" },
      // userメッセージ: ユーザーの入力テキスト
      { "role": "user", "content": event.message.text }
      // assistantメッセージ： gptの応答
      // 応答を保存することで履歴に沿った文脈で会話ができる
    ]

  const gptResponse = await getGptResponse(messages);
  const assistantMessage = gptResponse.choices[0].message.content;

  const reply = [
    {
      type: 'text',
      text: assistantMessage
    },
    {
      type: 'text',
      text: createUsageMessage(gptResponse.usage)
    }];

  // use reply API
  return client.replyMessage(event.replyToken, reply);
}

// GhatGPT event handler(会話履歴を保持)
// !!!!SecretsにOPENAI_API_KEYを設定してください。
async function handleEventWithGPTHistory(event) {
  if (event.type !== 'message' || event.message.type !== 'text') {
    // ignore non-text-message event
    return Promise.resolve(null);
  }

  const userId = event.source.userId;

  // 初めてのユーザーの場合、データ構造を初期化
  if (!userMessages[userId]) {
    userMessages[userId] = [
      { "role": "system", "content": "優秀な詩人です。" }
    ];
  }

  // ユーザーのメッセージをデータ構造に追加
  userMessages[userId].push({ "role": "user", "content": event.message.text });

  const gptResponse = await getGptResponse(userMessages[userId]);
  const assistantMessage = gptResponse.choices[0].message.content;

  // GPTの応答をデータ構造に追加
  userMessages[userId].push({
    "role": "assistant",
    "content": assistantMessage
  });

  // 履歴が最大数を超えた場合、古いメッセージを削除
  if (userMessages[userId].length - 1 > MAX_HISTORY) {
    // role以降先頭のuser, assistantのペアを削除
    userMessages[userId].splice(1, 2);
  }

  const reply = [
    {
      type: 'text',
      text: assistantMessage
    },
    {
      type: 'text',
      text: createUsageMessage(gptResponse.usage)
    }];

  // use reply API
  return client.replyMessage(event.replyToken, reply);
}

async function getGptResponse(messages) {
  const openai = new OpenAI({
    apiKey: process.env.OPENAI_API_KEY,
  });
  const response = await openai.chat.completions.create({
    model: "gpt-3.5-turbo",
    messages: messages,
    temperature: 0,
    max_tokens: 150,
  });

  console.log(response);
  console.log(response.choices[0].message);
  return response;
}

function createUsageMessage(usage) {
  return `prompt_tokens: ${usage.prompt_tokens}\ncompletion_tokens:${usage.prompt_tokens}\ntotal_tokens: ${usage.total_tokens}`;
}

async function notify() {
  const message = '\n何か呼んだ？';

  const options = {
    method: 'post',
    url: 'https://notify-api.line.me/api/notify',
    headers: {
      'Authorization': `Bearer ${process.env.LINE_NOTIFY_TOKEN}`,
      'Content-Type': 'application/x-www-form-urlencoded'
    },
    data: 'message=' + encodeURIComponent(message)
  };

  await axios(options);
}

// listen on port
const port = process.env.PORT || 3000;
app.listen(port, () => {
  console.log(`listening on ${port}`);
});

Secretsに以下を設定

Replitで発行されたURLをWebhookに以下の通り設定

3. ChatGPTと連携

Chat Completion API

ライブラリ

モデル

レスポンス

Secretsに `OPENAI_API_KEY` を追加

ソース修正

app.post('/callback', line.middleware(config), (req, res) => {
  Promise
    // .all(req.body.events.map(handleEvent))       // ←　削除 or コメントアウト
    .all(req.body.events.map(handleEventWithGPT))   // ←　有効に
    // .all(req.body.events.map(handleEventWithGPTHistory)) // ←3つの会話履歴を保持
    .then((result) => res.status(200).json(result))
    .catch((err) => {
      console.error(err);
      res.status(500).end();
    });
});

4. LINE Notify

LINEと外部のサービスやアプリを連携して、LINE Notifyという公式アカウント（Bot）から通知を受け取れるサービス

Make x LINE Notify 3分クッキング

MAKE もハッカソンでは活躍しそうなのでLINE Notifyと連携させてみましょう！

ChatGPTも

プログラムからもNotify

LINE_NOTIFY_TOKEN を追加

  if (event.message.text === "キノコ") {
    return notify();
  }

async function notify() {
  const message = '\n何か呼んだ？';

  const options = {
    method: 'post',
    url: 'https://notify-api.line.me/api/notify',
    headers: {
      'Authorization': `Bearer ${process.env.LINE_NOTIFY_TOKEN}`,
      'Content-Type': 'application/x-www-form-urlencoded'
    },
    data: 'message=' + encodeURIComponent(message)
  };

  await axios(options);
}

LIFF , LINE ログイン（参考）

You get articles that match your needs
You can efficiently read back useful information
You can use dark theme

What you can do with signing up

HL向け 初めてのLINE API
