matplotlibで時系列データをプロットする際の軸の設定+おまけ

前略

時系列データをmatplotlibでプロットするとき、軸のフォーマット調整で結構苦労します。サンプルを残しておきます。

手順

時刻の列を折れ線グラフのx軸に使用する

折れ線グラフの場合、時系列の列をそのままx軸に使用できます。ただしフォーマットがmatplotlibが自動で調節して、意図しない表示になることがあります。LocatorとFormatterで軸の表示を設定します。

import matplotlib.pyplot as plt
import matplotlib as mpl
import pandas as pd
import io

# データ読み込み
data = """date,val_1,val_2
2018-11-01 09:00:00,65,d g
2018-11-01 09:01:00,26,e h
2018-11-01 09:02:00,47,h w
2018-11-01 09:03:00,20,k d
2018-11-01 09:04:00,65,8 d
2018-11-01 09:05:00,4,l d
2018-11-01 09:06:00,31,w d
2018-11-01 09:07:00,21,s s
2018-11-01 09:08:00,98,a b
2018-11-01 09:09:00,48,f f
2018-11-01 09:10:00,18,g 4
2018-11-01 09:11:00,86,s f"""
df = pd.read_csv(io.StringIO(data), parse_dates=[0])

# グラフ作成
plt.figure(figsize=(8,4))
plt.plot(df['date'], df['val_1'])

# ロケータで刻み幅を設定
xloc = mpl.dates.MinuteLocator(byminute=range(0,60,1))
plt.gca().xaxis.set_major_locator(xloc)

# 時刻のフォーマットを設定
xfmt = mpl.dates.DateFormatter("%H:%M")
plt.gca().xaxis.set_major_formatter(xfmt)

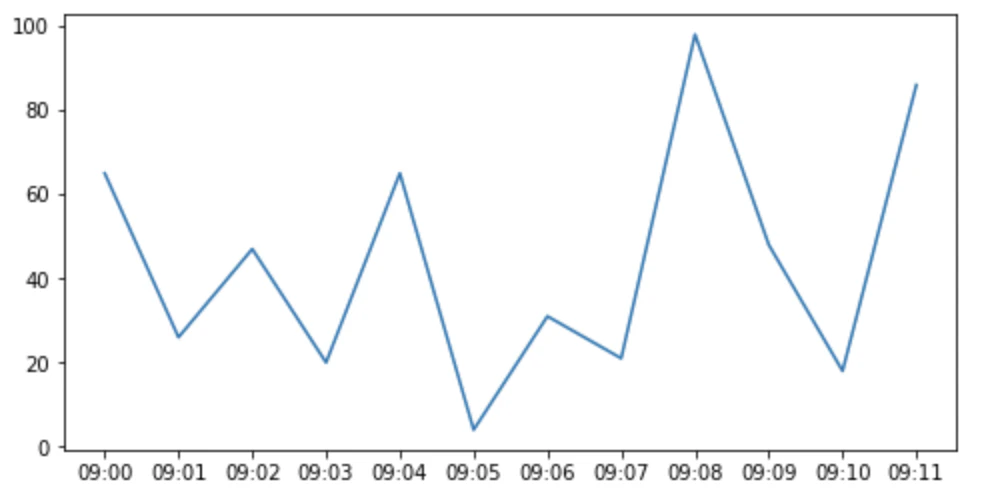

plt.show()


時刻の列を棒グラフのx軸に使用する

plt.barの第一引数は棒グラフの棒の左端座標を表します。時系列データを直接使用すると座標がおかしくなってしまいます。

import matplotlib.pyplot as plt
import matplotlib as mpl
import pandas as pd
import io

%matplotlib inline


data = """date,val_1,val_2
2018-11-01 09:00:00,65,d g
2018-11-01 09:01:00,26,e h
2018-11-01 09:02:00,47,h w
2018-11-01 09:03:00,20,k d
2018-11-01 09:04:00,65,8 d
2018-11-01 09:05:00,4,l d
2018-11-01 09:06:00,31,w d
2018-11-01 09:07:00,21,s s
2018-11-01 09:08:00,98,a b
2018-11-01 09:09:00,48,f f
2018-11-01 09:10:00,18,g 4
2018-11-01 09:11:00,86,s f"""


df = pd.read_csv(io.StringIO(data), parse_dates=[0])
x = range(len(df['date']))

plt.figure(figsize=(8,4))
plt.bar(df['date'], df['val_1'])


そこでx軸を整数値にとって、あとから時刻目盛りを時刻文字列で置き換えます。

import matplotlib.pyplot as plt
import matplotlib as mpl
import pandas as pd
import io

%matplotlib inline


data = """date,val_1,val_2
2018-11-01 09:00:00,65,d g
2018-11-01 09:01:00,26,e h
2018-11-01 09:02:00,47,h w
2018-11-01 09:03:00,20,k d
2018-11-01 09:04:00,65,8 d
2018-11-01 09:05:00,4,l d
2018-11-01 09:06:00,31,w d
2018-11-01 09:07:00,21,s s
2018-11-01 09:08:00,98,a b
2018-11-01 09:09:00,48,f f
2018-11-01 09:10:00,18,g 4
2018-11-01 09:11:00,86,s f"""


df = pd.read_csv(io.StringIO(data), parse_dates=[0])
x = range(len(df['date']))

plt.figure(figsize=(8,4))
plt.bar(x, df['val_1'])

xloc = mpl.dates.MinuteLocator(byminute=range(0,60,1))
xfmt = mpl.dates.DateFormatter("%H:%M")
plt.gca().xaxis.set_major_locator(xloc)
plt.gca().xaxis.set_major_formatter(xfmt)

plt.xticks(x, [pd.to_datetime(str(date)).strftime("%H:%M") for date in df['date']], rotation=45)
plt.show()


草々

matplotlibの棒グラフは使いにくいですねえ。
