「駅すぱあと API」をExcel VBAから利用して、経費精算用に経路探索を行う

Posted at

本記事はヴァル研究所の支援として作成された記事です

今回は、「駅すぱあと API」をExcel VBAから利用して、経費精算に利用する情報を取得してみます。出発駅や経由、到着駅を選んで実行すると、ルートや運賃が表示されますので、経費精算の手間が大幅に軽減されるでしょう。

駅すぱあと APIの基本的な利用方法は前回の経路探索の基本:経費精算を自動化する簡単な方法を参考にしてください。

できあがりイメージ

今回のExcelファイルは、こちらのリポジトリにアップロードしてあります。駅すぱあとAPIのAPIキーは自分が取得したものを利用してください。

駅名・バス停名などの入力補完

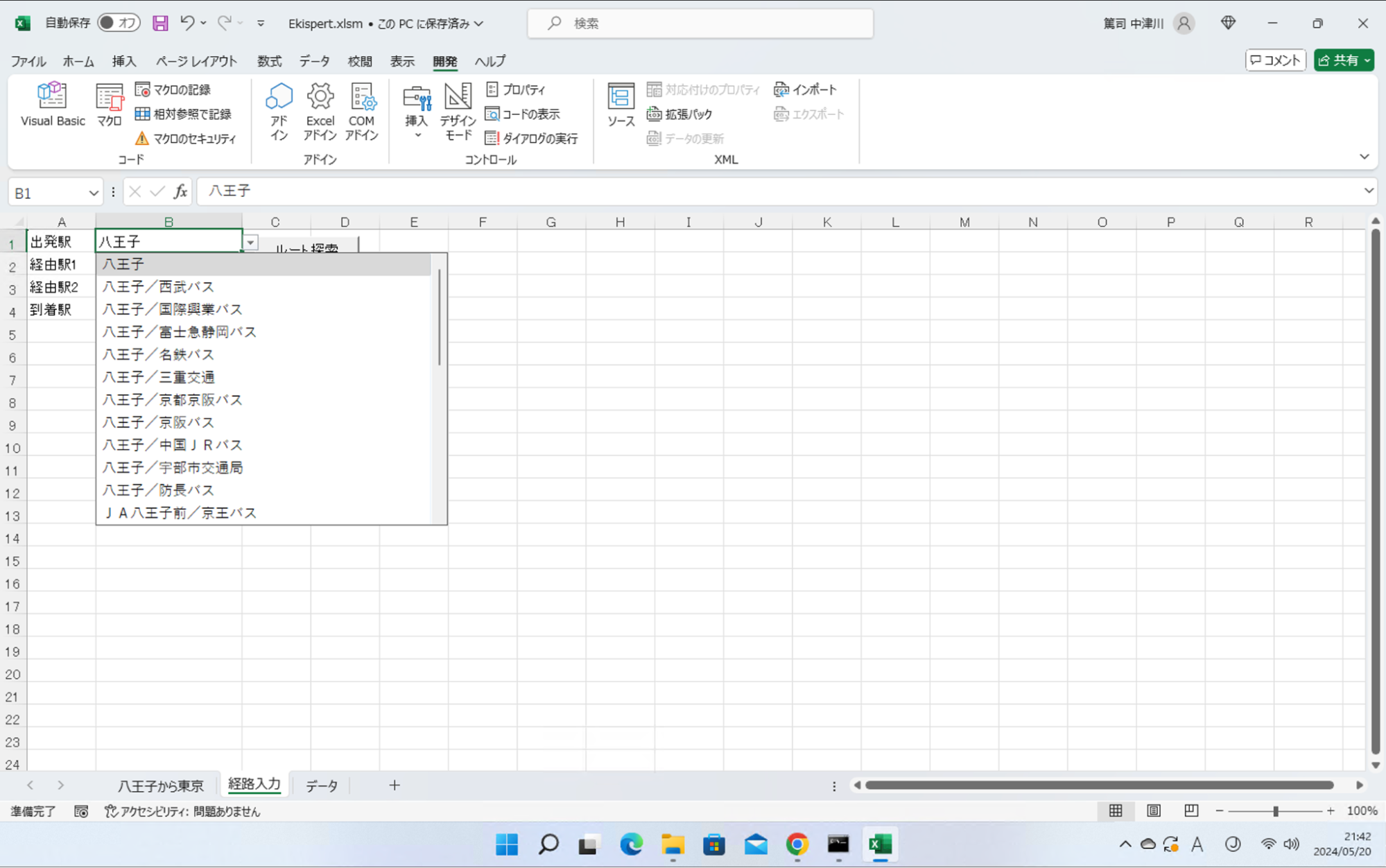

今回は全部で4つの経路情報が入力できます。出発駅と到着駅は必須です。入力すると、駅名が入力されたセルに対して、入力補完が行われます。

  • 出発駅
  • 経由駅1
  • 経由駅2
  • 到着駅

たとえば 八王子 と入力すると、横浜に一致する駅名やバス停などが選べるようになります。これは駅簡易情報APIを利用しています。

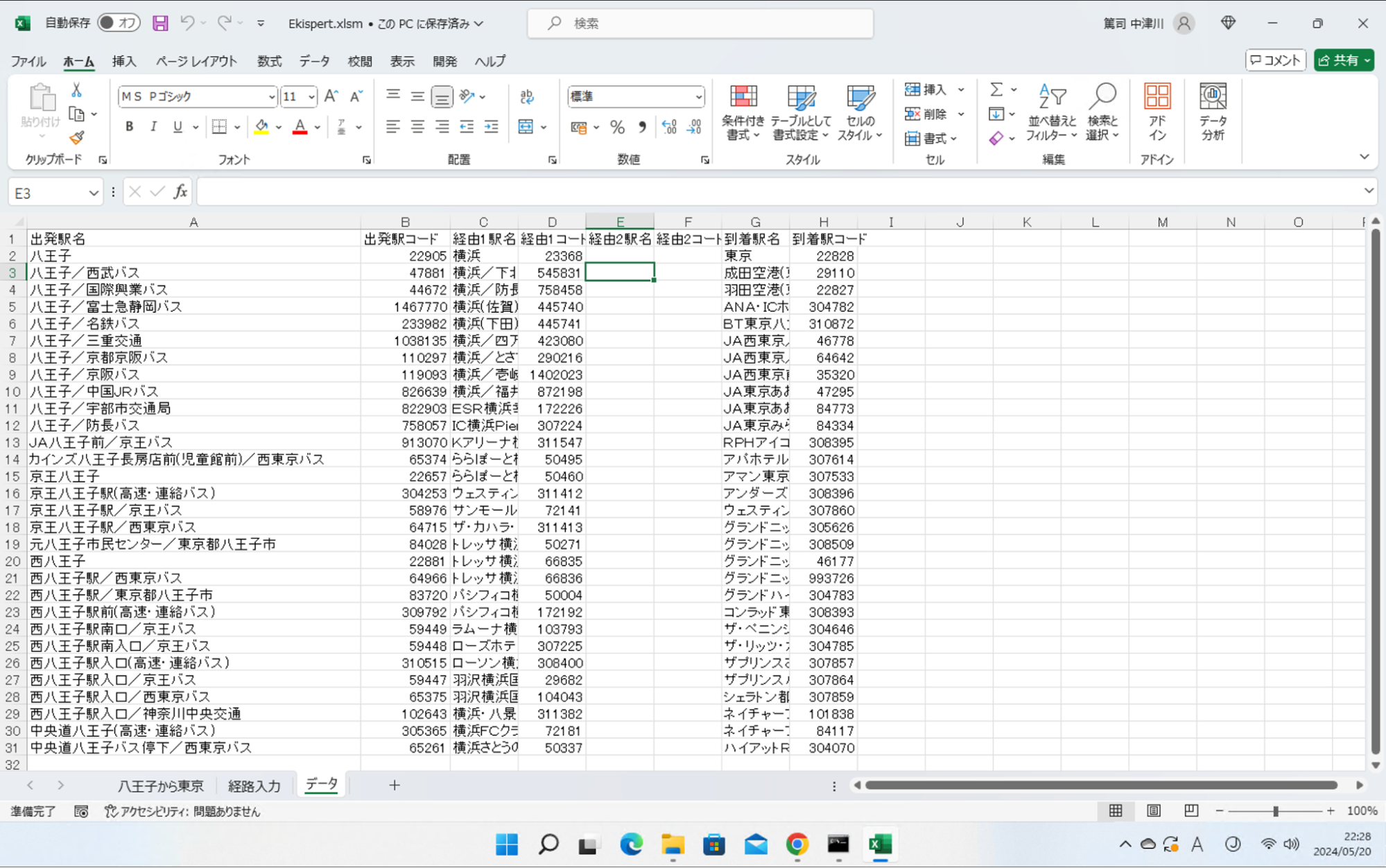

この入力補完用データは、データシートに書き込まれます。


経路検索

出発駅や経由駅を入力した後、 ルート探索 ボタンを押すと、経路探索を実行します。これは経路探索APIを利用しています。

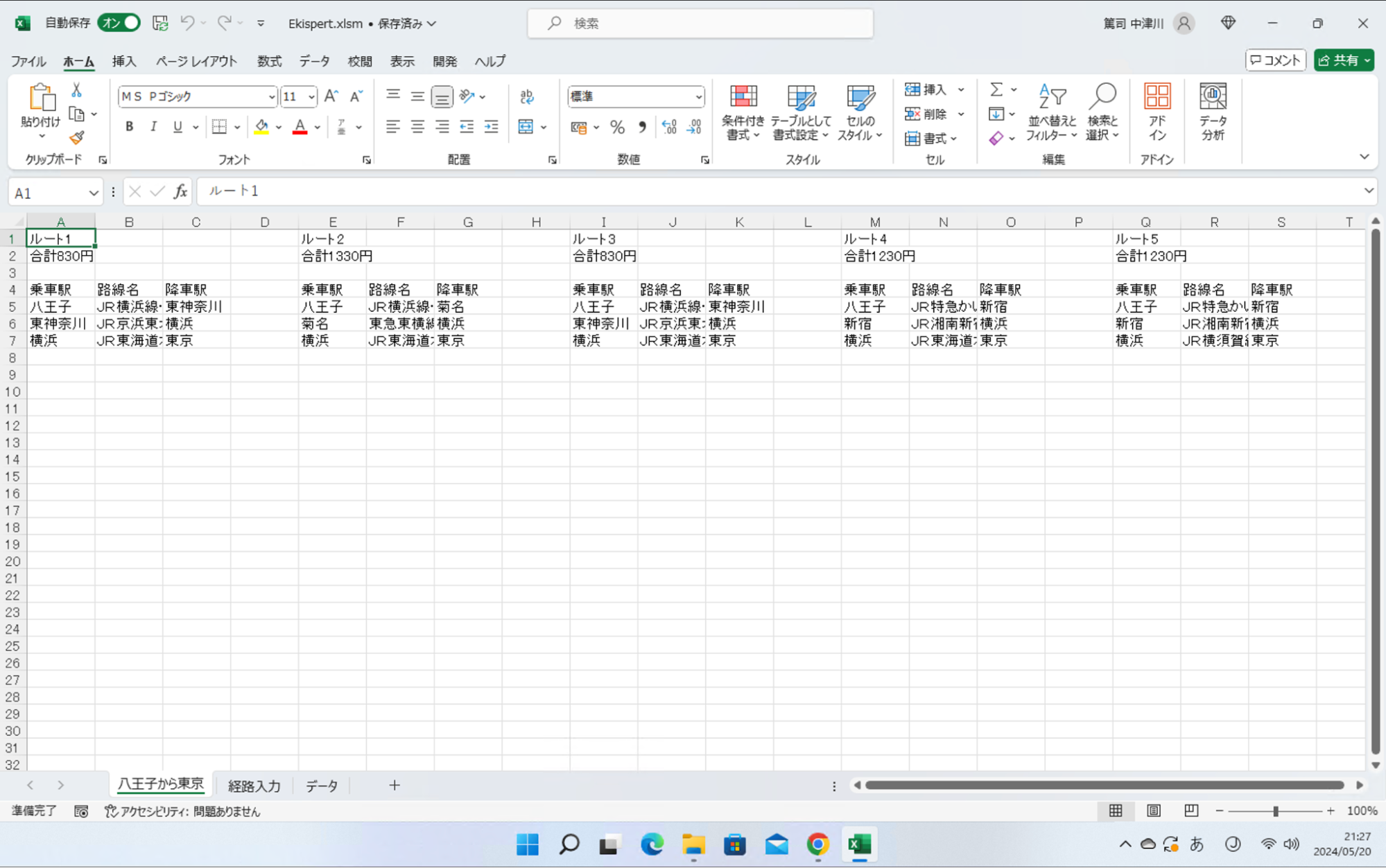

結果は、別のシートが作成され、そこにルート毎に横並びに表示されます。経由した駅名、路線名、そして最終的な運賃が算出されます。


実装について

利用したライブラリ

今回利用したライブラリは以下の通りです。

対応OSについて

今回はWindowsでのみ動作します。URLエンコード時に WorksheetFunction.EncodeURL を使っており、これがWindowsのみ提供されているためです。macOSでもURLエンコードできる関数があれば、macOSでも利用できるはずです(色々試したのですが駄目でした…ご存じの方、教えてください!)

駅名・バス停名などの入力補完機能の実装

入力補完を行う際には、 Worksheet_Change を利用して、セルの入力イベントをチェックします。ここで行っているのは、以下のような内容です。

  1. 入力されたセルが、出発駅、経由駅1、経由駅2、到着駅のいずれかであるかをチェック
  2. すでに入力補完(ドロップダウン)があり、そこからの選択であれば何もしない
  3. 削除された場合は、入力補完のデータ元(データシート)も削除
  4. 入力された内容で駅名を検索
  5. データシートに結果を書き込み、入力補完を設定

実際のコードです。以下は、入力イベントの処理です。

Private Sub Worksheet_Change(ByVal Target As Range)
    ' 範囲外なら何もしない
    If Intersect(Target, Range("B1:B4")) Is Nothing Then
        Exit Sub
    End If
    ' 行番号
    Dim RowIndex As Integer
    RowIndex = Target.Row
    ' 行番号をアルファベットに変換
    Dim RowName As String
    RowName = Left(Cells(1, (RowIndex * 2) - 1).Address(False, False), 1)
    ' シート
    Dim sheet As Worksheet
    Set sheet = Worksheets("データ")
    ' 最終行を取得
    Dim LastRow As Integer
    LastRow = sheet.Cells(sheet.Rows.Count, 1).End(xlUp).Row
    If LastRow = 1 Then ' 何もデータがない場合は、2行目から
        LastRow = 2
    End If
    ' 選択された場合は何もしない
    If Not sheet.Range(RowName & "2:" & RowName & LastRow).Find(Target.Value) Is Nothing Then
        ' 選択された場合
        Exit Sub
    End If
    ' 駅の配列が入る構造体
    Dim Stations() As Station
    ' 駅の構造体
    Dim s As Station
    ' インデックス
    Dim i As Integer

    ' 入力値がない(削除した)場合は、入力選択を解除
    ' データシートの内容も削除
    If Target.Value = "" Then
        ' 入力選択解除
        Target.Validation.Delete
        sheet.Range(sheet.Cells(2, (RowIndex * 2) - 1), sheet.Cells(LastRow, (RowIndex * 2))).Clear
        Exit Sub
    End If

    ' データシートの入力内容を削除
    sheet.Range(sheet.Cells(2, (RowIndex * 2) - 1), sheet.Cells(LastRow, (RowIndex * 2))).Clear
    ' 駅情報を取得
    Stations = GetStations(Target.Value)
    ' 結果を描画する
    For i = 0 To UBound(Stations)
        s = Stations(i)
        sheet.Cells(i + 2, (RowIndex * 2) - 1).Value = s.Name ' 駅名
        sheet.Cells(i + 2, (RowIndex * 2)).Value = s.Code     ' 駅コード
    Next i
    ' その範囲をリスト入力にする
    With Target.Validation
       .Add Type:=xlValidateList, AlertStyle:=xlValidAlertInformation, _
            Operator:=xlBetween, Formula1:="=データ!$" & RowName & "$2:$" & RowName & "$" & UBound(Stations) + 1
        .IgnoreBlank = True
        .InCellDropdown = True
        .InputTitle = ""
        .ErrorTitle = ""
        .InputMessage = ""
        .ErrorMessage = ""
        .IMEMode = xlIMEModeNoControl
        .ShowInput = True
        .ShowError = True
    End With
End Sub

駅名を取得するのは GetStations 関数になります。 YOUR_API_KEY は自分のAPIキーに置き換えてください。

' 駅情報の構造体
Type Station
    Name As String ' 駅名
    Code As String ' 駅コード
End Type

' 駅名を取得する関数
Function GetStations(Name As String) As Station()
    ' APIキー
    Dim ApiKey As String
    ApiKey = "YOUR_API_KEY"
    ' インデックス
    Dim i As Integer
    ' APIエンドポイント
    Dim ApiEndPoint As String
    ApiEndPoint = "https://api.ekispert.jp"

    ' APIパス
    Dim ApiPath As String
    ApiPath = "/v1/{format}/station/light"

    ' Webクライアント
    Dim Client As New WebClient
    Client.BaseUrl = ApiEndPoint

    ' リクエスト内容の作成
    Dim DirectionsRequest As New WebRequest
    DirectionsRequest.Method = WebMethod.HttpGet
    DirectionsRequest.AddUrlSegment "format", "json"
    Dim Query As New Dictionary
    Query.Add "key", ApiKey
    Query.Add "name", Name
    Query.Add "nameMatchType", "partial"
    Dim QueryString() As String
    ReDim QueryString(UBound(Query.Items))
    ' クエリ文字列の作成(エンコードも行う)
    For i = 0 To UBound(Query.Items)
        QueryString(i) = Query.Keys(i) & "=" & WorksheetFunction.EncodeURL(Query.Item(Query.Keys(i)))
    Next i
    DirectionsRequest.Resource = ApiPath & "?" & Join(QueryString, "&")
    ' リクエストの実行
    Dim Response As WebResponse
    Set Response = Client.Execute(DirectionsRequest)
    ' ステータスコードが200以外の場合はエラー
    If Response.StatusCode <> WebStatusCode.Ok Then
        Exit Function
    End If
    ' 結果全体を格納するDictionary
    Dim ResultSet As Dictionary
    Set ResultSet = Response.Data("ResultSet")
    ' 駅情報を格納する配列
    Dim Stations() As Station
    ReDim Stations(ResultSet("Point").Count) As Station

    ' 結果を配列に入れる
    Dim Point As Dictionary
    i = 0
    For Each Point In ResultSet("Point")
        Dim s As Station
        s.Name = Point("Station")("Name")
        s.Code = Point("Station")("code")
        Stations(i) = s
        i = i + 1
    Next Point
    ' 結果を返す
    GetStations = Stations
End Function

APIのレスポンスについては駅簡易情報 - 駅すぱあと API Documents 駅データ・経路検索のWebAPIを参照してください。

経路探索機能の実装

続いて経路探索です。ここではボタンを押されたタイミングで、 SearchRoute 関数が呼ばれます。

' 路線情報
Type Line
    Name As String
    Type As String
End Type

' 経路のルート情報
Type Route
    Line As Line
    Boarding As Station
    Destination As Station
End Type

' 経路情報
Type Course
    Price As Long
    Route() As Route
End Type

' 経路探索を行う
Sub SearchRoute()
    ' 経路入力シート
    Dim InputSheet As Worksheet
    Set InputSheet = Worksheets("経路入力")
    ' 入力された駅名とマッチする駅コードを格納する配列
    Dim Codes() As String
    ' インデックス
    Dim i As Integer
    ' 駅コード
    Dim Code As String
    ' 駅名
    Dim Name As String
    ' 出発駅
    Dim BoardingName As String
    ' 到着駅
    Dim DestinationName As String

    ' 出発駅、経路駅1、経路駅2、到着駅の4つ
    For i = 1 To 4
        ' 入力値の取得
        Name = InputSheet.Cells(i, 2).Value
        ' コードを探す
        If Name = "" Then
            ' エラーチェック
            If i = 1 Or i = 4 Then
                MsgBox ("出発駅、到着駅は必須です")
                Exit Sub
            End If
            GoTo Continue
        End If
        ' 出発駅名(結果シート名に利用する)
        If i = 1 Then
            BoardingName = Name
        End If
        ' 到着駅名(結果シート名に利用する)
        If i = 4 Then
            DestinationName = Name
        End If
        ' 駅コードを取得
        If (Not Codes) = -1 Then
            ReDim Codes(0) As String
        Else
            ReDim Preserve Codes(UBound(Codes) + 1) As String
        End If
        Code = GetCode((i * 2) - 1, Name)
        If Code = "" Then
            MsgBox (i & "行目の名前が見つかりません(" & Name & ")")
            Exit Sub
        End If
        Codes(UBound(Codes)) = Code
Continue: ' 駅名が入っていない場合
    Next i
    ' 経路探索結果が入る配列
    Dim Courses() As Course
    ' 経路探索
    Dim Course As Course
    ' 経路のルート(配列)
    Dim Routes() As Route
    ' ルート
    Dim Route As Route
    ' API検索用
    Dim viaList As String
    viaList = Join(Codes, ":")
    ' 経路探索を実行する
    Courses = GetRoutes(viaList)

    ' 結果シート(新しく作成する)
    Dim ResultSheet As Worksheet
    Set ResultSheet = Worksheets.Add
    ResultSheet.Name = BoardingName & "から" & DestinationName

    ' 出力先の行数
    Dim RowIndex As Long
    ' 出力先の列数
    Dim ColumnIndex As Long
    ColumnIndex = 1
    ' 経路の数だけ繰り返す
    For i = 0 To UBound(Courses) - 1
        Course = Courses(i)
        ' 結果を出力する
        RowIndex = 1
        ResultSheet.Cells(RowIndex, ColumnIndex).Value = "ルート" & i + 1
        RowIndex = RowIndex + 1
        ResultSheet.Cells(RowIndex, ColumnIndex).Value = "合計" & Course.Price & "円"
        RowIndex = RowIndex + 2
        ResultSheet.Cells(RowIndex, ColumnIndex).Value = "乗車駅"
        ResultSheet.Cells(RowIndex, ColumnIndex + 1).Value = "路線名"
        ResultSheet.Cells(RowIndex, ColumnIndex + 2).Value = "降車駅"
        RowIndex = RowIndex + 1
        ' ルートの出力
        Routes = Course.Route
        Dim j As Long
        For j = 0 To UBound(Routes) - 1
            Route = Routes(j)
            ResultSheet.Cells(RowIndex, ColumnIndex).Value = Route.Boarding.Name
            ResultSheet.Cells(RowIndex, ColumnIndex + 1).Value = Route.Line.Name
            ResultSheet.Cells(RowIndex, ColumnIndex + 2).Value = Route.Destination.Name
            RowIndex = RowIndex + 1
        Next j
        ' 列を4つずつずらす
        ColumnIndex = ColumnIndex + 4
    Next i
End Sub

GetCode 関数は、データシートを使って、駅名と駅コードを変換します。

' 駅名から駅コードを取得する
Function GetCode(ColumnIndex As Integer, Name As String) As String
    Dim DataSheet As Worksheet
    Set DataSheet = Worksheets("データ") ' 経路入力
    ' 最終行を取得
    Dim LastRow As Integer
    LastRow = DataSheet.Cells(DataSheet.Rows.Count, 1).End(xlUp).Row
    If LastRow = 1 Then ' 何もデータがない場合
        LastRow = 2
    End If
    ' 駅名が一致する行を探す
    Dim Range As Range
    Set Range = DataSheet.Range(DataSheet.Cells(2, ColumnIndex), DataSheet.Cells(LastRow, ColumnIndex)).Find(Name, LookAt:=xlWhole)
    If Range Is Nothing Then
        ' 見つからない場合は空文字を返す
        GetCode = ""
    Else
        ' 見つかった場合は、駅コードを返す
        GetCode = DataSheet.Cells(Range.Row, Range.Column + 1).Value
    End If
End Function

経路探索は GetRoutes 関数で行います。結果は、 Course 構造体(配列)に格納されます。 YOUR_API_KEY は自分のAPIキーに置き換えてください。

' 経路探索を行う
Function GetRoutes(viaList As String) As Course()
    ' APIキー
    Dim ApiKey As String
    ApiKey = "YOUR_API_KEY"
    ' APIエンドポイント
    Dim ApiEndPoint As String
    ApiEndPoint = "https://api.ekispert.jp"
    ' APIパス
    Dim ApiPath As String
    ApiPath = "/v1/{format}/search/course/extreme"
    ' インデックス
    Dim i As Long
    ' Webクライアント
    Dim Client As New WebClient
    Client.BaseUrl = ApiEndPoint

    ' リクエスト内容の作成
    Dim DirectionsRequest As New WebRequest
    DirectionsRequest.Resource = ApiPath
    DirectionsRequest.Method = WebMethod.HttpGet
    DirectionsRequest.AddUrlSegment "format", "json"
    DirectionsRequest.AddQuerystringParam "key", ApiKey
    DirectionsRequest.AddQuerystringParam "viaList", viaList
    DirectionsRequest.AddQuerystringParam "searchType", plain
    ' リクエストの実行
    Dim Response As WebResponse
    Set Response = Client.Execute(DirectionsRequest)
    ' ステータスコードが200以外の場合はエラー
    If Response.StatusCode <> WebStatusCode.Ok Then
        Exit Function
    End If

    ' 結果全体を格納するDictionary
    Dim ResultSet As Dictionary
    Set ResultSet = Response.Data("ResultSet")
    ' 経路の配列
    Dim Courses() As Course
    ' 経路の数
    Dim CourseCount As Long
    CourseCount = ResultSet("Course").Count
    ReDim Courses(CourseCount) As Course
    ' インデックス
    Dim Index As Long

    ' 結果をDictinaryの配列に入れる
    Dim cs() As Dictionary
    SetArray cs, ResultSet, "Course"

    For Index = 0 To CourseCount - 1
        ' 経路情報を取得
        Dim Course As Dictionary
        Set Course = cs(Index)
        ' 経路情報を入れる構造体
        Dim c As Course
        ' 運賃情報
        Dim Prices() As Dictionary
        SetArray Prices, Course, "Price"
        ' 運賃を取得
        c.Price = GetPrice(Prices)

        ' ルート情報
        Dim Route As Dictionary
        Set Route = Course("Route")
        Dim Points() As Dictionary
        Dim Lines() As Dictionary
        ' ルートの駅情報を取得
        SetArray Points, Route, "Point"
        ' ルートの路線情報を取得
        SetArray Lines, Route, "Line"
        ' ルート情報を入れる配列
        Dim Routes() As Route
        ' 路線の数
        Dim LineCount As Long
        LineCount = UBound(Lines)
        ReDim Routes(LineCount) As Route

        ' 路線の数だけ繰り返す
        i = 0
        For i = 0 To LineCount - 1
            ' 路線情報
            Dim r As Route
            ' 駅情報
            Dim s As Dictionary
            ' 駅情報を取得
            Dim p As Dictionary
            ' 路線情報を取得
            r.Line = GetLine(Lines(i))

            ' 乗車駅
            If i = 0 Then
                ' 最初の駅は出発駅
                r.Boarding = GetStation(Points(i)("Station"))
            Else
                ' 2つ目以降は前の駅が乗車駅
                r.Boarding = Routes(i - 1).Destination
            End If

            ' 降車駅
            r.Destination = GetStation(Points(i + 1)("Station"))
            Routes(i) = r
        Next i
        c.Route = Routes
        Courses(Index) = c
    Next Index
    GetRoutes = Courses
End Function

SetArray 関数は、Dictionaryになっているデータからキーを指定して、配列にして返します。駅すぱあとAPIでは、結果が1件しかない場合はデータが配列になっていないため、その場合は配列に変換しています。

' Dictionaryを配列に変換する
Sub SetArray(ByRef ary() As Dictionary, Data As Dictionary, Key As String)
On Error GoTo NotArray
    Dim Index As Long
    ReDim ary(Data(Key).Count) As Dictionary
    Dim Params As Dictionary
    ' 配列でない場合は、ここでエラー
    For Each Params In Data(Key)
        ' 配列の場合は順次データを入れ直す
        Set ary(Index) = Params
        Index = Index + 1
    Next Params
    Exit Sub
NotArray:
    ' 配列じゃない場合
    ReDim ary(1) As Dictionary
    Set ary(0) = Data(Key)
End Sub

GetLine 関数は、路線情報を取得・返却します。

Function GetLine(Params As Dictionary) As Line
    Dim Line As Line
    Line.Name = Params("Name")
    GetLine = Line
End Function

GetStation 関数は、駅情報を取得・返却します。

Function GetStation(Params As Dictionary) As Station
    Dim Station As Station
    Station.Code = Params("code")
    Station.Name = Params("Name")
    GetStation = Station
End Function

GetPrice 関数は、運賃情報を取得・返却します。今回は通常運賃のみですが、他にも定期(1〜12ヶ月)の運賃情報なども取得できます。新幹線などを利用した場合は、取得が異なるので注意してください(詳しくは経路探索 - 駅すぱあと API Documents 駅データ・経路検索のWebAPIにて確認してください)。

Function GetPrice(Prices() As Dictionary) As Long
    Dim Price As Variant
    Dim Index As Long
    Index = UBound(Prices)
    Dim i As Long
    For i = 0 To Index
        Set Price = Prices(i)
        If Price("kind") = "FareSummary" Then
            GetPrice = Val(Price("Oneway"))
            Exit Function
        End If
    Next i
    GetPrice = 0
End Function

コードについて

今回のコードはgoofmint/ekispart_routes_demoにアップロードしてあります。実装時の参考にしてください。

まとめ

今回は「駅すぱあと API」を使って、VBAから経路探索および運賃の算出を試しました。経路探索の他にも、「駅すぱあと API」には様々な機能があります。ぜひ、自分のアプリケーションや基幹システムに組み込んで、業務効率化を実現してください。

駅すぱあと API Documents 駅データ・経路検索のWebAPI

3
7
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
3
7

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
