DockerでIonicチュートリアル(iOS実行ファイルビルドまで)

Last updated at Posted at 2018-12-22

Ionicの実行環境をDockerで作って動かす

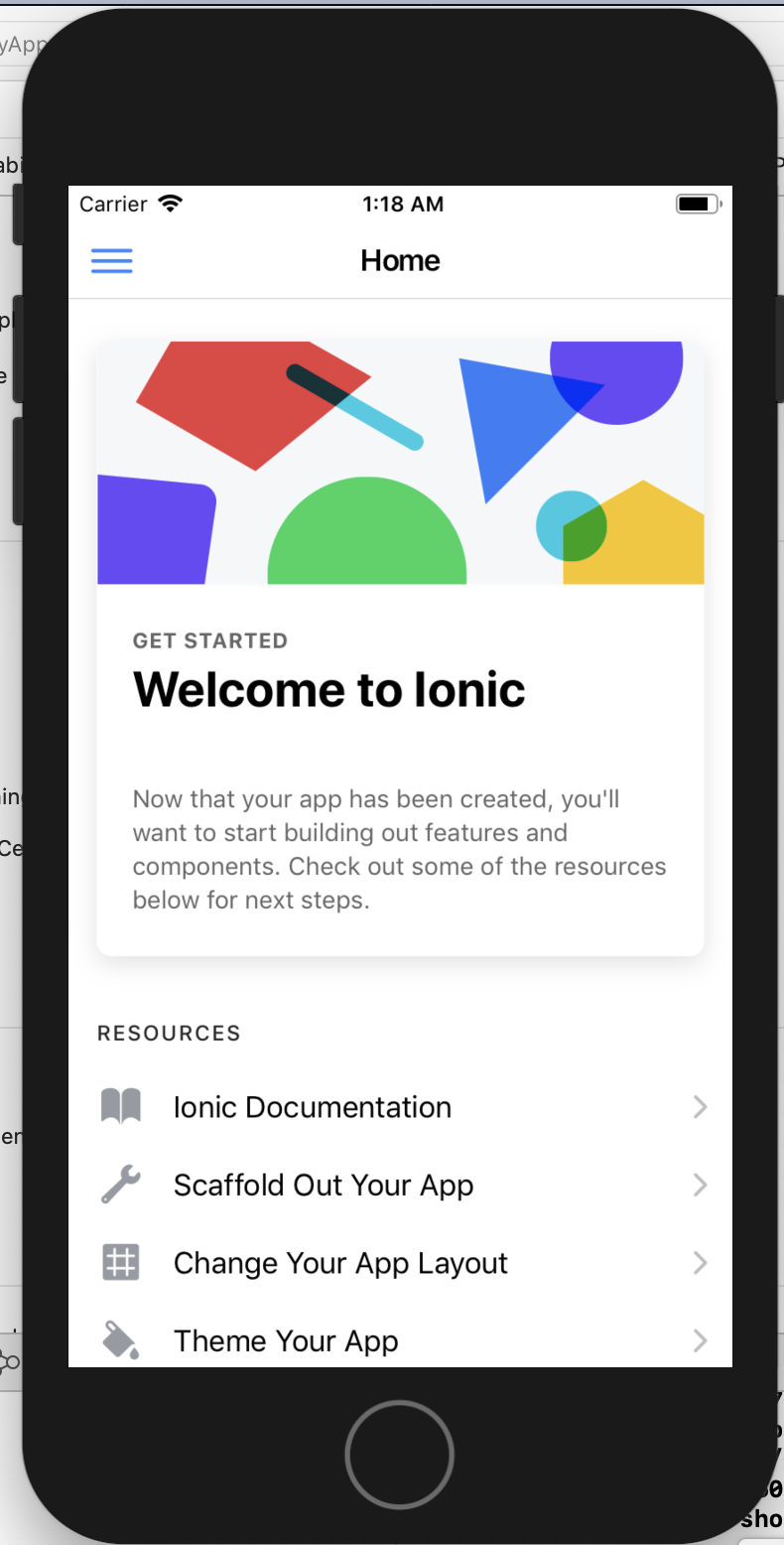

スクリーンショット 2018-12-23 1.18.28.png

HTML5アプリでWebアプリとiOS/Androidアプリが作れるIonic Frameworkをご存知でしょうか?

参考: https://ionicframework.com/docs/

Javaのフレームワーク(Spring/Struts)でアプリを構築したことはありますが、
とあるアプリの構想を思いついて、ネイティブアプリ(特にiOSアプリ)を作りたくなりました。
しかし、全く触ったことのないSwiftの勉強をするのも時間がかかる...もっと手軽に作りたい...
と思って方法を探していたところ、ReactNativeとIonicを見つけました。

IonicはAngularをベースにしています。
ReactNativeもAngularも触ったことがないのですが、今回はフィーリングでIonicを選んでみました(名前がかっこいい)。

本記事では、Ionicを動かす際の実行環境の一部抜粋とアプリのテンプレート作成までを記載します。

環境

使用した環境は以下です。
Dockerで環境構築をするので、Dockerが動けば本チュートリアルは問題ないはずですが、
iOSファイルの実行にはMacが必要になります。

・Mac Pro(2018) OS Mojave 10.14.1
・Docker for Mac(Docker Engine 18.09)
・Xcode 10.1
※環境のセットアップの手順は省略しています

環境構築

DockerHubに今回構築したIonicイメージをプッシュしています。
またDockefileはGitHubにあげています。

FROM node:10.14.2-alpine

WORKDIR /usr/src/app

# Install Ionic and Cordova
RUN npm i -g ionic cordova

# Setting Ionic
RUN ionic --no-interactive config set -g daemon.updates false

# Show ionic cli command
CMD ["ionic"]

Alpineを使っているので、かなり軽量です(72MBほど)

CMDに「ionic --help」が指定されているので単純に動かすと、
下記のコマンドヘルプが表示されて終了します。

$ docker run -it govargo/ionic

   _             _
  (_) ___  _ __ (_) ___
  | |/ _ \| '_ \| |/ __|
  | | (_) | | | | | (__
  |_|\___/|_| |_|_|\___|  CLI 4.6.0


  Usage:

    $ ionic <command> [<args>] [--help] [--verbose] [--quiet] [--no-interactive] [--no-color] [--confirm] [options]

  Global Commands:

    config <subcommand> ............. Manage CLI and project config values (subcommands: get, set, unset)
    docs ............................ Open the Ionic documentation website
    info ............................ Print project, system, and environment information
    init ............................ (beta) Initialize existing projects with Ionic
    login ........................... Login to Ionic Appflow
    logout .......................... Logout of Ionic Appflow
    signup .......................... Create an account for Ionic Appflow
    ssh <subcommand> ................ Commands for configuring SSH keys (subcommands: add, delete, generate, list,
                                      setup, use)
    start ........................... Create a new project

  Project Commands:

    You are not in a project directory.

早速、このDockerイメージを使ってIonicプロジェクトの作成を実行してみます。

# ビルドファイルの保存用ディレクトリappを作成します
$ mkdir app

# ionicのデフォルトポート8100のポートフォワーディングとビルドファイルの永続化指定を行い、コンテナを起動します
$ docker run -it -p 8100:8100 -v $(pwd)/app:/usr/src/app govargo/ionic sh

コンテナの中に入ったら、startコマンドでプロジェクトを作成します。
Ionicにはバージョン3,4とあり4のバージョンを使うか聞かれるのでyesのyを入力します

/usr/src/app # ionic start
[INFO] You are about to create an Ionic 3 app. Would you like to try the release candidate for Ionic 4?

       Ionic 4 uses the power of the modern Web and embraces the Angular CLI and Angular Router to bring you the best
       version of Ionic ever. See our blog announcement[1] and documentation[2] for more information. We'd love to hear
       your feedback on our latest version!

       [1]: https://blog.ionicframework.com/ionic-framework-4-0-rc-shipped-paving-way-for-final
       [2]: https://beta.ionicframework.com/docs/

? Try Ionic 4? (y/N)

次にプロジェクト名を聞かれます。
この例ではsampleと入力します。

? Try Ionic 4? Yes

Every great app needs a name! 😍

Please enter the full name of your app. You can change this at any time. To bypass this prompt next time, supply name,
the first argument to ionic start.

? Project name:

次にテンプレートの種類をカーソルを合わせて選択します。
ここではsidemenuを選択しました。

? Project name: sample

Let's pick the perfect starter template! 💪

Starter templates are ready-to-go Ionic apps that come packed with everything you need to build your app. To bypass this
prompt next time, supply template, the second argument to ionic start.

? Starter template:
  blank    | A blank starter project
❯ sidemenu | A starting project with a side menu with navigation in the content area
  tabs     | A starting project with a simple tabbed interface

テンプレートを選択すると自動で、必要なモジュールのインストールが開始されます。
(便利ですね)
インストールには数分時間がかかります。
インストールが終わると、Appflow SDKをインストールするか聞かれます。
この例ではnを選択しました。

? Starter template: sidemenu
✔ Preparing directory ./sample - done!
✔ Downloading and extracting sidemenu starter - done!

Installing dependencies may take several minutes.

     ✨   IONIC  DEVAPP   ✨

 Speed up development with the Ionic DevApp, our fast, on-device testing mobile app

  -  🔑   Test on iOS and Android without Native SDKs
  -  🚀   LiveReload for instant style and JS updates

 -->    Install DevApp: https://bit.ly/ionic-dev-app    <--

────────────────────────────────────────────────────────────

> npm i
? Starter template: sidemenu
✔ Preparing directory ./sample - done!
✔ Downloading and extracting sidemenu starter - done!

Installing dependencies may take several minutes.

     ✨   IONIC  DEVAPP   ✨

 Speed up development with the Ionic DevApp, our fast, on-device testing mobile app

  -  🔑   Test on iOS and Android without Native SDKs
  -  🚀   LiveReload for instant style and JS updates

 -->    Install DevApp: https://bit.ly/ionic-dev-app    <--

────────────────────────────────────────────────────────────

> npm i
npm WARN deprecated circular-json@0.5.9: CircularJSON is in maintenance only, flatted is its successor.

> node-sass@4.10.0 install /usr/src/app/sample/node_modules/node-sass
> node scripts/install.js

Downloading binary from https://github.com/sass/node-sass/releases/download/v4.10.0/linux_musl-x64-64_binding.node
Download complete  ] - :
Binary saved to /usr/src/app/sample/node_modules/node-sass/vendor/linux_musl-x64-64/binding.node
Caching binary to /root/.npm/node-sass/4.10.0/linux_musl-x64-64_binding.node

> node-sass@4.10.0 postinstall /usr/src/app/sample/node_modules/node-sass
> node scripts/build.js

Binary found at /usr/src/app/sample/node_modules/node-sass/vendor/linux_musl-x64-64/binding.node
Testing binary
Binary is fine
npm notice created a lockfile as package-lock.json. You should commit this file.
npm WARN optional SKIPPING OPTIONAL DEPENDENCY: fsevents@1.2.4 (node_modules/fsevents):
npm WARN notsup SKIPPING OPTIONAL DEPENDENCY: Unsupported platform for fsevents@1.2.4: wanted {"os":"darwin","arch":"any"} (current: {"os":"linux","arch":"x64"})

added 1138 packages from 1200 contributors and audited 50831 packages in 134.888s
found 0 vulnerabilities


     🔥   IONIC  APPFLOW   🔥

 Supercharge your Ionic development with the Ionic Appflow SDK

  -  ⚠️   Track runtime errors in real-time, back to your original TypeScript
  -  📲  Push remote updates and skip the app store queue

 Learn more about Ionic Appflow: https://ionicframework.com/appflow

────────────────────────────────────────────────────────────

? Install the free Ionic Appflow SDK and connect your app? (Y/n)

こうして、プロジェクトの初期化に成功しました。

? Install the free Ionic Appflow SDK and connect your app? No

[INFO] Next Steps:

       - Go to your newly created project: cd ./sample
       - Run ionic serve within the app directory to see your app
       - Build features and components: https://beta.ionicframework.com/docs/building/scaffolding
       - Get Ionic DevApp for easy device testing: https://bit.ly/ionic-dev-app

ディレクトリを確認するとsampleプロジェクトが作成されています。

/usr/src/app # ls -l
total 0
drwxr-xr-x   12 3434     3434           384 Dec 22 15:46 sample
/usr/src/app # cd sample/
/usr/src/app/sample # ls -l
total 404
-rw-r--r--    1 3434     3434          5284 Dec 21 20:24 angular.json
drwxr-xr-x    5 3434     3434           160 Dec 22 15:41 e2e
-rw-r--r--    1 3434     3434            66 Dec 22 15:41 ionic.config.json
drwxr-xr-x  802 root     root         25664 Dec 22 15:43 node_modules
-rw-r--r--    1 root     root        388922 Dec 22 15:43 package-lock.json
-rw-r--r--    1 3434     3434          1736 Dec 22 15:41 package.json
drwxr-xr-x   14 3434     3434           448 Dec 22 15:41 src
-rw-r--r--    1 3434     3434           408 Dec 21 20:24 tsconfig.json
-rw-r--r--    1 3434     3434          2915 Dec 21 20:24 tslint.json

初期テンプレートが作成されたので、Webブラウザでアクセスを試してみます。
Webアプリとして起動するのには「ionic serve」を利用します。

/usr/src/app/sample # ionic serve
> ng run app:serve --host=0.0.0.0 --port=8100
[INFO] Waiting for connectivity with ng...

[INFO] Development server running!

       Local: http://localhost:8100
       External: http://172.17.0.3:8100
       DevApp: sample@8100 on ce0bb319ee50

       Use Ctrl+C to quit this process

[INFO] Browser window opened to http://localhost:8100!

[ng]
[ng] Date: 2018-12-22T15:48:59.151Z
[ng] Hash: e031e8bc45e0bc25de7b
[ng] Time: 32941ms
[ng] chunk {62m} 62.js, 62.js.map () 19.3 kB  [rendered]
[ng] chunk {1m140} 140.js, 140.js.map () 3.34 kB  [rendered]
[ng] chunk {common} common.js, common.js.map (common) 20.7 kB  [rendered]
[ng] chunk {home-home-module} home-home-module.js, home-home-module.js.map (home-home-module) 7.32 kB  [rendered]
[ng] chunk {list-list-module} list-list-module.js, list-list-module.js.map (list-list-module) 6.71 kB  [rendered]
[ng] chunk {main} main.js, main.js.map (main) 34.4 kB [initial] [rendered]
[ng] chunk {polyfills} polyfills.js, polyfills.js.map (polyfills) 223 kB [initial] [rendered]
[ng] chunk {runtime} runtime.js, runtime.js.map (runtime) 8.88 kB [entry] [rendered]
[ng] chunk {styles} styles.js, styles.js.map (styles) 69.9 kB [initial] [rendered]
[ng] chunk {vendor} vendor.js, vendor.js.map (vendor) 5.16 MB [initial] [rendered]
[INFO] ... and 170 additional chunks
[ng] ℹ 「wdm」: Compiled successfully.

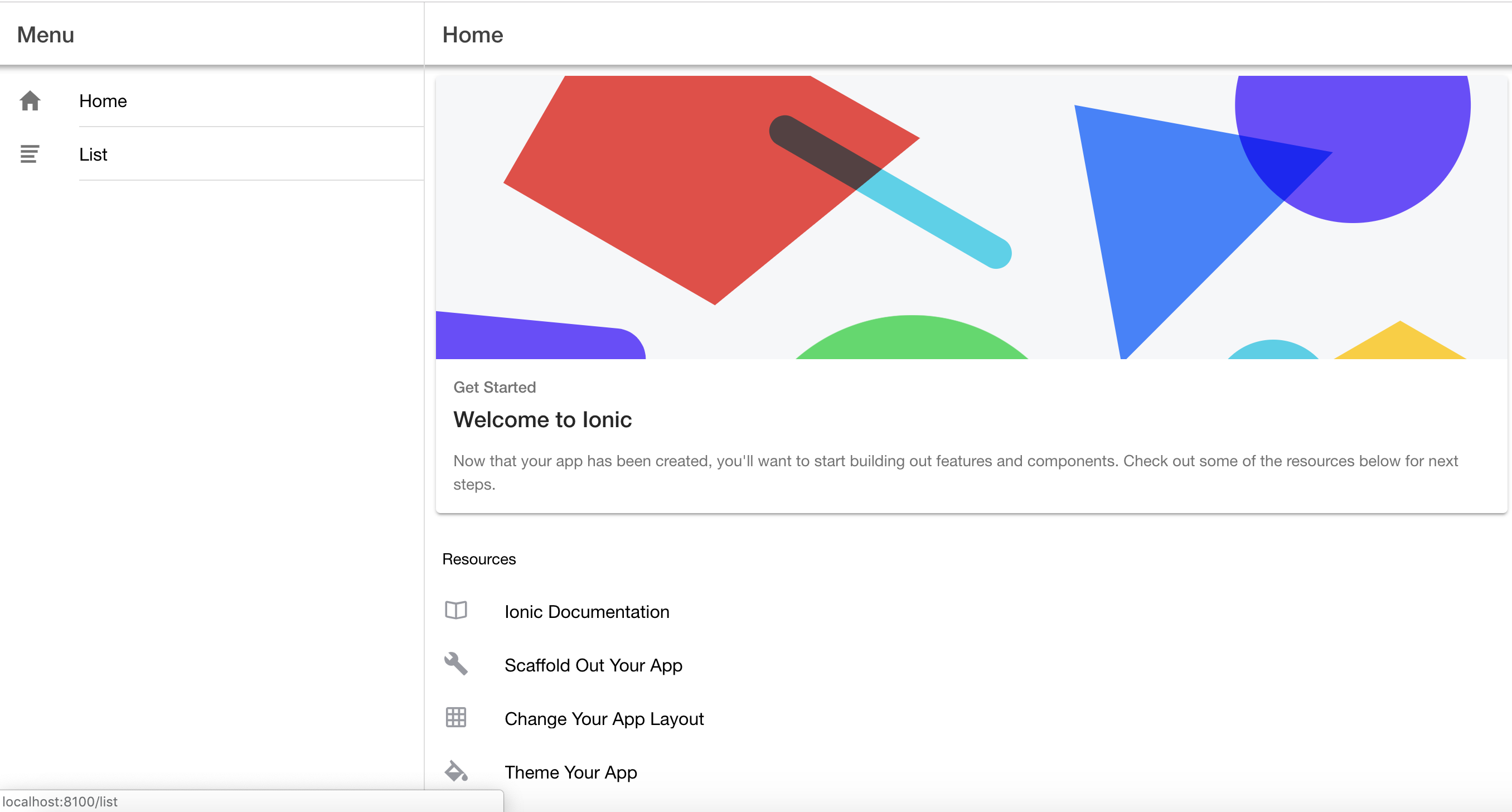

ブラウザで
http://localhost:8100」
にアクセスするとWebブラウザ用の画面が確認できます。
UIがかっこいいですね。

スクリーンショット 2018-12-23 0.54.42.png

Ctrl + Cで実行を停止できます。

iOSファイルとしてビルドしてみる

Webアプリの次はiOSアプリとして動かすためのビルドを行います。

参考: https://ionicframework.com/docs/intro/deploying/#ios-devices

ビルドには「ionic cordova build ios --prod」を行います。
ビルドには数分程度時間がかかります。

本記事では触れていませんが、Androidとしてのビルドには別途コンテナにJDKのインストールが必要です。

/usr/src/app/sample # ionic cordova build ios --prod
> ionic integrations enable cordova
[INFO] Downloading integration cordova
[INFO] Copying integrations files to project
CREATE config.xml
CREATE resources
CREATE resources/README.md
CREATE resources/android
CREATE resources/icon.png
CREATE resources/ios
CREATE resources/splash.png
CREATE resources/ios/icon
CREATE resources/ios/splash
CREATE resources/android/icon
CREATE resources/android/splash
CREATE resources/android/splash/drawable-land-hdpi-screen.png
CREATE resources/android/splash/drawable-land-ldpi-screen.png
CREATE resources/android/splash/drawable-land-mdpi-screen.png
CREATE resources/android/splash/drawable-land-xhdpi-screen.png
CREATE resources/android/splash/drawable-land-xxhdpi-screen.png
CREATE resources/android/splash/drawable-land-xxxhdpi-screen.png
CREATE resources/android/splash/drawable-port-hdpi-screen.png
CREATE resources/android/splash/drawable-port-ldpi-screen.png
CREATE resources/android/splash/drawable-port-mdpi-screen.png
CREATE resources/android/splash/drawable-port-xhdpi-screen.png
CREATE resources/android/splash/drawable-port-xxhdpi-screen.png
CREATE resources/android/splash/drawable-port-xxxhdpi-screen.png
CREATE resources/ios/icon/icon-1024.png
CREATE resources/ios/icon/icon-40.png
CREATE resources/ios/icon/icon-40@2x.png
CREATE resources/ios/icon/icon-40@3x.png
CREATE resources/ios/icon/icon-50.png
CREATE resources/ios/icon/icon-50@2x.png
CREATE resources/ios/icon/icon-60.png
CREATE resources/ios/icon/icon-60@2x.png
CREATE resources/ios/icon/icon-60@3x.png
CREATE resources/ios/icon/icon-72.png
CREATE resources/ios/icon/icon-72@2x.png
CREATE resources/ios/icon/icon-76.png
CREATE resources/ios/icon/icon-76@2x.png
CREATE resources/ios/icon/icon-83.5@2x.png
CREATE resources/ios/icon/icon-small.png
CREATE resources/ios/icon/icon-small@2x.png
CREATE resources/ios/icon/icon-small@3x.png
CREATE resources/ios/icon/icon.png
CREATE resources/ios/icon/icon@2x.png
CREATE resources/android/icon/drawable-hdpi-icon.png
CREATE resources/android/icon/drawable-ldpi-icon.png
CREATE resources/android/icon/drawable-mdpi-icon.png
CREATE resources/android/icon/drawable-xhdpi-icon.png
CREATE resources/android/icon/drawable-xxhdpi-icon.png
CREATE resources/android/icon/drawable-xxxhdpi-icon.png
CREATE resources/ios/splash/Default-568h@2x~iphone.png
CREATE resources/ios/splash/Default-667h.png
CREATE resources/ios/splash/Default-736h.png
CREATE resources/ios/splash/Default-Landscape-736h.png
CREATE resources/ios/splash/Default-Landscape@2x~ipad.png
CREATE resources/ios/splash/Default-Landscape@~ipadpro.png
CREATE resources/ios/splash/Default-Landscape~ipad.png
CREATE resources/ios/splash/Default-Portrait@2x~ipad.png
CREATE resources/ios/splash/Default-Portrait@~ipadpro.png
CREATE resources/ios/splash/Default-Portrait~ipad.png
CREATE resources/ios/splash/Default@2x~iphone.png
CREATE resources/ios/splash/Default@2x~universal~anyany.png
CREATE resources/ios/splash/Default~iphone.png
[OK] Integration cordova added!
✔ Creating ./www directory for you - done!
> cordova platform add ios --save

You have been opted out of telemetry. To change this, run: cordova telemetry on.
Using cordova-fetch for cordova-ios@~4.5.4
Adding ios project...
Creating Cordova project for the iOS platform:

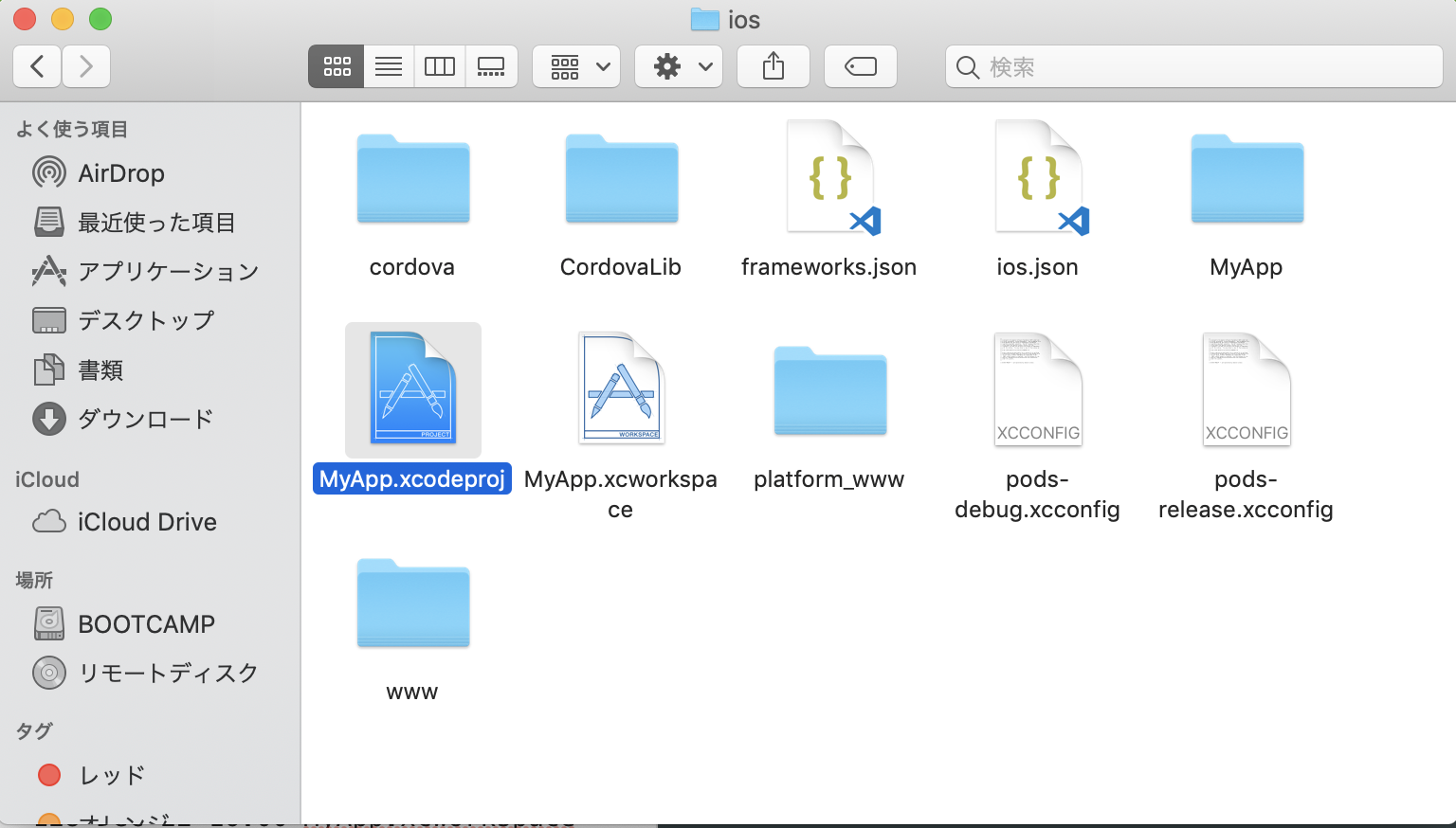

    Path: platforms/ios
    Package: io.ionic.starter
    Name: MyApp
iOS project created with cordova-ios@4.5.5
Discovered plugin "cordova-plugin-whitelist" in config.xml. Adding it to the project
Installing "cordova-plugin-whitelist" for ios
Adding cordova-plugin-whitelist to package.json
Saved plugin info for "cordova-plugin-whitelist" to config.xml
Discovered plugin "cordova-plugin-statusbar" in config.xml. Adding it to the project
Installing "cordova-plugin-statusbar" for ios
Adding cordova-plugin-statusbar to package.json
Saved plugin info for "cordova-plugin-statusbar" to config.xml
Discovered plugin "cordova-plugin-device" in config.xml. Adding it to the project
Installing "cordova-plugin-device" for ios
Adding cordova-plugin-device to package.json
Saved plugin info for "cordova-plugin-device" to config.xml
Discovered plugin "cordova-plugin-splashscreen" in config.xml. Adding it to the project
Installing "cordova-plugin-splashscreen" for ios
Adding cordova-plugin-splashscreen to package.json
Saved plugin info for "cordova-plugin-splashscreen" to config.xml
Discovered plugin "cordova-plugin-ionic-webview" in config.xml. Adding it to the project
Installing "cordova-plugin-ionic-webview" for ios
apple-ios version check failed ("/usr/src/app/sample/platforms/ios/cordova/apple_ios_version"), continuing anyways.
Adding cordova-plugin-ionic-webview to package.json
Saved plugin info for "cordova-plugin-ionic-webview" to config.xml
Discovered plugin "cordova-plugin-ionic-keyboard" in config.xml. Adding it to the project
Installing "cordova-plugin-ionic-keyboard" for ios
Adding cordova-plugin-ionic-keyboard to package.json
Saved plugin info for "cordova-plugin-ionic-keyboard" to config.xml
--save flag or autosave detected
Saving ios@~4.5.5 into config.xml file ...
> ng run app:ionic-cordova-build:production --platform=ios

Date: 2018-12-22T16:06:06.831Z
Hash: 54e28c01e2e09d7332bf
Time: 66747ms
chunk {0} common.3222599edfedfb925af4.js (common) 18.2 kB  [rendered]
chunk {1} 1.c8c1ded9ad400bff2f40.js () 852 bytes  [rendered]
chunk {2} 2.3e1343b6cc1b38b51ba5.js () 3.55 kB  [rendered]
chunk {3} 3.ab2820a7c10e1866ad56.js () 420 bytes  [rendered]
chunk {4} 4.3fe582dd6b503735586e.js () 614 bytes  [rendered]
chunk {5} 5.c7e7b1d75862c558ce95.js () 88.7 kB  [rendered]
chunk {6} 6.1f2a667120b8cb52971e.js () 2.08 kB  [rendered]
chunk {7} runtime.2602b2896a743be6bef0.js (runtime) 6.67 kB [entry] [rendered]
chunk {8} 8.976225d3f88e3657b7b8.js () 1.02 kB  [rendered]
chunk {9} main.7d336394dd829610d50f.js (main) 480 kB [initial] [rendered]
chunk {10} polyfills.ab1cd86f59a83f4aa306.js (polyfills) 37.5 kB [initial] [rendered]
chunk {11} styles.44f08363fed1cf87985f.css (styles) 17.4 kB [initial] [rendered]
chunk {12} 12.26a43363ebaab0a80ddf.js () 5.82 kB  [rendered]
chunk {[1m13} 13.0387b6783362110437a0.js () 2.92 kB  [rendered]
chunk {14} 14.a2d347aded2568c32876.js () 11.2 kB  [rendered]
chunk {15} 15.1bf530e865daa1b58e10.js () 11.9 kB  [rendered]
chunk {16} 16.fe87589276c4a9519d5c.js () 10.9 kB  [rendered]
chunk {17} 17.01603fcc4f8201376f08.js () 11.9 kB  [rendered]
chunk {18} 18.fb638ce47ea988b8102b.js () 4.71 kB  [rendered]
chunk {19} 19.8aeb85194aa2e82ca4f4.js () 5.06 kB  [rendered]
chunk {20} 20.2e09637b99a0ddfed172.js () 6.42 kB  [rendered]
chunk {21} 21.5821ebfffd43ccaa1e99.js () 6.6 kB  [rendered]
chunk {22} 22.ab961ef6ff3e036ec341.js () 3.07 kB  [rendered]
chunk {23} 23.8e86aa17cbb21502515f.js () 3.21 kB  [rendered]
chunk {24} 24.948830ac7f3244390d1e.js () 4.94 kB  [rendered]
chunk {25} 25.bfe0fa66ff69cf349142.js () 5.38 kB  [rendered]
chunk {26} 26.a5f8db4c5ac1f26a5154.js () 11 kB  [rendered]
chunk {27} 27.7149f53864d4dba632c8.js () 11.7 kB 33m [rendered]
chunk {28} 28.944cc86f6145b0d0a9f1.js () 13.6 kB  [rendered]
chunk {29} 29.544c566eb0355c5cd954.js () 14.5 kB  [rendered]
chunk {30} 30.b733274797416300a66e.js () 5.1 kB  [rendered]
chunk {31} 31.7951edef3cf9c48cee8b.js () 5.43 kB  [rendered]
chunk {32} 32.e92b35111e370fb4f935.js () 11.3 kB  [rendered]
chunk {33} 33.268b875b94f5c48fa80d.js () 12.3 kB  [rendered]
chunk {34} 34.1d7e438b624c99964530.js () 12.7 kB  [rendered]
chunk {35} 35.cfaf30e2b7cd269c13de.js () 12.7 kB  [rendered]
chunk {36} 36.822cea1b3999e7b6b7b8.js () 14.1 kB  [rendered]
chunk {37} 37.74d9f53d5708160bb837.js () 15 kB  [rendered]
chunk {38} 38.0cb6bd310a756f384f27.js () 6.22 kB  [rendered]
chunk {39} 39.da17e453729684c20d9a.js () 6.25 kB  [rendered]
chunk {40} 40.cbdafd3712dc7b058bd8.js () 30.5 kB  [rendered]
chunk {41} 41.ade09624eb21343f3fa8.js () 30.6 kB  [rendered]
chunk {42} 42.bfec064a089d6f63b80c.js () 16.3 kB  [rendered]
chunk {43} 43.41795a28a98319a08753.js () 16.3 kB  [rendered]
chunk {44} 44.b3fc25947471a6fb89c9.js () 8.62 kB  [rendered]
chunk {45} 45.9e0edd49768d677e4271.js () 9 kB  [rendered]
chunk {46} 46.ef7361d89e66225e29e7.js () 23.5 kB  [rendered]
chunk {47} 47.e5845de1608cede7ef98.js () 25.4 kB  [rendered]
chunk {48} 48.1a32630d5fac11bb0c5c.js () 2.29 kB  [rendered]
chunk {49} 49.f1e70136e125aae0b7eb.js () 2.36 kB  [rendered]
chunk {50} 50.3cb5e97935abad5a98ef.js () 9.93 kB  [rendered]
chunk {51} 51.f537f7df8c037a8e6740.js () 10.9 kB  [rendered]
chunk {52} 52.1a0a3fbd68a078532f63.js () 7.81 kB  [rendered]
chunk {53} 53.01028fc094c4f813c7c0.js () 8.08 kB  [rendered]
chunk {54} 54.5aed963309c54be82f3c.js () 10.3 kB  [rendered]
chunk {55} 55.bc8ad3734e747594cfc0.js () 10.3 kB  [rendered]
chunk {56} 56.7588723761f263d88351.js () 6.11 kB  [rendered]
chunk {57} 57.ddb3baef2d3714bdd117.js () 6.37 kB  [rendered]
chunk {58} 58.a1aa53874a6e36fe4ce2.js () 2.83 kB  [rendered]
chunk {59} 59.9d5df368958450cdfb04.js () 3.04 kB  [rendered]
chunk {60} 60.de24f0a9e15e75af22c4.js () 10.7 kB  [rendered]
chunk {61} 61.9aa8d649c15fbc277b72.js () 10.7 kB  [rendered]
chunk {62} 62.e33afbb87f448237ad89.js () 11.5 kB  [rendered]
chunk {63} 63.364af1704b1c954ed0a5.js () 11.8 kB  [rendered]
chunk {64} 64.4efb94e0c5d2655bf57c.js () 3.81 kB  [rendered]
chunk {65} 65.daab19151b8760323692.js () 3.81 kB  [rendered]
chunk {66} 66.79b42ebe8ad417e3f4ce.js () 8.96 kB  [rendered]
chunk {67} 67.a8bba61c025b584c1c0d.js () 8.96 kB  [rendered]
chunk {68} 68.b58a05996b563890f735.js () 1.65 kB  [rendered]
chunk {69} 69.2280a8b0333ea7082d4a.js () 1.67 kB  [rendered]
chunk {70} 70.0c397f8d175b0dfb0fd8.js () 12.4 kB  [rendered]
chunk {71} 71.8a1658cccdf878f942ad.js[22m () 13.2 kB  [rendered]
chunk {72} 72.1651a04c1335f31d5125.js () 6.39 kB  [rendered]
chunk {73} 73.fcca3a80b41cb1782e24.js () 6.71 kB  [rendered]
chunk {74} 74.3f4c46f1d56926522f54.js () 5.48 kB  [rendered]
chunk {75} 75.197b566a6a196047cbaa.js () 5.48 kB  [rendered]
chunk {76} 76.69158446a355c60e3ec6.js () 2.69 kB  [rendered]
chunk {77} 77.f0b575ec08db5277af9a.js () 7.5 kB  [rendered]
chunk {78} 78.13dc78b8912db22f98dd.js () 7.67 kB  [rendered]
chunk {79} 79.8ec2e5536e4d57c38d0e.js () 7.23 kB  [rendered]
chunk {80} 80.232cef83875a4d378d36.js () 7.75 kB  [rendered]
chunk {81} 81.b0df22d3e451e6100c3f.js () 17.3 kB  [rendered]
chunk {82} 82.13330b726dc4521af78e.js () 17.3 kB  [rendered]
chunk {83} 83.d3d8828e10ed6e7aa2c7.js () 24.8 kB  [rendered]
chunk {84} 84.1f7e5f627dba4f9626c6.js () 26.9 kB  [rendered]
chunk {85} 85.3d7e01bd37daf79f6b8c.js () 835 bytes  [rendered]
chunk {m86} 86.7cebd80378f29b126049.js () 842 bytes  [rendered]
chunk {87} 87.a64dfe2d48cf15c84a35.js () 8.55 kB  [rendered]
chunk {88} 88.9520bf1933fd18a3f68f.js () 8.9 kB  [rendered]
chunk {89} 89.6395004f189fa9ee5ac6.js () 6.13 kB  [rendered]
chunk {90} 90.c3d9b2900421c646be97.js () 6.16 kB  [rendered]
chunk {91} 91.408abd3447532f3bb0c7.js () 2.29 kB  [rendered]
chunk {92} 92.e5d161ee10f7c8ade848.js () 2.35 kB  [rendered]
chunk {93} 93.ae5bff6420e773cdc5b1.js () 10.8 kB  [rendered]
chunk {94} 94.253f8721e32e2aeffd41.js () 11.4 kB  [rendered]
chunk {95} 95.5a1dc9962033be7217f0.js () 10.1 kB  [rendered]
chunk {96} 96.48afe835040c631c93e7.js () 10.1 kB  [rendered]
chunk {97} 97.72bd8ce489ec35270352.js () 919 bytes  [rendered]
chunk {98} 98.e7898375f70a64f34366.js () 14.2 kB  [rendered]
chunk {99} 99.f5e6ca1139da4c646eac.js () 14.2 kB  [rendered]
chunk {100} 100.c0c1638eda3210aa0f8a.js () 6.15 kB [33m [rendered]
chunk {101} 101.81d4ecff2f1560d68c6b.js () 6.18 kB  [rendered]
chunk {102} 102.f935c4cd3a783dbec0ae.js () 6.37 kB  [rendered]
chunk {103} 103.919e4a482b946f1593f0.js () 6.42 kB  [rendered]
chunk {104} 104.bd4d3e49c4112fa156f5.js () 7.27 kB  [rendered]
chunk {105} 105.0284910f505a248f51bc.js () 7.27 kB  [rendered]
chunk {106} 106.6e890b0617a13dc745b1.js () 6.42 kB  [rendered]
chunk {107} 107.029e4a6169c70628011d.js () 6.59 kB  [rendered]
chunk {108} 108.03ebc48e77f7528df2f8.js () 21.1 kB  [rendered]
chunk {109} 109.2423f8d80b4c53be469c.js () 21.6 kB  [rendered]
chunk {110} 110.a241fe5dbc5f55515063.js () 17.4 kB  [rendered]
chunk {111} 111.233a15df8c5af205320e.js () 17.9 kB  [rendered]
chunk {112} 112.72c9106f62705e2af25a.js () 6.22 kB  [rendered]
chunk {113} 113.e537f8ab5c009025b4ba.js () 6.25 kB  [rendered]
chunk {114} 114.c4a2309d22b8ca005ffd.js () 9.64 kB  [rendered]
chunk {1m115} 115.cbd0a1a53b8fb1ccfec2.js () 10.8 kB  [rendered]
chunk {116} 116.684547bba0a3f4cc408d.js () 30.4 kB  [rendered]
chunk {117} 117.aecf8c803e154ded28d3.js () 30.4 kB  [rendered]
chunk {118} 118.515785723dddf636725e.js () 12.3 kB  [rendered]
chunk {119} 119.7f9c7ee9d01d18f17d64.js () 12.5 kB  [rendered]
chunk {120} 120.07959e6b27f49d74a87c.js () 11.3 kB  [rendered]
chunk {121} 121.b997f5665fd736c48a19.js () 11.3 kB  [rendered]
chunk {122} 122.c3873e487a8e1587aef2.js () 30.4 kB  [rendered]
chunk {123} 123.bca4d5e93bdab7d759ff.js () 30.4 kB  [rendered]
chunk {124} 124.3cd765c9b1aac292605c.js () 7.76 kB  [rendered]
chunk {125} 125.75c4e95d1143a361ae63.js () 7.76 kB  [rendered]
chunk {126} 126.3c1e613c9d3fee3f65d9.js () 11.4 kB  [rendered]
chunk {127} 127.a392c5e1a24b6536d58d.js () 11.6 kB  [rendered]
chunk {128} 128.12c22f698211bf6cb9cb.js () 9.93 kB  [rendered]
chunk {129} 129.5afcc9d8968e93dd927f.js () 10.8 kB  [rendered]
chunk {130} 130.10a429738f5b5a76a7d2.js () 7.99 kB  [rendered]
chunk {131} 131.0b35351b495a144b85e7.js () 7.99 kB  [rendered]
chunk {132} 132.5d889a523400419e529a.js () 2.83 kB  [rendered]
chunk {133} 133.db6226b212201d60e7ac.js () 3.06 kB  [rendered]
chunk {134} 134.9dcd1b14943c3e8ec188.js () 12.3 kB  [rendered]
chunk {135} 135.f64488092dc63ff01da5.js () 12.5 kB  [rendered]
chunk {136} 136.cdd1bceb556f80650917.js () 9.49 kB  [rendered]
chunk {137} 137.ed3cfb21e77629fde73b.js () 9.49 kB  [rendered]
chunk {138} 138.eaa4e965f26a6dee8440.js () 3.6 kB  [rendered]
chunk {139} 139.53410d816fd596f26293.js () 3.68 kB  [rendered]
chunk {140} 140.2be372b03a00fc6d9ec9.js () 3.81 kB  [rendered]
chunk {141} 141.a388869052e0f5d7b4b1.js () 3.81 kB  [rendered]
chunk {142} 142.f3e4d3c1b77f69a74288.js () 21.1 kB  [rendered]
chunk {143} 143.b6ec9cc6e23eb3c7723d.js () 21.6 kB  [rendered]
chunk {144} 144.d5574e0615dc2ddbe865.js () 30.7 kB  [rendered]
chunk {145} 145.49275dcc8759f9e6207f.js () 30.8 kB  [rendered]
chunk {146} 146.0c7c10effc3d7ad6d25f.js () 7.75 kB  [rendered]
chunk {147} 147.5050925f0f1aa4a18159.js () 7.75 kB  [rendered]
chunk {148} 148.4034f935607ce0acdb69.js () 17.6 kB  [rendered]
chunk {149} 149.157667da142e81349ba9.js () 17.6 kB  [rendered]
chunk {150} 150.195c75e5aa7cdb94be5d.js () 3.02 kB  [rendered]
chunk {151} 151.b8a25a2fc572528b3dfa.js () 3.16 kB  [rendered]
chunk {152} 152.f56c4f44f0cdd245ed01.js () 6.98 kB  [rendered]
chunk {153} 153.16bf83e5ff84a77a1f50.js () 7.32 kB  [rendered]
chunk {154} 154.a4acff7041e4147536c0.js () 9.58 kB  [rendered]
chunk {155} 155.7ef26d81fa1aefe47a65.js () 10.7 kB  [rendered]
chunk {156} 156.79c765c375e99f7574a8.js () 8.04 kB  [rendered]
chunk {157} 157.fe1eae6284c16bbbefe6.js () 8.04 kB  [rendered]
chunk {158} 1m158.bbda5715ceb35c01c578.js () 12.5 kB  [rendered]
chunk {159} 159.8688446d66a8e265bda8.js () 12.5 kB  [rendered]
chunk {160} 160.74c13630705fce3643a3.js () 6.43 kB  [rendered]
chunk {161} 161.215bea75836bb4d9fbf9.js () 6.72 kB  [rendered]
chunk {162} 162.580260ef63f5a6ea8a28.js () 5.83 kB  [rendered]
chunk {163} 163.42b3efc960cf0739e960.js () 5.98 kB  [rendered]
chunk {164} 164.2f8c88ca7dcd01ca21a4.js () 18.3 kB  [rendered]
chunk {165} 165.6c897ef712714060fdb0.js () 18.8 kB  [rendered]
chunk {166} 166.970fcc6304038712d38b.js () 6.13 kB  [rendered]
chunk {167} 167.a90eb8ddcc73775c61ef.js () 6.39 kB  [rendered]
chunk {168} 168.011549e65a06ab69bcb1.js () 5.49 kB  [rendered]
chunk {169} 169.0978854dab5f8ab0eac7.js () 5.49 kB  [rendered]
chunk {170} 170.dcfba844cd5f2f8e03b4.js () 7.49 kB  [rendered]
chunk {171} 171.8a5077417e1f1ba0f5b1.js () 7.49 kB  [rendered]
chunk {172} 172.42092137cbf82bb68ed9.js () 2.33 kB  [rendered]
chunk {173} 173.bc7c83e3d1779e9f0b37.js () 9.67 kB  [rendered]
chunk {174} 174.17a71eb8bf5a968bb8c7.js () 13.6 kB  [rendered]
chunk {175} 175.f77c1368c2d565689bad.js () 7.2 kB  [rendered]
chunk {176} 176.21c94af83619202a1104.js () 999 bytes  [rendered]
chunk {177} 177.ac20e14f5e25210f2031.js () 708 bytes  [rendered]
chunk {178} 178.42b62f5025a2562d0262.js () 4.17 kB  [rendered]
chunk {cordova} cordova.17fb1a7c009cbc8d5d42.js (cordova) 22.8 kB  [rendered]
> cordova build ios

You have been opted out of telemetry. To change this, run: cordova telemetry on.
CordovaError: Promise rejected with non-error: 'xcodebuild was not found. Please install version 7.0.0 or greater from App Store'
    at cli.catch.err (/usr/local/lib/node_modules/cordova/bin/cordova:30:15)
    at process._tickCallback (internal/process/next_tick.js:68:7)
[ERROR] An error occurred while running subprocess cordova.

        cordova build ios exited with exit code 1.

        Re-running this command with the --verbose flag may provide more information.

最後にエラー「[ERROR] An error occurred while running subprocess cordova.
」が発生していますが、これはコンテナ内にXcodeがないため発生しています。
iOS実行ファイル自体はできているので問題ありません。
実行ファイルは「platforms/ios」以下に作成されています。

/usr/src/app/sample #cd platforms/ios/
/usr/src/app/sample/platforms/ios # ls -l
total 20
drwxr-xr-x    7 root     root           224 Dec 22 16:00 CordovaLib
drwxr-xr-x   14 root     root           448 Dec 22 16:00 MyApp
drwxr-xr-x    3 root     root            96 Dec 22 16:00 MyApp.xcodeproj
drwxr-xr-x    4 root     root           128 Dec 22 16:00 MyApp.xcworkspace
drwxr-xr-x   26 root     root           832 Dec 22 16:00 cordova
-rw-r--r--    1 root     root            48 Dec 22 16:04 frameworks.json
-rw-r--r--    1 root     root          4282 Dec 22 16:06 ios.json
drwxr-xr-x    7 root     root           224 Dec 22 16:03 platform_www
-rw-r--r--    1 root     root           860 Dec 22 16:00 pods-debug.xcconfig
-rw-r--r--    1 root     root           859 Dec 22 16:00 pods-release.xcconfig
drwxr-xr-x  886 root     root         28352 Dec 22 16:06 www

MyApp.xcodeprojをクリックすると、Xcodeが起動します。

スクリーンショット 2018-12-23 1.11.43.png

本来はTeamの情報を設定しますが、今回は省いてエミュレーターでアプリを実行してみます。
左上の実行マークを「▶︎」を押すと、エミュレーターが起動します。
今回エミュレーターはiPhone7にしてみました。

スクリーンショット 2018-12-23 1.14.32.png

エミュレーターの起動に時間が少しかかりますが...

スクリーンショット 2018-12-23 1.16.59.png

スクリーンショット 2018-12-23 1.18.28.png

起動が確認できました。

Swiftの文法を1ミリも知らない私でもIonicを使えば、おしゃれなネイティブアプリを作れそうな気がしてきました。
SPAの勉強をしつつアプリを作ってみたいと思います。

以上です。

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
What you can do with signing up
9
