SageMaker Studio環境をTerraformで！

Last updated at Posted at 2024-03-09

目次

  1. Terraformのセットアップ(in Cloud9)
  2. SageMaker Studioのデプロイ
  3. 動作確認

「VPC Only」で、NAT Gateway経由でインターネットに出ることができるノートブックを想定しています。

コードはgithubにも上げています。

1. Terraformのセットアップ(in Cloud9)

Cloud9を立ち上げて、Terraformのセットアップを行います。

$ git clone https://github.com/tfutils/tfenv.git ~/.tfenv
$ sudo ln -s ~/.tfenv/bin/* /usr/local/bin

$ tfenv -v
tfenv 3.0.0-49-g39d8c27

// インストール可能なバージョンをリストする
$ tfenv list-remote
1.8.0-beta1
1.8.0-alpha20240228
1.8.0-alpha20240216
1.8.0-alpha20240214
1.8.0-alpha20240131
1.7.4
・・・(省略)・・・
0.1.0

// Terraformの特定バージョンをインストール
$ tfenv install 1.7.4
Installing Terraform v1.7.4
############################################################################################################################################################################### 100.0%
Installation of terraform v1.7.4 successful. To make this your default version, run 'tfenv use 1.7.4'

// インストールされているバージョンをリストする
$ tfenv list
  1.7.4
No default set. Set with 'tfenv use <version>'

// Terraformの使用バージョンを切り替える
$ tfenv use 1.7.4
$ terraform -v
Terraform v1.7.4
on linux_amd64

次にディレクトリ構造を作っていきます。

$ pwd
/home/ec2-user/environment
$ mkdir terraform && cd terraform

以下のツリー構造にしました。

$ tree
.
├── common
│   └── network
│       ├── main.tf
│       ├── outputs.tf
│       └── variables.tf
└── labs
    └── labo1
        ├── main.tf
        ├── network
        │   ├── main.tf
        │   ├── outputs.tf
        │   └── variables.tf
        ├── provider.tf
        ├── sagemaker
        │   ├── studio-env.tf
        │   └── variables.tf
        ├── terraform.tfstate
        └── terraform.tfstate.backup

まずmain.tfとprovider.tfを作成します。

/labs/labo1/main.tf

module "network" {
  source = "./network"
}

module "sagemaker" {
  source = "./sagemaker"
  vpc_id = module.network.vpc_id
  private_subnet_1a_id = module.network.private_subnet_1a_id
}

/labos/labo1/provider.tf

provider "aws" {
  region  = "ap-northeast-1"
}

次に土台として、ネットワークを作っていきます。

/common/network/main.tf

#-----------------------------------------------------------------
# VPC
#-----------------------------------------------------------------

resource "aws_vpc" "main" {
  cidr_block = var.vpc_cidr
  enable_dns_support = true
  enable_dns_hostnames = true
  tags = {
    Name = var.vpc_name
  }
}

#-----------------------------------------------------------------
# Public Subnet
#-----------------------------------------------------------------

resource "aws_subnet" "public_subnet_1a" {
  vpc_id     = aws_vpc.main.id
  availability_zone       = "ap-northeast-1a"
  cidr_block = var.public_subnet_a_cidr
  tags = {
    Name = var.public_subnet_name_a
  }
}

resource "aws_subnet" "public_subnet_1c" {
  vpc_id     = aws_vpc.main.id
  availability_zone       = "ap-northeast-1c"
  cidr_block = var.public_subnet_c_cidr
  tags = {
    Name = var.public_subnet_name_c
  }
}

#-----------------------------------------------------------------
# Private Subnet
#-----------------------------------------------------------------

resource "aws_subnet" "private_subnet_1a" {
  vpc_id     = aws_vpc.main.id
  availability_zone       = "ap-northeast-1a"
  cidr_block = var.private_subnet_a_cidr
  tags = {
    Name = var.private_subnet_name_a
  }
}

resource "aws_subnet" "private_subnet_1c" {
  vpc_id     = aws_vpc.main.id
  availability_zone       = "ap-northeast-1c"
  cidr_block = var.private_subnet_c_cidr
  tags = {
    Name = var.private_subnet_name_c
  }
}

#-----------------------------------------------------------------
# RouteTable
#-----------------------------------------------------------------

resource "aws_route_table" "public_rt" {
  vpc_id = aws_vpc.main.id

  tags = {
    Name    = var.public_rt_name
  }
}

resource "aws_route_table_association" "public_rt_1a" {
  subnet_id      = aws_subnet.public_subnet_1a.id
  route_table_id = aws_route_table.public_rt.id
}

resource "aws_route_table_association" "public_rt_1c" {
  subnet_id      = aws_subnet.public_subnet_1c.id
  route_table_id = aws_route_table.public_rt.id
}


resource "aws_route_table" "private_rt" {
  vpc_id = aws_vpc.main.id

  tags = {
    Name    = var.private_rt_name
  }
}

resource "aws_route_table_association" "private_rt_1a" {
  subnet_id      = aws_subnet.private_subnet_1a.id
  route_table_id = aws_route_table.private_rt.id
}

resource "aws_route_table_association" "private_rt_1c" {
  subnet_id      = aws_subnet.private_subnet_1c.id
  route_table_id = aws_route_table.private_rt.id
}

#-----------------------------------------------------------------
# Gateway
#-----------------------------------------------------------------

resource "aws_internet_gateway" "igw" {
  vpc_id = aws_vpc.main.id

  tags = {
    Name    = var.igw_name
  }
}

resource "aws_route" "public_rt_igw_r" {
  route_table_id         = aws_route_table.public_rt.id
  destination_cidr_block = "0.0.0.0/0"
  gateway_id             = aws_internet_gateway.igw.id
}

resource "aws_eip" "nat_eip_A" {
  domain = "vpc"
}


resource "aws_nat_gateway" "ngwA" {
  allocation_id = aws_eip.nat_eip_A.id
  subnet_id     = aws_subnet.public_subnet_1a.id

  tags = {
    Name    = var.ngw_name
  }
}

resource "aws_route" "private_rt_nat_a_r" {
  route_table_id         = aws_route_table.private_rt.id
  destination_cidr_block = "0.0.0.0/0"
  nat_gateway_id         = aws_nat_gateway.ngwA.id
}

#-----------------------------------------------------------------
# S3 VPCEndopoint
#-----------------------------------------------------------------

resource "aws_vpc_endpoint" "vpc_endpoint_s3" {
  vpc_id            = aws_vpc.main.id
  service_name      = "com.amazonaws.ap-northeast-1.s3"
  vpc_endpoint_type = "Gateway"

  tags = {
    "Name" = var.vpc_endpoint_name_to_s3
  }
}

resource "aws_vpc_endpoint_route_table_association" "private_s3" {
  vpc_endpoint_id = aws_vpc_endpoint.vpc_endpoint_s3.id
  route_table_id  = aws_route_table.private_rt.id
}

/common/network/variables.tf

variable "vpc_name" {
    type = string
}

variable "public_subnet_name_a" {
    type = string
}

variable "public_subnet_name_c" {
    type = string
}

variable "private_subnet_name_a" {
    type = string
}

variable "private_subnet_name_c" {
    type = string
}

variable "vpc_cidr" {
    type = string
}

variable "public_subnet_a_cidr" {
    type = string
}

variable "public_subnet_c_cidr" {
    type = string
}

variable "private_subnet_a_cidr" {
    type = string
}

variable "private_subnet_c_cidr" {
    type = string
}

variable "public_rt_name" {
    type = string
}

variable "private_rt_name" {
    type = string
}

variable "igw_name" {
    type = string
}

variable "ngw_name" {
    type = string
}

variable "vpc_endpoint_name_to_s3" {
    type = string
}

/common/network/outputs.tf

output "vpc_id" {
  value = aws_vpc.main.id
}

output "public_subnet_1a" {
  value = aws_subnet.public_subnet_1a.id
}

output "public_subnet_1c" {
  value = aws_subnet.public_subnet_1c.id
}

output "private_subnet_1a" {
  value = aws_subnet.private_subnet_1a.id
}

output "private_subnet_1c" {
  value = aws_subnet.private_subnet_1c.id
}

output "igw" {
  value = aws_internet_gateway.igw.id
}

output "ngw" {
  value = aws_nat_gateway.ngwA.id
}

output "vpc_endpoint_s3" {
  value = aws_vpc_endpoint.vpc_endpoint_s3.id
}

labs/labo1/network/main.tf

module "network" {
  source = "../../../common/network"

  vpc_name    = var.vpc_name

  public_subnet_name_a = var.public_subnet_name_a
  public_subnet_name_c = var.public_subnet_name_c
  private_subnet_name_a = var.private_subnet_name_a
  private_subnet_name_c = var.private_subnet_name_c

  vpc_cidr = var.vpc_cidr
  public_subnet_a_cidr = var.public_subnet_a_cidr
  public_subnet_c_cidr = var.public_subnet_c_cidr
  private_subnet_a_cidr = var.private_subnet_a_cidr
  private_subnet_c_cidr = var.private_subnet_c_cidr

  public_rt_name = var.public_rt_name
  private_rt_name = var.private_rt_name
  igw_name = var.igw_name
  ngw_name = var.ngw_name
  vpc_endpoint_name_to_s3 = var.vpc_endpoint_name_to_s3
}

labs/labo1/network/variables.tf

variable "vpc_name" {
    type = string
    default = "labo_vpc"
}

variable "public_subnet_name_a" {
    type = string
    default = "labo_public_subnet_1a"
}

variable "public_subnet_name_c" {
    type = string
    default = "labo_public_subnet_1c"
}

variable "private_subnet_name_a" {
    type = string
    default = "labo_private_subnet_1a"
}

variable "private_subnet_name_c" {
    type = string
    default = "labo_private_subnet_1c"
}

variable "vpc_cidr" {
    type = string
    default = "10.0.0.0/16"
}

variable "public_subnet_a_cidr" {
    type = string
    default = "10.0.1.0/24"
}

variable "public_subnet_c_cidr" {
    type = string
    default = "10.0.2.0/24"
}

variable "private_subnet_a_cidr" {
    type = string
    default = "10.0.3.0/24"
}

variable "private_subnet_c_cidr" {
    type = string
    default = "10.0.4.0/24"
}

variable "public_rt_name" {
    type = string
    default = "labo_public_rt"
}

variable "private_rt_name" {
    type = string
    default = "labo_private_rt"
}

variable "igw_name" {
    type = string
    default = "labo_igw"
}

variable "ngw_name" {
    type = string
    default = "labo_ngw"
}

variable "vpc_endpoint_name_to_s3" {
    type = string
    default = "labo_vpc_endpoint_to_s3"
}

labs/labo1/network/outputs.tf

output "vpc_id" {
  value = module.network.vpc_id
}

output "public_subnet_1a_id" {
  value = module.network.public_subnet_1a
}

output "public_subnet_1c_id" {
  value = module.network.public_subnet_1c
}

output "private_subnet_1a_id" {
  value = module.network.private_subnet_1a
}

output "private_subnet_1c_id" {
  value = module.network.private_subnet_1c
}

output "igw_id" {
  value = module.network.igw
}

output "ngw_id" {
  value = module.network.ngw
}

output "vpc_endpoint_s3_id" {
  value = module.network.vpc_endpoint_s3
}

土台となるネットワークの定義が終わりました。

3. SageMaker Studioのデプロイ

SageMaker Studioのセットアップを行います。

labs/labo1/sagemaker/studio-env.tf

#-----------------------------------------------------------------
# Domain
#-----------------------------------------------------------------

resource "aws_sagemaker_domain" "labo_domain" {
  domain_name = "labo-sagemaker-studio-domain"
  app_network_access_type = "VpcOnly"
  auth_mode   = "IAM"
  vpc_id      = var.vpc_id
  subnet_ids  = [var.private_subnet_1a_id]

  default_user_settings {
    execution_role = aws_iam_role.sagemaker_execution_role.arn
    security_groups = [aws_security_group.sagemaker_studio_sg.id]

    jupyter_server_app_settings {
      default_resource_spec {
        instance_type = "system"
      }
    }
  }
}

#-----------------------------------------------------------------
# User Profile
#-----------------------------------------------------------------

resource "aws_sagemaker_user_profile" "labo_user_profile" {
  domain_id      = aws_sagemaker_domain.labo_domain.id
  user_profile_name = "labo-sagemaker-user"
}

#-----------------------------------------------------------------
# SageMaker Role
#-----------------------------------------------------------------

resource "aws_iam_role" "sagemaker_execution_role" {
  name = "sagemaker_execution_role"

  assume_role_policy = jsonencode({
    Version = "2012-10-17"
    Statement = [
      {
        Action = "sts:AssumeRole"
        Effect = "Allow"
        Principal = {
          Service = "sagemaker.amazonaws.com"
        }
      },
    ]
  })
}

resource "aws_iam_policy_attachment" "sagemaker_full_access" {
  name       = "sagemaker_full_access"
  roles      = [aws_iam_role.sagemaker_execution_role.name]
  policy_arn = "arn:aws:iam::aws:policy/AmazonSageMakerFullAccess"
}

#-----------------------------------------------------------------
# SageMaker Security Group
#-----------------------------------------------------------------

resource "aws_security_group" "sagemaker_studio_sg" {
  name        = "labo-sagemaker-studio-sg"
  description = "Security group for SageMaker Studio in labo environment"
  vpc_id = var.vpc_id

  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }

  ingress {
    from_port   = 443
    to_port     = 443
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  tags = {
    Name = "labo-sagemaker-studio-sg"
  }
}

labs/labo1/sagemaker/variables.tf

variable "vpc_id" {}
variable "private_subnet_1a_id" {}

編集が終わったら、デプロイを行います。

$ cd /home/ec2-user/environment/terraform/labs/labo1/
$ terraform init
$ terraform plan
$ terraform apply

ネットワークリソース(VPC/サブネット/ルートテーブル/インターネットゲートウェイ/NAT Gateway/S3ゲートウェイエンドポイント)がデプロイされたことを確認します。

エラーなく、デプロイできたら次のステップに進んでください。

4. 動作確認

マネジメントコンソールで「SageMaker」のページに移動します。
サイドバーから、「Studio」を選択。

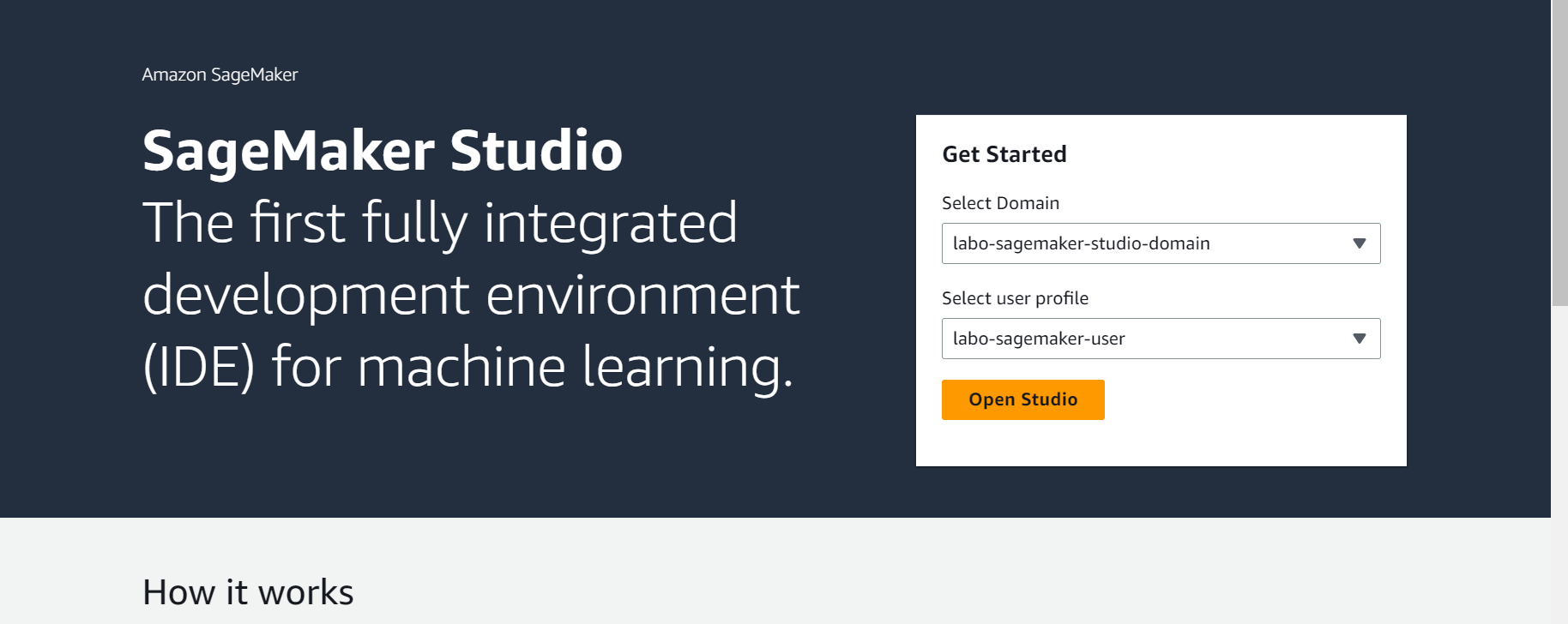

ドメインとユーザープロファイルの登録がされているので、ログインを行ってみます。

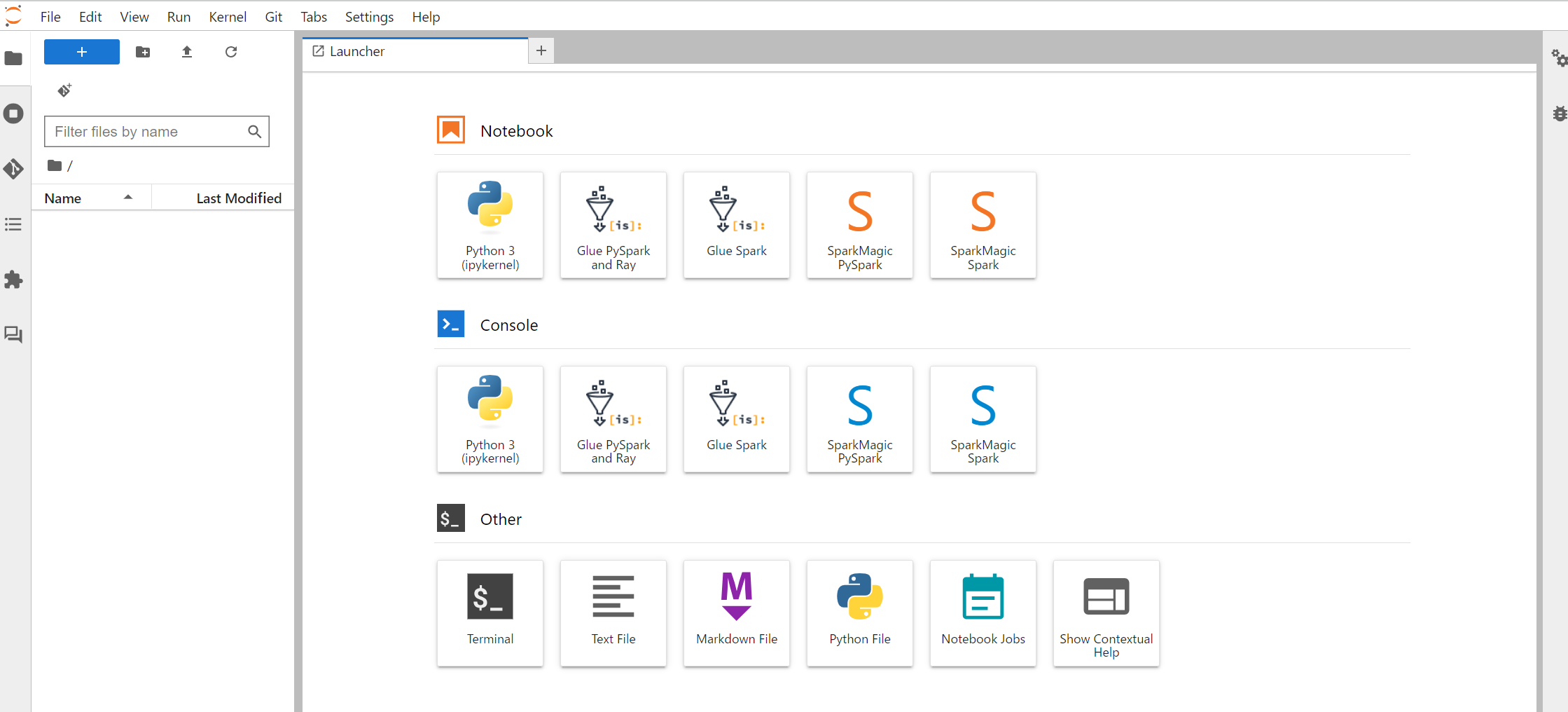

ログインはできているようなので、JupyterLabスペースを作成します。



特に設定は変更せず、「Run Space」を実行します。



問題なく利用ができそうです。

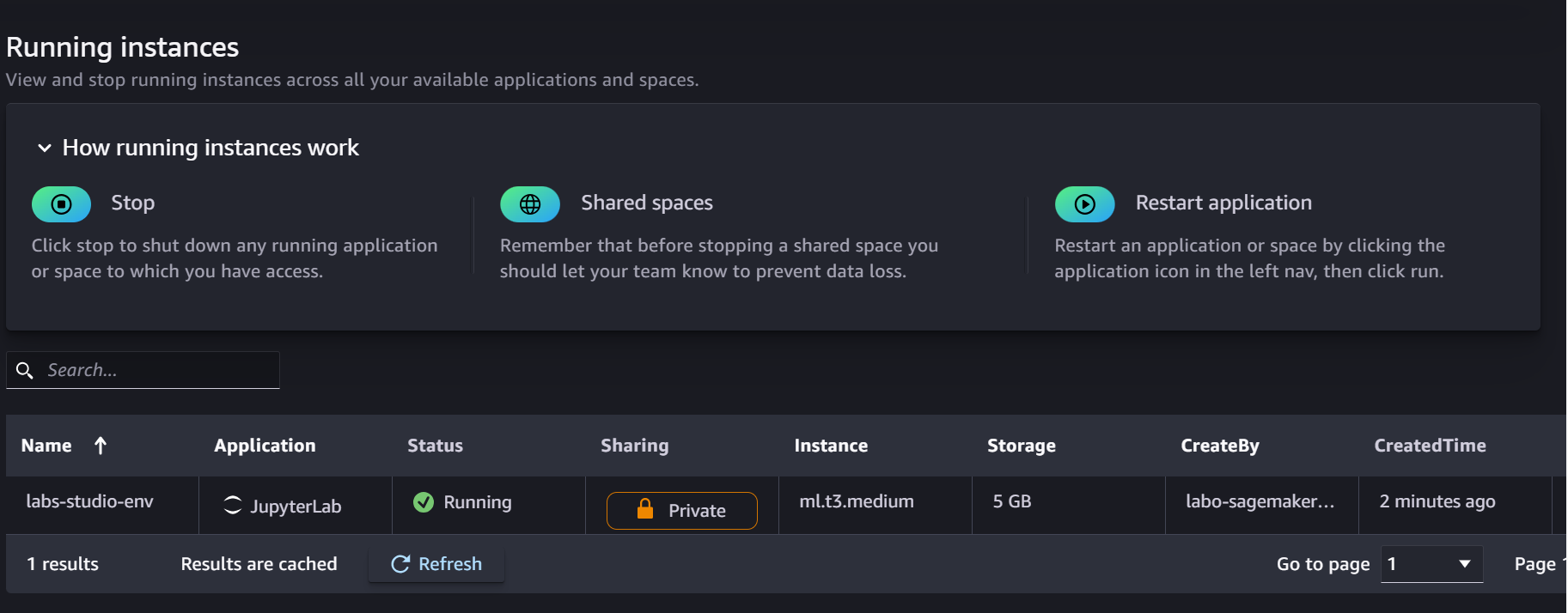

Studio UI上もインスタンス起動の確認ができています。

おわりに

以上、自動セットアップが完了しました。
誰かの参考になれば幸いです。

1
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
1
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
