@fkana

CloudFormationでDynamoDB作成時にハマったこと

AWSのリファレンスを読みながら作成したのに、少しハマったので・・

最初に書いたコード

  • 実行してもDynamoDBが作成されません
yaml
---
AWSTemplateFormatVersion: 2010-09-09
Description: DynamoDB Crete
Parameters:
  TableName:
    Type: String
    Description: DDB Table Name
Resources:
  DDBTable:
    Type: AWS::DynamoDB::Table
    Properties:
      TableName: !Ref TableName
      AttributeDefinitions:
        -
          AttributeName: CreatedId
          AttributeType: S
      KeySchema:
        -
          AttributeName: CreatedId
          KeyType: HASH
Outputs:
  DynamoDBTableName:
    Value:
      !Ref DDBTable
    Description: DynamoDB Table Name
  • プロパティで「必須:はい」のものを全て指定してもうまく実行されない

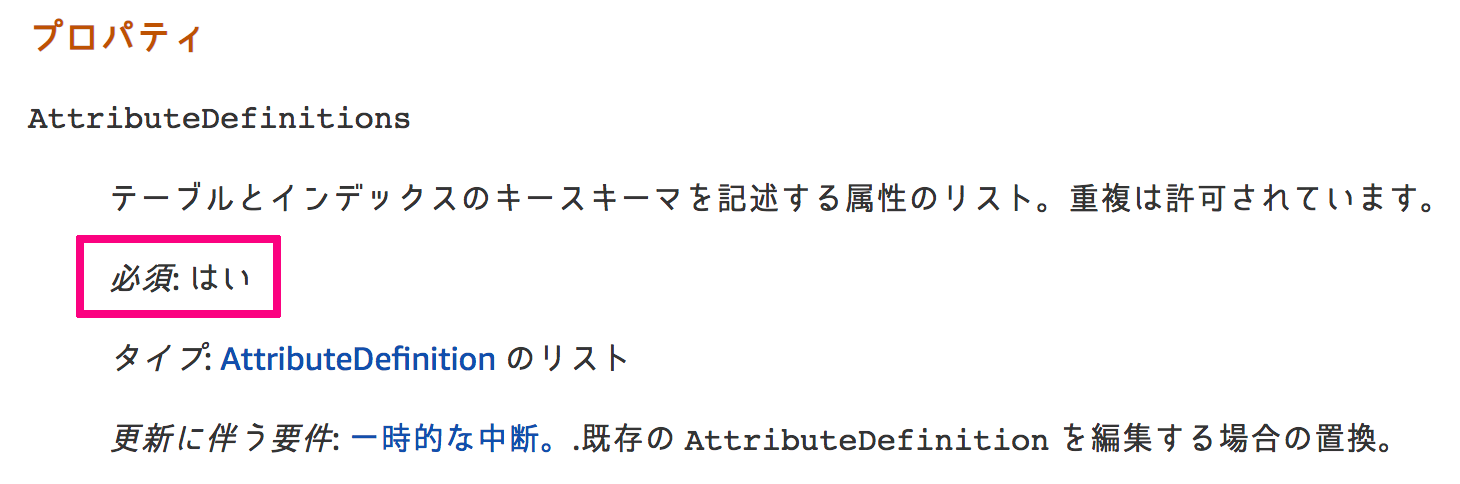

  • スクリーンショット 2019-03-31 0.45.58.png

よく読んだら、デフォルトで入る値によって、必須となるパラメータがあった

  • BillingModeがデフォルトでPROVISIONEDに設定され、その設定の場合、ProvisionedThroughtputの記述が必須になる

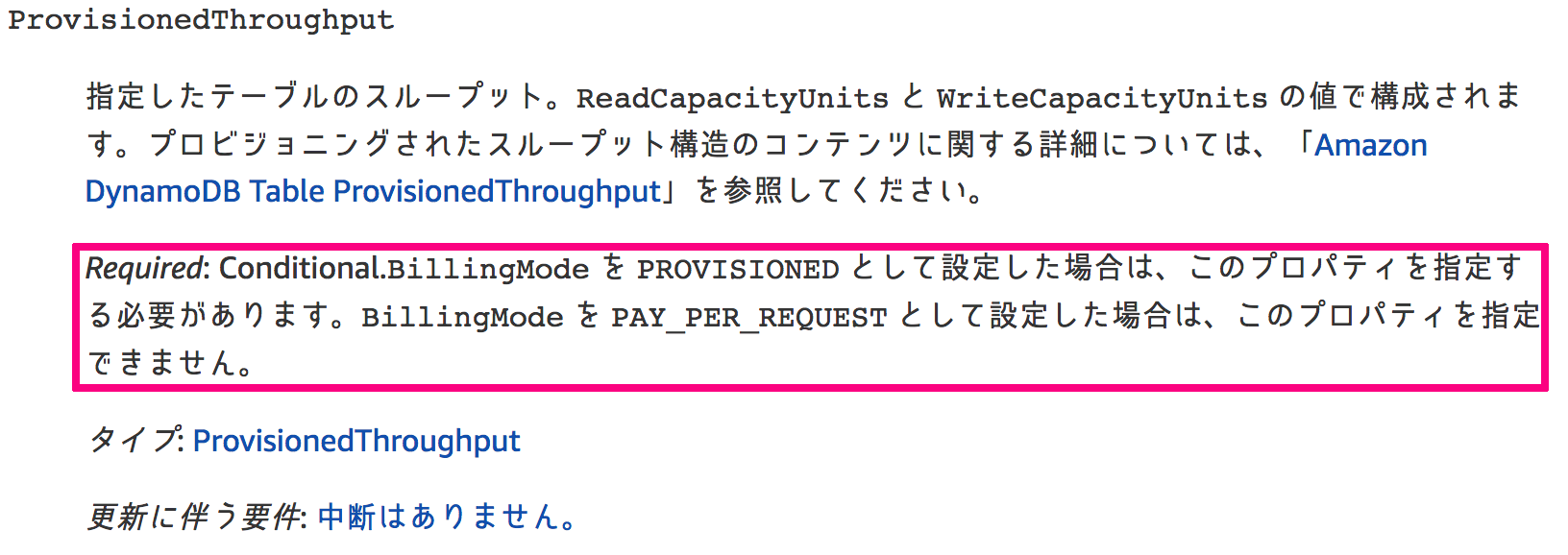

  • スクリーンショット 2019-03-31 0.48.29.png

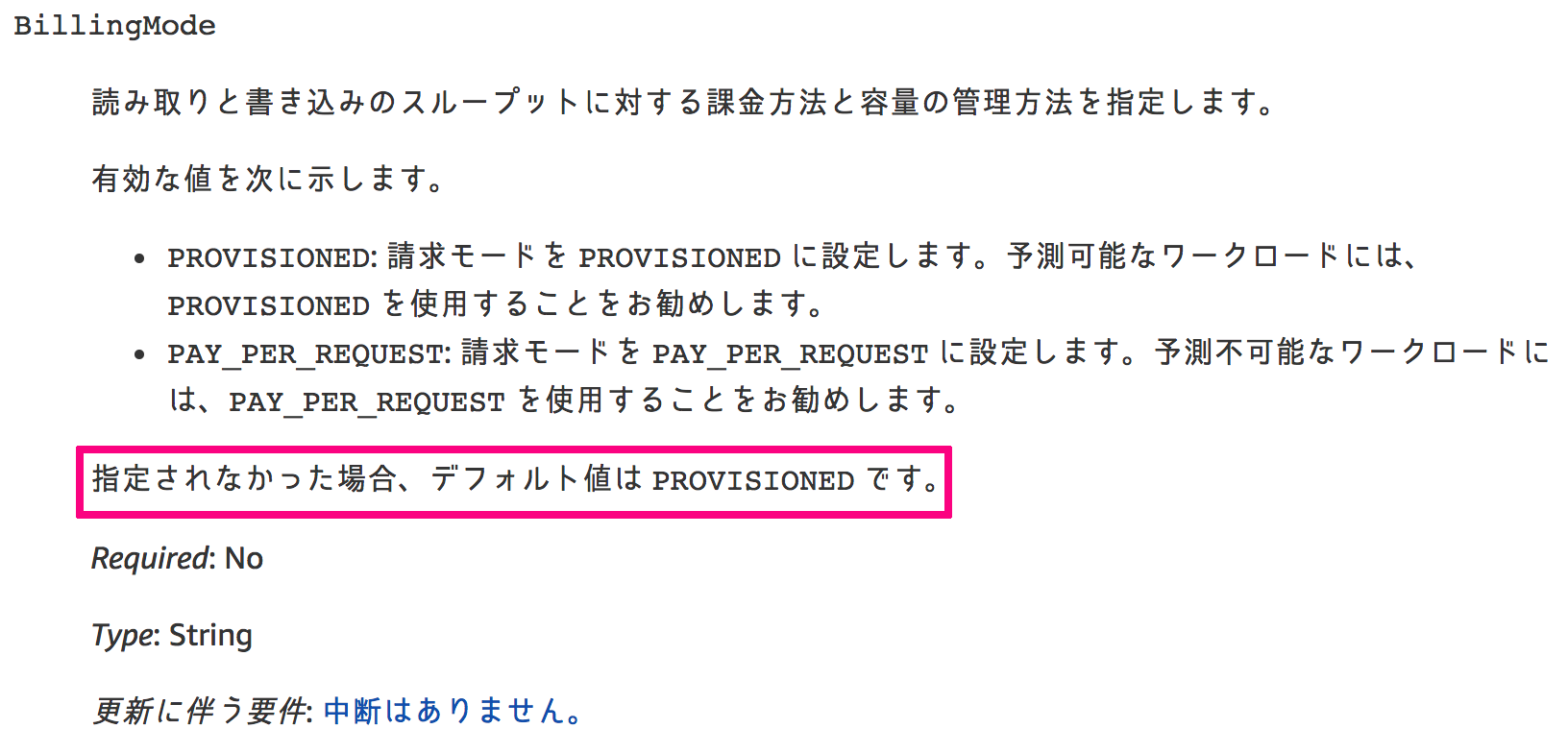

  • スクリーンショット 2019-03-31 0.49.43.png

正しいコード

  • うまくいった
yaml
---
AWSTemplateFormatVersion: 2010-09-09
Description: DynamoDB Crete
Parameters:
  TableName:
    Type: String
    Description: DDB Table Name
Resources:
  DDBTable:
    Type: AWS::DynamoDB::Table
    Properties:
      TableName: !Ref TableName
      AttributeDefinitions:
        -
          AttributeName: CreatedId
          AttributeType: S
      KeySchema:
        -
          AttributeName: CreatedId
          KeyType: HASH
      ProvisionedThroughput:
        ReadCapacityUnits: 3
        WriteCapacityUnits: 3
Outputs:
  DynamoDBTableName:
    Value:
      !Ref DDBTable
    Description: DynamoDB Table Name
