NginxでL4LBを構築し、DNSの冗長化

Last updated at Posted at 2023-08-16

目的

Nginxをhttpロードバランサとして用いるケースはよくある。nginxはTCPやUDPでもルーティング出来る様なので、今回はそれを試す。

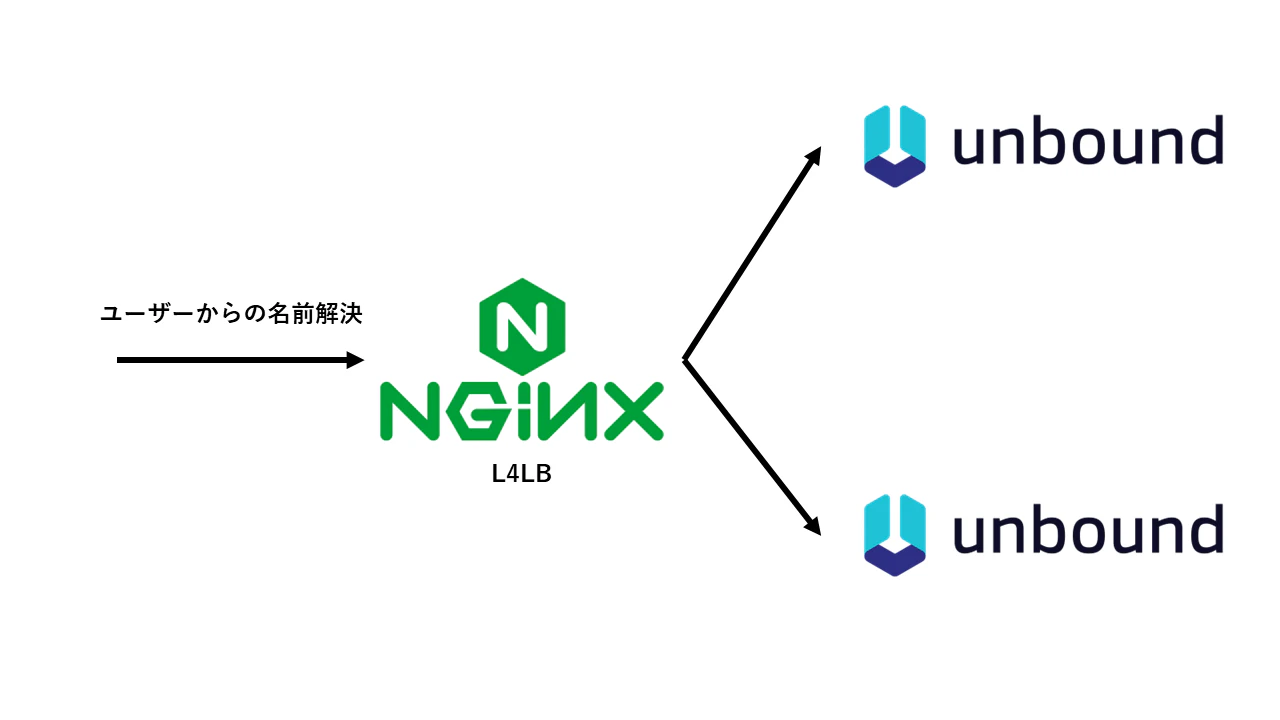

構成


ディレクトリ構造

  • docker-compose.yml
  • Dockerfile
  • docker-log
  • unbound.conf
  • nginx
    • Dockerfile
    • nginx.conf
    • start.sh

docker-compose.yml

unbound1, unbound2で2台のDNSを構築する。nginxl4でL4loadbalancerを構築

version: "3.9"
services:
  unbound1:
    build: .
    image: unbound-alma:1.0.0
    container_name: unbound1
    tty: true

    networks:
      vlan0:
        ipv4_address: 172.24.20.210
    volumes:
      - unbound1:/etc/unbound/log/

  unbound2:
    build: .
    image: unbound-alma:1.0.0
    container_name: unbound2
    tty: true

    networks:
      vlan0:
        ipv4_address: 172.24.20.211
    volumes:
      - unbound2:/etc/unbound/log/

  nginxl4:
    container_name: nginxl4
    restart: always
    build: ./nginx
    image: nginxl4
    tty: true
    stdin_open: true
    networks:
      vlan0:
        ipv4_address: 172.24.20.15

networks:
  vlan0:
    name: vlan0
    driver: macvlan
    driver_opts:
      parent: enp1s0
    ipam:
      config:
        - subnet: 172.24.20.0/24
          gateway: 172.24.20.254


volumes:
  unbound1:
  unbound2:

DNSの構築

以下には実際のDNSの設定を入れていく。

Dockerfile

FROM almalinux:latest
RUN yum -y update && yum -y install unbound
ADD unbound.conf /etc/unbound/
ENV TZ=Asia/Tokyo
ADD docker-log /etc/logrotate.d/

RUN mkdir -p /etc/unbound/log/
RUN chmod 777 /etc/unbound/log/ && \
chown unbound:unbound /etc/unbound/log/ && \
touch /etc/unbound/log/unbound.log && \
chmod 777 /etc/unbound/log/unbound.log && \
chown unbound:unbound /etc/unbound/log/unbound.log && \
chmod 644 /etc/logrotate.d/*

ENTRYPOINT ["/usr/sbin/unbound","-d","-c","/etc/unbound/unbound.conf"]

docker-log

ログの設定を入れる。

/etc/unbound/log/unbound.log { # 対象のログファイル
    ifempty            # ログファイルが空でもローテーションする
    dateformat .%Y%m%d # dateフォーマットを任意のものに変更する
    missingok          # ログファイルがなくてもエラーを出さない
    compress           # 圧縮する
    rotate 10          # 10世代分古いログを残す
    postrotate         # ローテート後にsyslogを再起動
/bin/kill -HUP `cat /var/run/syslogd.pid 2> /dev/null` 2> /dev/null || true
endscript
}

unbound.conf

unbound自体の設定ファイル。
ローカルドメインを一つ設定しておく。

server:
    # Send minimum amount of information to upstream servers to enhance
    # privacy. Only sends minimum required labels of the QNAME and sets
    # QTYPE to NS when possible.

    # See RFC 7816 "DNS Query Name Minimisation to Improve Privacy" for
    # details.

    # qname-minimisation: yes

    # allow local address
    access-control: 0.0.0.0/0 allow

    # listen interface
    interface: 0.0.0.0

    # hide version
    hide-version: yes
    hide-identity: yes


    logfile: "/etc/unbound/log/unbound.log"
    use-syslog: no
    log-queries: yes
    log-time-ascii: yes

    local-data: "www.tmcit.sho    IN A 172.24.20.25"
#    local-data: "fuga.example.com.    IN A 172.16.0.2"
#    local-data: "foo.example.com.     IN A 172.16.0.3"
#    local-data: "bar.example.com.     IN A 172.16.0.4"


#forward-zone:
#        name: "example.org."
#        forward-addr: 192.168.10.5

forward-zone:
        name: "."
        forward-addr: 8.8.8.8
        forward-addr: 8.8.4.4
        forward-addr: 172.24.2.51

Nginxの構築

Dockerfile

FROM almalinux:latest
ADD start.sh /
ADD nginx.conf /usr/local/nginx-1.25.1/conf/nginx.conf

RUN chmod +x /start.sh
RUN yum -y update && yum -y install wget gcc openssl-devel pcre-devel openssl-devel libxslt-devel gd-devel perl-ExtUtils-Embed epel-release nginx-mod-stream
RUN yum -y groupinstall "Development Tools"
RUN yum -y install https://dl.fedoraproject.org/pub/epel/epel-release-latest-8.noarch.rpm
RUN yum -y install GeoIP-devel
RUN wget http://nginx.org/download/nginx-1.25.1.tar.gz
RUN tar -zxvf  nginx-1.25.1.tar.gz

RUN cd nginx-1.25.1 && ./configure --prefix=/usr/local/nginx-1.25.1 \
--user=www \
--group=www \
--pid-path=/var/run/nginx.pid \
--error-log-path=/var/log/nginx/error.log \
--http-log-path=/var/log/nginx/access.log \
--lock-path=/var/run/nginx.lock \
--with-http_ssl_module \
--with-http_realip_module \
--with-http_stub_status_module \
--without-http_rewrite_module \
--without-http_gzip_module \
--with-stream              \
--with-stream=dynamic      \
--with-stream_ssl_module   \
--with-stream_geoip_module \
--with-stream_geoip_module=dynamic

RUN cd nginx-1.25.1 && make && make install

RUN groupadd www && useradd -g www www && usermod -s /bin/false www

ENTRYPOINT ["/start.sh"]

start.sh

起動時に実行するスクリプト

start.sh
#!/bin/bash

/usr/local/nginx-1.25.1/sbin/nginx -c /usr/local/nginx-1.25.1/conf/nginx.conf
while true; do  echo test >> /dev/null; sleep 1s; done

nginx.conf

1行目で、モジュールの読み込みを行う。
streamディレクティブで、proxy先のサーバーを指定する

load_module /usr/local/nginx-1.25.1/modules/ngx_stream_module.so;

#user  nobody;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}


http {

}

#    include       mime.types;
#    default_type  application/octet-stream;
#
#    #log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
#    #                  '$status $body_bytes_sent "$http_referer" '
#    #                  '"$http_user_agent" "$http_x_forwarded_for"';
#
#    #access_log  logs/access.log  main;
#
#    sendfile        on;
#    #tcp_nopush     on;
#
#    #keepalive_timeout  0;
#    keepalive_timeout  65;
#
#    #gzip  on;

stream {
    proxy_protocol on;
    upstream dns {
        server 172.24.20.210:53;
        server 172.24.20.211:53;
    }

    server {
        listen 53 udp;
        proxy_pass dns;
    }
}

#        server_name  localhost;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;

#        location / {
#            root   html;
#            index  index.html index.htm;
#        }

        #error_page  404              /404.html;

        # redirect server error pages to the static page /50x.html
        #
#        error_page   500 502 503 504  /50x.html;
#        location = /50x.html {
#            root   html;
#        }

        # proxy the PHP scripts to Apache listening on 127.0.0.1:80
        #
        #location ~ \.php$ {
        #    proxy_pass   http://127.0.0.1;
        #}

        # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
        #
        #location ~ \.php$ {
        #    root           html;
        #    fastcgi_pass   127.0.0.1:9000;
        #    fastcgi_index  index.php;
        #    fastcgi_param  SCRIPT_FILENAME  /scripts$fastcgi_script_name;
        #    include        fastcgi_params;
        #}

        # deny access to .htaccess files, if Apache's document root
        # concurs with nginx's one
        #
        #location ~ /\.ht {
        #    deny  all;
        #}
#    }


    # another virtual host using mix of IP-, name-, and port-based configuration
    #
    #server {
    #    listen       8000;
    #    listen       somename:8080;
    #    server_name  somename  alias  another.alias;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}


    # HTTPS server
    #
    #server {
    #    listen       443 ssl;
    #    server_name  localhost;

    #    ssl_certificate      cert.pem;
    #    ssl_certificate_key  cert.key;

    #    ssl_session_cache    shared:SSL:1m;
    #    ssl_session_timeout  5m;

    #    ssl_ciphers  HIGH:!aNULL:!MD5;
    #    ssl_prefer_server_ciphers  on;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}

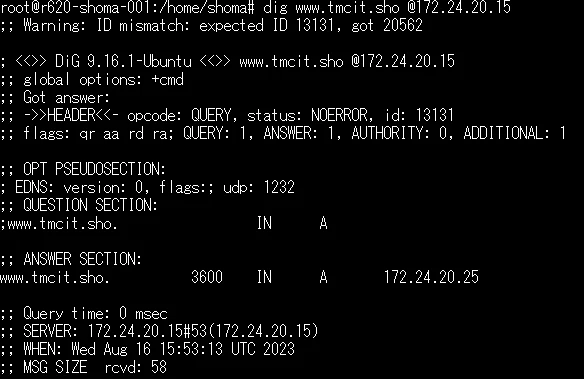

確認


現状の課題

  • VPN越しだと解決が出来ない。同じセグメントに属している場合は問題なく解決できる

→ DNSをホストか、portsで公開
