setup & sample run android app with appium + ruby in Mac

Posted at

Outline

先日、java , python によるtest自動化するための構築,sample codeを記載した
Selenium WebDriver Java Simple Program - Login
setup & sample run android app with appium + python in Mac

今回は、NativeAPPをRubyでテストするための第一歩までを記述する。

install ruby 3.x

Mac はDefaultでrubyがinstallされている。ただ、2.6と古いversionであり、3.x系を手動でインストールする
いまのrubyのversionを確認

ruby -v

ruby 2.6.8p205 (2021-07-07 revision 67951) [universal.x86_64-darwin21]

ruby3.xをinstallする

brew install rbenv ruby-build
rbenv -v

rbenv 1.2.8

ruby-build --version

ruby-build 20221124

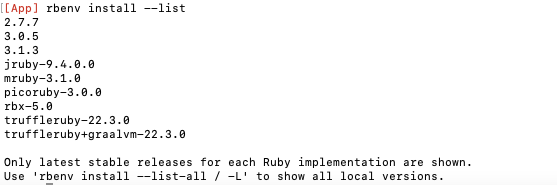

install可能なrubyをlistupする

rbenv install --list


今回、3.1.3を選んだ。

rbenv install 3.1.3
rbenv global 3.1.3

次に、installしたruby3がdefaultのpathになるようにする。

rbenv init


実行のメッセージ通りに、terminal起動時にruby3が有効になるように、.bash_profileに以下を追記する

eval "$(rbenv init - bash)"

これで、terminalを立ち上げなおし、ruby versionを確認する

ruby -v

ruby 3.1.3p185 (2022-11-24 revision 1a6b16756e) [x86_64-darwin21]

install liblary

appiumのテストにappium_capybaraを用いる。
そこで、これに必要となるlibraryをinstallする。

まず、Gemfileを作成する

Gemfile

source "https://rubygems.org"

# Run against this stable release
group :development, :test do
  gem 'capybara','~>3.36.0'
  gem 'appium_lib','~>12.0.1'
  gem 'selenium-webdriver'
  gem 'appium_capybara'
  gem 'site_prism'
  gem 'rspec-rails', '~> 6.0.0'
  #gem 'rspec-rails'
end

installを実行する

bundle install

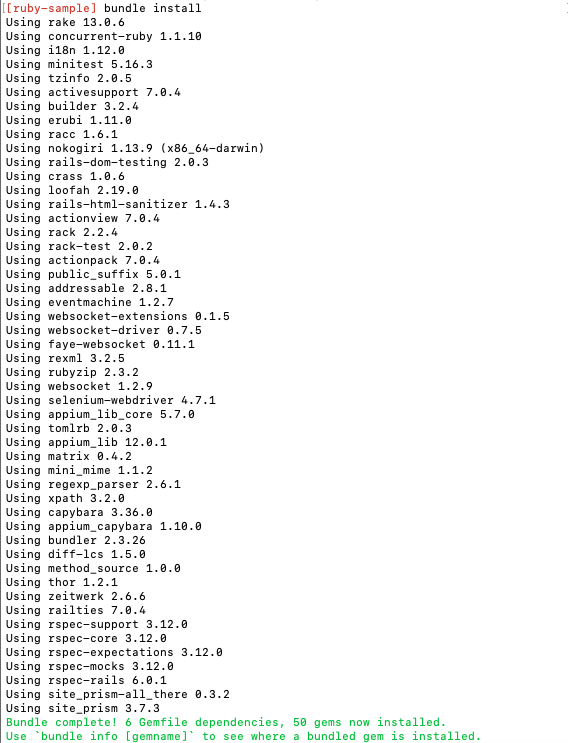

成功したら、以下のようになる。

Script

https://github.com/appium/appium_capybara/tree/master/example
こちらを参考に単純なテストスクリプトを実装した。
以下3ファイル用意する

Helper

spec_helper.rb

require_relative 'capybara_init'

RSpec.configure do |config|
  config.after(:each) { Capybara.current_session.driver.quit }

  config.after do |result|
    Capybara.current_session.driver.save_screenshot 'error.png' if result.exception
  end
end

capabilitiesに関するファイル

appiumに接続するデバイス環境に応じて設定する

capybara_init.rb

require 'rspec'
require 'capybara'
require 'capybara/rspec'
require 'appium_capybara'
require 'site_prism'

Capybara.register_driver(:appium) do |app|
  Appium::Capybara::Driver.new app, capabilities: {
      'platformName' => 'android',
      'platformVersion' =>  '10.0',
      'appium:deviceName' => 'XPERIA5',
      'appium:automationName' => 'UiAutomator2',
      'appium:app' => '/Users/xxxxx/App/compose_playground.apk',
      'appium:wdaLaunchTimeout' => 600000,
    },
    appium_lib: { server_url: 'http://localhost:4723/wd/hub' },
    global_driver: false
end

Capybara.default_driver = :appium

テスト本体

今回は単純にボタンをクリックするテストである

android_sample.rb

require_relative 'spec_helper'

describe 'UICompose smoke test' do
  it 'should detect the nav bar and get some methods' do

    expect(Capybara.current_driver).to be :appium

    capy_driver = Capybara.current_session.driver.appium_driver

    el1 = capy_driver.find_element( :id, "com.example.jetpackcomposeplayground:id/simple_text_example" )
    el1.click

  end
end

execute test

以下コマンドを実行する

bundle exec rspec android_sample.rb
