Rescale CLI を利用する

More than 3 years have passed since last update.

Rescale CLI を用いてAPIをキックし、ジョブを投入してみます。

0. API キーの取得

Rescaleにログイン後下記ステップで、APIキーを取得します。
この機能はエンタープライズバージョン限定の機能となっています。

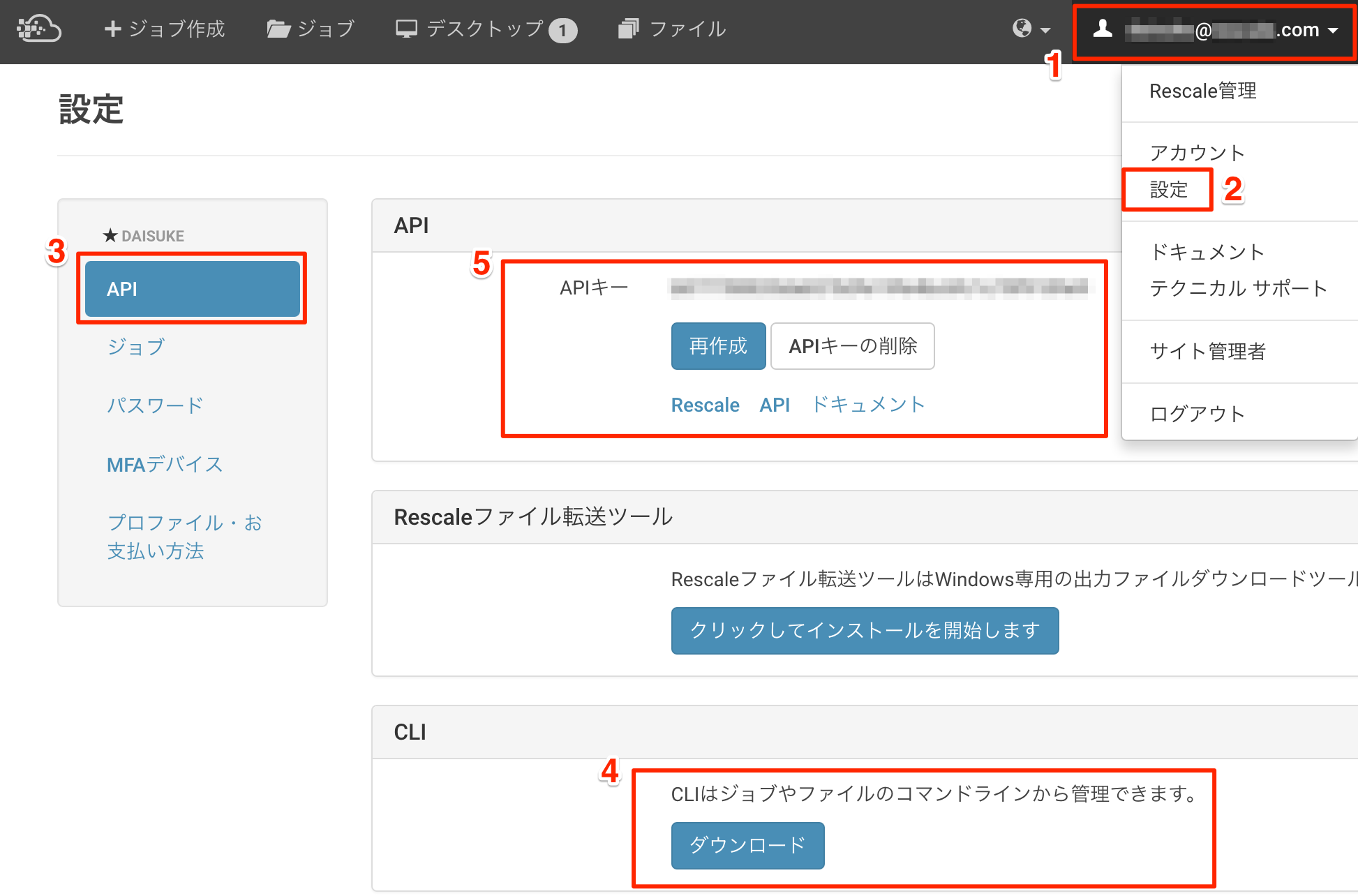

  1. 画面右上のアカウント名をクリックします
  2. 設定をクリックします
  3. 画面左、APIをクリックします
  4. CLI から rescale.jar をダウンロードし、任意の場所に保存しました。私はMacですが、この例では /usr/local/bin/rescale.jar に保存したとし、以後記述します。
  5. 画面に従い APIキーを作成します。ドキュメントもダウンロードしておくと便利です。


1. Rescale API を用いた Hello world ジョブの投入

1.1 環境の設定

API-Keyの決定
TOKEN='<ブラウザから生成したAPIキー>'
Regionの決定
REGION="https://platform.rescale.jp/"

1.2 ランスクリプトの作成

ランスクリプト名の決定
SUBMIT='submit.sh'
runscriptの作成
cat << EOF > ${SUBMIT}
#!/bin/sh -f
#RESCALE_NAME="HelloWorld"
#RESCALE_CORES=1

echo "HelloWorld!" > hello_world
sleep 1000
EOF

1.3 Rescale CLI を用いた Hello world Job の投入

Jobの投入
java -jar /usr/local/bin/rescale.jar \
    -X ${REGION} submit \
    -p ${TOKEN} \
    -E -i ${SUBMIT}
result
2016-09-18 20:00:04,281 - Running SGE version of Rescale Client App
2016-09-18 20:00:04,293 - Executing Command.
2016-09-18 20:00:04,296 - Parsing Input Files
2016-09-18 20:00:04,296 - No existing files to include
2016-09-18 20:00:04,790 - No core type specified by user. Using default core type 'Nickel'
2016-09-18 20:00:04,793 - Did not find explicitly specified analysis, checking implicitly selected analyses
2016-09-18 20:00:04,793 - No implicitly selected analyses, assuming user-included analysis
2016-09-18 20:00:04,795 - Zipping Files
2016-09-18 20:00:04,795 - Creating temporary encrypted zip at /Users/daisuke/Documents/tmp/rescaleAPI/input.zip
2016-09-18 20:00:04,814 - Finished writing encrypted file
2016-09-18 20:00:04,814 - Uploading Files
2016-09-18 20:00:04,816 - Uploading: /Users/daisuke/Documents/tmp/rescaleAPI/run.sh
2016-09-18 20:00:04,817 - Uploading run.sh:
2016-09-18 20:00:07,665 - ##############################| 112B / 112B
2016-09-18 20:00:08,207 - Uploading: /Users/daisuke/Documents/tmp/rescaleAPI/input.zip
2016-09-18 20:00:08,207 - Uploading input.zip:
2016-09-18 20:00:08,394 - ##############################| 1.22KB / 1.22KB
2016-09-18 20:00:08,747 - Job: Saving Job
2016-09-18 20:00:09,246 - Job fWgWa: Saved
2016-09-18 20:00:09,246 - Job fWgWa: Submitting
2016-09-18 20:00:10,146 - Job fWgWa: Starting polling cycle
2016-09-18 20:01:10,328 - Job fWgWa: Status - Validated
2016-09-18 20:02:10,515 - Job fWgWa: Status - Validated
2016-09-18 20:03:10,686 - Job fWgWa: Status - Validated
2016-09-18 20:04:10,875 - Job fWgWa: Status - Validated
2016-09-18 20:05:11,068 - Job fWgWa: Status - Completed
2016-09-18 20:05:11,068 - Job fWgWa: Finished...
2016-09-18 20:05:11,068 - Job fWgWa: Downloading files to /Users/daisuke/Documents/tmp/rescaleAPI/output
2016-09-18 20:05:11,618 - Downloading output/file0
2016-09-18 20:05:11,618 - Downloading file0:
2016-09-18 20:05:12,475 - ##############################| 16B / 16B
2016-09-18 20:05:12,475 - Downloading output/hello_world
2016-09-18 20:05:12,475 - Downloading hello_world:
2016-09-18 20:05:12,588 - ##############################| 16B / 16B
2016-09-18 20:05:12,588 - Downloading output/inputs/file1
2016-09-18 20:05:12,588 - Downloading file1:
2016-09-18 20:05:12,715 - ##############################| 16B / 16B
2016-09-18 20:05:12,716 - Downloading output/submit.sh
2016-09-18 20:05:12,716 - Downloading submit.sh:
2016-09-18 20:05:12,825 - ##############################| 112B / 112B
2016-09-18 20:05:12,825 - Downloading output/run.sh
2016-09-18 20:05:12,825 - Downloading run.sh:
2016-09-18 20:05:12,996 - ##############################| 112B / 112B
2016-09-18 20:05:12,996 - Downloading output/rescale-submit
2016-09-18 20:05:12,996 - Downloading rescale-submit:
2016-09-18 20:05:13,107 - ##############################| 320B / 320B
2016-09-18 20:05:13,107 - Downloading output/process_output.log
2016-09-18 20:05:13,108 - Downloading process_output.log:
2016-09-18 20:05:13,237 - ##############################| 256B / 256B
2016-09-18 20:05:13,237 - Downloading output/inputs/file2
2016-09-18 20:05:13,237 - Downloading file2:
2016-09-18 20:05:13,344 - ##############################| 16B / 16B
2016-09-18 20:05:13,428 - Finished downloading files.

ハマりどころ

日本の場合、上記でちゃんと -X "https://platform.rescale.jp/" と指定する必要があります。
これをしないと"https://platform.rescale.com/" とjpではなくcom (US) に接続しようとして、認証が通りません。
