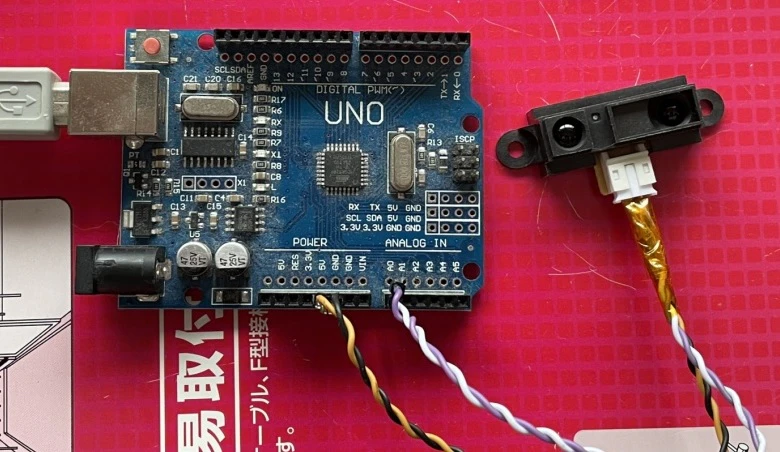

Arduino UNOとGP2Y0A21YK(赤外線距離センサー)で10cmから20cmを求める。(参考用テスト結果)

Last updated at 2022-05-19Posted at 2021-05-24

x気になる人よう

目的
adcのテスト用

参考


void setup() {
  Serial.begin(9600);
}

int sensorValue; //センサーの読み取り値
float Voltage;     //電圧
float ir_length;   //長さ

void loop() {

  sensorValue = analogRead(A0);
  Voltage = (float)sensorValue * ( 5.0 / 1024.0 );
  if (Voltage >= 0 && Voltage <= 1.2)   {Voltage = 1.2;}
  if (Voltage >= 2.4 && Voltage <= 5.0) {Voltage = 2.4;}

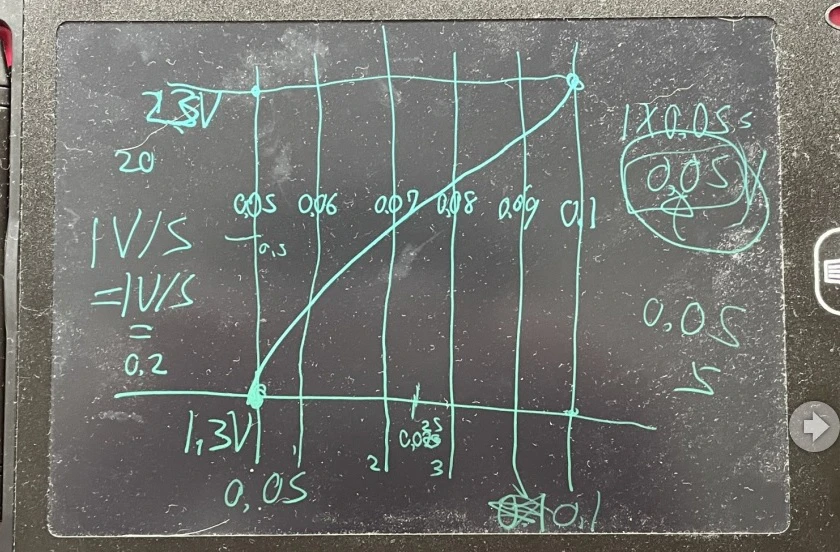

  ir_length = 1/ ( 0.05 + ( ( Voltage - 1.3) * 0.05 ) );

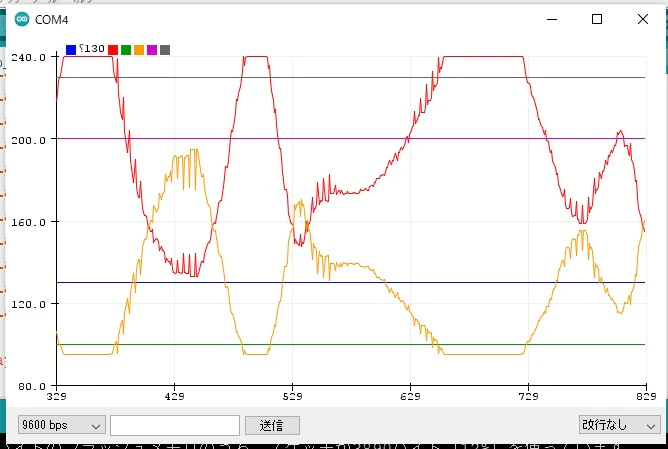

  //Serial.println(sensorValue);
  Serial.print("130");
  Serial.print(",");
  Serial.print(Voltage*100);
  Serial.print(",");
  Serial.print("100");
  Serial.print(",");
  Serial.print(ir_length*10);
  Serial.print(",");
  Serial.print("200");
  Serial.print(",");
  Serial.println("230");

  delay(10);
}

参考

配列化


#include <stdio.h>
int main(void){

    int ii;
    int s;

unsigned char pp[]={
200,199,198,197,196,196,195,194,193,193,
192,191,190,190,189,188,187,187,186,185,
185,184,183,183,182,181,181,180,179,179,
178,177,177,176,176,175,174,174,173,173,
172,171,171,170,170,169,168,168,167,167,
166,166,165,165,164,163,163,162,162,161,
161,160,160,159,159,158,158,157,157,156,
156,155,155,154,154,153,153,152,152,151,
151,151,150,150,149,149,148,148,147,147,
147,146,146,145,145,144,144,144,143,143,
142,142,142,141,141,140,140,140,139,139,
138,138,138,137,137,136,136,136,135,135,
135,134,134,134,133,133,132,132,132,131,
131,131,130,130,130,129,129,129,128,128,
128,127,127,127,126,126,126,125,125,125,
125,124,124,124,123,123,123,122,122,122,
121,121,121,121,120,120,120,119,119,119,
119,118,118,118,117,117,117,117,116,116,
116,116,115,115,115,114,114,114,114,113,
113,113,113,112,112,112,112,111,111,111,
111,110,110,110,110,109,109,109,109,108,
108,108,108,107,107,107,107,107,106,106,
106,106,105,105,105,105,105,104,104,104,
104,103,103,103,103,103,102,102,102,102,
102,101,101,101,101,101,100,100,100,100,
100
};

    for(ii = 1300;ii <= 2300;ii=ii+4) {

        s=(ii-1300)>>2;

        printf("%d \t %d \n",ii,pp[s]);

    }//ii

}//main
