STM32G031とGP2Y0A21YK(赤外線距離センサー)で6cmから80cmを求める。 ソフトウェアシリアル出力

Last updated at Posted at 2021-05-27

目的
adcのテスト用

どうしてこうなったかは、6-10,10-20,20-80を参考



//#define in7 1 //uno
#define in7      PB7  // 1pin

#define DW   digitalWrite

//#define UART_DELAY 832 //  1200bps ok 031
#define UART_DELAY 102   //  9600bps ok 031

//10の割り算 0から1028までは、正しい。主に0から999
//#define DVI10(n) ((n*205)>>11)

//仮想シリアルへの一文字出力 9600bps
int pc_putc(char ch) {

  DW(in7, HIGH);

    //q_st =  micros(); //debug

  DW(in7, LOW);//START
  delayMicroseconds(UART_DELAY);

  for(int ii=0;ii<8;ii++){
    DW(in7, (ch>>ii)&1  );
    delayMicroseconds(UART_DELAY);
  }//for

  DW(in7, HIGH);//Stop
  delayMicroseconds(UART_DELAY);

    //q_et =  micros(); //debug 引いた数が0で1041usなら正解

  return(0);

}//pc_putc

//文字列の表示
int pc_printf(char *str1) {

    //文字の中身がゼロか
    while(*str1){

        //一文字出力
        pc_putc(*str1 ++);
        //Serial.print( *str1 ++ ); //uno

    } //while

    //戻り値
    return(0);
}//pc_printf

//0から999まで文字列に変換
char ch_hex_a_b[5];
char *ch_hex_a(int l_num)
{
  int a,b,c;

  b=l_num/10;
  c=l_num-(b*10); //1の桁
  a=b/10;         //100の桁
  b=b-(a*10);     //10の桁

  ch_hex_a_b[0] = '0' + a;
  ch_hex_a_b[1] = '0' + b;
  ch_hex_a_b[2] = '0' + c;
  ch_hex_a_b[3] = 0;

  return(ch_hex_a_b);
}//ch_hex_a

//赤外線距離センサー(GP2Y0A21YK)の電圧から距離を求める。
//Voltage //電圧
float ir_len(float Voltage)
{

    float ir_length;   //長さ

    if (Voltage >= 0.0f  && Voltage <= 0.4f) {Voltage = 0.4f;}
    if (Voltage >= 3.12f && Voltage <= 5.0f) {Voltage = 3.12f;}

    if        (Voltage >= 0.4f && Voltage <= 1.3f ) { //80-20

        ir_length = 1.0f/ ( 0.0125f + ( ( Voltage - 0.4f) *  (0.0375f/0.9f) ) );

    } else if (Voltage >= 1.3f && Voltage <= 2.3f ) { //20-10

        ir_length = 1.0f/ ( 0.05f   + ( ( Voltage - 1.3f) * 0.05f ) );

    } else if (Voltage >= 2.3f && Voltage <= 2.75f)  { //10-8

        ir_length = 1.0f/ ( 0.1f + ( ( Voltage - 2.3f) * (0.025f/0.45f) ) );

    } else if (Voltage >= 2.75f && Voltage <= 2.98f) { //8-7

        ir_length = 1.0f/ ( 0.125f + ( ( Voltage - 2.75f) * (0.0179f/0.23f) ) );

    } else if (Voltage >= 2.98f && Voltage <= 3.12f) { //7-6

        ir_length = 1.0f/ ( 0.1429f + ( ( Voltage - 2.98f) * (0.0238f/0.14f) ) );

    }//end if

    //戻り値
    return(ir_length);

} //ir_len

//初期化
void setup()
{
  //ポートをhiにする 初期化
  pinMode(in7, OUTPUT);
  DW(in7, HIGH);
  delayMicroseconds(UART_DELAY*10);

  //Serial.begin(9600);

} //setup

//メインループ
void loop()
{

  int s; //センサーの値  //101

  float Voltage;      //電圧
  float ir_length;    //長さ
  int ir_length_i;    //長さ
  int ir_length_s;    //長さ 小数点以下

  s = analogRead(A3); // PA11 PIN5
  //s = (65536/2)-1;
  //s = 65536/4;
  //s=(4096/2);
  //s=(1024/2);

//d  //pc_printf( "," ); //debug_i
//d  String thisString1 = String(s);
//d  pc_printf( (char *)thisString1.c_str() );
//d  pc_printf("\r\n");

  //電圧に変換 ex 3.300 -> 3300 mVを出力
  s=(  (s*4)  *6600)>>13;

//d  //pc_printf( "," ); //debug_i
//d  String thisString2 = String(s);
//d  pc_printf( (char *)thisString2.c_str() );
//d  pc_printf("\r\n");

  //電圧に変換 3300mv 3.300V
  Voltage = (float)s / 1000.0f;
  //赤外線距離センサー(GP2Y0A21YK)の電圧から距離を求める。
  ir_length = ir_len(Voltage);

  //小数点以上と小数点以下に分離
  ir_length_i = (int)ir_length;
  ir_length_s = (int)(ir_length*1000);
  ir_length_s = ir_length_s - (ir_length_i * 1000);

  //距離の小数点以上の表示
  pc_printf(  ch_hex_a(ir_length_i)  );

  //小数点
  pc_printf(  "."  );

  //距離の小数点以下の表示
  pc_printf(  ch_hex_a(ir_length_s)  );

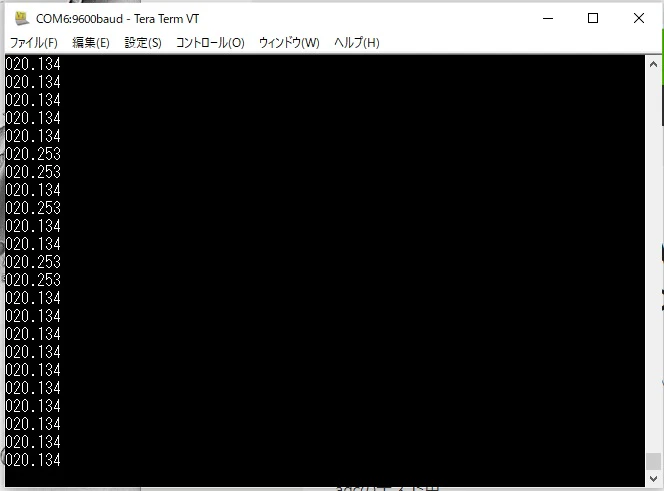

  pc_printf(  "\r\n"  );

  //1秒の待ち
  delay(1000);

} //loop


いろいろ　まだ試していない　あとで消す



//ir_length_s_031_1

#include <Arduino.h>
//#include <Wire.h>


//10の割り算 0から1028までは、正しい。主に0から999
#define DIV10(n) ((n*205)>>11)


#include "SER_9600_031_1.h"


//80-20
unsigned char qq[] = {
  80, 78, 77, 76, 75, 75, 74, 73, 72, 71,
  70, 69, 68, 68, 67, 66, 65, 65, 64, 63,
  63, 62, 61, 61, 60, 60, 59, 58, 58, 57,
  57, 56, 56, 55, 55, 54, 54, 53, 53, 52,
  52, 51, 51, 50, 50, 50, 49, 49, 48, 48,
  47, 47, 47, 46, 46, 46, 45, 45, 45, 44,
  44, 44, 43, 43, 43, 42, 42, 42, 41, 41,
  41, 41, 40, 40, 40, 40, 39, 39, 39, 38,
  38, 38, 38, 37, 37, 37, 37, 37, 36, 36,
  36, 36, 35, 35, 35, 35, 35, 34, 34, 34,
  34, 34, 33, 33, 33, 33, 33, 32, 32, 32,
  32, 32, 32, 31, 31, 31, 31, 31, 31, 30,
  30, 30, 30, 30, 30, 30, 29, 29, 29, 29,
  29, 29, 28, 28, 28, 28, 28, 28, 28, 28,
  27, 27, 27, 27, 27, 27, 27, 27, 26, 26,
  26, 26, 26, 26, 26, 26, 25, 25, 25, 25,
  25, 25, 25, 25, 25, 25, 24, 24, 24, 24,
  24, 24, 24, 24, 24, 24, 23, 23, 23, 23,
  23, 23, 23, 23, 23, 23, 22, 22, 22, 22,
  22, 22, 22, 22, 22, 22, 22, 22, 21, 21,
  21, 21, 21, 21, 21, 21, 21, 21, 21, 21,
  21, 20, 20, 20, 20, 20, 20, 20, 20, 20,
  20, 20, 20, 20, 20, 20
};

//20-10
unsigned char pp[] = {
  200, 199, 198, 197, 196, 196, 195, 194, 193, 193,
  192, 191, 190, 190, 189, 188, 187, 187, 186, 185,
  185, 184, 183, 183, 182, 181, 181, 180, 179, 179,
  178, 177, 177, 176, 176, 175, 174, 174, 173, 173,
  172, 171, 171, 170, 170, 169, 168, 168, 167, 167,
  166, 166, 165, 165, 164, 163, 163, 162, 162, 161,
  161, 160, 160, 159, 159, 158, 158, 157, 157, 156,
  156, 155, 155, 154, 154, 153, 153, 152, 152, 151,
  151, 151, 150, 150, 149, 149, 148, 148, 147, 147,
  147, 146, 146, 145, 145, 144, 144, 144, 143, 143,
  142, 142, 142, 141, 141, 140, 140, 140, 139, 139,
  138, 138, 138, 137, 137, 136, 136, 136, 135, 135,
  135, 134, 134, 134, 133, 133, 132, 132, 132, 131,
  131, 131, 130, 130, 130, 129, 129, 129, 128, 128,
  128, 127, 127, 127, 126, 126, 126, 125, 125, 125,
  125, 124, 124, 124, 123, 123, 123, 122, 122, 122,
  121, 121, 121, 121, 120, 120, 120, 119, 119, 119,
  119, 118, 118, 118, 117, 117, 117, 117, 116, 116,
  116, 116, 115, 115, 115, 114, 114, 114, 114, 113,
  113, 113, 113, 112, 112, 112, 112, 111, 111, 111,
  111, 110, 110, 110, 110, 109, 109, 109, 109, 108,
  108, 108, 108, 107, 107, 107, 107, 107, 106, 106,
  106, 106, 105, 105, 105, 105, 105, 104, 104, 104,
  104, 103, 103, 103, 103, 103, 102, 102, 102, 102,
  102, 101, 101, 101, 101, 101, 100, 100, 100, 100,
  100
};

//10-6
unsigned char oo[] = {
  100, 99, 98, 98, 97, 97, 96, 96, 95, 95,
  94, 94, 93, 93, 92, 92, 91, 91, 90, 90,
  90, 89, 89, 88, 88, 87, 87, 86, 86, 86,
  85, 85, 84, 84, 84, 83, 83, 82, 82, 82,
  81, 81, 81, 80, 80, 80, 79, 79, 78, 78,
  77, 77, 76, 76, 75, 75, 74, 74, 74, 73,
  73, 72, 72, 71, 71, 71, 70, 70, 69, 69,
  68, 67, 66, 66, 65, 64, 63, 63, 62, 61,
  61, 60, 60
};


//赤外線距離センサー(GP2Y0A21YK)の電圧から距離を求める。
//Voltage //電圧
int ir_len_i(int Voltage)
{

  int ir_length;   //長さ

  if (Voltage >= 0    && Voltage <= 400 ) {
    return (800);
  }
  if (Voltage >= 3120 && Voltage <= 5000) {
    return (60);
  }

  if        (Voltage >= 400 && Voltage <= 1300 ) { //80-20

    ir_length = (int)qq[(Voltage - 400) >> 2];
    ir_length = ir_length * 10;

  } else if (Voltage >= 1300 && Voltage <= 2300 ) { //20-10

    ir_length = (int)pp[(Voltage - 1300) >> 2];

  } else if (Voltage >= 2300 && Voltage <= 3120  ) { //10-6

    //ir_length = (int)oo[(Voltage - 2300) / 10];
    ir_length = (int)oo[  ((Voltage - 2300)*205)>>11 ]; //10の割り算

  }//end if

  //戻り値
  return (ir_length);

} //ir_le_i


//初期化
void setup() {

  //i2cの初期化
  pc.beginNS(9600);

}//setup


//メインループ
void loop() {

  int sensorValue; //センサーの読み取り値
  int Voltage;     //電圧
  int ir_length;   //長さ

  //アナログ値の読み込み

  analogReadResolution(12); //adc 12bit mode
  //sensorValue = analogRead(A3); // PA11 PIN5 031
  sensorValue = analogRead(A9); // PB7  PIN1 031

  //sensorValue = analogRead(A0); //UNO


  //アナログ値を電圧に変換

  Voltage = (sensorValue * 3300) >> 12; //stm32　(s*3300)/4096

  //V <- S*4.882 UNO +-1mV
  //Voltage = ((sensorValue * 8) + ( (sensorValue * 8) / 10 ) + ( (sensorValue * 2) / 100 )) / 10  + (sensorValue * 4);


  //赤外線距離センサー(GP2Y0A21YK)の電圧から距離を求める。
  ir_length = ir_len_i(Voltage);


  //値の表示
  pc.printNS("800");
  pc.printNS(",");

  //表示
  int b = ir_length;
  char data_read[8]; //バッファーの定義
  data_read[3] = 0;
  data_read[2] = '0' + (  b - (DIV10(b) * 10)  );  // '0'+(b%10)
  b = DIV10(b);
  data_read[1] = '0' + (  b - (DIV10(b) * 10)  );  // '0'+(b%10)
  data_read[0] = '0' +  DIV10(b);                  // '0'+(b/10)

  //前の0を削る
  //  012  add
  // [123] data
  int yy;
  if      (ir_length >= 100) {yy = 0;}
  else if (ir_length >= 10)  {yy = 1;}
  else                       {yy = 2;}

  pc.printNS( (char *)(data_read + yy) );

  pc.printNS(",");
  pc.printNS("0");
  pc.printNS("\r\n");//リターン



  delay(10);// 1/100秒待つ

}//loop
