x OBでPA2をGPIOがわかる人むけ
目的
簡易な時間づくり
leafonyさんのページより引用
参考
STM32 MCU の Arduino IDE 設定
SER_time_test2_031_1
#include <Arduino.h>
#include <time.h>
#define LOOP_INTERVAL 1000000
#define BOARD_LED_PIN PA11
HardwareTimer *timer2 = new HardwareTimer (TIM2);
//time_t seconds = 0 + (60 * 60 * 9); // JST
time_t seconds = (60*60*24*365) - (60 * 60 * 9) ; // JST
//二桁の変換
#define DIV10(n) ((n*205)>>11)
char data1[16];
char *itoa99(int n) {
data1[0] = '0' + DIV10(n); // n / 10
data1[1] = '0' + ( n - ((data1[0] - '0') * 10) ); // n % 10
data1[2] = 0;
return (data1);
}//itoa99
void setup() {
delay(3000); //not delete
//シリアルの初期化
Serial.setTx(PA2_ALT1);
Serial.setHalfDuplex();
Serial.begin(9600);
pinMode(BOARD_LED_PIN, OUTPUT);
timer2->setOverflow(LOOP_INTERVAL, MICROSEC_FORMAT); // 125ms
timer2->attachInterrupt(intTimer);
timer2->resume();
}
struct tm *t;
struct tm tm;
void loop() {
//t = localtime(&seconds);
int tj = seconds;
tm.tm_hour = ( (tj / 3600 + 9) % 24);
tm.tm_min = (tj / 60 % 60);
tm.tm_sec = (tj % 60);
t = &tm;
// Serial.print( t->tm_year + 1900 );
// Serial.print( itoa99( t->tm_mon + 1 ) );
// Serial.print( itoa99( t->tm_mday ) );
// Serial.print( ' ' );

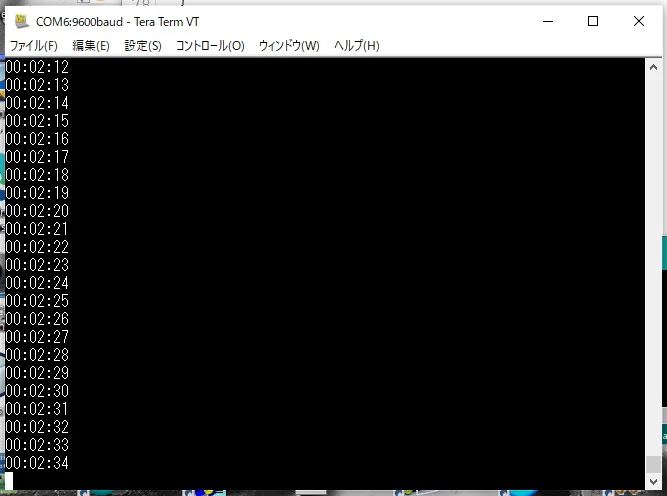

Serial.print( itoa99( t->tm_hour ) ); Serial.print( ':' );
Serial.print( itoa99( t->tm_min ) ); Serial.print( ':' );
Serial.print( itoa99( t->tm_sec ) );
Serial.printf("\r\n");
delay(1000);
}
void intTimer(void) {
static int LEDstate = 0;
digitalWrite( BOARD_LED_PIN, LEDstate);
if ( 0 < LEDstate )
{
LEDstate = 0;
} else {
LEDstate = 1;
}
seconds++;
}
