# STM32L010のソフトウェアシリアルで文字を受信する STM32 RX 9600bps

Last updated at Posted at 2021-05-12

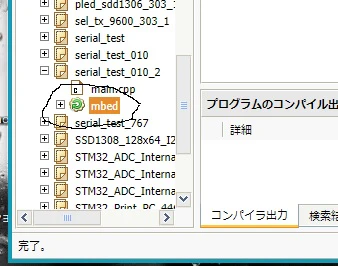

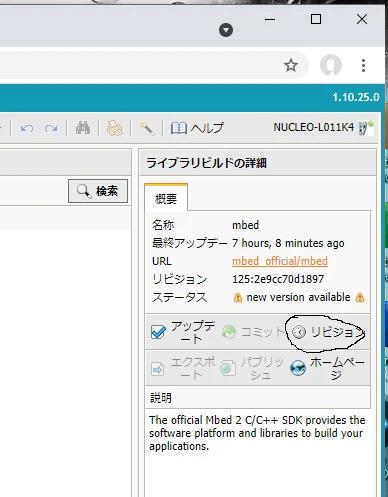

x Mbedのリビジョンは、125

``````
#include "mbed.h"

//10の割り算 0から1028までは、正しい。主に0から999
#define DVI10(n) ((n*205)>>11)

//Serial pc(USBTX, USBRX); // tx, rx
//Serial pc(SERIAL_TX, SERIAL_RX); //767
//Serial pc(PA_2, PA_3); //010
//Serial pc(PA_9, PA_10); //010

#define UART_DELAY 96 //  1/9600

DigitalOut TX(PA_2);
DigitalIn  RX(PA_3);
//DigitalOut TX(PA_9);
//DigitalIn  RX(PA_10);

char ch_hex_a_b[5];
char *ch_hex_a(int l_num)
{
int a,b,c;

int q=0;
if(l_num  < 0) { l_num = 0 - l_num; q = 1;}

b=DVI10(l_num);
c=l_num-(b*10);
l_num=b;
a=DVI10(l_num);
b=l_num-(a*10);

ch_hex_a_b[0] = '0' + a;
ch_hex_a_b[1] = '0' + b;
ch_hex_a_b[2] = '0' + c;
ch_hex_a_b[3] = 0;

if( q == 1 ) {ch_hex_a_b[0]='-';}

return(ch_hex_a_b);
} //ch_hex_a

//仮想シリアルへの一文字出力 9600bps
int pc_putc(char ch) {

TX=1;
TX=0;//START
wait_us(UART_DELAY);

for(int ii=0;ii<8;ii++){
TX=(ch>>ii)&1;
wait_us(UART_DELAY);
}; //for

TX=1;//Stop
wait_us(UART_DELAY);

return(0);

} //pc_putc

//文字列の表示
int pc_printf(char *str1) {

int ii = 0; //ループカウンター
while(str1[ii]!=0){

//一文字出力
pc_putc(str1[ii]);ii++;

} //while

//戻り値
return(0);
}

//タイマーの定義
Timer t;

int a,b,c,d,e,f,g,h;
int bs;
int zt,at,bt,ct,dt,et,ft,gt,ht,it;
char *ret1="\r\n";

int pc_getc()
{

//待ちループ
while( RX == 1 ) {}

//llllllllllllllllllllllllllllllllllllllll

wait_us(156-7-12);

a=RX;

wait_us(104-7-11);

b=RX;

wait_us(104-7-11);

c=RX;

wait_us(104-7-11);

d=RX;

wait_us(104-7-10);

//hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh

e=RX;

wait_us(104-7-11);

f=RX;

wait_us(104-7-12);

g=RX;

wait_us(104-7-11);

h=RX;

wait_us(156-7-11);

//pc_printf(ret1);
//pc_printf("0    zt=");
//pc_printf(  ch_hex_a(zt)  );
//pc_printf(ret1);

//pc_printf("156  at=");
//pc_printf(  ch_hex_a( 156  - (at-zt) )  );
//pc_printf(ret1);

//pc_printf("260  bt=");
//pc_printf(  ch_hex_a( 260  - (bt-zt) )  );
//pc_printf(ret1);

//pc_printf("364  ct=");
//pc_printf(  ch_hex_a( 364  - (ct-zt) )  );
//pc_printf(ret1);

//pc_printf("468  dt=");
//pc_printf(  ch_hex_a( 468  - (dt-zt) )  );
//pc_printf(ret1);

//pc_printf("572  et=");
//pc_printf(  ch_hex_a( 572  - (et-zt) )  );
//pc_printf(ret1);

//pc_printf("677  ft=");
//pc_printf(  ch_hex_a( 677  - (ft-zt) )  );
//pc_printf(ret1);

//pc_printf("781  gt=");
//pc_printf(  ch_hex_a( 781  - (gt-zt) )  );
//pc_printf(ret1);

//pc_printf("885  ht=");
//pc_printf(  ch_hex_a( 885  - (ht-zt) )  );
//pc_printf(ret1);

//pc_printf("1041 it=");
//pc_printf(  ch_hex_a( 1041 - (it-zt) )  );
//pc_printf(ret1);

//h=0; g=1; f=0; e=0; d=0; c=0; b=0; a=1;

bs=h*128+g*64+f*32+e*16+d*8+c*4+b*2+a;

//char str2[2]={ bs ,0};
//pc_printf("     ch=[");
//pc_printf(  str2  );
//pc_printf(ret1);

return(bs);
}//pc_getc

int main()
{
RX.mode( PullUp );   //  内蔵プルアップを使う

//タイマーの開始
t.start();
//pc.printf("Hello World!\r\n");
//t.stop();

char ch;

while(1) {

t.reset();

ch = pc_getc();

char str2[2]={ ch ,0};

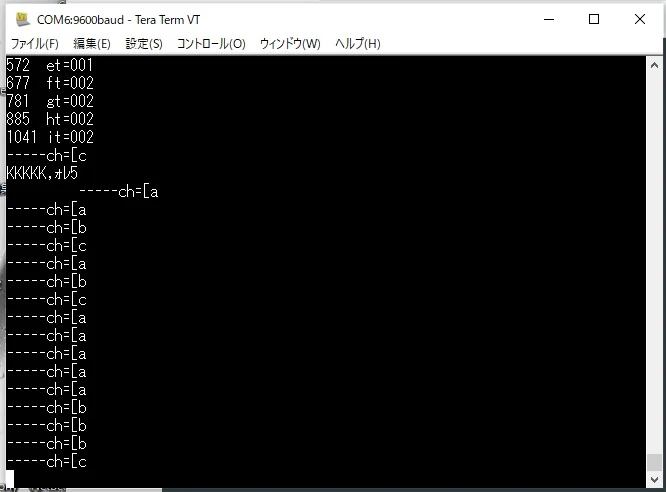

pc_printf("-----ch=[");
pc_printf(  str2  );
pc_printf(ret1);

wait(1.0);
}//while
}//main

//容量削減
void error(const char* format, ...){}

``````
