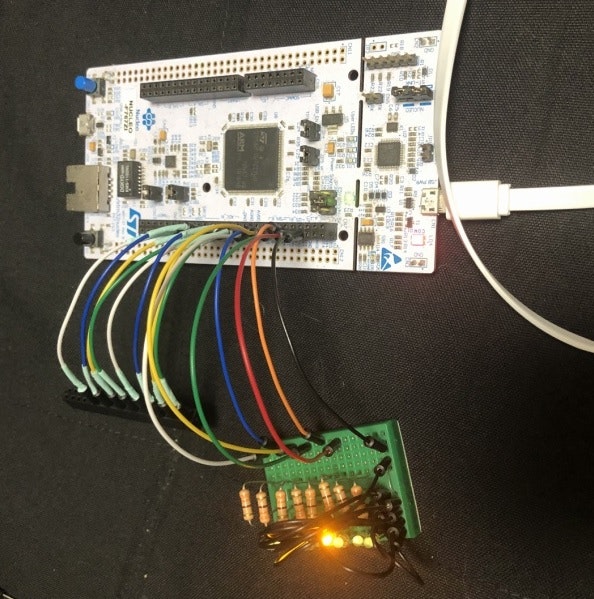

STM32F767でKnight Rider(ナイトライダー)で遊ぶ(その2)

x 過去ログを見よ

D8からD13まで

//GPIO_Knight_Rider2_test_767_1


void GPIO_D13(int s)
{

  digitalWrite(13,s);

} //GPIO_D13

void GPIO_D12(int s)
{

  digitalWrite(12,s);

} //GPIO_D12


void GPIO_D11(int s)
{

  digitalWrite(11,s);

} //GPIO_D11


void GPIO_D10(int s)
{

  digitalWrite(10,s);

} //GPIO_D10


void GPIO_D9(int s)
{

  digitalWrite(9,s);

} //GPIO_D9


void GPIO_D8(int s)
{

  digitalWrite(8,s);

} //GPIO_D8


void GPIO_D8_D13_cls()
{

  digitalWrite(13,0);
  digitalWrite(12,0);
  digitalWrite(11,0);

  digitalWrite(10,0);
  digitalWrite(9,0);
  digitalWrite(8,0);

} //GPIO_D8_D13_cls()

void setup() {
  // initialize digital pin LED_BUILTIN as an output.
  pinMode(PB7, OUTPUT);
  pinMode(13, OUTPUT);
  pinMode(12, OUTPUT);
  pinMode(11, OUTPUT);
  pinMode(10, OUTPUT);
  pinMode(9, OUTPUT);
  pinMode(8, OUTPUT);

} //setup


void loop() {

  digitalWrite(PB7, HIGH);   // turn the LED on (HIGH is the voltage level)

  GPIO_D8_D13_cls();
  GPIO_D13(1);

  delay(1000);                       // wait for a second

  digitalWrite(PB7, LOW);   // turn the LED on (HIGH is the voltage level)

  GPIO_D8_D13_cls();
  GPIO_D12(1);

  delay(1000);                       // wait for a second

  digitalWrite(PB7, HIGH);   // turn the LED on (HIGH is the voltage level)

  GPIO_D8_D13_cls();
  GPIO_D11(1);

  delay(1000);                       // wait for a second

  digitalWrite(PB7, LOW);   // turn the LED on (HIGH is the voltage level)

  GPIO_D8_D13_cls();
  GPIO_D10(1);

  delay(1000);                       // wait for a second

  digitalWrite(PB7, HIGH);   // turn the LED on (HIGH is the voltage level)

  GPIO_D8_D13_cls();
  GPIO_D9(1);

  delay(1000);                       // wait for a second

  digitalWrite(PB7, LOW);   // turn the LED on (HIGH is the voltage level)

  GPIO_D8_D13_cls();
  GPIO_D8(1);

  delay(1000);                       // wait for a second

} //loop
