[Unity3D] 武器の実装

Posted at

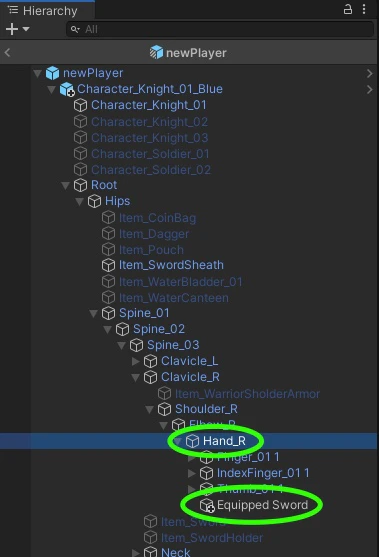

1, Playerプレハブの手の部分にEquippedSwordを作成する

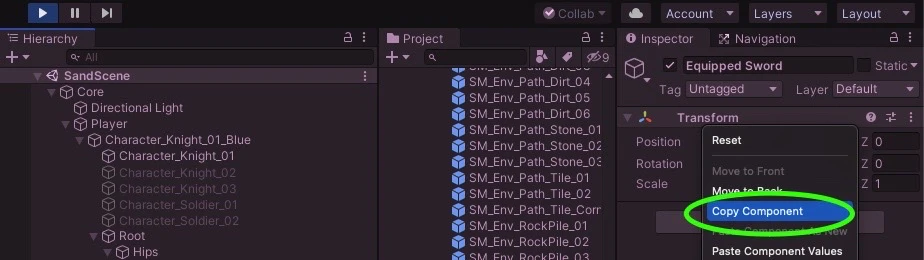

2, EquippedSwordに武器を子オブジェクト化し、再生した状態でScaleや位置を調整してコピーしておく

3, コピーした位置をPlayerのTransformにPasteする

4, Waeponsフォルダを作成し、プレハブ化する。（プレハブ済のものは削除しておく）

5, Fighterに下記コードを追加する

Fighter
using UnityEngine;
using RPG.Movement;
using RPG.Core;
using System;

namespace RPG.Combat
{
    public class Fighter : MonoBehaviour, IAction
    {
        [SerializeField] float weaponRange = 2f;
        [SerializeField] float timeBetweenAttacks = 1f;
        [SerializeField] float weaponDamage = 5f;
        [SerializeField] GameObject weaponPrefab = null; //追加
        [SerializeField] Transform handTransform = null; //追加

        Health target;
        float timeSinceLastAttack = Mathf.Infinity;

        //追加
        private void Start()
        {
            SpawnWeapon();
        }

        private void Update()
        {
            timeSinceLastAttack += Time.deltaTime;

            if (target == null) return;
            if (target.IsDead()) return;

            if (!GetIsInRange())
            {
                GetComponent<Mover>().MoveTo(target.transform.position, 1f);
            }
            else
            {
                GetComponent<Mover>().Cancel();
                AttackBehaviour();
            }
        }

        //追加
        private void SpawnWeapon()
        {
            Instantiate(weaponPrefab, handTransform);
        }

        private void AttackBehaviour()
        {
            transform.LookAt(target.transform);
            if (timeSinceLastAttack > timeBetweenAttacks)
            {
                TriggerAttack();
                timeSinceLastAttack = 0;
            }
        }

        private void TriggerAttack()
        {
            GetComponent<Animator>().ResetTrigger("stopAttack");
            GetComponent<Animator>().SetTrigger("attack");
        }

        void Hit()
        {
            if(target == null) { return; }
            target.TakeDamage(weaponDamage);
        }

        private bool GetIsInRange()
        {
            return Vector3.Distance(transform.position, target.transform.position) < weaponRange;
        }

        public bool CanAttack(GameObject combatTarget)
        {
            if (combatTarget == null) { return false; }
            Health targetToTest = combatTarget.GetComponent<Health>();
            return targetToTest != null && !targetToTest.IsDead();
        }

        public void Attack(GameObject combatTarget)
        {
            GetComponent<ActionScheduler>().StartAction(this);
            target = combatTarget.GetComponent<Health>();
        }

        public void Cancel()
        {
            StopAttack();
            target = null;
            GetComponent<Mover>().Cancel();
        }

        private void StopAttack()
        {
            GetComponent<Animator>().ResetTrigger("attack");
            GetComponent<Animator>().SetTrigger("stopAttack");
        }
    }
}

6, コンポーネントに位置と武器を設定する

アニメーションの実装

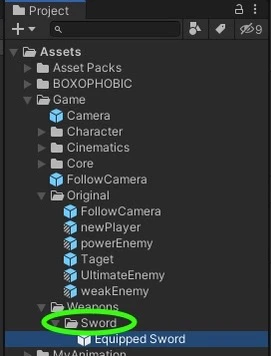

1, Swordフォルダを作成し、EquippedSwordを入れる

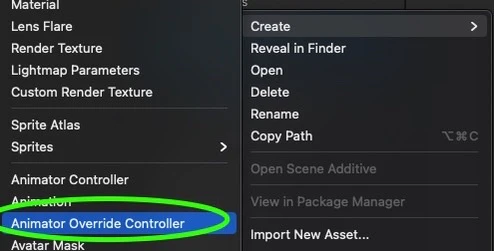

2, SwordフォルダにAnimatorOverrideControllerを作成する

3, SwordOverrideControllerに名前を変更し、CharactorControllerを設定する

4, SwordOverrideControllerのUnarmed-Attakに任意のアニメーションを設定する

5, Fighterに下記スクリプトを書く

Fighter
using UnityEngine;
using RPG.Movement;
using RPG.Core;
using System;

namespace RPG.Combat
{
    public class Fighter : MonoBehaviour, IAction
    {
        [SerializeField] float weaponRange = 2f;
        [SerializeField] float timeBetweenAttacks = 1f;
        [SerializeField] float weaponDamage = 5f;
        [SerializeField] GameObject weaponPrefab = null;
        [SerializeField] Transform handTransform = null;
        [SerializeField] AnimatorOverrideController weaponOverride = null; //追加

        Health target;
        float timeSinceLastAttack = Mathf.Infinity;

        private void Start()
        {
            SpawnWeapon();
        }

        private void Update()
        {
            timeSinceLastAttack += Time.deltaTime;

            if (target == null) return;
            if (target.IsDead()) return;

            if (!GetIsInRange())
            {
                GetComponent<Mover>().MoveTo(target.transform.position, 1f);
            }
            else
            {
                GetComponent<Mover>().Cancel();
                AttackBehaviour();
            }
        }

        private void SpawnWeapon()
        {
            Instantiate(weaponPrefab, handTransform);
            Animator animator = GetComponent<Animator>(); //追加
            animator.runtimeAnimatorController = weaponOverride; //追加

        }

        private void AttackBehaviour()
        {
            transform.LookAt(target.transform);
            if (timeSinceLastAttack > timeBetweenAttacks)
            {
                TriggerAttack();
                timeSinceLastAttack = 0;
            }
        }

        private void TriggerAttack()
        {
            GetComponent<Animator>().ResetTrigger("stopAttack");
            GetComponent<Animator>().SetTrigger("attack");
        }

        void Hit()
        {
            if(target == null) { return; }
            target.TakeDamage(weaponDamage);
        }

        private bool GetIsInRange()
        {
            return Vector3.Distance(transform.position, target.transform.position) < weaponRange;
        }

        public bool CanAttack(GameObject combatTarget)
        {
            if (combatTarget == null) { return false; }
            Health targetToTest = combatTarget.GetComponent<Health>();
            return targetToTest != null && !targetToTest.IsDead();
        }

        public void Attack(GameObject combatTarget)
        {
            GetComponent<ActionScheduler>().StartAction(this);
            target = combatTarget.GetComponent<Health>();
        }

        public void Cancel()
        {
            StopAttack();
            target = null;
            GetComponent<Mover>().Cancel();
        }

        private void StopAttack()
        {
            GetComponent<Animator>().ResetTrigger("attack");
            GetComponent<Animator>().SetTrigger("stopAttack");
        }
    }
}

6,PlayerプレハブのWeaponOverrideにSwordOverrideControllerをアタッチする

スクリプト化可能なオブジェクトの作成

1, Wwaponスクリプトを作成し、各スクリプトに下記コードを書く

Weapon
using UnityEngine;

namespace RPG.Combat
{
    [CreateAssetMenu(fileName = "Weapon", menuName = "Weapons/Make New Weapon", order = 0)]
    public class Weapon : ScriptableObject
    {
        [SerializeField] AnimatorOverrideController animatorOverride = null;
        [SerializeField] GameObject weaponPrefab = null;

        public void Spawn(Transform handTransform, Animator animator)
        {
            Instantiate(weaponPrefab, handTransform);
            animator.runtimeAnimatorController = animatorOverride;
        }
    }
}
Fighter
using UnityEngine;
using RPG.Movement;
using RPG.Core;
using System;

namespace RPG.Combat
{
    public class Fighter : MonoBehaviour, IAction
    {
        [SerializeField] float weaponRange = 2f;
        [SerializeField] float timeBetweenAttacks = 1f;
        [SerializeField] float weaponDamage = 5f;
        [SerializeField] Transform handTransform = null;
        [SerializeField] Weapon weapon = null; //追加

        Health target;
        float timeSinceLastAttack = Mathf.Infinity;

        private void Start()
        {
            SpawnWeapon();
        }

        private void Update()
        {
            timeSinceLastAttack += Time.deltaTime;

            if (target == null) return;
            if (target.IsDead()) return;

            if (!GetIsInRange())
            {
                GetComponent<Mover>().MoveTo(target.transform.position, 1f);
            }
            else
            {
                GetComponent<Mover>().Cancel();
                AttackBehaviour();
            }
        }

        private void SpawnWeapon()
        {
            if (weapon == null) return; //追加
            Animator animator = GetComponent<Animator>();
            weapon.Spawn(handTransform, animator); //追加

        }

        private void AttackBehaviour()
        {
            transform.LookAt(target.transform);
            if (timeSinceLastAttack > timeBetweenAttacks)
            {
                TriggerAttack();
                timeSinceLastAttack = 0;
            }
        }

        private void TriggerAttack()
        {
            GetComponent<Animator>().ResetTrigger("stopAttack");
            GetComponent<Animator>().SetTrigger("attack");
        }

        void Hit()
        {
            if(target == null) { return; }
            target.TakeDamage(weaponDamage);
        }

        private bool GetIsInRange()
        {
            return Vector3.Distance(transform.position, target.transform.position) < weaponRange;
        }

        public bool CanAttack(GameObject combatTarget)
        {
            if (combatTarget == null) { return false; }
            Health targetToTest = combatTarget.GetComponent<Health>();
            return targetToTest != null && !targetToTest.IsDead();
        }

        public void Attack(GameObject combatTarget)
        {
            GetComponent<ActionScheduler>().StartAction(this);
            target = combatTarget.GetComponent<Health>();
        }

        public void Cancel()
        {
            StopAttack();
            target = null;
            GetComponent<Mover>().Cancel();
        }

        private void StopAttack()
        {
            GetComponent<Animator>().ResetTrigger("attack");
            GetComponent<Animator>().SetTrigger("stopAttack");
        }
    }
}

2, Swordフォルダ内にCreate→Weapons→MakeNewWeaponsを押してSwordを作成する

3, SwordにSwordOverrideControllerとEquippedSwordを設定する

4, PlayerプレハブのWeaponにSwordをアタッチする

武器無し攻撃の実装

1, Weaponsフォルダ内にUnarmedフォルダを作成し、Create→Weapons→MakeNewWeaponでUnarmedを作成。

2, 各スクリプトに下記コードを書く

Weapon
using UnityEngine;

namespace RPG.Combat
{
    [CreateAssetMenu(fileName = "Weapon", menuName = "Weapons/Make New Weapon", order = 0)]
    public class Weapon : ScriptableObject
    {
        [SerializeField] AnimatorOverrideController animatorOverride = null;
        [SerializeField] GameObject equippedPrefab = null;
        [SerializeField] float weaponDamage = 5f; //Fighter.csから移動
        [SerializeField] float weaponRange = 2f; //Fighter.csから移動

        public void Spawn(Transform handTransform, Animator animator)
        {
            if (equippedPrefab != null)
            {
                Instantiate(equippedPrefab, handTransform);
            }
            if (animatorOverride != null)
            {
                animator.runtimeAnimatorController = animatorOverride;
            }
        }

        public float GetDamage()
        {
            return weaponDamage;
        }

        public float GetRange()
        {
            return weaponRange;
        }
    }
}
Fighter
void Hit()
        {
            if(target == null) { return; }
            target.TakeDamage(weapon.GetDamage()); //GetDamageに変更
        }

        private bool GetIsInRange()
        {
            return Vector3.Distance(transform.position, target.transform.position) < weapon.GetRange(); //GetRangeに変更
        }

3, EnemyのWeaponにUnarmedを設定する

4, SWordのEquippedPrefabにEquippedSwordオブジェクトを設定する

武器を拾う

1, プロジェクトにPickupsフォルダを作成。ヒエラルキーにPickupsとSwordPickupのげーむオブジェクトを作成し、SwordPickupをプレハブ化する。

2, SwordPickupに武器を入れ、サイズを調整する

3, SwordPickupにSphereColliderを付け、Colliderのサイズを調整する

4, WeaponPickupスクリプトを作成し、SwordPickupに付ける

5, 下記スクリプトを記述する

WeaponPickup
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

namespace RPG.Combat
{
    public class WeaponPickup : MonoBehaviour
    {
        [SerializeField] Weapon weapon = null;

        private void OnTriggerEnter(Collider other)
        {
            if (other.gameObject.tag == "Player")
            {
                other.GetComponent<Fighter>().EquipWeapon(weapon);
                Destroy(gameObject);
            }
        }
    }
}
Fighter
using UnityEngine;
using RPG.Movement;
using RPG.Core;
using System;

namespace RPG.Combat
{
    public class Fighter : MonoBehaviour, IAction
    {
        [SerializeField] float timeBetweenAttacks = 1f;
        [SerializeField] Transform handTransform = null;
        [SerializeField] Weapon defaultWeapon = null; //変更

        Health target;
        float timeSinceLastAttack = Mathf.Infinity;
        Weapon currentWeapon = null; //追加

        private void Start()
        {
            EquipWeapon(defaultWeapon); //追加
        }

        private void Update()
        {
            timeSinceLastAttack += Time.deltaTime;

            if (target == null) return;
            if (target.IsDead()) return;

            if (!GetIsInRange())
            {
                GetComponent<Mover>().MoveTo(target.transform.position, 1f);
            }
            else
            {
                GetComponent<Mover>().Cancel();
                AttackBehaviour();
            }
        }

        public void EquipWeapon(Weapon weapon) //EquipWeaponに変更
        {
            currentWeapon = weapon; //追加
            Animator animator = GetComponent<Animator>();
            weapon.Spawn(handTransform, animator);

        }

        private void AttackBehaviour()
        {
            transform.LookAt(target.transform);
            if (timeSinceLastAttack > timeBetweenAttacks)
            {
                TriggerAttack();
                timeSinceLastAttack = 0;
            }
        }

        private void TriggerAttack()
        {
            GetComponent<Animator>().ResetTrigger("stopAttack");
            GetComponent<Animator>().SetTrigger("attack");
        }

        void Hit()
        {
            if(target == null) { return; }
            target.TakeDamage(currentWeapon.GetDamage()); //currentWeaponに変更
        }

        private bool GetIsInRange()
        {
            return Vector3.Distance(transform.position, target.transform.position) < currentWeapon.GetRange(); //currentWeaponに変更
        }

        public bool CanAttack(GameObject combatTarget)
        {
            if (combatTarget == null) { return false; }
            Health targetToTest = combatTarget.GetComponent<Health>();
            return targetToTest != null && !targetToTest.IsDead();
        }

        public void Attack(GameObject combatTarget)
        {
            GetComponent<ActionScheduler>().StartAction(this);
            target = combatTarget.GetComponent<Health>();
        }

        public void Cancel()
        {
            StopAttack();
            target = null;
            GetComponent<Mover>().Cancel();
        }

        private void StopAttack()
        {
            GetComponent<Animator>().ResetTrigger("attack");
            GetComponent<Animator>().SetTrigger("stopAttack");
        }
    }
}

6, SwordPickupのWeaponにSwordをアタッチし、IsTriggerにチェックを入れる

7, PlayerプレハブのFighterスクリプト→DefaultWeaponにUnarmedをアタッチする

8, CharactorにRigidbodyを付ける

上記で再生したところplayerがプルプルしていたので追加でIsKinematicにチェックを入れました。

左手に持つ武器を実装

1, 武器のアセットをインポートする

2, 各スクリプトに下記コードを記述する

Weapon
using UnityEngine;

namespace RPG.Combat
{
    [CreateAssetMenu(fileName = "Weapon", menuName = "Weapons/Make New Weapon", order = 0)]
    public class Weapon : ScriptableObject
    {
        [SerializeField] AnimatorOverrideController animatorOverride = null;
        [SerializeField] GameObject equippedPrefab = null;
        [SerializeField] float weaponDamage = 5f;
        [SerializeField] float weaponRange = 2f;
        [SerializeField] bool isRightHanded = true; //追加


        public void Spawn(Transform rightHand, Transform leftHand, Animator animator) //追加
        {
            if (equippedPrefab != null)
            {
                Transform handTransform; //追加
                if (isRightHanded) handTransform = rightHand; //追加
                else handTransform = leftHand; //追加
                Instantiate(equippedPrefab, handTransform);
            }
            if (animatorOverride != null)
            {
                animator.runtimeAnimatorController = animatorOverride;
            }
        }

        public float GetDamage()
        {
            return weaponDamage;
        }

        public float GetRange()
        {
            return weaponRange;
        }
    }
}
Fighter
using UnityEngine;
using RPG.Movement;
using RPG.Core;
using System;

namespace RPG.Combat
{
    public class Fighter : MonoBehaviour, IAction
    {
        [SerializeField] float timeBetweenAttacks = 1f;
        [SerializeField] Transform rightHandTransform = null; //変更
        [SerializeField] Transform leftHandTransform = null; //追加
        [SerializeField] Weapon defaultWeapon = null;

        Health target;
        float timeSinceLastAttack = Mathf.Infinity;
        Weapon currentWeapon = null;

        private void Start()
        {
            EquipWeapon(defaultWeapon);
        }

        private void Update()
        {
            timeSinceLastAttack += Time.deltaTime;

            if (target == null) return;
            if (target.IsDead()) return;

            if (!GetIsInRange())
            {
                GetComponent<Mover>().MoveTo(target.transform.position, 1f);
            }
            else
            {
                GetComponent<Mover>().Cancel();
                AttackBehaviour();
            }
        }

        public void EquipWeapon(Weapon weapon)
        {
            currentWeapon = weapon;
            Animator animator = GetComponent<Animator>();
            weapon.Spawn(rightHandTransform, leftHandTransform, animator); //追加

        }

        private void AttackBehaviour()
        {
            transform.LookAt(target.transform);
            if (timeSinceLastAttack > timeBetweenAttacks)
            {
                TriggerAttack();
                timeSinceLastAttack = 0;
            }
        }

        private void TriggerAttack()
        {
            GetComponent<Animator>().ResetTrigger("stopAttack");
            GetComponent<Animator>().SetTrigger("attack");
        }

        void Hit()
        {
            if(target == null) { return; }
            target.TakeDamage(currentWeapon.GetDamage());
        }

        private bool GetIsInRange()
        {
            return Vector3.Distance(transform.position, target.transform.position) < currentWeapon.GetRange();
        }

        public bool CanAttack(GameObject combatTarget)
        {
            if (combatTarget == null) { return false; }
            Health targetToTest = combatTarget.GetComponent<Health>();
            return targetToTest != null && !targetToTest.IsDead();
        }

        public void Attack(GameObject combatTarget)
        {
            GetComponent<ActionScheduler>().StartAction(this);
            target = combatTarget.GetComponent<Health>();
        }

        public void Cancel()
        {
            StopAttack();
            target = null;
            GetComponent<Mover>().Cancel();
        }

        private void StopAttack()
        {
            GetComponent<Animator>().ResetTrigger("attack");
            GetComponent<Animator>().SetTrigger("stopAttack");
        }
    }
}

3, PlayerのHandLとHandRをFighterコンポーネントにアタッチする

4, SwordのIsRightHandedのチェックを外す

5, Bowフォルダを作成する

6, BowフォルダにMakeNewWeaponとAnimatorOverrideControllerを作成する

7,BowAnimatorOverrideにCharactorとアニメーションをアタッチする

8, BowのAnimatorOverrideとdamage値など設定する

9, PlayerのHandLにBowオブジェクトを作成し、武器を子オブジェクト化しておく。それをプレハブ化する

10,再生しながら武器の位置を合わせてTransformをコピーする

11, 位置をPasteする

12, PlayerのdefaltWeaponをBowにする

13, BowのEquippedPrefabを設定する

矢をplayerに当てる

1, 矢のアセットをインポートする

2, ProjectにProjectileフォルダを作成。ヒエラルキーにArrowProjectileオブジェクトを作成し、プレハブ化する

3, ArrowProjectileに矢のプレハブを子オブジェクト化する

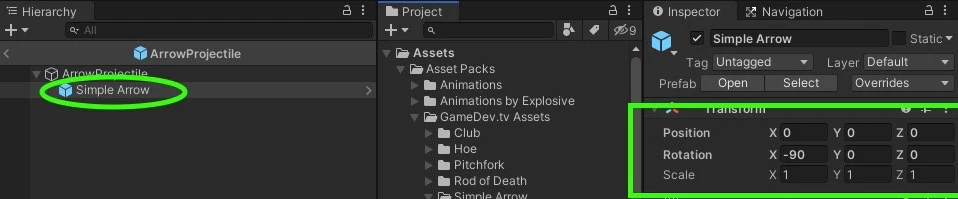

4, SimpleArrowのサイズや向きを調整する

5, Projectile.csを作成する

6, 下記のコードを記述する

Projectile
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Projectile : MonoBehaviour
{
    [SerializeField] Transform target = null;
    [SerializeField] float speed = 1;

    void Update()
    {
        if (target == null) return;

        transform.LookAt(GetAimLocation());
        transform.Translate(Vector3.forward * speed * Time.deltaTime);
    }

    private Vector3 GetAimLocation()
    {
        CapsuleCollider targetCapsule = target.GetComponent<CapsuleCollider>();
        if (targetCapsule == null)
        {
            return target.position;
        }
        return target.position + Vector3.up * targetCapsule.height / 2;
    }
}

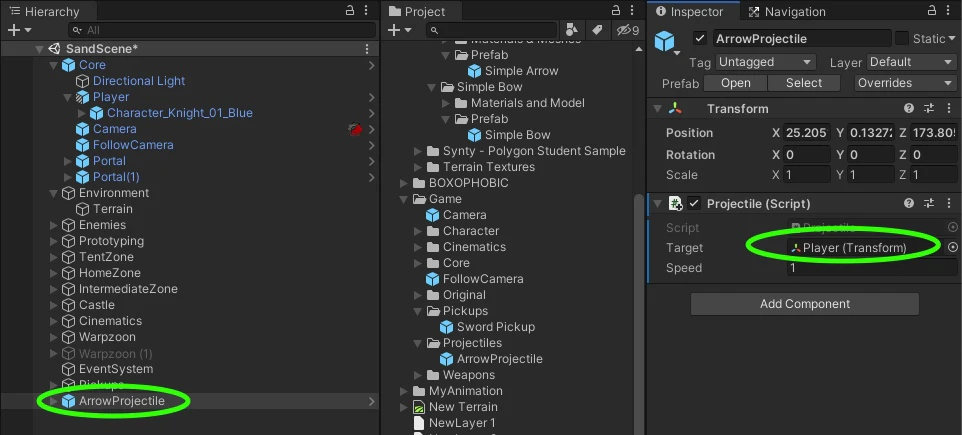

7, ArrowProjectileのTargetにplayerをアタッチする

矢を敵に飛ばす

1, アタックアニメーションを確認し、Hitなどのイベントがついているか確認する

2, 各スクリプトに下記コードを追加する

Fighter
using UnityEngine;
using RPG.Movement;
using RPG.Core;
using System;

namespace RPG.Combat
{
    public class Fighter : MonoBehaviour, IAction
    {
        [SerializeField] float timeBetweenAttacks = 1f;
        [SerializeField] Transform rightHandTransform = null; //変更
        [SerializeField] Transform leftHandTransform = null; //追加
        [SerializeField] Weapon defaultWeapon = null;

        Health target;
        float timeSinceLastAttack = Mathf.Infinity;
        Weapon currentWeapon = null;

        private void Start()
        {
            EquipWeapon(defaultWeapon);
        }

        private void Update()
        {
            timeSinceLastAttack += Time.deltaTime;

            if (target == null) return;
            if (target.IsDead()) return;

            if (!GetIsInRange())
            {
                GetComponent<Mover>().MoveTo(target.transform.position, 1f);
            }
            else
            {
                GetComponent<Mover>().Cancel();
                AttackBehaviour();
            }
        }

        public void EquipWeapon(Weapon weapon)
        {
            currentWeapon = weapon;
            Animator animator = GetComponent<Animator>();
            weapon.Spawn(rightHandTransform, leftHandTransform, animator); //追加

        }

        private void AttackBehaviour()
        {
            transform.LookAt(target.transform);
            if (timeSinceLastAttack > timeBetweenAttacks)
            {
                TriggerAttack();
                timeSinceLastAttack = 0;
            }
        }

        private void TriggerAttack()
        {
            GetComponent<Animator>().ResetTrigger("stopAttack");
            GetComponent<Animator>().SetTrigger("attack");
        }

        void Hit()
        {
            if(target == null) { return; }

            if (currentWeapon.HasProjectile())
            {
                currentWeapon.LaunchProjectile(rightHandTransform, leftHandTransform, target);
            }
            else
            {
                target.TakeDamage(currentWeapon.GetDamage());
            }
        }

        void Shoot()
        {
            Hit();
        }

        private bool GetIsInRange()
        {
            return Vector3.Distance(transform.position, target.transform.position) < currentWeapon.GetRange();
        }

        public bool CanAttack(GameObject combatTarget)
        {
            if (combatTarget == null) { return false; }
            Health targetToTest = combatTarget.GetComponent<Health>();
            return targetToTest != null && !targetToTest.IsDead();
        }

        public void Attack(GameObject combatTarget)
        {
            GetComponent<ActionScheduler>().StartAction(this);
            target = combatTarget.GetComponent<Health>();
        }

        public void Cancel()
        {
            StopAttack();
            target = null;
            GetComponent<Mover>().Cancel();
        }

        private void StopAttack()
        {
            GetComponent<Animator>().ResetTrigger("attack");
            GetComponent<Animator>().SetTrigger("stopAttack");
        }
    }
}
Weapon
using RPG.Core;
using UnityEngine;

namespace RPG.Combat
{
    [CreateAssetMenu(fileName = "Weapon", menuName = "Weapons/Make New Weapon", order = 0)]
    public class Weapon : ScriptableObject
    {
        [SerializeField] AnimatorOverrideController animatorOverride = null;
        [SerializeField] GameObject equippedPrefab = null;
        [SerializeField] float weaponDamage = 5f;
        [SerializeField] float weaponRange = 2f;
        [SerializeField] bool isRightHanded = true;
        [SerializeField] Projectile projectile = null;


        public void Spawn(Transform rightHand, Transform leftHand, Animator animator)
        {
            if (equippedPrefab != null)
            {
                Transform handTransform = GetTransform(rightHand, leftHand);
                Instantiate(equippedPrefab, handTransform);
            }
            if (animatorOverride != null)
            {
                animator.runtimeAnimatorController = animatorOverride;
            }
        }

        private Transform GetTransform(Transform rightHand, Transform leftHand)
        {
            Transform handTransform;
            if (isRightHanded) handTransform = rightHand;
            else handTransform = leftHand;
            return handTransform;
        }

        public bool HasProjectile()
        {
            return projectile != null;
        }

        public void LaunchProjectile(Transform rightHand, Transform leftHand, Health target)
        {
            Projectile projectileInstance = Instantiate(projectile, GetTransform(rightHand, leftHand).position, Quaternion.identity);
            projectileInstance.SetTarget(target);
        }

        public float GetDamage()
        {
            return weaponDamage;
        }

        public float GetRange()
        {
            return weaponRange;
        }
    }
}
Projectile
using System.Collections;
using System.Collections.Generic;
using RPG.Core;
using UnityEngine;

public class Projectile : MonoBehaviour
{
    [SerializeField] float speed = 1;

    Health target = null;

    void Update()
    {
        if (target == null) return;

        transform.LookAt(GetAimLocation());
        transform.Translate(Vector3.forward * speed * Time.deltaTime);
    }

    public void SetTarget(Health target)
    {
        this.target = target;
    }

    private Vector3 GetAimLocation()
    {
        CapsuleCollider targetCapsule = target.GetComponent<CapsuleCollider>();
        if (targetCapsule == null)
        {
            return target.transform.position;
        }
        return target.transform.position + Vector3.up * targetCapsule.height / 2;
    }
}

3, AxeのProjectileにArrowProjectileをアタッチする

ダメージの実装

1, 各スクリプトに下記のコードを書く

Projectile
using System.Collections;
using System.Collections.Generic;
using RPG.Core;
using UnityEngine;

public class Projectile : MonoBehaviour
{
    [SerializeField] float speed = 1;
    Health target = null;
    float damage = 0; //追加

    void Update()
    {
        if (target == null) return;

        transform.LookAt(GetAimLocation());
        transform.Translate(Vector3.forward * speed * Time.deltaTime);
    }

    public void SetTarget(Health target, float damage) //danageを追加
    {
        this.target = target;
        this.damage = damage; //追加
    }

    private Vector3 GetAimLocation()
    {
        CapsuleCollider targetCapsule = target.GetComponent<CapsuleCollider>();
        if (targetCapsule == null)
        {
            return target.transform.position;
        }
        return target.transform.position + Vector3.up * targetCapsule.height / 2;
    }

    //追加
    private void OnTriggerEnter(Collider other)
    {
        if (other.GetComponent<Health>() != target) return;
        target.TakeDamage(damage);
        Destroy(gameObject);
    }
}
Weapon
using RPG.Core;
using UnityEngine;

namespace RPG.Combat
{
    [CreateAssetMenu(fileName = "Weapon", menuName = "Weapons/Make New Weapon", order = 0)]
    public class Weapon : ScriptableObject
    {
        [SerializeField] AnimatorOverrideController animatorOverride = null;
        [SerializeField] GameObject equippedPrefab = null;
        [SerializeField] float weaponDamage = 5f;
        [SerializeField] float weaponRange = 2f;
        [SerializeField] bool isRightHanded = true;
        [SerializeField] Projectile projectile = null;


        public void Spawn(Transform rightHand, Transform leftHand, Animator animator)
        {
            if (equippedPrefab != null)
            {
                Transform handTransform = GetTransform(rightHand, leftHand);
                Instantiate(equippedPrefab, handTransform);
            }
            if (animatorOverride != null)
            {
                animator.runtimeAnimatorController = animatorOverride;
            }
        }

        private Transform GetTransform(Transform rightHand, Transform leftHand)
        {
            Transform handTransform;
            if (isRightHanded) handTransform = rightHand;
            else handTransform = leftHand;
            return handTransform;
        }

        public bool HasProjectile()
        {
            return projectile != null;
        }

        public void LaunchProjectile(Transform rightHand, Transform leftHand, Health target)
        {
            Projectile projectileInstance = Instantiate(projectile, GetTransform(rightHand, leftHand).position, Quaternion.identity);
            projectileInstance.SetTarget(target, weaponDamage); //weaponDamageを追加
        }

        public float GetDamage()
        {
            return weaponDamage;
        }

        public float GetRange()
        {
            return weaponRange;
        }
    }
}

2, ArrowProjectileにBoxColliderをつけ、サイズ調整、IsTriggerを付ける

矢にエフェクトを実装

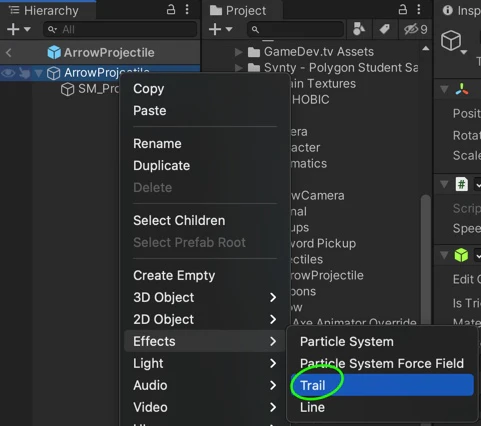

1, ArrowProjecttileにTrailを作成する

2, TrailのTime、Widthの数値を決める

3, ReceiveShadowのチェックを外す

4, EnemyをPrefabVariantしてArcherを作成する

5, ArcherにWeaponを設定する

6, ArrowProjectileをPrefabVariantしてRedとBlueを作成

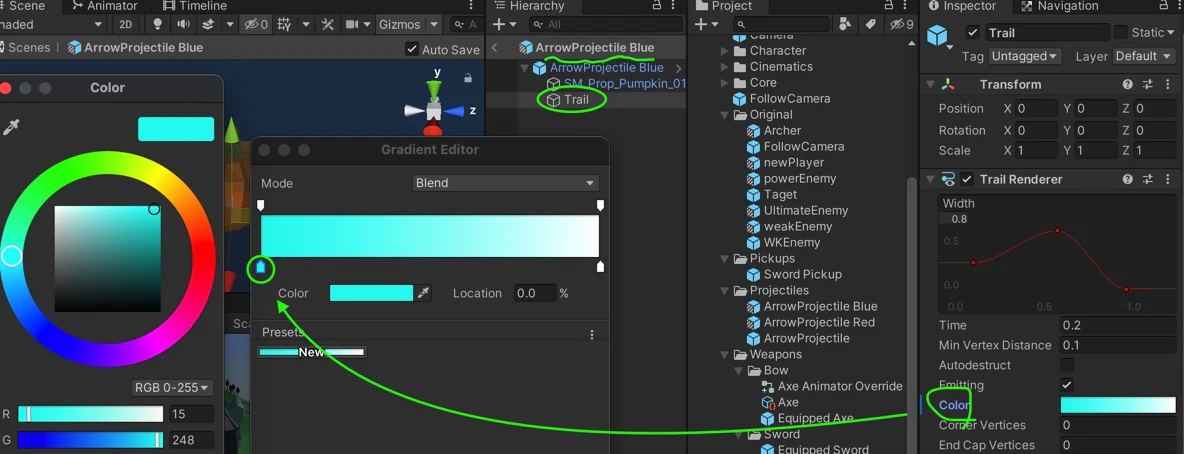

7, 各Trailのカラーを設定する

8, Axeを複製し、AxeBlueProjectileとAxeRedProjectileを作成

9, 各AxeRedProjectile、Blueにオブジェクトをアタッチする

10, Archer,PlayerそれぞれにWeaponを設定する

2
1
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
2
1
