VRMモデルのSpringBoneをコピーするツールを作りました

はじめに

VRMモデルを作っていて、FBXから作り直しが発生したとき
VRM Spring Boneのつけ直しって大変じゃありませんか？
1発でコピーできるツールを作りました

とりあえずツールだけほしい方

VRMモデルのSpringBoneをコピーするツール
こちらからダウンロードできます

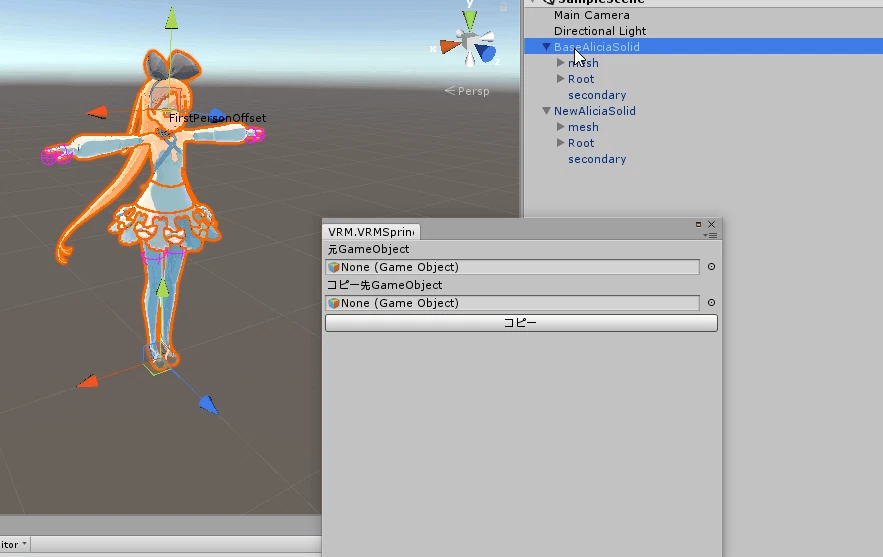

使い方

1.メニューのVRM→Spring Bone Copyでメニューを開きます
2. 元GameObjectにSpringBoneの設定されているオブジェクトを
　コピー先GameObjectにSpringBoneの設定されていないオブジェクトを指定します
3.コピーボタンを押すことでコピーが完了します

ソースコード

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEditor;
using System.Linq;
using System.Reflection;

namespace VRM
{
    public class VRMSpringBoneCopy : EditorWindow
    {

        [MenuItem("VRM/Spring Bone Copy")]
        static void Open()
        {
            GetWindow<VRMSpringBoneCopy> ();
        }

        GameObject srcGo;

        GameObject dstGo;
        /// <summary>
        /// OnGUI is called for rendering and handling GUI events.
        /// This function can be called multiple times per frame (one call per event).
        /// </summary>
        void OnGUI()
        {
            EditorGUILayout.LabelField("元GameObject");
            this.srcGo = EditorGUILayout.ObjectField(this.srcGo, typeof(GameObject), true) as GameObject;
            EditorGUILayout.LabelField("コピー先GameObject");
            this.dstGo = EditorGUILayout.ObjectField(this.dstGo, typeof(GameObject), true) as GameObject;

            if(GUILayout.Button("コピー"))
            {
                copyComponents();
                showResult();
            }
        }

        Transform[] transformList;

        List<string> colliderTargetError = new List<string>();
        List<string> springTargetBone = new List<string>();

        List<string> springBoneError = new List<string>();

        void copyComponents()
        {
            this.colliderTargetError.Clear();
            this.springTargetBone.Clear();
            this.springBoneError.Clear();

            deleteComponents();

            this.transformList = this.dstGo.GetComponentsInChildren<Transform>();

            var colliders = this.srcGo.GetComponentsInChildren<VRMSpringBoneColliderGroup>();
            foreach(var c in colliders)
            {
                var targetTransform = this.transformList.FirstOrDefault(x => x.name == c.transform.name);
                if(targetTransform != null)
                {
                    var col = targetTransform.gameObject.AddComponent<VRMSpringBoneColliderGroup>();
                    col.Colliders = new VRMSpringBoneColliderGroup.SphereCollider[c.Colliders.Length];
                    copyField(c, col,  "m_gizmoColor");
                    for(int i=0;i<col.Colliders.Length;i++)
                    {
                        col.Colliders[i] = new VRMSpringBoneColliderGroup.SphereCollider();
                        col.Colliders[i].Offset = c.Colliders[i].Offset;
                        col.Colliders[i].Radius = c.Colliders[i].Radius;
                    }
                }
                else
                {
                    Debug.LogWarning("Not found VRMSpringBoneColliderGroup bone->"+c.gameObject.name);
                    this.colliderTargetError.Add(c.gameObject.name);
                }
            }

            var springbone = this.srcGo.GetComponentsInChildren<VRMSpringBone>();
            foreach(var c in springbone)
            {
                var targetTransform = this.transformList.FirstOrDefault(x => x.name == c.transform.name);
                if(targetTransform != null)
                {
                    var spring = targetTransform.gameObject.AddComponent<VRMSpringBone>();
                    spring.m_comment = c.m_comment;
                    copyField(c, spring, "m_drawGizmo");
                    copyField(c, spring, "m_gizmoColor");
                    spring.m_stiffnessForce = c.m_stiffnessForce;
                    spring.m_gravityPower = c.m_gravityPower;
                    spring.m_gravityDir = c.m_gravityDir;
                    spring.m_dragForce = c.m_dragForce;
                    spring.m_center = searchTranform(c.m_center);
                    foreach(var b in c.RootBones)
                    {
                        var bb = searchTranform(b);
                        if(bb != null)
                        {
                            spring.RootBones.Add(bb);
                        }
                        else
                        {
                            this.springTargetBone.Add(b.name);
                        }
                    }
                    spring.m_hitRadius = c.m_hitRadius;
                    if(c.ColliderGroups.Length > 0)
                    {
                        spring.ColliderGroups = new VRMSpringBoneColliderGroup[c.ColliderGroups.Length];
                        for(int i=0;i<spring.ColliderGroups.Length;i++)
                        {
                            var t = searchTranform(c.ColliderGroups[i].transform);
                            if(t != null)
                            {
                                spring.ColliderGroups[i] = t.GetComponent<VRMSpringBoneColliderGroup>();
                            }
                            else
                            {
                                Debug.LogWarning("Not found VRMSpringBoneColliderGroup ->"+c.ColliderGroups[i].transform.name);
                                this.springTargetBone.Add(c.ColliderGroups[i].transform.name);
                            }
                        }
                    }

                }
                else
                {
                    Debug.LogWarning("Not found VRMSpringBone ->"+c.gameObject.name);
                    this.springBoneError.Add(c.gameObject.name);
                }
            }
        }

        void showResult()
        {
            if(this.colliderTargetError.Count == 0 &&
                this.springTargetBone.Count == 0 &&
                this.springBoneError.Count == 0)
            {
                EditorUtility.DisplayDialog("コピー完了", "正常にコピーが完了しました", "OK");
            }
            else
            {
                string message = "一部のコンポーネントのコピーができませんでした\n";
                if(this.colliderTargetError.Count > 0)
                {
                    message += "VRMSpringBoneColliderGroup のボーンが見つかりませんでした\n";
                    foreach(var e in this.colliderTargetError)
                    {
                        message += e+"\n";
                    }
                }

                if(this.springBoneError.Count > 0)
                {
                    message += "VRMSpringBoneのアタッチ先が見つかりませんでした\n";
                    foreach(var e in this.springBoneError)
                    {
                        message += e+"\n";
                    }
                }

                if(this.springTargetBone.Count > 0)
                {
                    message += "揺れ骨が見つかりませんでした\n";
                    foreach(var e in this.springTargetBone)
                    {
                        message += e+"\n";
                    }
                }

                EditorUtility.DisplayDialog("コピー完了", message, "OK");
            }
        }

        Transform searchTranform(Transform t)
        {
            if(t == null)
            {
                return null;
            }

            var value = this.transformList.FirstOrDefault(x => x.name == t.name);

            return value;
        }

        void deleteComponents()
        {
            var cols = this.dstGo.GetComponentsInChildren<VRMSpringBoneColliderGroup>();
            foreach(var c in cols)
            {
                DestroyImmediate(c);
            }

            var springs = this.dstGo.GetComponentsInChildren<VRMSpringBone>();
            foreach(var s in springs)
            {
                DestroyImmediate(s);
            }
        }

        // private変数のコピー
        void copyField(object src, object dst, string fieldName)
        {
            var srcField = src.GetType().GetField(fieldName,BindingFlags.Public | BindingFlags.NonPublic |
                                    BindingFlags.Instance | BindingFlags.Static |
                                    BindingFlags.DeclaredOnly);

            if(srcField == null)
            {
                Debug.LogWarning("srcField is null");
                return;
            }

            var dstField = dst.GetType().GetField(fieldName,BindingFlags.Public | BindingFlags.NonPublic |
                                    BindingFlags.Instance | BindingFlags.Static |
                                    BindingFlags.DeclaredOnly);

            if(dstField == null)
            {
                Debug.LogWarning("dstField is null");
                return;
            }

            dstField.SetValue(dst, srcField.GetValue(src));
        }
    }

}

解説

• やっていることは本当に簡単で、コピー元のVRM Spring BoneがアタッチされているTransform名を取得し、コピー先の一致するTransformにAddComponentしてパラメータをコピーしているだけです

this.transformList = this.dstGo.GetComponentsInChildren<Transform>();
これでコピー先のTransform一覧を取得

var springbone = this.srcGo.GetComponentsInChildren<VRMSpringBone>();
foreach(var c in springbone)
{
    var targetTransform = this.transformList.FirstOrDefault(x => x.name == c.transform.name);

これでコピー元とTransform名が一致するコピー先のTransformを取得します

VRM Spring Boneは基本的にパラメータがpublicなのでそのままコピーできるのですが
SerializeFieldで表示しているパラメータはprivateになっているためコピーできません
そこで、リフレクションを使ってパラメータの取得と設定を行っています

// private変数のコピー
void copyField(object src, object dst, string fieldName)
{
    var srcField = src.GetType().GetField(fieldName,BindingFlags.Public | BindingFlags.NonPublic |
                            BindingFlags.Instance | BindingFlags.Static |
                            BindingFlags.DeclaredOnly);

    if(srcField == null)
    {
        Debug.LogWarning("srcField is null");
        return;
    }

    var dstField = dst.GetType().GetField(fieldName,BindingFlags.Public | BindingFlags.NonPublic |
                            BindingFlags.Instance | BindingFlags.Static |
                            BindingFlags.DeclaredOnly);

    if(dstField == null)
    {
        Debug.LogWarning("dstField is null");
        return;
    }

    dstField.SetValue(dst, srcField.GetValue(src));
}

参考

• VRMSpringBone(VRM公式ドキュメント)
