gliumで3D表示するサンプル

Posted at

概要

gliumはRustでOpenGLを扱うライブラリです。

しかし、Qiitaを探してみても、GUIはあれど肝心の3Dの表示サンプルがない...。

ということで、サンプルと、はまりどころをメモ程度に残しておきます。

完成品

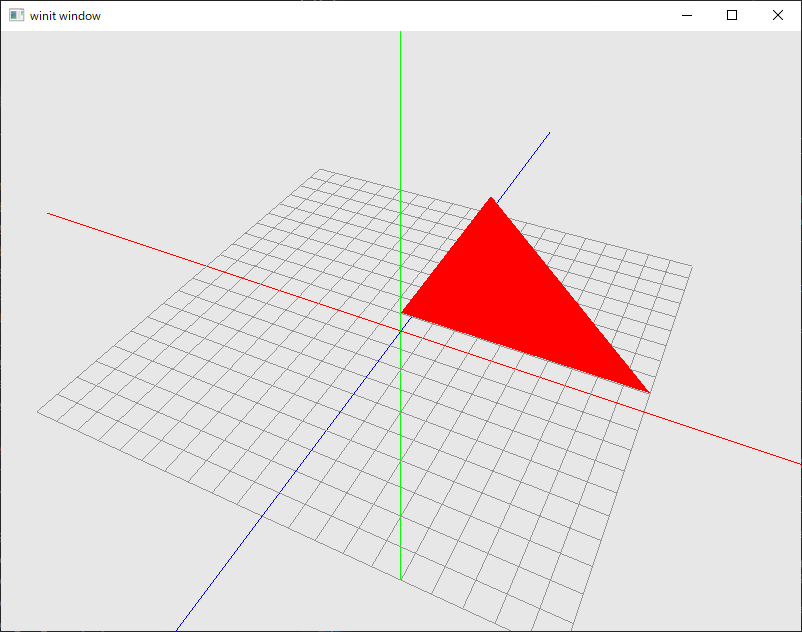

スクリーンショット 2021-08-29 165722.png
以下のコードを実行すると、xyzの3軸、メッシュ、x=10, z=10 の直角三角形を y 方向に 1 ずらしたものが表示されます。

ソースコード

main.rs
# [macro_use]
extern crate glium;

fn main() {
    #![allow(unused_imports)]
    use glium::{glutin, Surface};

    #[derive(Copy, Clone)]
    pub struct Vertex {
        position: (f32, f32, f32)
    }
    implement_vertex!(Vertex, position);

    let event_loop = glutin::event_loop::EventLoop::new();
    let wb = glutin::window::WindowBuilder::new();
    let cb = glutin::ContextBuilder::new().with_depth_buffer(24);
    let display = glium::Display::new(wb, cb, &event_loop).unwrap();

    const TRIANGLE_SHAPE: [Vertex;3] = [
        Vertex { position: (0.0, 1.0, 10.0) },
        Vertex { position: (10.0, 1.0, 0.0) },
        Vertex { position: (0.0, 1.0, 0.0) },
    ];

    let triangle_positions = glium::VertexBuffer::new(&display, &TRIANGLE_SHAPE).unwrap();
    let triangle_indices = glium::index::NoIndices(glium::index::PrimitiveType::TrianglesList);

    const AXIS_LEN:f32 = 20.0;
    const LINE_X: [Vertex;2] = [
        Vertex { position: (-AXIS_LEN, 0.0, 0.0) },
        Vertex { position: (AXIS_LEN, 0.0, 0.0) },
    ];
    let line_x = glium::VertexBuffer::new(&display, &LINE_X).unwrap();

    const LINE_Y: [Vertex;2] = [
        Vertex { position: (0.0, -AXIS_LEN, 0.0) },
        Vertex { position: (0.0, AXIS_LEN, 0.0) },
    ];
    let line_y = glium::VertexBuffer::new(&display, &LINE_Y).unwrap();

    const LINE_Z: [Vertex;2] = [
        Vertex { position: (0.0, 0.0, -AXIS_LEN) },
        Vertex { position: (0.0, 0.0, AXIS_LEN) },
    ];
    let line_z = glium::VertexBuffer::new(&display, &LINE_Z).unwrap();
    let line_indices = glium::index::NoIndices(glium::index::PrimitiveType::LinesList);

    const MESH_LINES: [Vertex; 80] = [
        Vertex { position: (-10.0, 0.0, -10.0) },
        Vertex { position: ( 10.0, 0.0, -10.0) },
        Vertex { position: (-10.0, 0.0,  -9.0) },
        Vertex { position: ( 10.0, 0.0,  -9.0) },
        Vertex { position: (-10.0, 0.0,  -8.0) },
        Vertex { position: ( 10.0, 0.0,  -8.0) },
        Vertex { position: (-10.0, 0.0,  -7.0) },
        Vertex { position: ( 10.0, 0.0,  -7.0) },
        Vertex { position: (-10.0, 0.0,  -6.0) },
        Vertex { position: ( 10.0, 0.0,  -6.0) },
        Vertex { position: (-10.0, 0.0,  -5.0) },
        Vertex { position: ( 10.0, 0.0,  -5.0) },
        Vertex { position: (-10.0, 0.0,  -4.0) },
        Vertex { position: ( 10.0, 0.0,  -4.0) },
        Vertex { position: (-10.0, 0.0,  -3.0) },
        Vertex { position: ( 10.0, 0.0,  -3.0) },
        Vertex { position: (-10.0, 0.0,  -2.0) },
        Vertex { position: ( 10.0, 0.0,  -2.0) },
        Vertex { position: (-10.0, 0.0,  -1.0) },
        Vertex { position: ( 10.0, 0.0,  -1.0) },
        Vertex { position: (-10.0, 0.0,  10.0) },
        Vertex { position: ( 10.0, 0.0,  10.0) },
        Vertex { position: (-10.0, 0.0,   9.0) },
        Vertex { position: ( 10.0, 0.0,   9.0) },
        Vertex { position: (-10.0, 0.0,   8.0) },
        Vertex { position: ( 10.0, 0.0,   8.0) },
        Vertex { position: (-10.0, 0.0,   7.0) },
        Vertex { position: ( 10.0, 0.0,   7.0) },
        Vertex { position: (-10.0, 0.0,   6.0) },
        Vertex { position: ( 10.0, 0.0,   6.0) },
        Vertex { position: (-10.0, 0.0,   5.0) },
        Vertex { position: ( 10.0, 0.0,   5.0) },
        Vertex { position: (-10.0, 0.0,   4.0) },
        Vertex { position: ( 10.0, 0.0,   4.0) },
        Vertex { position: (-10.0, 0.0,   3.0) },
        Vertex { position: ( 10.0, 0.0,   3.0) },
        Vertex { position: (-10.0, 0.0,   2.0) },
        Vertex { position: ( 10.0, 0.0,   2.0) },
        Vertex { position: (-10.0, 0.0,   1.0) },
        Vertex { position: ( 10.0, 0.0,   1.0) },

        Vertex { position: (-10.0, 0.0, -10.0) },
        Vertex { position: (-10.0, 0.0,  10.0) },
        Vertex { position: ( -9.0, 0.0, -10.0) },
        Vertex { position: ( -9.0, 0.0,  10.0) },
        Vertex { position: ( -8.0, 0.0, -10.0) },
        Vertex { position: ( -8.0, 0.0,  10.0) },
        Vertex { position: ( -7.0, 0.0, -10.0) },
        Vertex { position: ( -7.0, 0.0,  10.0) },
        Vertex { position: ( -6.0, 0.0, -10.0) },
        Vertex { position: ( -6.0, 0.0,  10.0) },
        Vertex { position: ( -5.0, 0.0, -10.0) },
        Vertex { position: ( -5.0, 0.0,  10.0) },
        Vertex { position: ( -4.0, 0.0, -10.0) },
        Vertex { position: ( -4.0, 0.0,  10.0) },
        Vertex { position: ( -3.0, 0.0, -10.0) },
        Vertex { position: ( -3.0, 0.0,  10.0) },
        Vertex { position: ( -2.0, 0.0, -10.0) },
        Vertex { position: ( -2.0, 0.0,  10.0) },
        Vertex { position: ( -1.0, 0.0, -10.0) },
        Vertex { position: ( -1.0, 0.0,  10.0) },
        Vertex { position: ( 10.0, 0.0, -10.0) },
        Vertex { position: ( 10.0, 0.0,  10.0) },
        Vertex { position: (  9.0, 0.0, -10.0) },
        Vertex { position: (  9.0, 0.0,  10.0) },
        Vertex { position: (  8.0, 0.0, -10.0) },
        Vertex { position: (  8.0, 0.0,  10.0) },
        Vertex { position: (  7.0, 0.0, -10.0) },
        Vertex { position: (  7.0, 0.0,  10.0) },
        Vertex { position: (  6.0, 0.0, -10.0) },
        Vertex { position: (  6.0, 0.0,  10.0) },
        Vertex { position: (  5.0, 0.0, -10.0) },
        Vertex { position: (  5.0, 0.0,  10.0) },
        Vertex { position: (  4.0, 0.0, -10.0) },
        Vertex { position: (  4.0, 0.0,  10.0) },
        Vertex { position: (  3.0, 0.0, -10.0) },
        Vertex { position: (  3.0, 0.0,  10.0) },
        Vertex { position: (  2.0, 0.0, -10.0) },
        Vertex { position: (  2.0, 0.0,  10.0) },
        Vertex { position: (  1.0, 0.0, -10.0) },
        Vertex { position: (  1.0, 0.0,  10.0) },
    ];
    let mesh_lines = glium::VertexBuffer::new(&display, &MESH_LINES).unwrap();

    let vertex_shader_src = r#"
        #version 150
        in vec3 position;
        out vec3 col;
        out vec3 v_position;
        uniform vec3 color;
        uniform mat4 perspective;
        uniform mat4 view;
        uniform mat4 model;
        void main() {
            mat4 modelview = view * model;
            gl_Position = perspective * modelview * vec4(position, 1.0);
            col = color;
        }
    "#;

    let fragment_shader_src = r#"
        #version 150
        in vec3 col;
        out vec4 color;
        void main() {
            color = vec4(col, 1);
        }
    "#;

    let program = glium::Program::from_source(&display, vertex_shader_src, fragment_shader_src,
                                              None).unwrap();

    event_loop.run(move |event, _, control_flow| {
        let next_frame_time = std::time::Instant::now() +
            std::time::Duration::from_nanos(16_666_667);
        *control_flow = glutin::event_loop::ControlFlow::WaitUntil(next_frame_time);

        match event {
            glutin::event::Event::WindowEvent { event, .. } => match event {
                glutin::event::WindowEvent::CloseRequested => {
                    *control_flow = glutin::event_loop::ControlFlow::Exit;
                    return;
                },
                _ => return,
            },
            glutin::event::Event::NewEvents(cause) => match cause {
                glutin::event::StartCause::ResumeTimeReached { .. } => (),
                glutin::event::StartCause::Init => (),
                _ => return,
            },
            _ => return,
        }

        let mut target = display.draw();
        target.clear_color_and_depth((0.8, 0.8, 0.8, 1.0), 1.0);

        let model = [
            [1.0, 0.0, 0.0, 0.0],
            [0.0, 1.0, 0.0, 0.0],
            [0.0, 0.0, 1.0, 0.0],
            [0.0, 0.0, 0.0, 1.0f32]
        ];

        let view = view_matrix(&[10.0, 20.0, -20.0], &[-10.0, -20.0, 20.0], &[0.0, 1.0, 0.0]);

        let perspective = {
            let (width, height) = target.get_dimensions();
            let aspect_ratio = height as f32 / width as f32;

            let fov: f32 = 3.141592 / 4.0; //視野角45度
            let zfar = 1024.0;
            let znear = 0.1;

            let f = 1.0 / (fov / 2.0).tan();

            [
                [f *   aspect_ratio   ,    0.0,              0.0              ,   0.0],
                [         0.0         ,     f ,              0.0              ,   0.0],
                [         0.0         ,    0.0,  (zfar+znear)/(zfar-znear)    ,   1.0],
                [         0.0         ,    0.0, -(2.0*zfar*znear)/(zfar-znear),   0.0],
            ]
        };

        let light = [1.4, 0.4, -0.7f32];

        let params = glium::DrawParameters {
            depth: glium::Depth {
                test: glium::draw_parameters::DepthTest::IfLess,
                write: true,
                .. Default::default()
            },
            .. Default::default()
        };


        target.draw(&triangle_positions, &triangle_indices, &program,
                    &uniform! { model: model, view: view, perspective: perspective, u_light: light, color: [1.0, 0.0, 0.0f32] },
                    &params).unwrap();

        target.draw(&line_x, &line_indices, &program,
            &uniform! { model: model, view: view, perspective: perspective, u_light: light, color: [1.0, 0.0, 0.0f32] },
            &params).unwrap();

        target.draw(&line_y, &line_indices, &program,
            &uniform! { model: model, view: view, perspective: perspective, u_light: light, color: [0.0, 1.0, 0.0f32] },
            &params).unwrap();

        target.draw(&line_z, &line_indices, &program,
            &uniform! { model: model, view: view, perspective: perspective, u_light: light, color: [0.0, 0.0, 1.0f32] },
            &params).unwrap();

        target.draw(&mesh_lines, &line_indices, &program,
            &uniform! { model: model, view: view, perspective: perspective, u_light: light, color: [0.3, 0.3, 0.3f32] },
            &params).unwrap();

        target.finish().unwrap();
    });
}


fn view_matrix(position: &[f32; 3], direction: &[f32; 3], up: &[f32; 3]) -> [[f32; 4]; 4] {
    let f = {
        let f = direction;
        let len = f[0] * f[0] + f[1] * f[1] + f[2] * f[2];
        let len = len.sqrt();
        [f[0] / len, f[1] / len, f[2] / len]
    };

    let s = [up[1] * f[2] - up[2] * f[1],
             up[2] * f[0] - up[0] * f[2],
             up[0] * f[1] - up[1] * f[0]];

    let s_norm = {
        let len = s[0] * s[0] + s[1] * s[1] + s[2] * s[2];
        let len = len.sqrt();
        [s[0] / len, s[1] / len, s[2] / len]
    };

    let u = [f[1] * s_norm[2] - f[2] * s_norm[1],
             f[2] * s_norm[0] - f[0] * s_norm[2],
             f[0] * s_norm[1] - f[1] * s_norm[0]];

    let p = [-position[0] * s_norm[0] - position[1] * s_norm[1] - position[2] * s_norm[2],
             -position[0] * u[0] - position[1] * u[1] - position[2] * u[2],
             -position[0] * f[0] - position[1] * f[1] - position[2] * f[2]];

    [
        [s_norm[0], u[0], f[0], 0.0],
        [s_norm[1], u[1], f[1], 0.0],
        [s_norm[2], u[2], f[2], 0.0],
        [p[0], p[1], p[2], 1.0],
    ]
}

はまりどころ

はまった点は２つありました。

１つ目は、gliumはOpenGLなのにも関わらず 「左手系」 です。
(もしかしたら書き方次第でどうにかなるかもしれないです)
上記の例でもz軸の正方向が画面奥になっています。
少し勝手が違うので、注意する必要があります。

２つ目はVAOのサンプルが皆無ということです。
OpenGLで大量の点を扱うとなると、高速表示のためにもデータの受け渡しの効率化が必須です。
VAOは実装されているように見えるのですが、少し探してもサンプル等見当たらなかったので、本格的に使えるようになるまで、調べたりなんだりで結構かかるのではないかと思います。
上記の例でも、VAOで軸と色をまとめて渡したかったのですが、泣く泣くあきらめています。

最後に

gliumについてざっとしか調べていませんが、gliumのサンプル自体が少なかったのでメモ程度に残してみました。

メッシュの座標、どうにかならなかったんかい
