【自分用】unity1weekで毎回調べる機能や操作方法をあらかじめまとめておく作戦

プロジェクトを新規作成したら

gitの設定

• ターミナルでgit initする

$ git init
$ touch .gitignore
// VScodeでgitignoreファイルを開く
$ code .gitignore

gitugnoreに書く内容

(上に空行が必要)

# This .gitignore file should be placed at the root of your Unity project directory
#
# Get latest from https://github.com/github/gitignore/blob/master/Unity.gitignore
#
/[Ll]ibrary/
/[Tt]emp/
/[Oo]bj/
/[Bb]uild/
/[Bb]uilds/
/[Ll]ogs/
/[Mm]emoryCaptures/

# Asset meta data should only be ignored when the corresponding asset is also ignored
!/[Aa]ssets/**/*.meta

# Uncomment this line if you wish to ignore the asset store tools plugin
# /[Aa]ssets/AssetStoreTools*

# Autogenerated Jetbrains Rider plugin
[Aa]ssets/Plugins/Editor/JetBrains*

# Visual Studio cache directory
.vs/

# Gradle cache directory
.gradle/

# Autogenerated VS/MD/Consulo solution and project files
ExportedObj/
.consulo/
*.csproj
*.unityproj
*.sln
*.suo
*.tmp
*.user
*.userprefs
*.pidb
*.booproj
*.svd
*.pdb
*.mdb
*.opendb
*.VC.db

# Unity3D generated meta files
*.pidb.meta
*.pdb.meta
*.mdb.meta

# Unity3D generated file on crash reports
sysinfo.txt

# Builds
*.apk
*.unitypackage

# Crashlytics generated file
crashlytics-build.properties

• gitignoreをコミット後、Unityプロジェクトのファイルをコミットする。

unityroom投稿用の設定

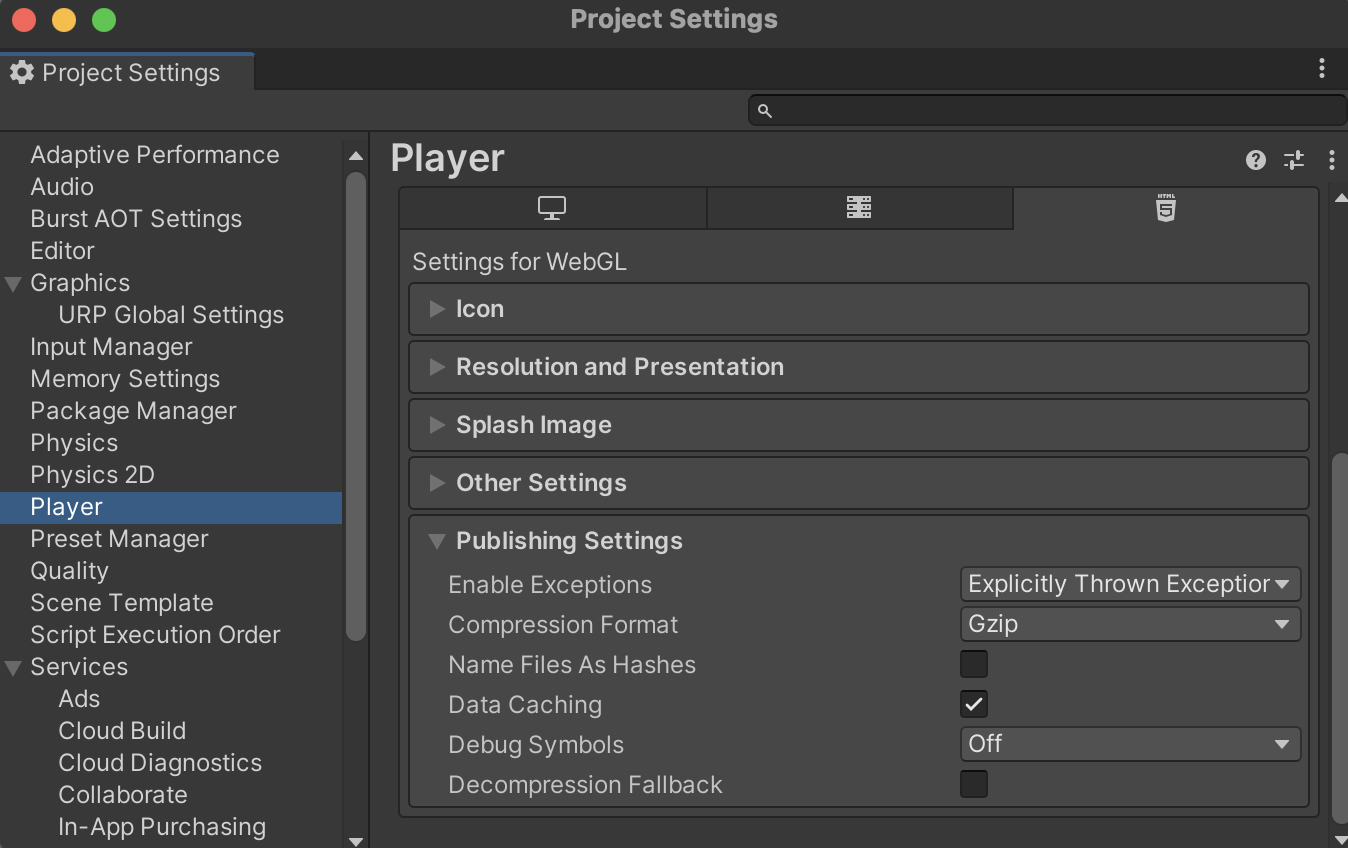

• Edit1->Project Setting->Compression FormatをGzipに切り替え

• File->Build SettingからPlatformをWebGLに切り替え

• ここで一回感謝のwebGLビルドを行う

スクリプト全般

• enum

public enum StageEnum
{
    /// <summary>
    /// タイトル画面
    /// </summary>
    Title = 0,
    /// <summary>
    /// ゲーム中
    /// </summary>
    GamePlay,
    /// <summary>
    /// エンディング
    /// </summary>
    Ending,
    /// <summary>
    /// ゲーム停止中
    /// </summary>
    GamePause
}
// 変数定義
StageEnum m_status;
// 値のセット
m_status = StageEnum.Ending;

• SerializeField

int[] m_doorNumber = {0,0,0,0};

// GameObject
[SerializeField] private GameObject startCanvas = null;
// Timeline
[SerializeField] private PlayableDirector mabatakiDirector = null;
// Image
[SerializeField] private Image glassWaku = null;
// TevtMeshPro
[SerializeField] private TextMeshProUGUI timeLabel;
// AudioClip
[SerializeField] private AudioClip sound_garara;

• debugLog

Debug.Log("停止");

• 音量のスライドバー

public void SoundSliderOnValueChange(float newSliderValue)
{
	// 音楽の音量をスライドバーの値に変更
	audioSource.volume = newSliderValue;

    // 音：カチ
   audioSource.PlayOneShot(sound_kachi);
}

• Timer

if(!isTimerStop)
{
    mabatakiTimer -= Time.deltaTime;
    timeLabel.text = String.Format("00:{0:00}", mabatakiTimer);
    if( mabatakiTimer <= 0.0f )
    {
        timeLabel.text = String.Format("00:{0:00}", 0);
        mabatakiDirector.Play();
    }
}

• Color

Color colorSelected = new Color(0.9176f, 0.6588f, 0.1333f, 0.5882f);

• Audio（シングルトン不要のとき）
  https://www.sejuku.net/blog/83535

• setActive関連

haneObject.SetActive(true);


void Start () {
    Debug.Log("Start");
}

void OnEnable() {
    Debug.Log("OnEnable");
}

void OnDisable() {
    Debug.Log("OnDisable");
}

void OnDestroy() {
    Debug.Log("OnDestroy");
}

• Destroy

Destroy (this.gameObject);

• インターバル

.AppendInterval(this.DurationSeconds*2)

• Invoke

Invoke("Maruend",0.3f);

• タイムライン

playableDirector.played += (関数名);
playableDirector.stopped += (関数名);
playableDirector.Play();

• コピペ用

アセット

DOTween Pro

• パネルの開き方
  Tools > Demigiant > DOTween

• Preferenceタブ

  • Autoplay : All → None
  • Ease : Out Quad → In Cubic
  • AutoKill
  • Loop Type Restart/Yoyo/Incremental

• 基本形

using UnityEngine;
using UnityEngine.UI;
using DG.Tweening;

public class DOScale : MonoBehaviour
{
    public float DurationSeconds;
    public Ease EaseType;

    Tweener tweener;

    void Start()
    {
        tweener = this.gameObject.GetComponent<RectTransform>().DOScale(new Vector3(1, 1, 1), this.DurationSeconds).SetEase(this.EaseType);
        tweener.Pause();
        tweener.Play();
    }
}

• シーケンス

// 上下移動
RectTransform rectTransform = transform as RectTransform;
sequenceParent = DOTween.Sequence()
    .SetLoops(-1, LoopType.Restart)
    .Append(rectTransform.DOAnchorPosY(100f, this.DurationSeconds)
            .SetRelative(true)
            .SetEase(this.EaseType)
            )
    .Append(rectTransform.DOAnchorPosY(-100f, this.DurationSeconds)
    .SetRelative(true)
    .SetEase(this.EaseType)
            )
    .AppendInterval(this.DurationSeconds*2)
    ;

• 開始・停止

//途中終了
tweener.Kill();
//一時停止
tweener.Pause();
//再開(もしくは実行)
tweener.Play();
//リスタート(最初から再生)
tweener.Restart();

• ループタイプ

// Loop Type Restart/Yoyo/Incremental
.SetLoops(-1, LoopType.Yoyo)

Text Mesh Pro

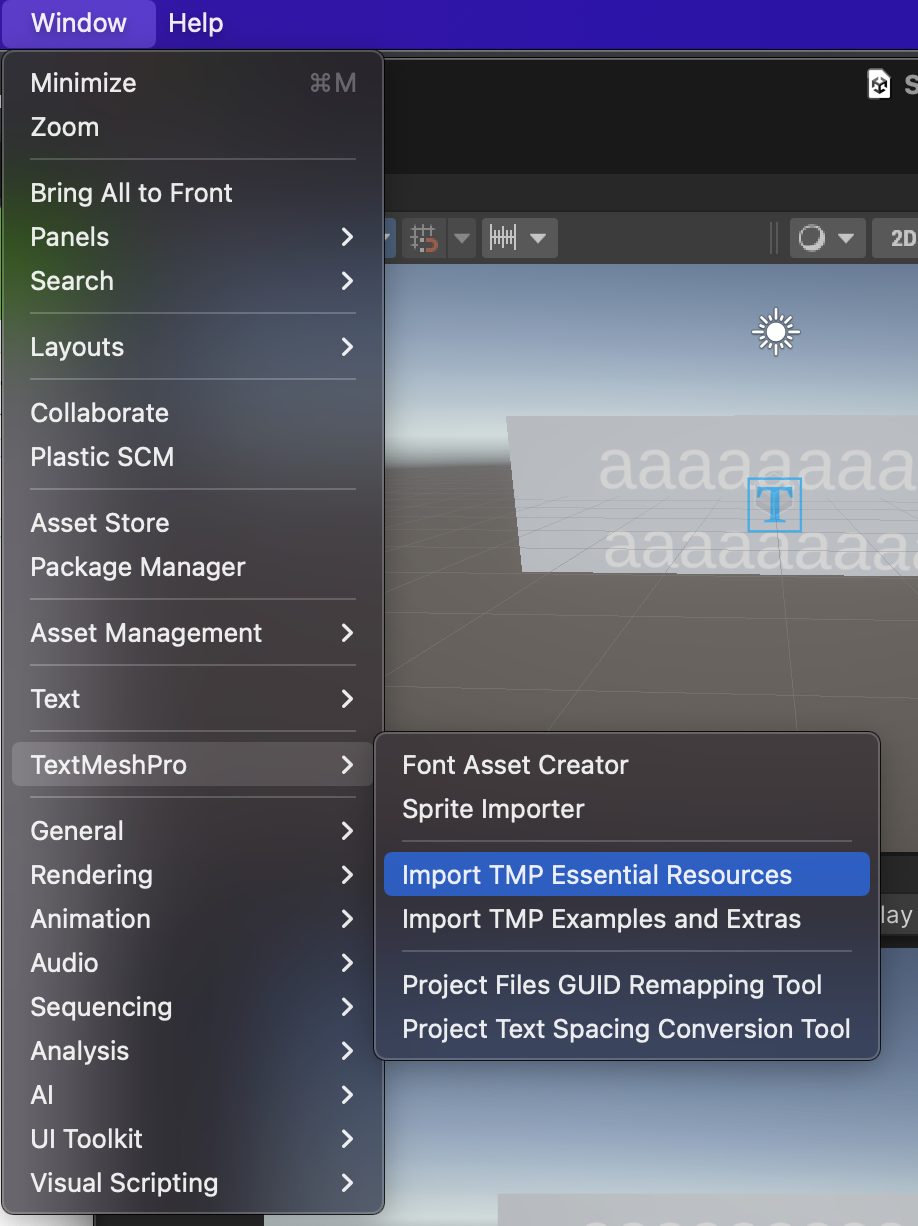

• まずはImport TMP Essentioal Resources

• フォントアセット作成
  • *.ttfファイルをUnityに取り込む

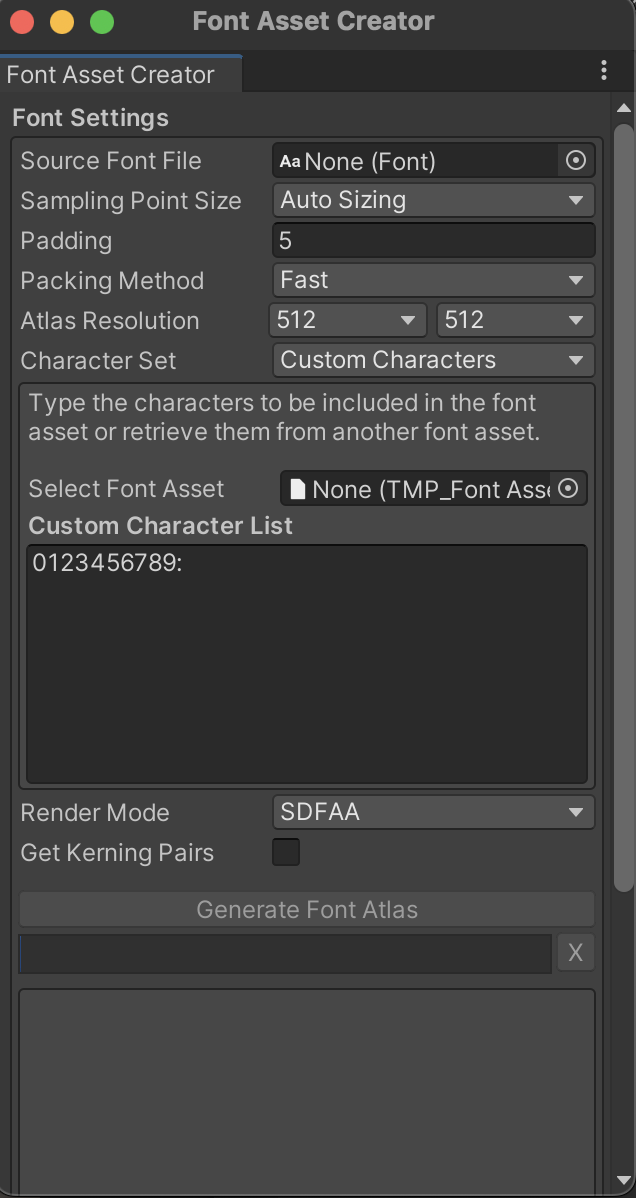

  • Window-> TextMeshPro -> Font Asset Creator
  • Source Font Fileにttfファイル設定
    -少ない文字だけ生成するとき

    -すべて生成するとき

32-128,12288-12543,12448-12543,65280-65519,19968,19971,19977,19978,19979,20013,20061,20108,20116,20154,20241,20808,20837,20843,20845,20870,20986,21147,21313,21315,21475,21491,21517,22235,22303,22805,22823,22825,22899,23376,23383,23398,23567,23665,24029,24038,24180,25163,25991,26085,26089,26376,26408,26412,26449,26519,26657,26862,27491,27671,27700,28779,29356,29577,29579,29983,30000,30007,30010,30333,30334,30446,30707,31354,31435,31481,31992,32819,33457,33609,34411,35211,35997,36196,36275,36554,37329,38632,38738,38899,19975,20024,20132,20140,20170,20250,20307,20309,20316,20803,20804,20809,20844,20869,20908,20992,20998,20999,21069,21271,21320,21322,21335,21407,21451,21476,21488,21512,21516,22238,22259,22269,22290,22320,22580,22768,22770,22799,22806,22810,22812,22826,22969,22985,23460,23478,23546,23569,23721,24037,24066,24112,24195,24215,24339,24341,24351,24369,24375,24403,24418,24460,24515,24605,25144,25165,25945,25968,26032,26041,26126,26143,26149,26172,26178,26228,26332,26360,26397,26469,26481,27005,27468,27490,27497,27597,27598,27611,27744,27773,27963,28023,28857,29238,29275,29702,29992,30011,30058,30452,30690,30693,31038,31179,31185,31572,31639,31859,32025,32048,32068,32117,32218,32701,32771,32862,32905,33258,33337,33394,33590,34892,35199,35242,35282,35328,35336,35352,35441,35486,35501,35895,36023,36208,36817,36890,36913,36947,36960,37324,37326,38263,38272,38291,38634,38642,38651,38957,38996,39080,39135,39318,39340,39640,39770,40165,40180,40614,40644,40658,19969,19990,20001,20027,20055,20104,20107,20181,20182,20195,20303,20351,20418,20493,20840,20855,20889,21015,21161,21193,21205,21213,21270,21306,21307,21435,21453,21462,21463,21495,21521,21531,21619,21629,21644,21697,21729,21830,21839,22338,22830,22987,22996,23432,23433,23450,23455,23458,23470,23487,23506,23550,23616,23627,23736,23798,24030,24115,24179,24184,24230,24235,24237,24335,24441,24453,24613,24687,24746,24754,24819,24847,24863,25152,25171,25237,25342,25345,25351,25918,25972,26053,26063,26132,26157,26257,26263,26354,26377,26381,26399,26495,26609,26681,26893,26989,27096,27178,27211,27425,27503,27515,27703,27770,27833,27874,27880,27891,27915,27969,28040,28145,28201,28207,28246,28271,28450,28845,29289,29699,30001,30003,30028,30033,30149,30330,30331,30382,30399,30456,30476,30495,30528,30701,30740,31036,31070,31085,31119,31186,31350,31456,31461,31515,31532,31558,31561,31665,32026,32066,32209,32244,32650,32654,32722,32773,32946,33510,33655,33853,33865,34220,34880,34920,35433,35519,35527,35910,36000,36215,36335,36523,36578,36605,36786,36820,36861,36865,36895,36914,36938,36939,37096,37117,37197,37202,37325,37444,37504,38283,38498,38525,38542,38598,38754,38988,39154,39208,39365,40763,19981,20105,20184,20196,20197,20210,20253,20301,20302,20363,20415,20449,20489,20505,20511,20572,20581,20596,20685,20740,20806,20816,20849,20853,20856,20919,21021,21029,21033,21047,21103,21151,21152,21162,21172,21191,21253,21330,21332,21336,21338,21360,21442,21490,21496,21508,21578,21608,21809,21916,22120,22258,22266,22411,22530,22633,22763,22793,22827,22833,22909,23395,23403,23436,23448,23475,23519,24035,24046,24076,24109,24111,24213,24220,24247,24314,24452,24466,24471,24517,24565,24859,25104,25126,25240,25369,25913,25937,25943,25955,26009,26071,26152,26223,26368,26395,26410,26411,26413,26448,26463,26494,26524,26628,26696,26757,26800,26997,27161,27231,27424,27508,27531,27578,27602,27663,27665,27714,27835,27861,27875,27973,28020,28165,28288,28417,28783,28961,28982,28988,29031,29105,29287,29305,29987,30340,30465,31069,31080,31278,31309,31478,31505,31649,31680,31881,32000,32004,32080,32102,32154,32622,32769,32963,33032,33144,33251,33322,33391,33464,33469,33521,33756,34903,34915,35201,35226,35251,35347,35430,35500,35506,35696,35937,36008,36015,36027,36062,36557,36650,36766,36794,36899,36948,36984,37089,37327,37682,37857,38306,38520,38538,38745,38918,39000,39006,39131,39151,39178,39443,20037,20175,20206,20214,20219,20284,20313,20385,20445,20462,20469,20491,20633,20687,20877,21002,21028,21046,21048,21063,21177,21209,21218,21402,21477,21487,21942,22240,22243,22311,22312,22343,22522,22577,22659,22675,22679,22818,22971,23142,23481,23492,23500,23566,23621,23646,24067,24107,24120,24185,24207,24321,24373,24448,24489,24499,24535,24540,24555,24615,24681,24773,24907,24931,25215,25216,25307,25480,25505,25509,25552,25613,25903,25919,25925,25973,26029,26087,26131,26292,26465,26525,26619,26684,26716,26908,27083,27494,27604,27704,27827,28082,28151,28187,28204,28310,28436,28500,28797,29123,29256,29359,29366,29420,29575,29694,30041,30053,30410,30524,30772,30906,31034,31062,31105,31227,31243,31246,31689,31934,32032,32076,32113,32118,32191,32207,32232,32318,32340,32618,32676,32681,32789,32887,32933,33021,33288,33292,33294,34899,34907,35069,35079,35215,35299,35373,35377,35388,35413,35611,35613,35672,35703,35914,36001,36007,36012,36024,36031,36032,36039,36059,36074,36664,36848,36855,36864,36870,36896,36942,36969,37240,37489,37509,37549,38450,38480,38522,38555,38609,38750,38928,38936,38989,39164,20006,20081,20083,20129,20161,20379,20467,20516,20663,20778,20826,20874,20966,21051,21106,21109,21127,21220,21361,21365,21427,21454,21518,21542,21560,21628,21892,22256,22402,22478,22495,22863,22894,23039,23384,23389,23429,23431,23447,23449,23453,23459,23494,23544,23554,23556,23558,23562,23601,23610,23626,23637,23652,24049,24059,24149,24178,24188,24193,24231,24310,24459,24467,24536,24544,25010,25105,25209,25285,25309,25313,25448,25506,25512,25582,25805,25964,26144,26217,26262,26286,26391,26426,26522,26579,26666,26834,27169,27177,27193,27442,27573,27839,27849,27927,27966,28168,28304,28526,28608,28784,29087,29255,29677,30064,30097,30171,30343,30427,30431,30475,30722,30913,31169,31192,31296,31348,31379,31563,31574,31777,31958,31995,32005,32013,32020,32121,32294,32302,32626,32716,32854,32954,32972,33016,33075,33145,33235,33256,33267,33509,33879,33976,34101,34453,34886,35009,35013,35023,35036,35222,35239,35342,35370,35379,35422,35468,35469,35477,35488,35492,35542,35576,35686,36020,36035,36986,37109,37111,37341,37628,38281,38307,38477,38491,38500,38556,38627,38761,38914,39592,19976,19982,19988,19992,19993,20025,20047,20057,20094,20102,20114,20117,20124,20139,20141,20171,20185,20208,20225,20239,20240,20271,20276,20280,20282,20294,20304,20339,20341,20365,20381,20398,20399,20405,20419,20426,20439,20472,20498,20515,20523,20537,20553,20559,20597,20598,20605,20621,20625,20632,20652,20661,20670,20693,20698,20711,20736,20754,20767,20805,20811,20813,20860,20882,20887,20896,20934,20941,20957,20961,20982,20984,20985,20995,21000,21009,21040,21050,21066,21078,21083,21091,21092,21104,21155,21169,21182,21189,21208,21215,21223,21234,21242,21249,21280,21305,21311,21319,21329,21331,21344,21363,21364,21368,21380,21400,21448,21450,21452,21460,21465,21483,21484,21513,21519,21520,21535,21547,21561,21576,21577,21682,21696,21746,21766,21767,21776,21807,21843,21914,21917,21930,21931,21987,22022,22065,22132,22151,22234,22287,22346,22353,22378,22435,22475,22519,22521,22528,22533,22549,22564,22570,22592,22593,22602,22609,22612,22615,22618,22654,22684,22696,22707,22718,22721,22727,22730,22732,22766,22769,22855,22857,22865,22868,22885,22888,22890,22900,22914,22915,22916,22922,22937,22949,22952,22995,23019,23035,23041,23064,23072,23087,23110,23130,23167,23186,23233,23244,23265,23330,23380,23396,23452,23472,23476,23477,23490,23515,23517,23521,23527,23529,23534,23551,23553,23561,23563,23578,23612,23613,23614,23615,23624,23653,23663,23696,23724,23731,23776,23777,23792,23815,23822,23849,24033,24039,24040,24070,24093,24101,24125,24133,24163,24187,24189,24190,24202,24246,24248,24259,24265,24266,24311,24330,24336,24340,24358,24359,24382,24425,24427,24432,24433,24444,24449,24464,24481,24490,24494,24500,24505,24524,24525,24537,24594,24598,24608,24618,24651,24656,24658,24677,24680,24685,24693,24724,24735,24736,24739,24742,24745,24764,24785,24796,24808,24816,24833,24841,24858,24904,24908,24910,24917,24930,24936,24942,24944,24950,24962,24974,24996,25001,25014,25022,25031,25040,25074,25080,25106,25135,25147,25151,25159,25161,25173,25201,25206,25220,25226,25233,25239,25244,25246,25259,25265,25269,25273,25276,25277,25293,25296,25298,25299,25304,25305,25312,25324,25335,25361,25375,25391,25407,25429,25436,25454,25475,25484,25490,25496,25499,25511,25514,25522,25551,25562,25563,25569,25588,25594,25644,25645,25658,25662,25666,25688,25705,25731,25764,25774,25778,25793,25830,25836,25915,25935,25954,25975,25993,25998,26007,26012,26020,26021,26045,26059,26082,26088,26092,26118,26119,26159,26222,26230,26241,26247,26278,26283,26311,26356,26361,26367,26389,26417,26420,26429,26441,26479,26512,26528,26530,26543,26550,26564,26576,26580,26611,26643,26680,26685,26691,26705,26719,26820,26827,26842,26847,26874,27004,27010,27133,27396,27431,27450,27454,27475,27507,27529,27530,27542,27572,27579,27583,27713,27735,27738,27743,27784,27798,27809,27810,27832,27836,27841,27850,27852,27873,27877,27888,27934,27941,27946,27972,27996,28006,28010,28014,28024,28057,28079,28092,28113,28129,28155,28167,28169,28171,28179,28193,28198,28286,28287,28317,28342,28357,28363,28369,28381,28382,28404,28418,28422,28431,28448,28459,28460,28472,28508,28511,28516,28548,28609,28611,28651,28655,28716,28809,28810,28814,28858,28872,28966,29017,29033,29038,29128,29157,29190,29237,29298,29344,29378,29417,29421,29467,29471,29483,29486,29494,29503,29508,29539,29554,29572,29645,29664,29748,29872,29885,29942,29976,29978,30002,30036,30044,30045,30067,30094,30123,30130,30142,30151,30168,30178,30196,30274,30290,30294,30342,30406,30423,30435,30436,30450,30462,30496,30522,30561,30563,30636,30683,30703,30741,30770,30813,30827,30828,30849,30865,30952,30977,30990,31048,31049,31077,31109,31117,31168,31199,31209,31216,31258,31282,31292,31295,31298,31311,31339,31361,31363,31378,31406,31407,31452,31471,31526,31570,31623,31684,31716,31807,31821,31883,31890,31895,31896,31899,31911,31975,31998,32011,32027,32033,32034,32043,32047,32051,32057,32058,32094,32097,32153,32173,32177,32178,32202,32210,32224,32233,32239,32257,32260,32283,32299,32321,32330,32341,32365,32368,32566,32624,32631,32645,32705,32763,32764,32784,32791,32884,32908,32918,32925,32930,32937,32938,32943,32966,32974,32990,33012,33026,33029,33050,33073,33081,33104,33109,33136,33178,33180,33192,33261,33268,33303,33310,33311,33324,33334,33351,33382,33419,33437,33459,33495,33538,33550,33618,33624,33738,33740,33747,33775,33900,33988,34180,34214,34218,34219,34281,34299,34384,34394,34396,34398,34442,34503,34509,34542,34701,34909,34913,34928,34935,34955,34987,35010,35029,35064,35088,35090,35167,35186,35206,35207,35302,35330,35351,35359,35380,35386,35408,35412,35424,35440,35442,35443,35463,35465,35475,35480,35531,35565,35566,35582,35584,35585,35588,35609,35617,35641,35676,35698,35930,35946,35998,36002,36009,36011,36036,36042,36051,36060,36064,36066,36070,36092,36104,36198,36212,36229,36234,36259,36317,36321,36339,36341,36362,36367,36493,36556,36562,36575,36600,36611,36617,36637,36649,36676,36763,36785,36796,36805,36814,36843,36845,36867,36879,36880,36883,36884,36893,36910,36920,36930,36933,36935,36941,36949,36963,36973,36974,36981,36983,36991,36996,37030,37034,37048,37066,37070,37101,37196,37204,37218,37226,37228,37237,37239,37276,37304,37320,37347,37389,37428,37467,37474,37507,37521,37528,37613,37619,37656,37664,37676,37679,37723,37782,37806,37912,37969,38289,38309,38322,38360,38459,38468,38499,38501,38506,38512,38515,38517,38518,38533,38534,38543,38548,38560,38563,38583,38587,38596,38597,38599,38604,38626,38640,38646,38647,38656,38663,38666,38684,38695,38706,38772,38907,38911,38917,38929,38930,38971,38972,38997,39015,39138,39165,39166,39187,39321,39364,39366,39376,39438,39442,39472,39514,39620,39658,39740,39746,39749,39764,39854,39912,40335,40599,40635,40665,40723,40802
